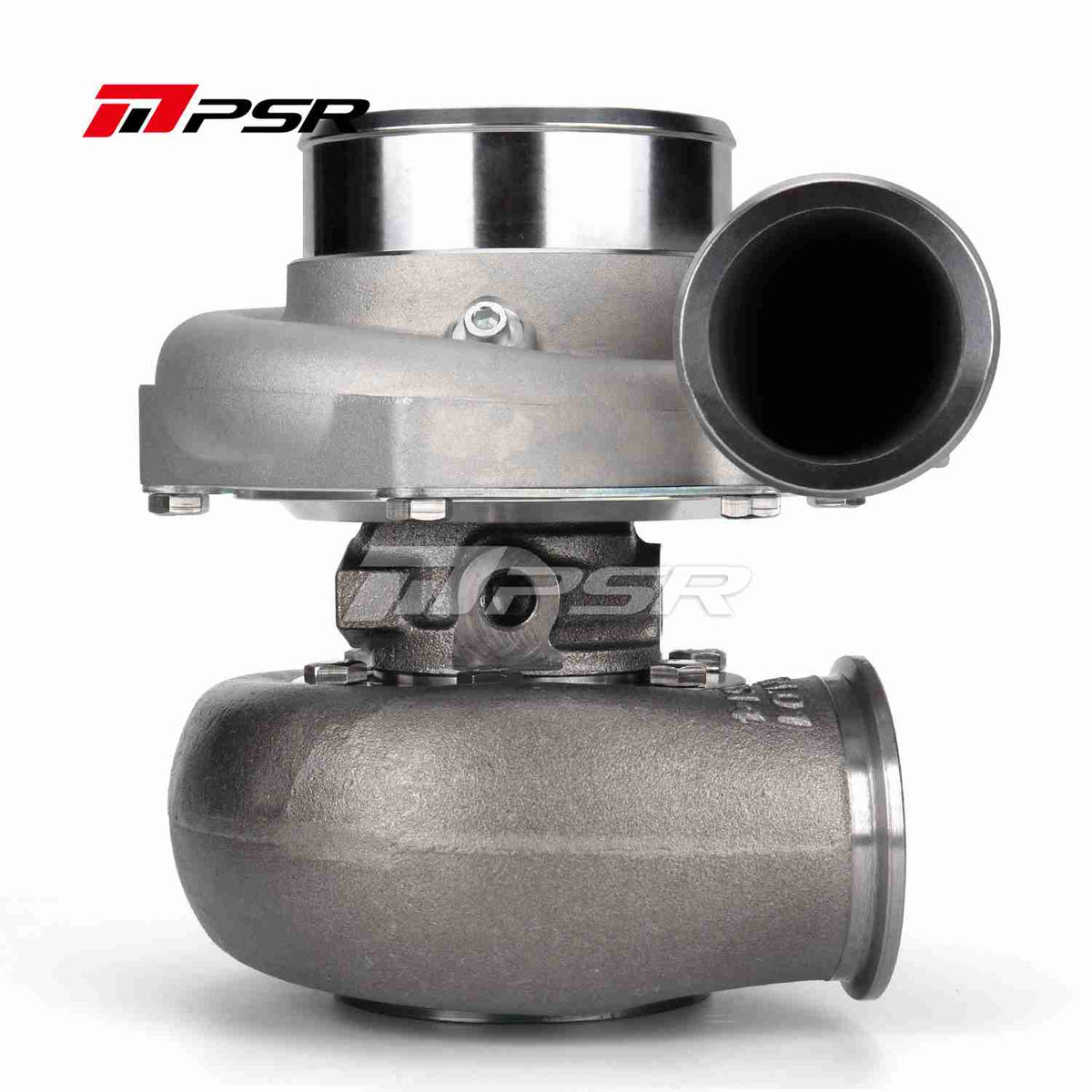

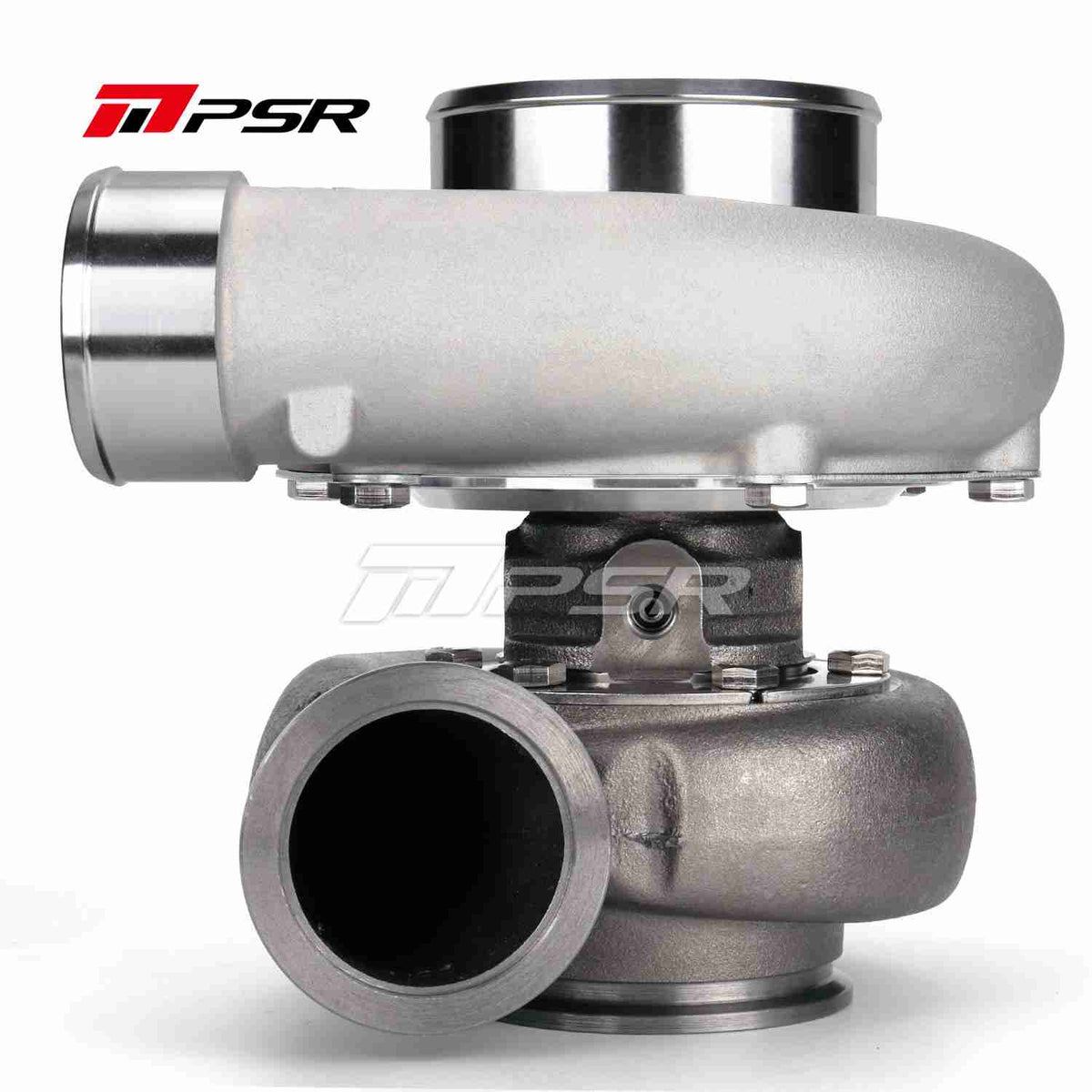

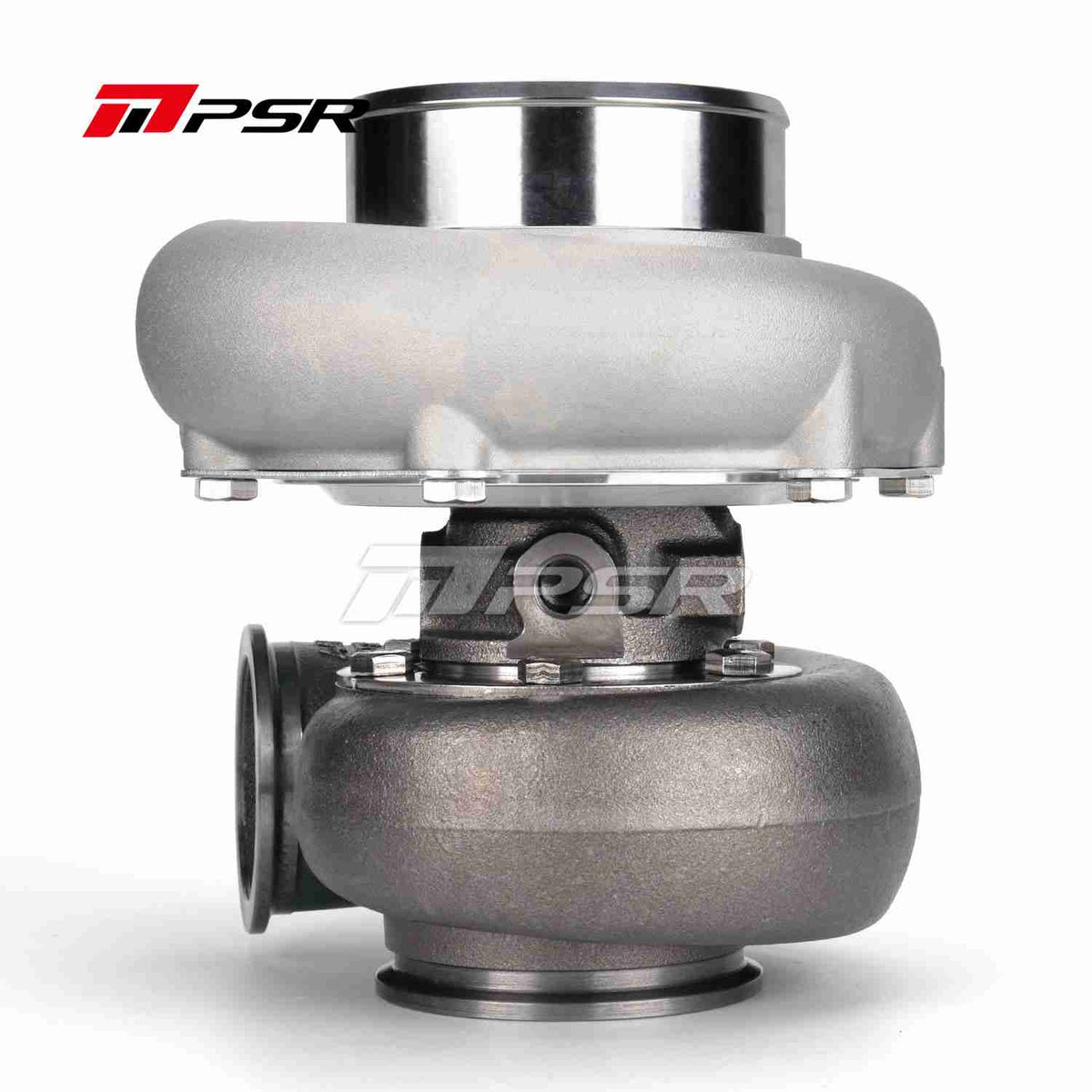

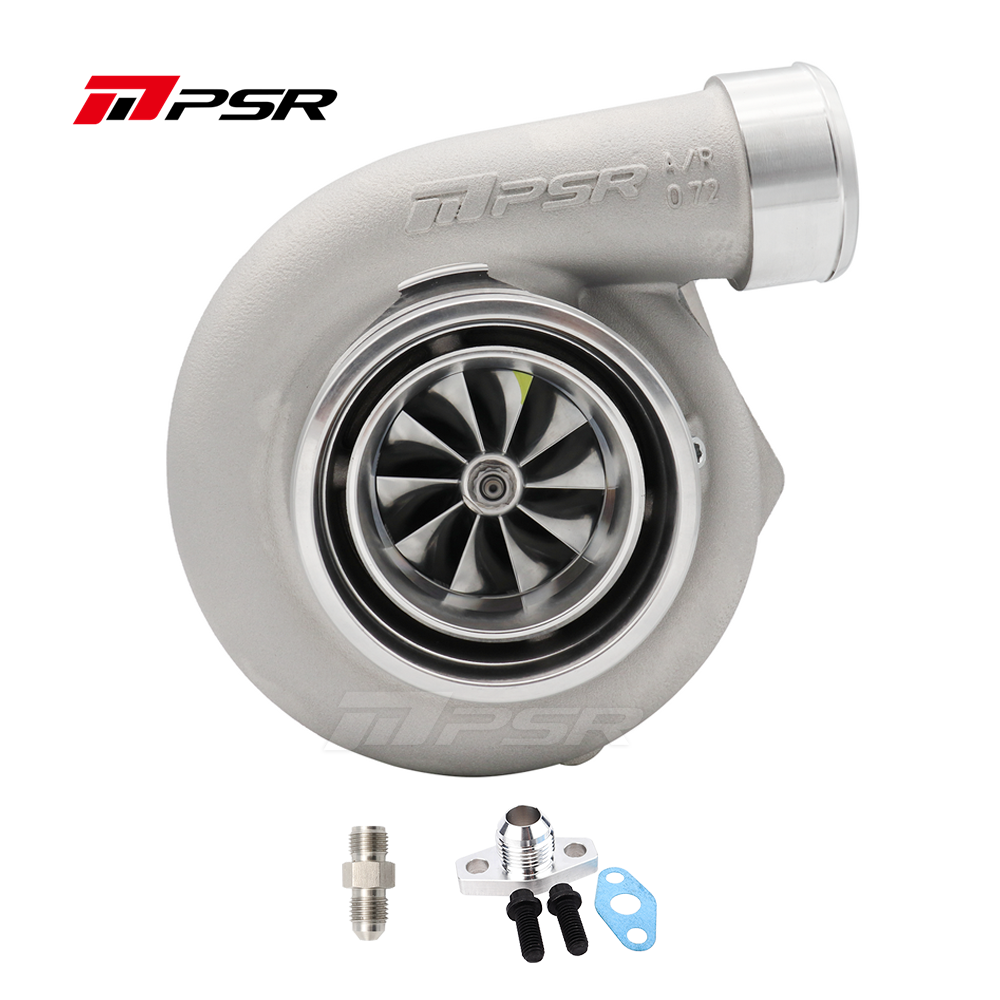

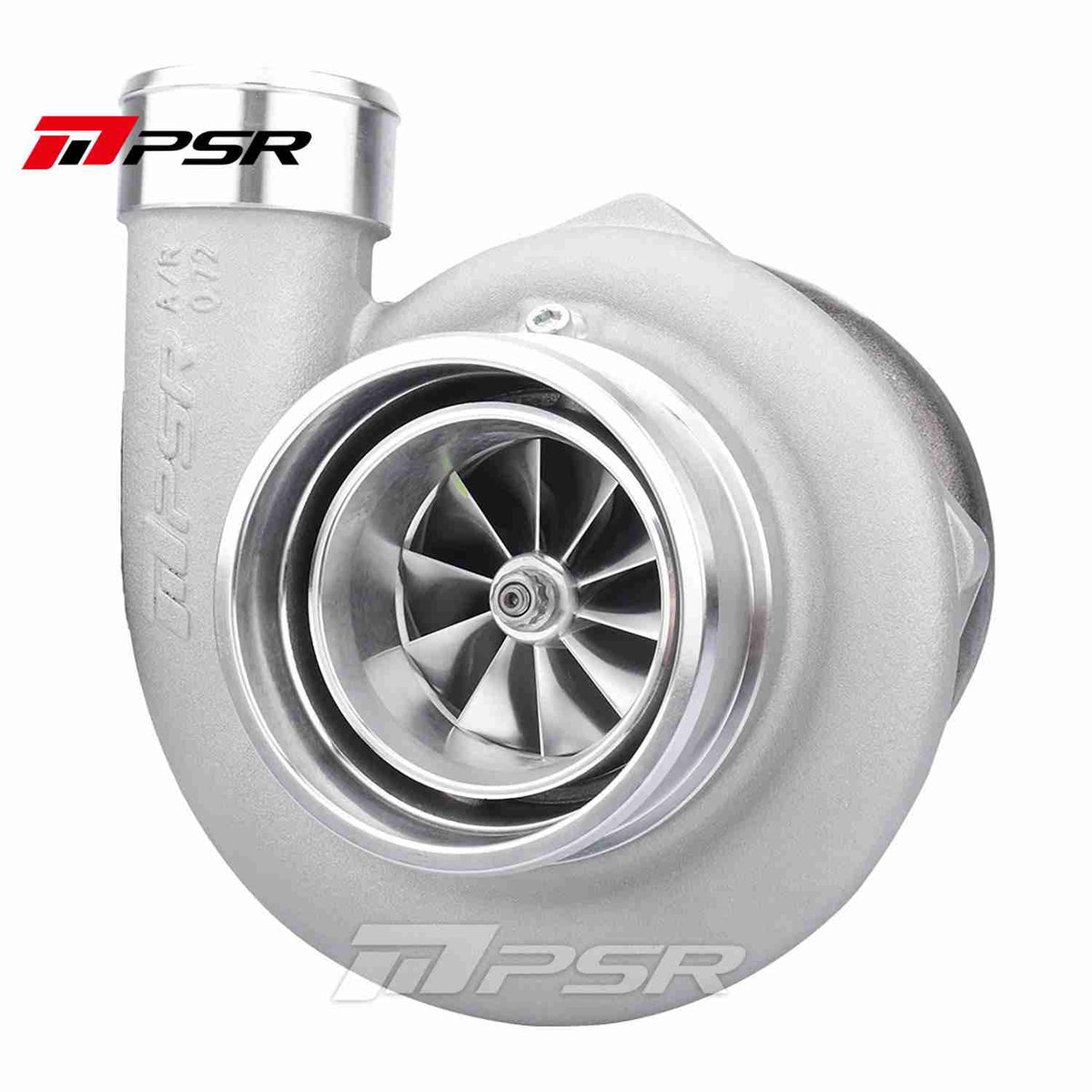

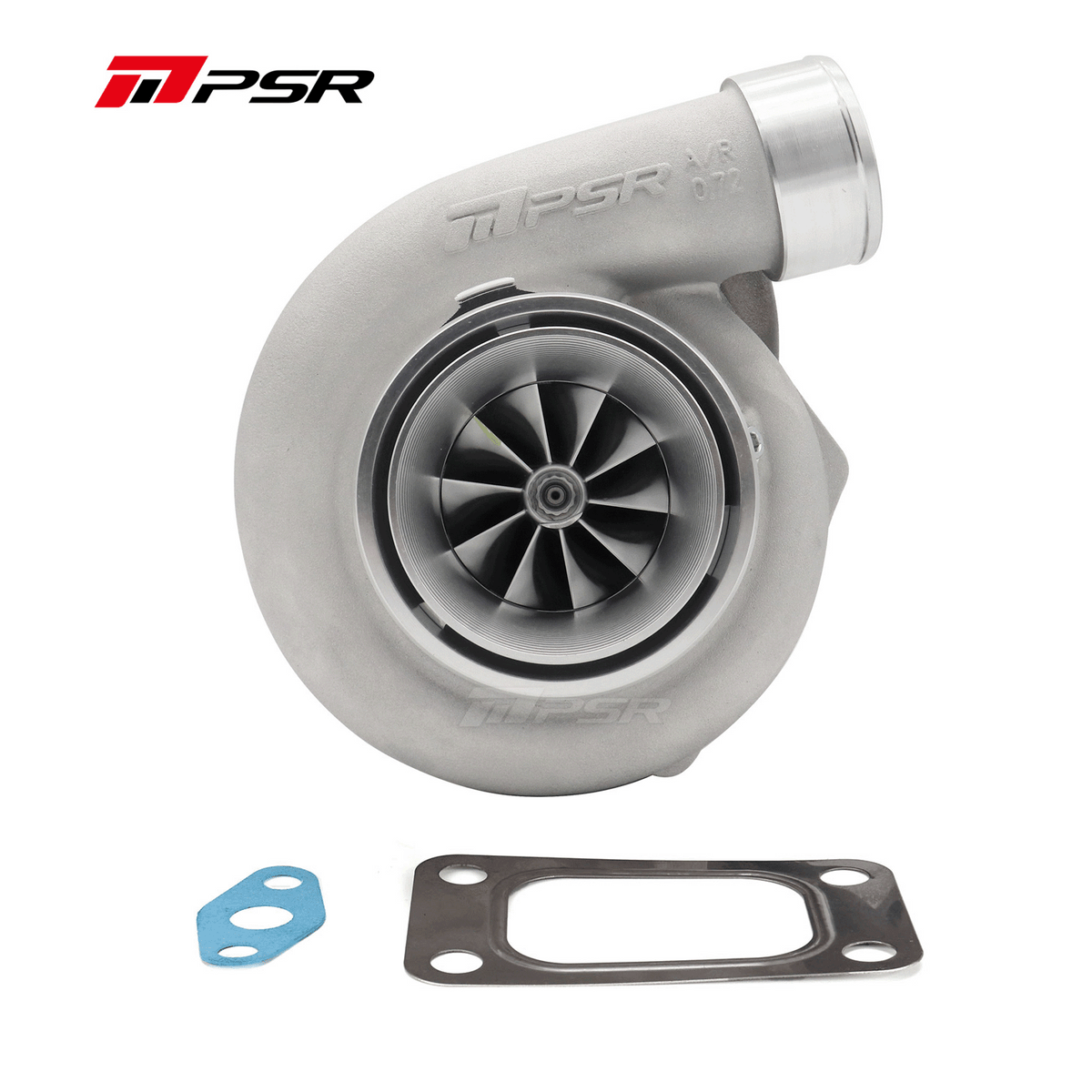

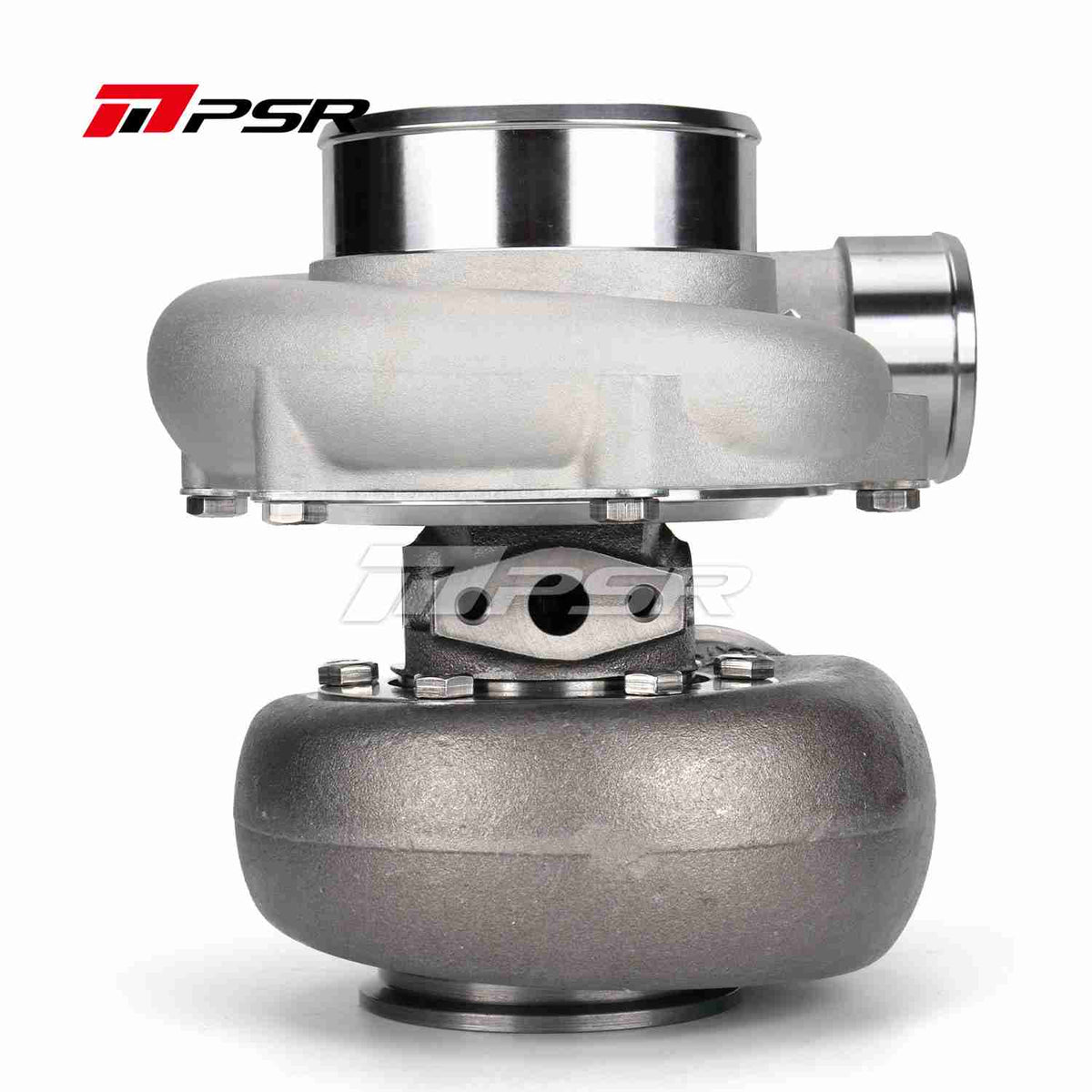

PSR3584 Gen3 Dual Ball Bearing Turbocharger

PSR3584 Gen3 Dual Ball Bearing Turbocharger

From $1,230.00 ~~$0.00~~

or 4 interest-free payments of $409.75 with afterpay

Select an option to add this to your cart

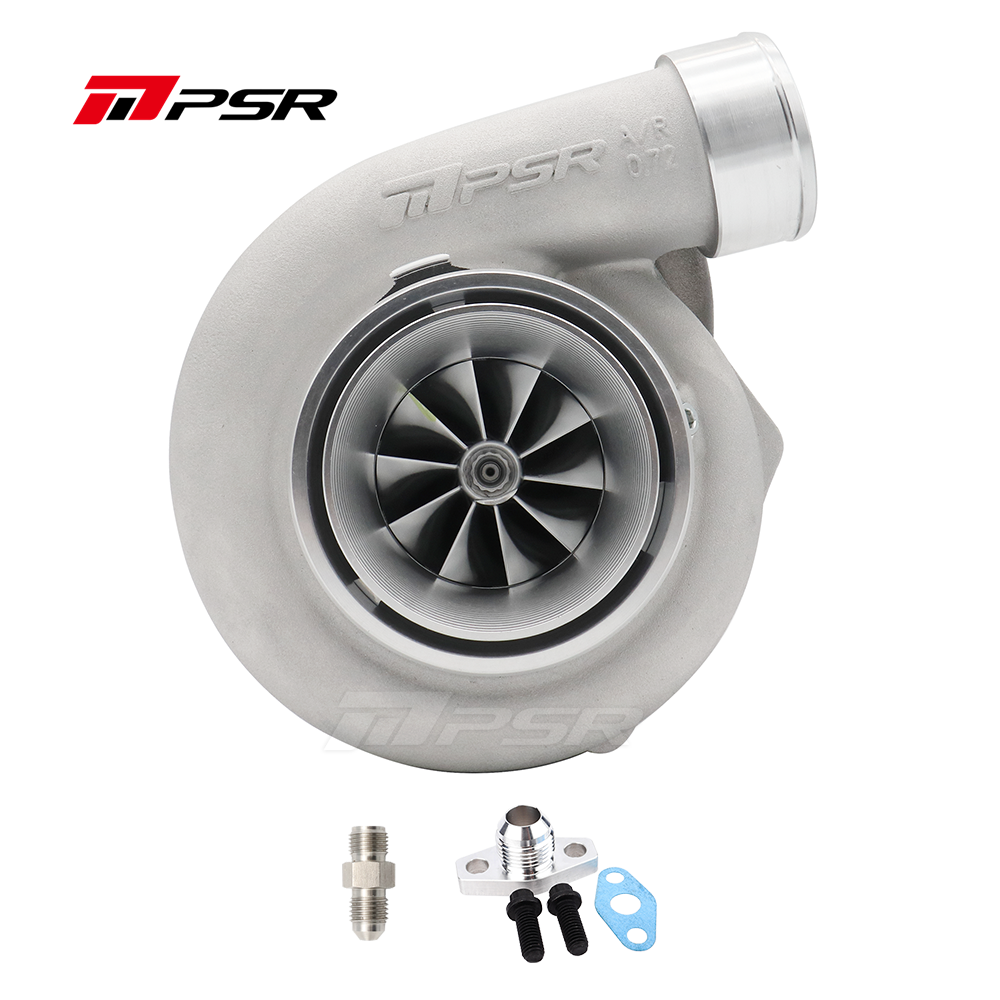

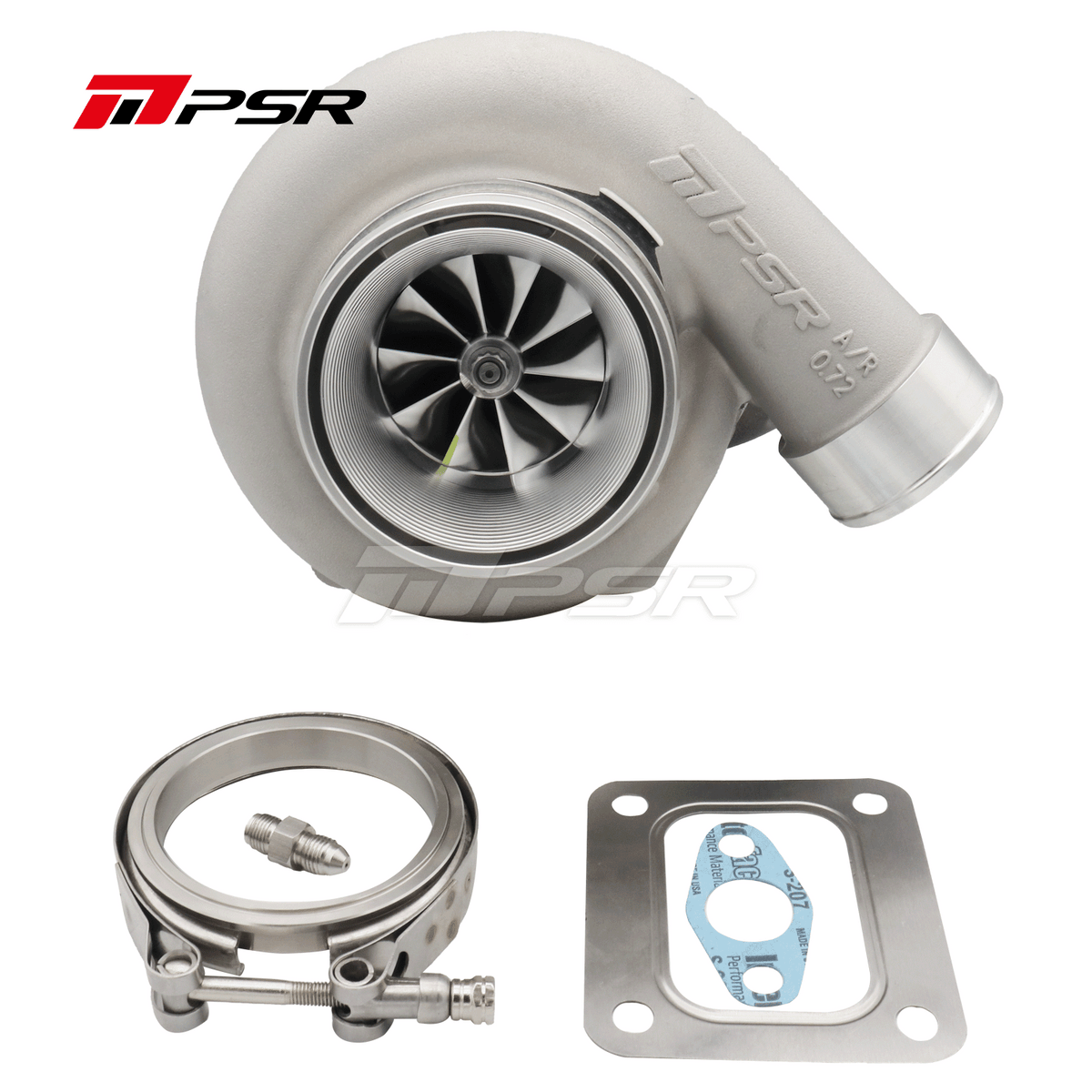

Compressor Housing Options : Standard : T51R Mod : Without Compressor Cover

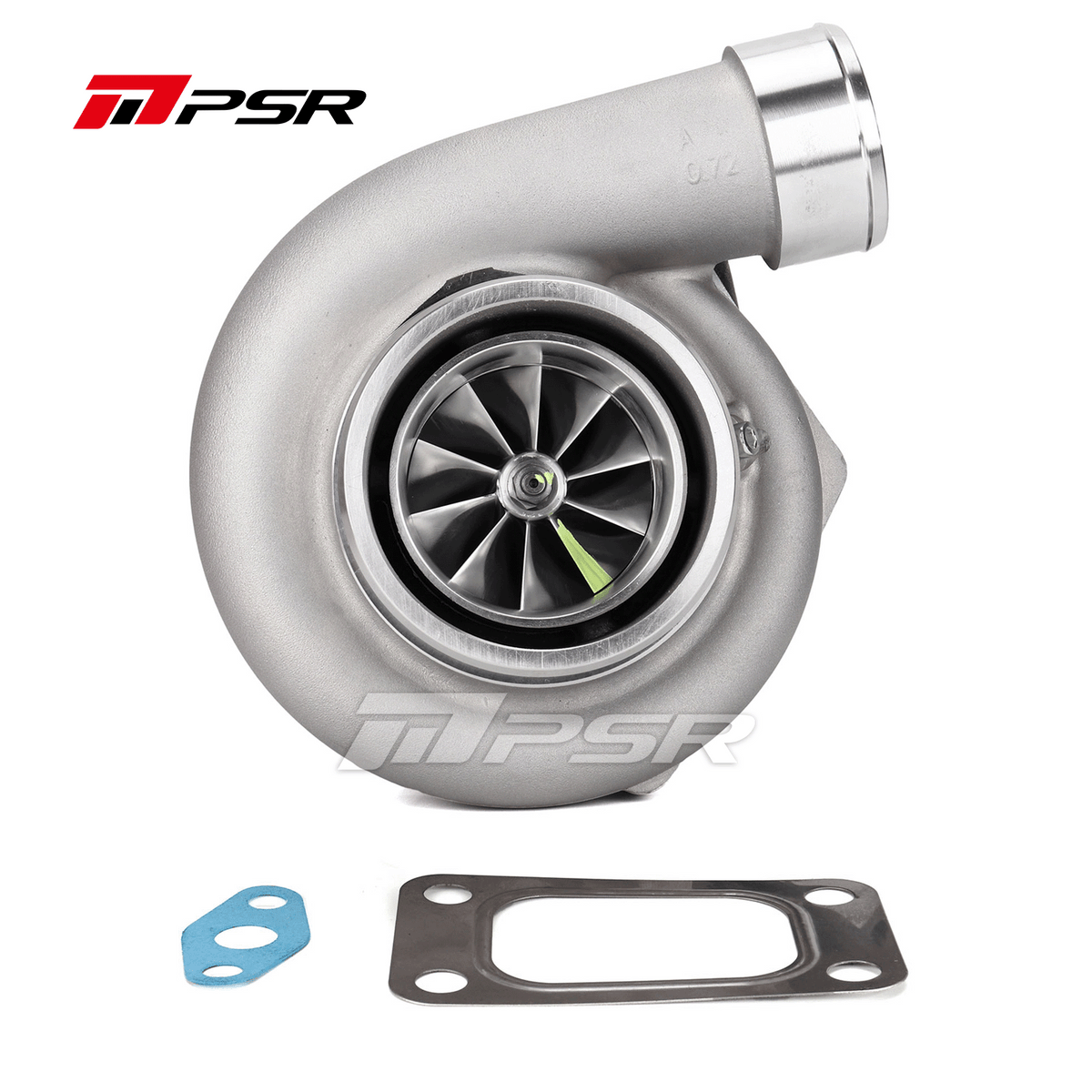

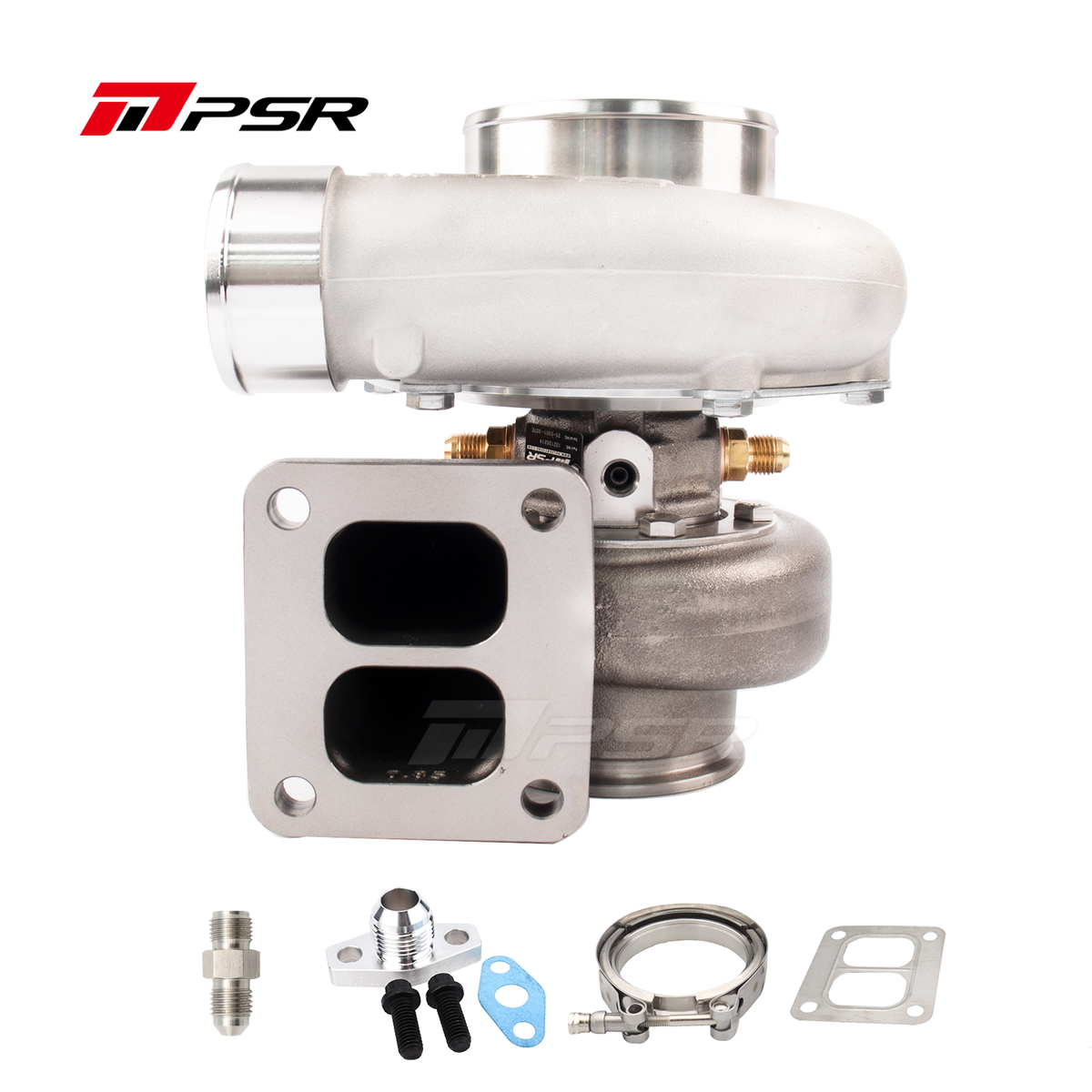

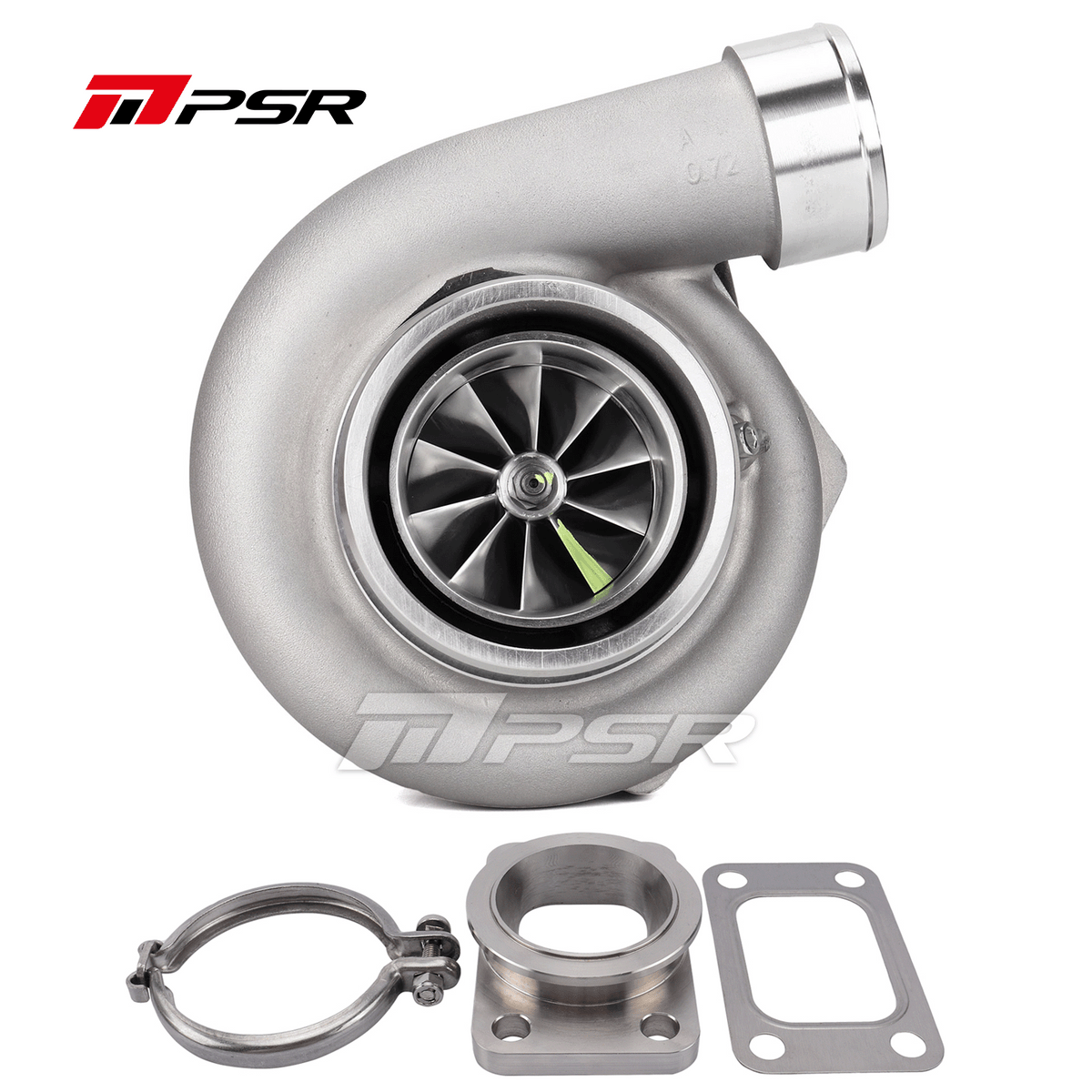

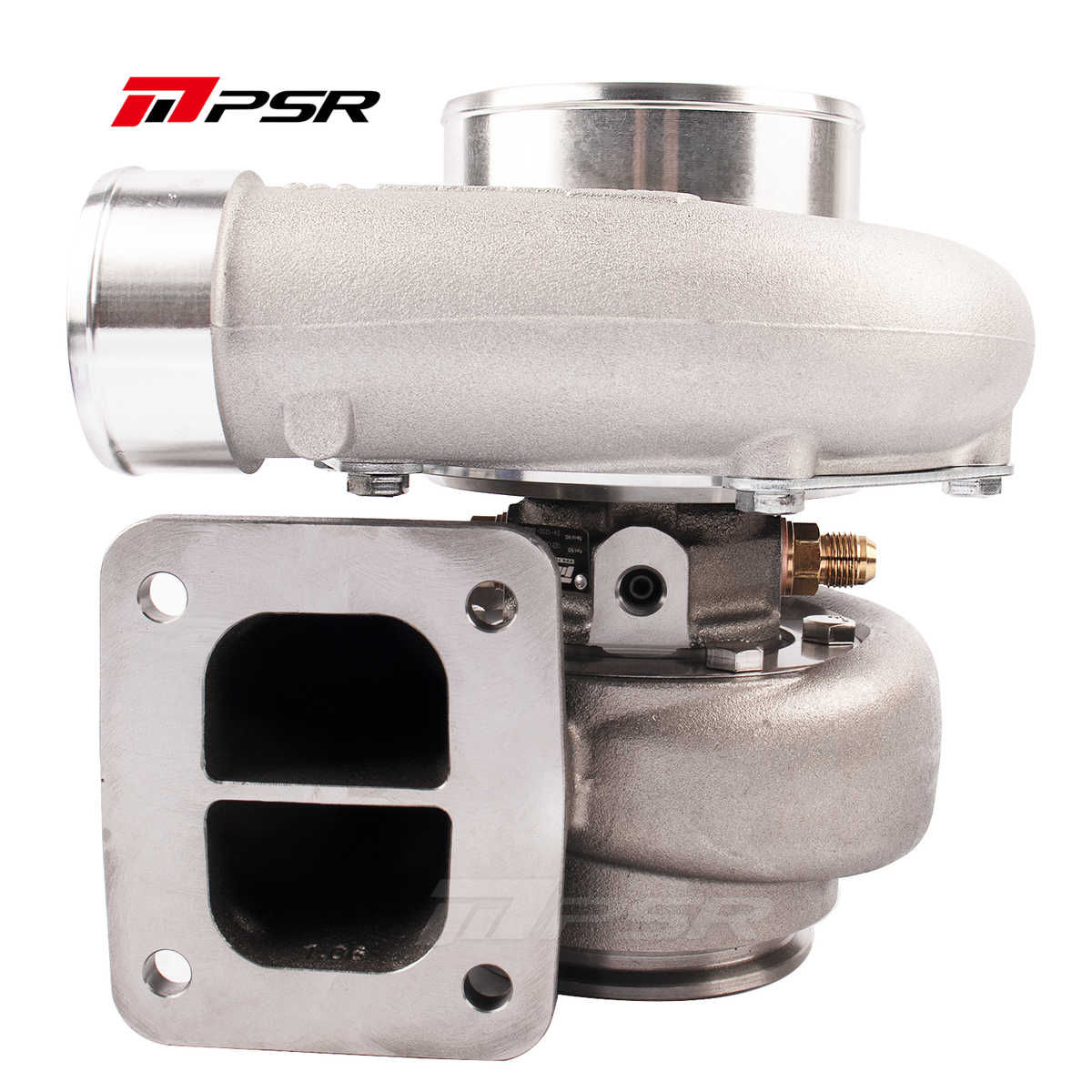

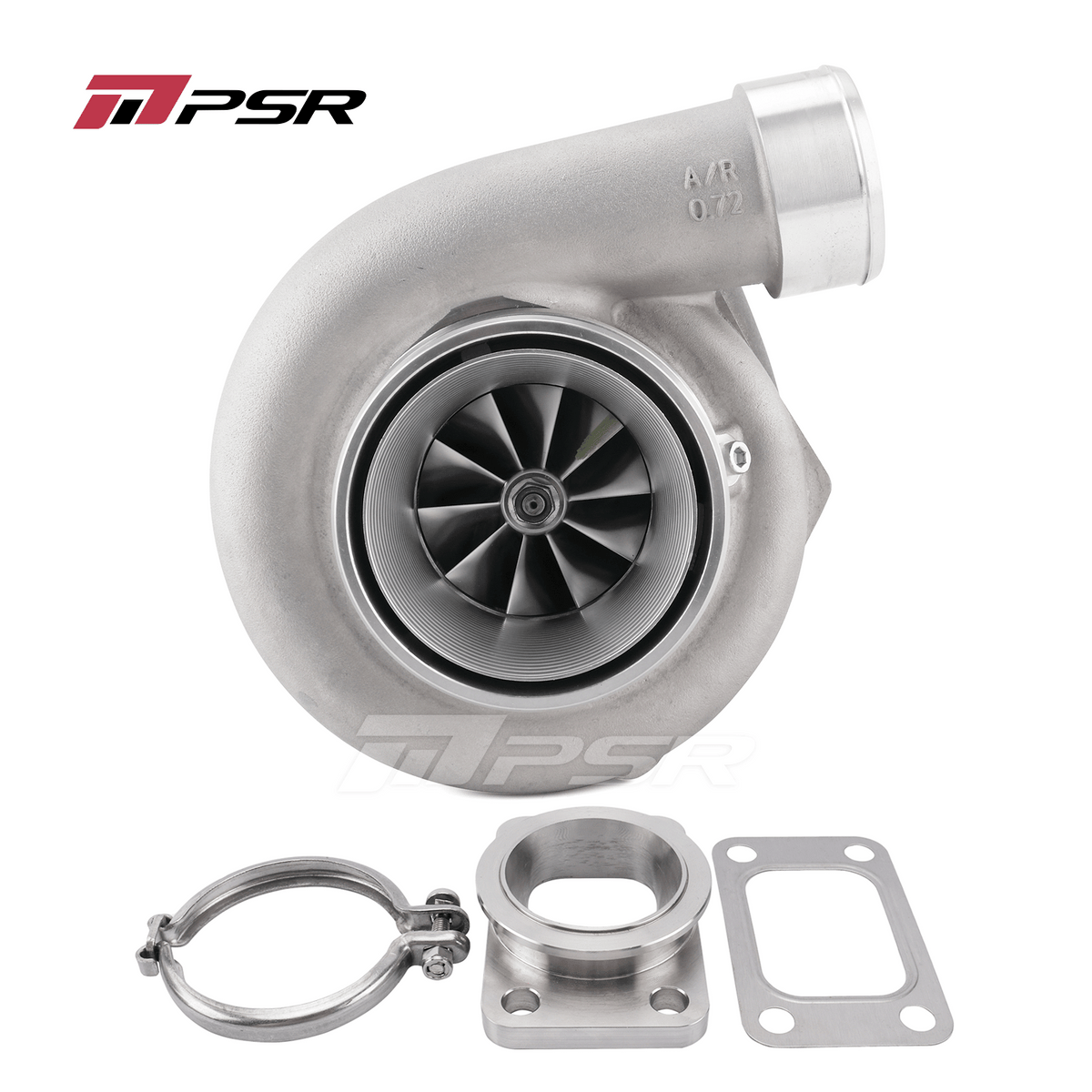

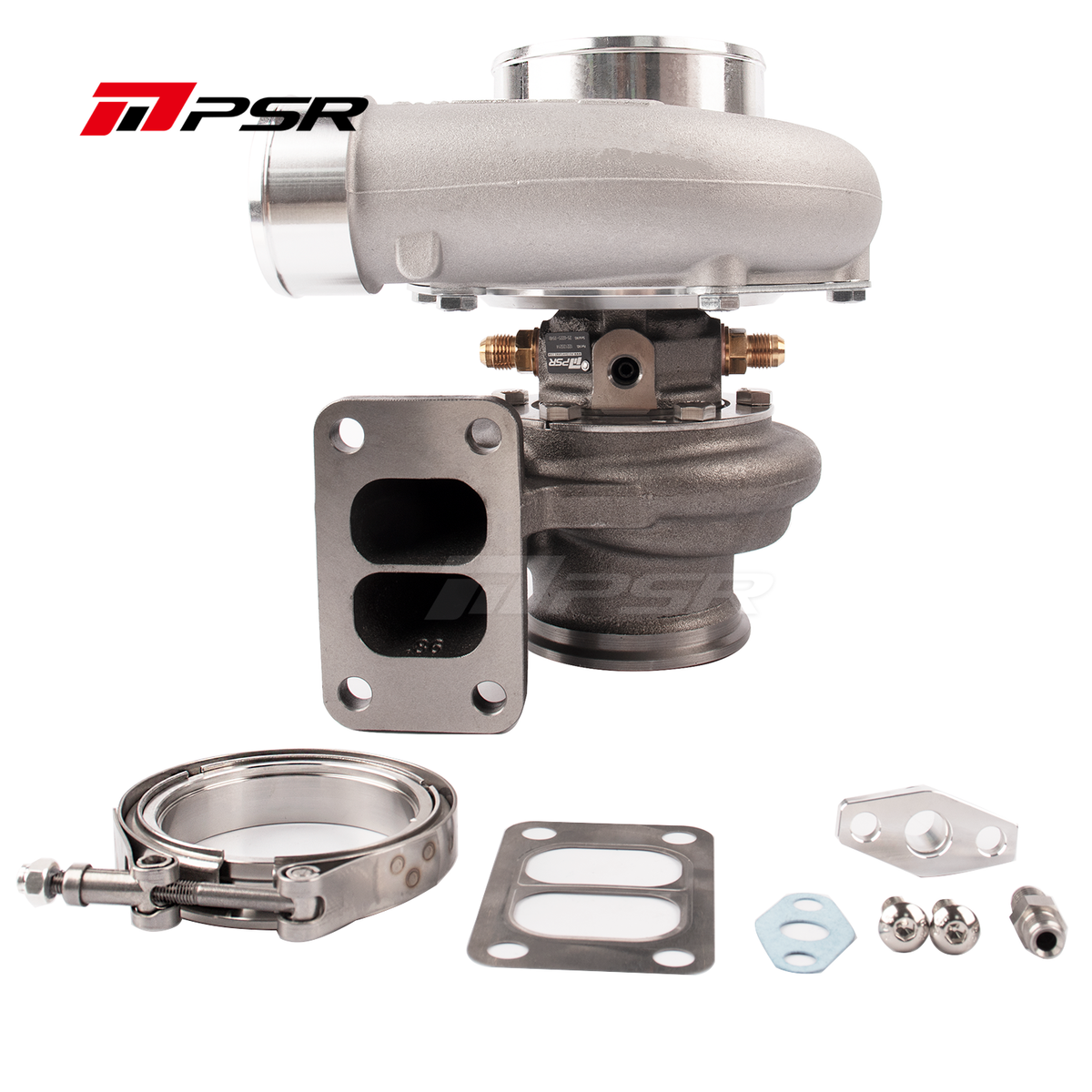

Turbine Housing Options : T4 Divided A/R1.06 : T3 Divided A/R0.86 : T4 open 0.63A/R STAINLESS STEEL : Without Turbine Housing : 1.01 DUAL V-BAND+T4 Adapter : .82 SS Dual Vband+T4 Adapter : 1.03 SS Dual Vband+T4 Adapter : T4 Divided A/R0.85 : .82 SS Dual Vband+T3 Adapter : 1.03 SS Dual Vband+T3 Adapter : 1.03 SS Dual Vband+T25 Adapter : 1.03 SS Dual Vband : .82 SS Dual Vband+T25 Adapter : .82 SS Dual Vband : T3 .63 V-BAND : T3 .82 V-BAND : T3 1.06 V-BAND : T4 .82 V-BAND : 0.83 DUAL V-BAND : 1.01 DUAL V-BAND

Sold Out

Quantity

PSR3584 Gen3 Dual Ball Bearing Turbocharger

Most orders ship in 1–3 days. Hand-made parts can take 1–4 weeks. In a hurry? Contact us first.

Description

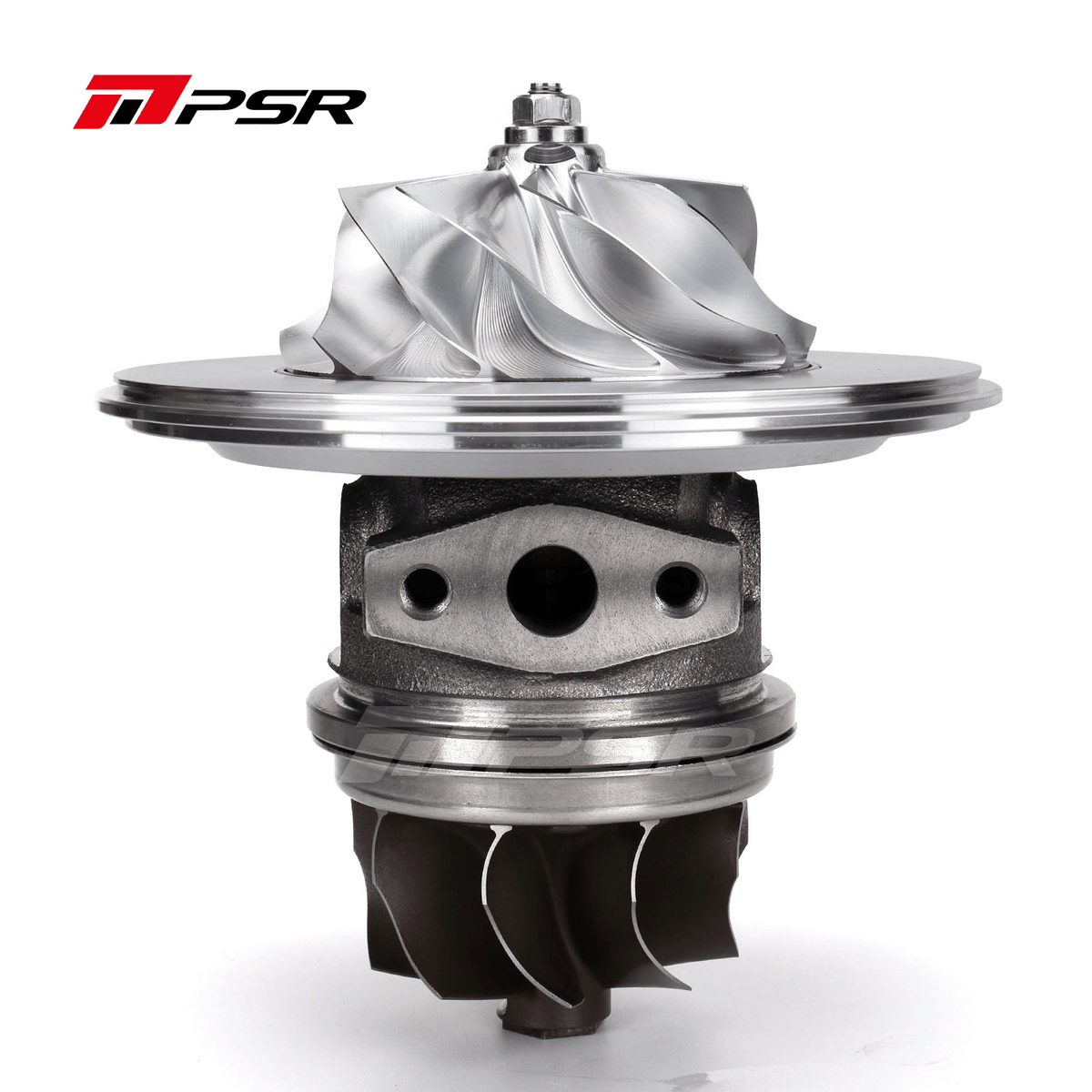

Dual Ceramic Ball Bearing System

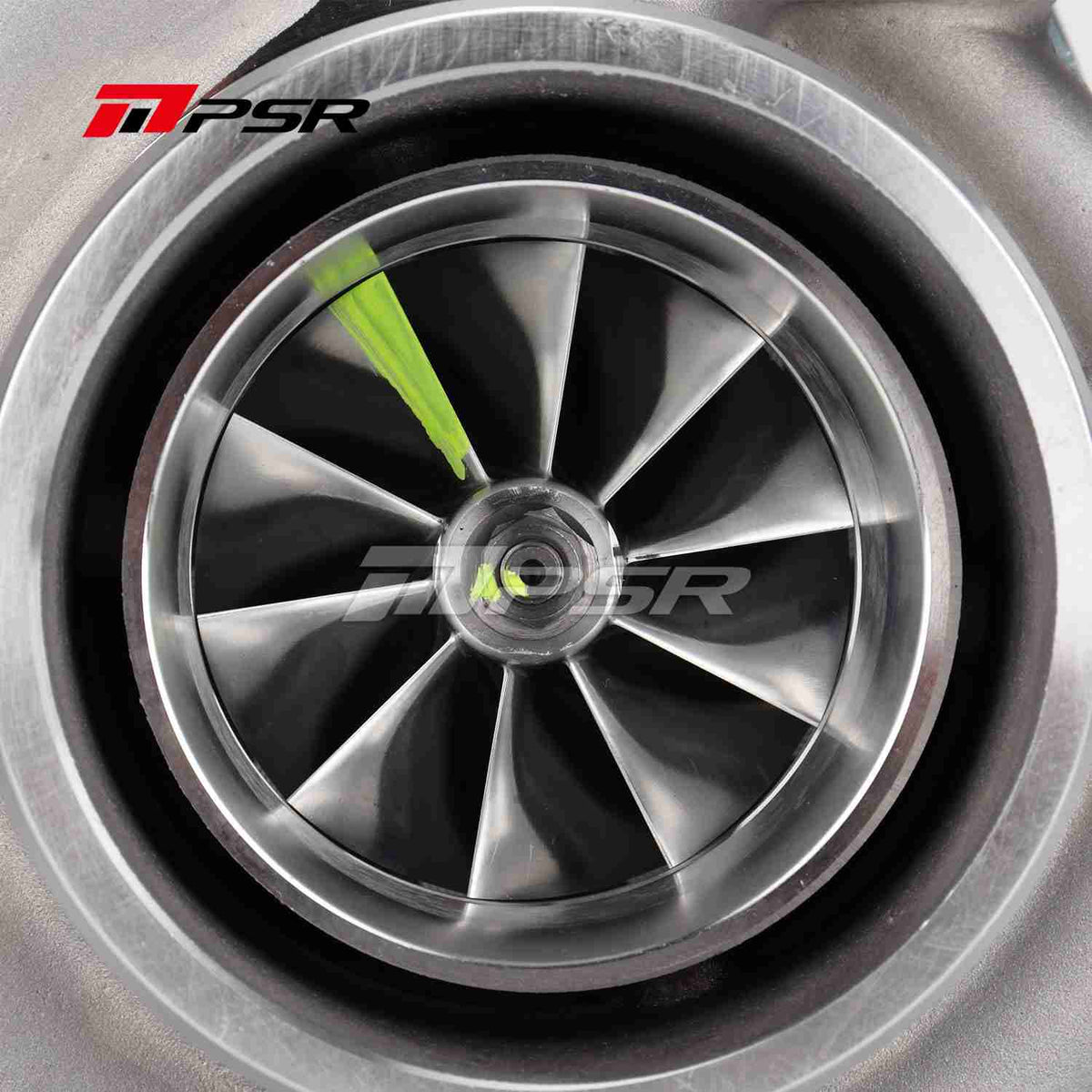

10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

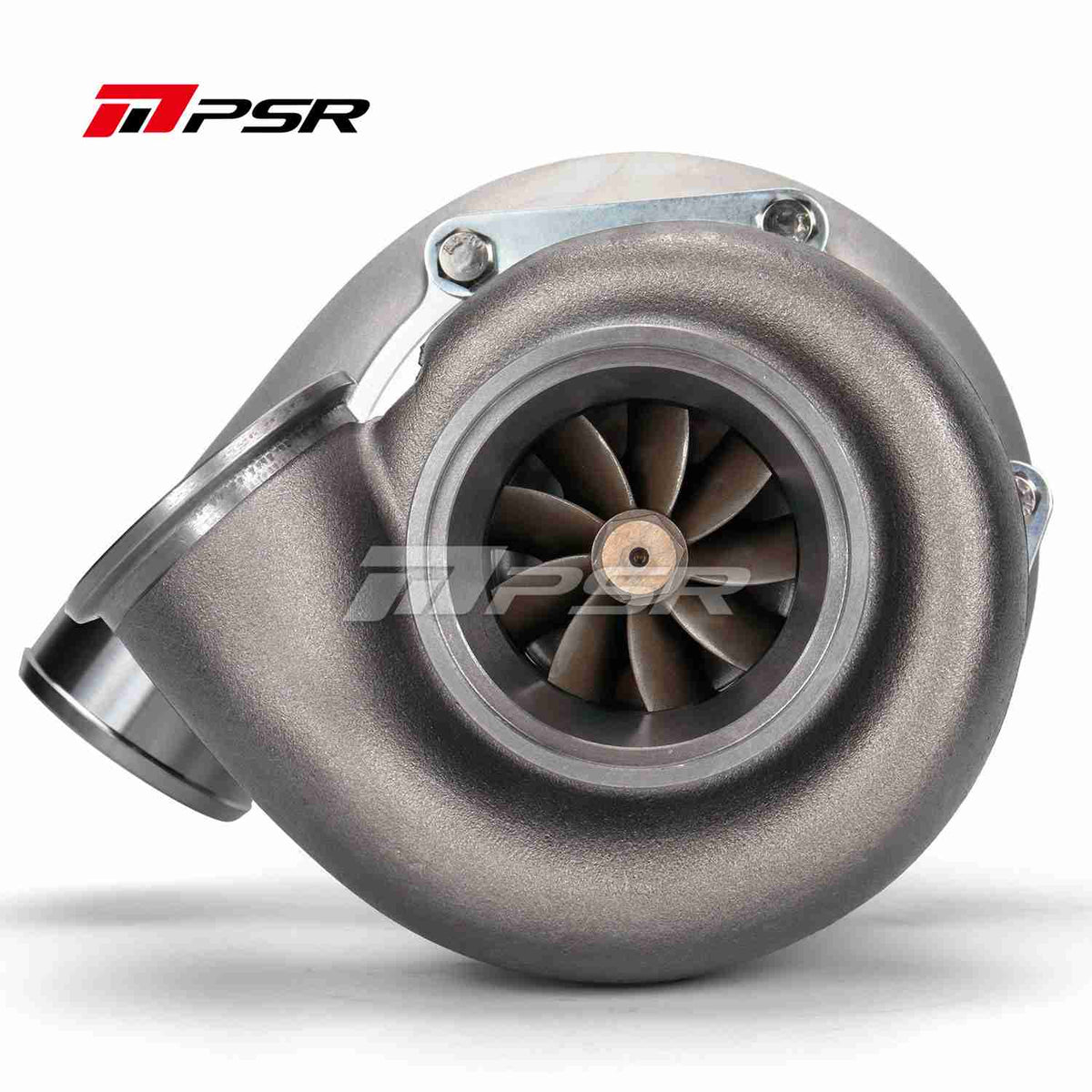

Inconel 713c 10 Blade Turbine Wheel with High Horsepower

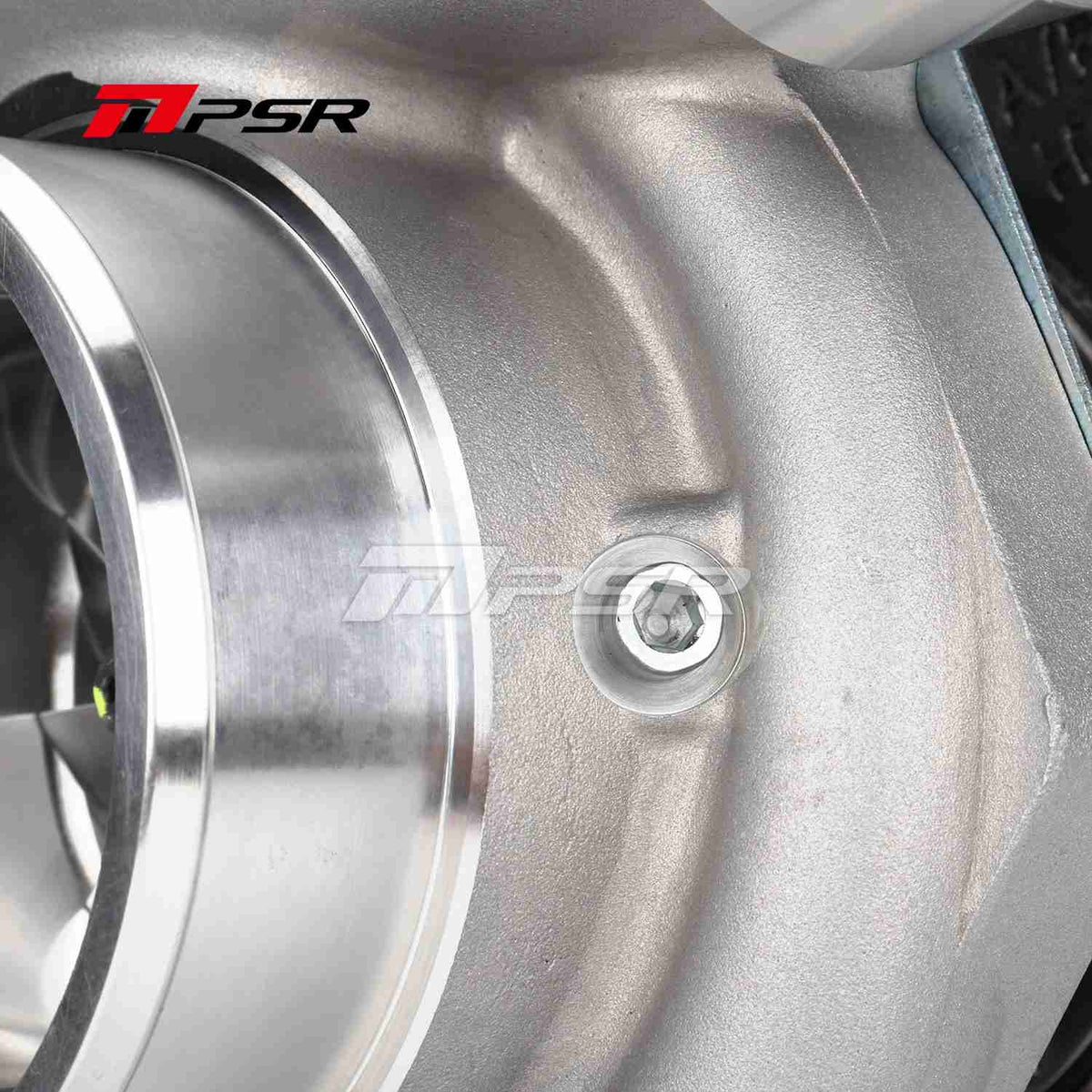

Cover Integrated with the Speed Sensor Port

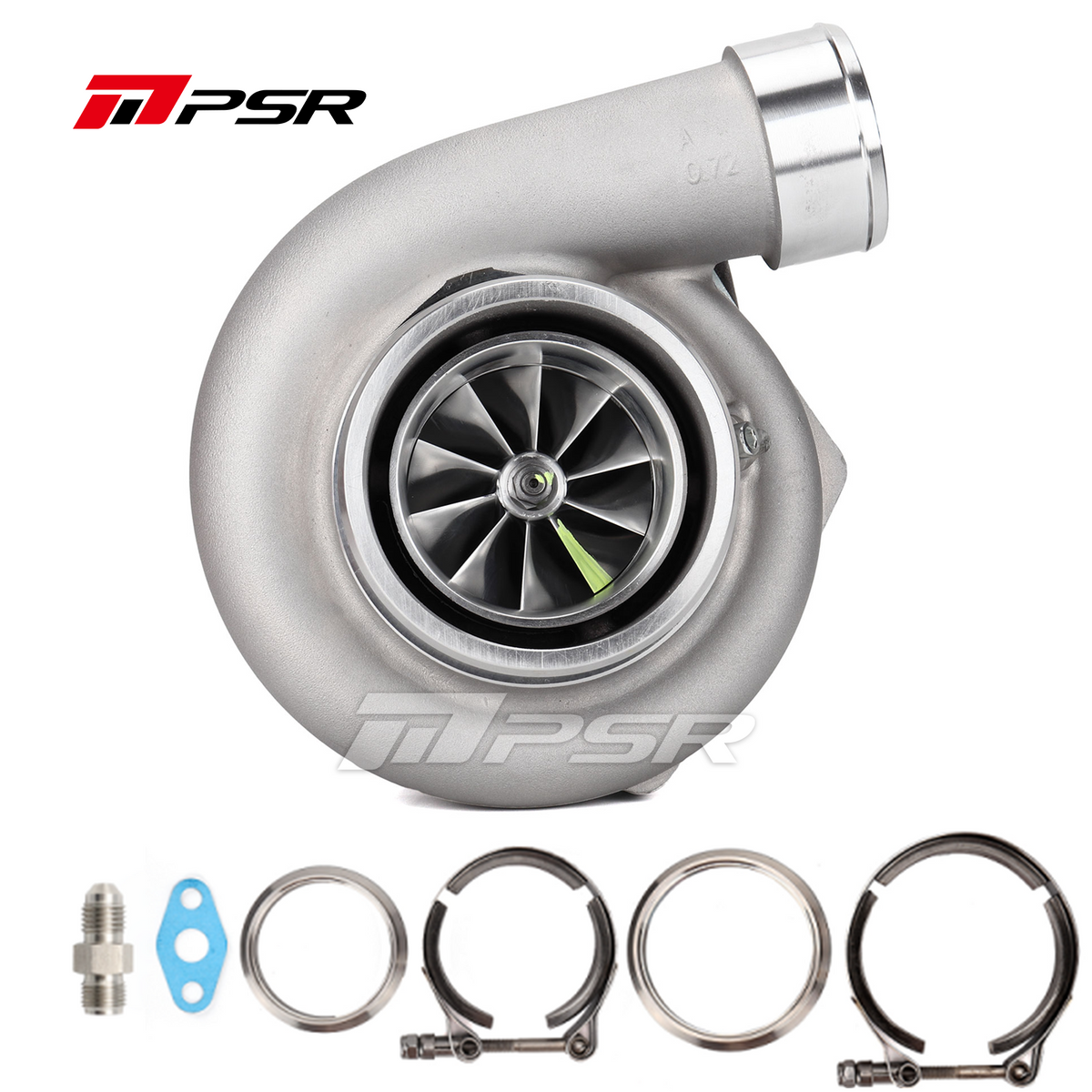

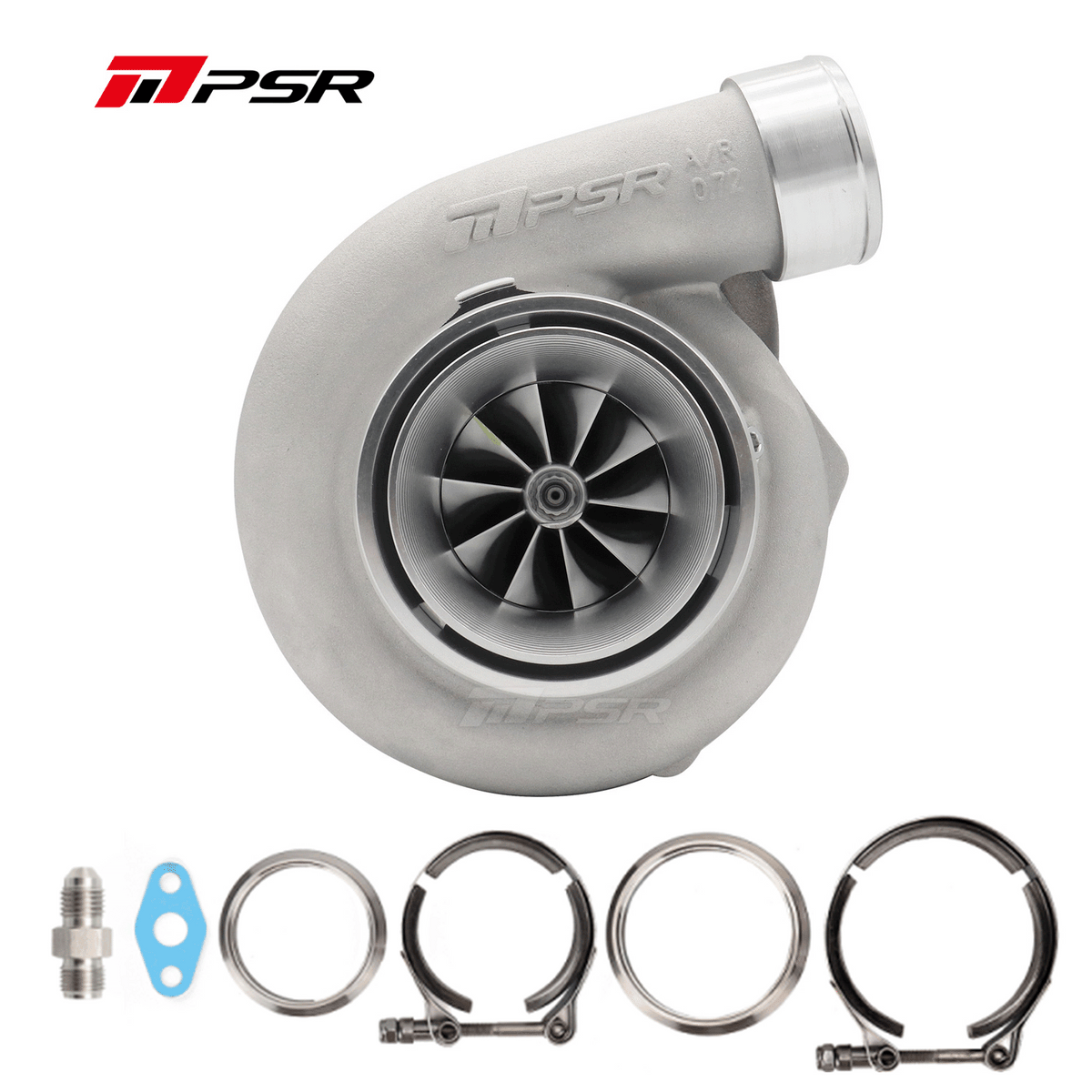

0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option

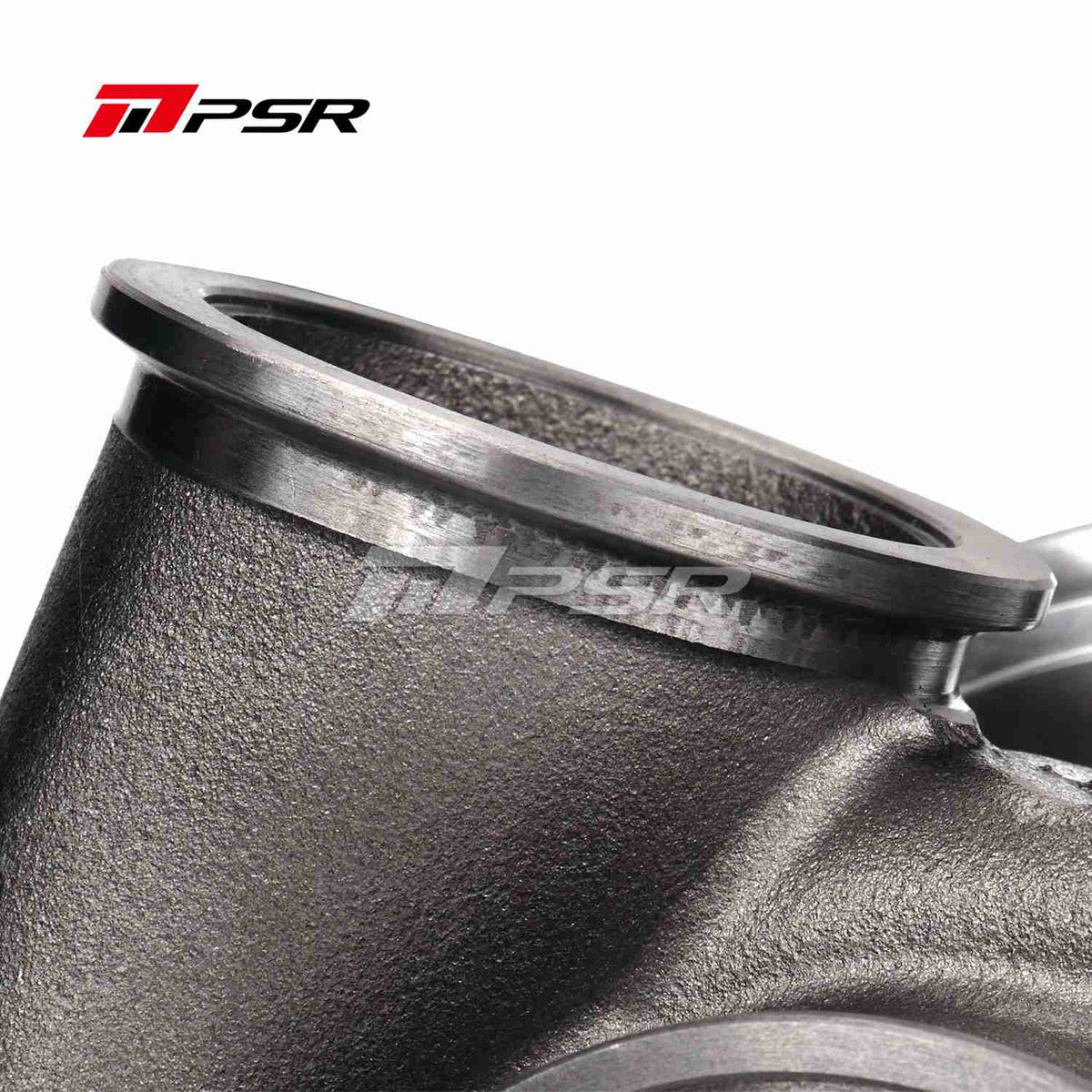

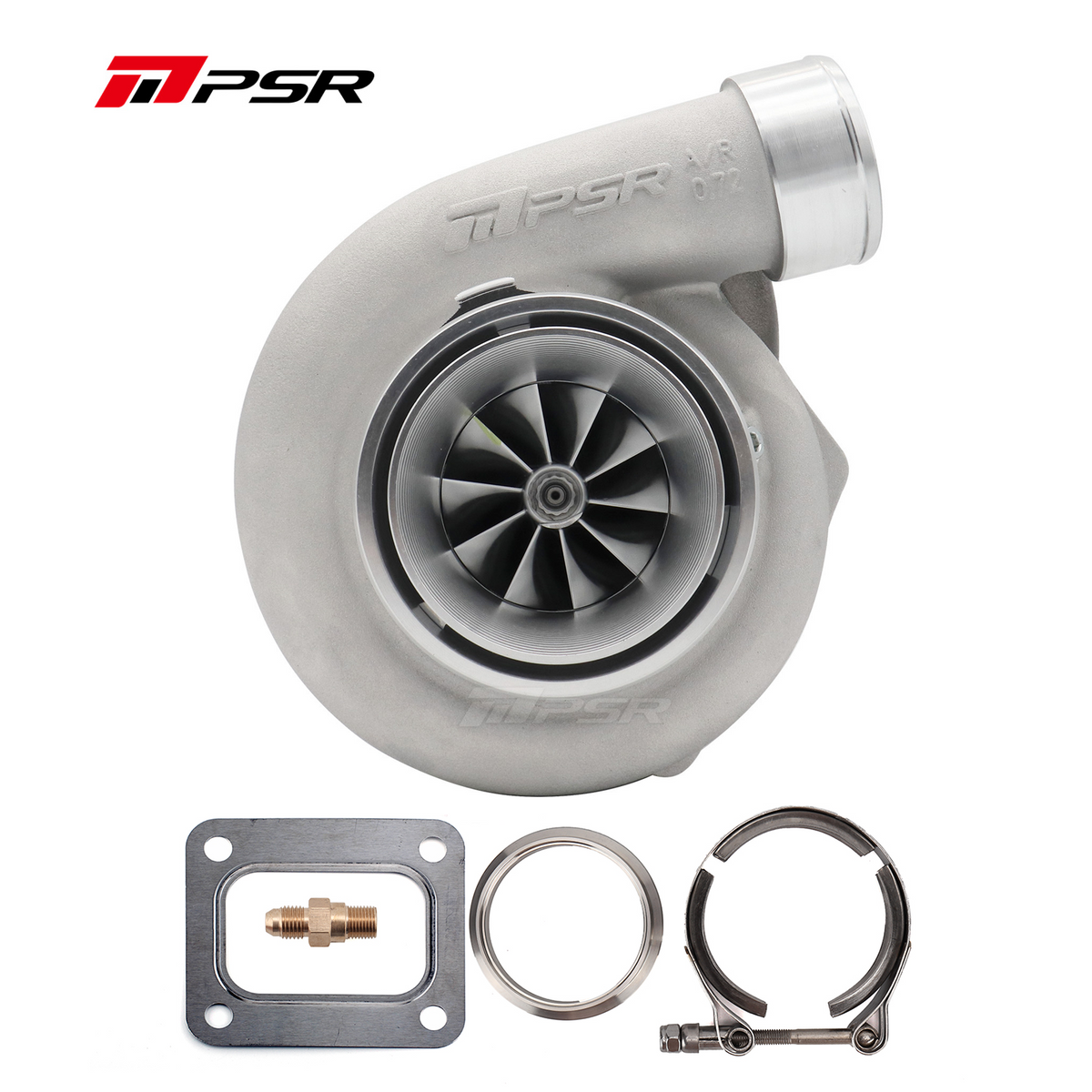

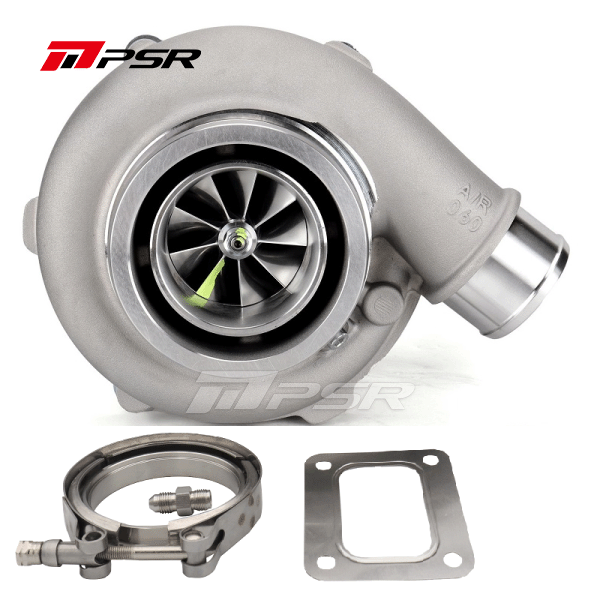

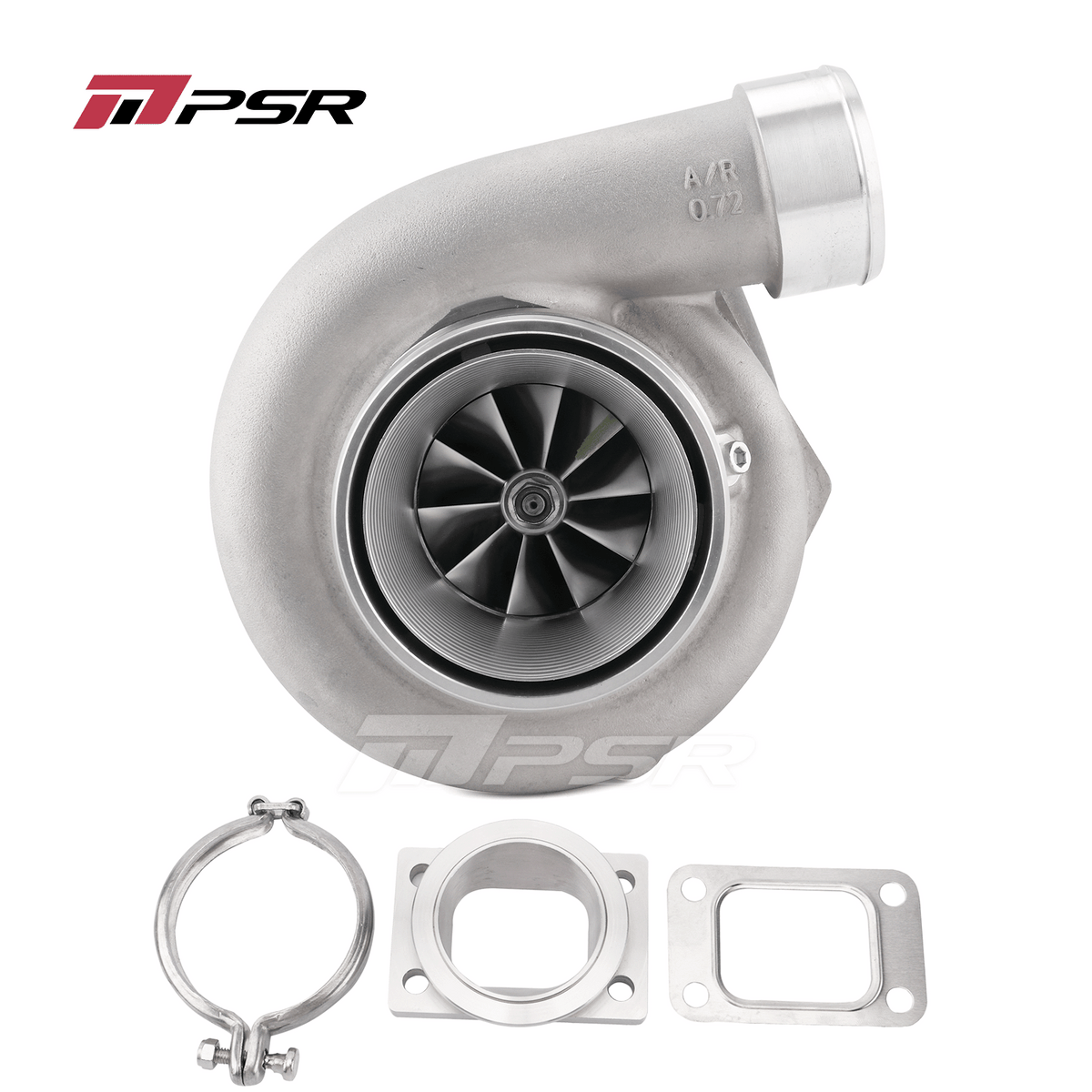

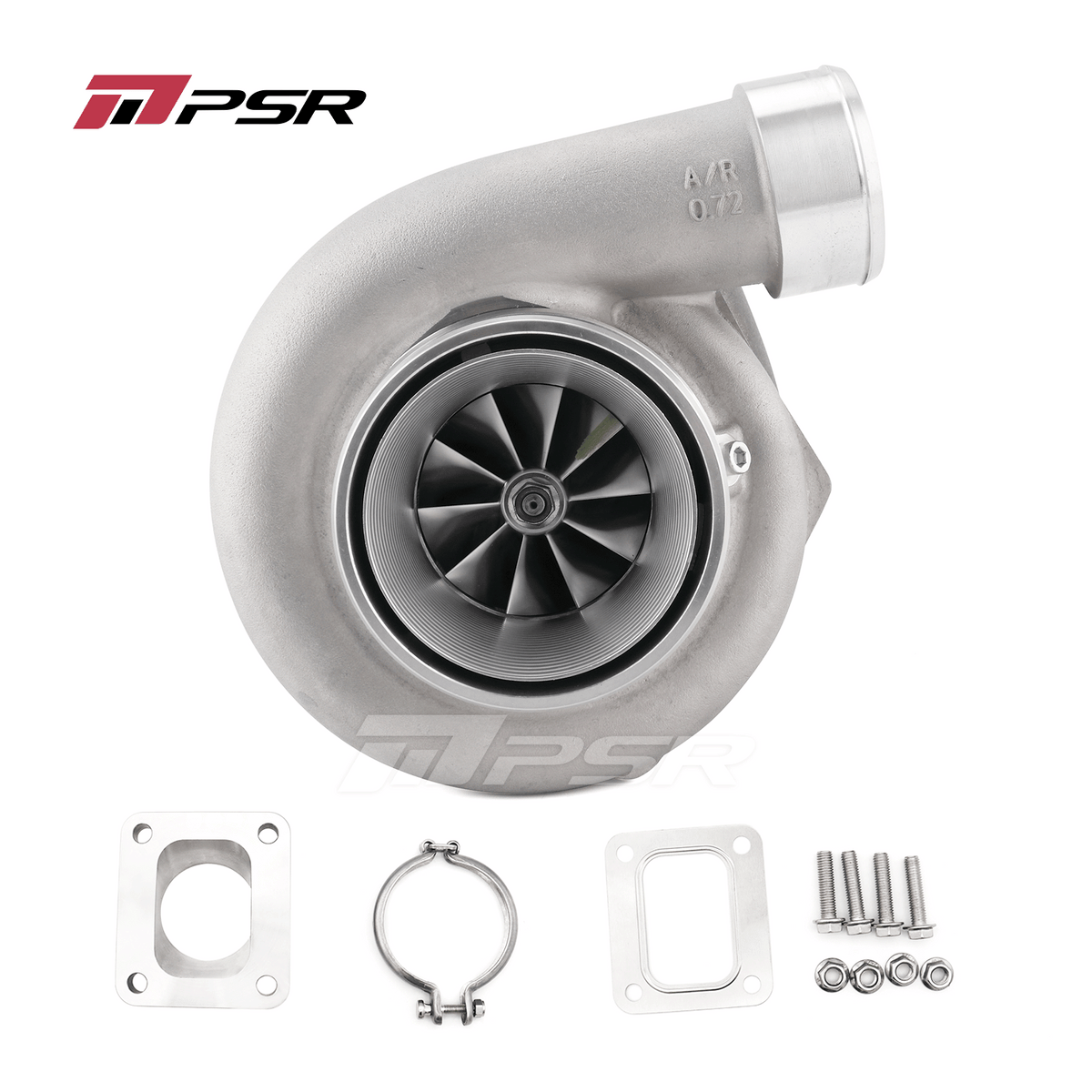

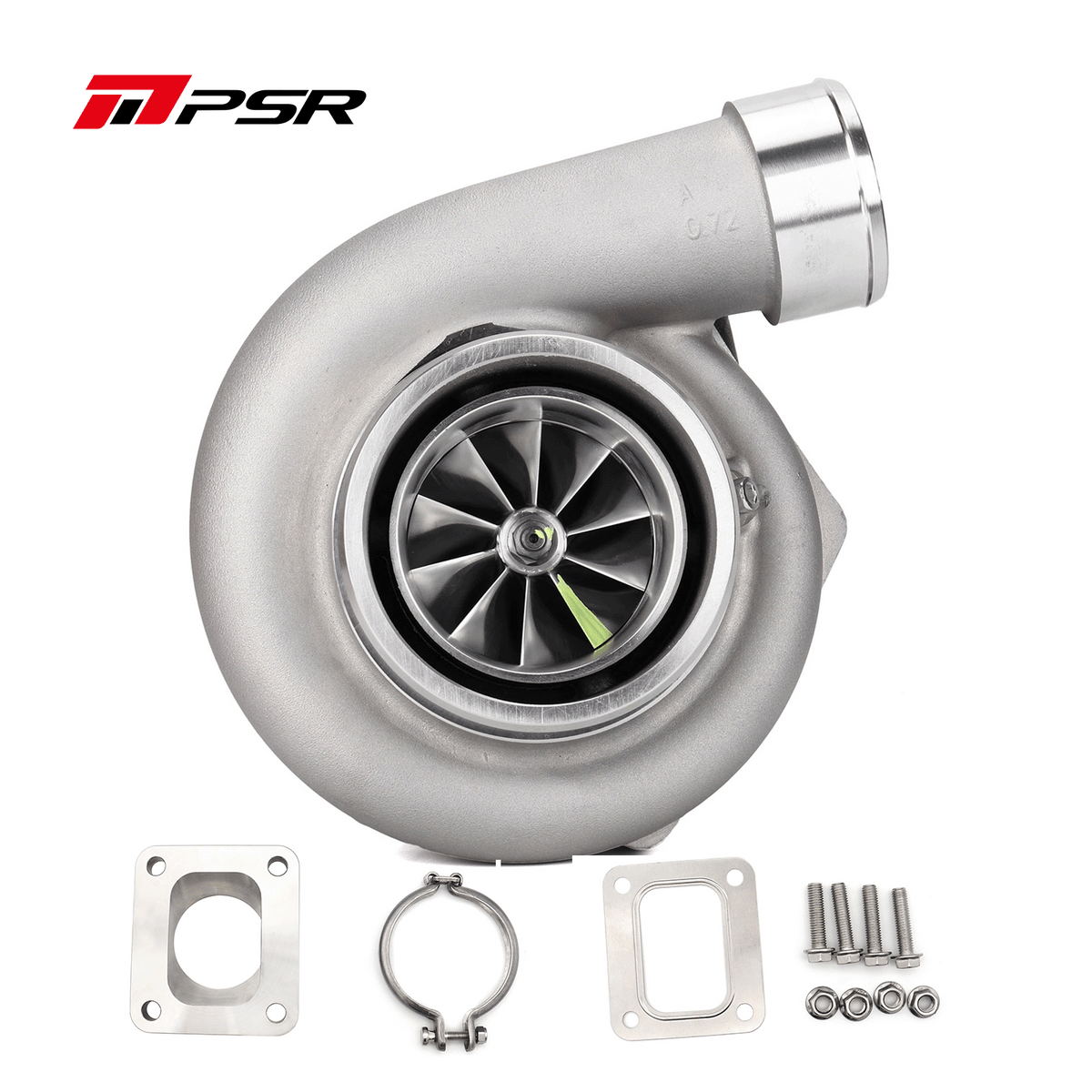

V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
Larger Turbine Wheel for Higher flow

Compressor Wheel: 67*84mm
Larger Turbine Wheel: 74*66mm
Compressor Inlet: 4.0” Hose
Compressor Outlet: 2.5” Hose

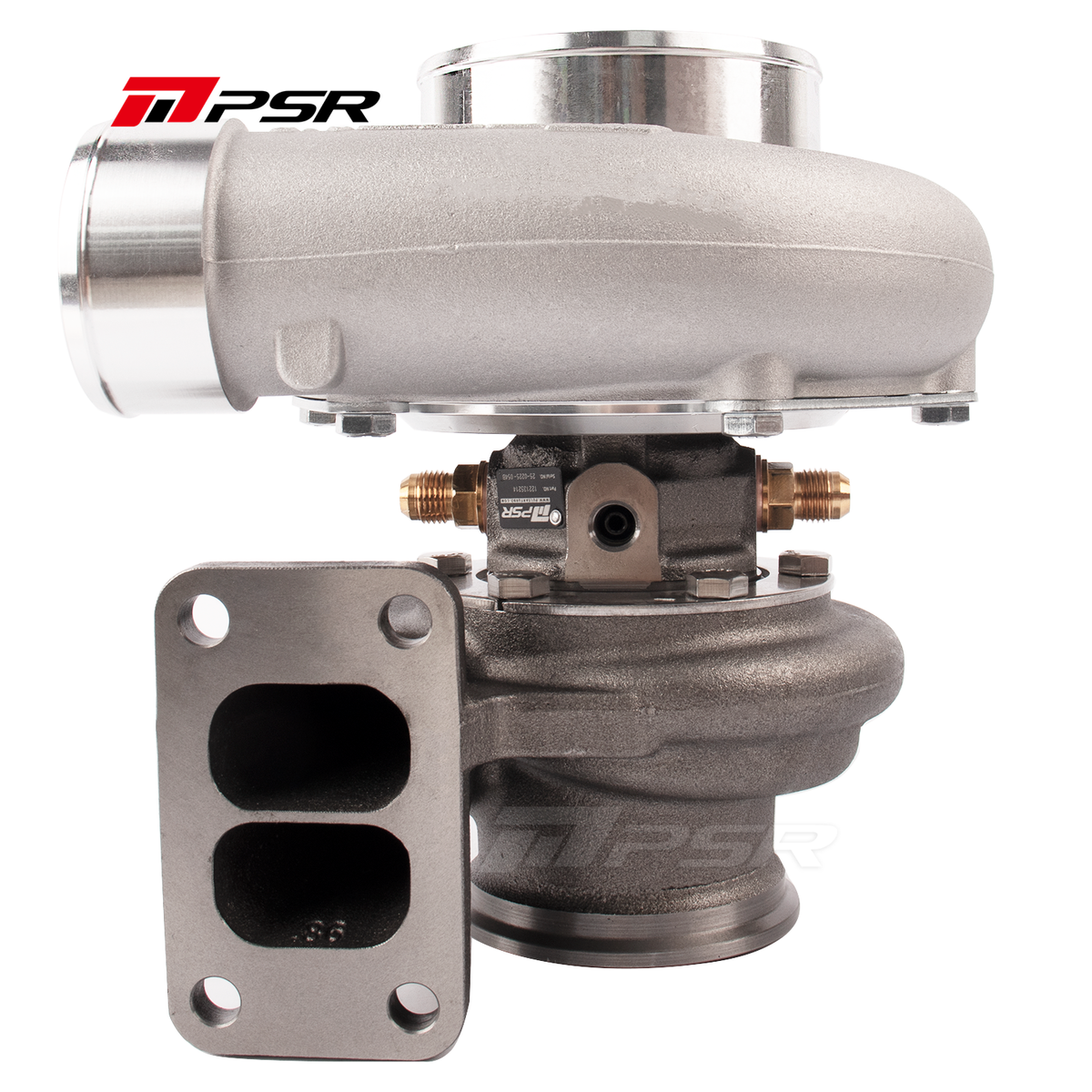

Turbine Inlet: T3, T4, or 2.5″ V-Band
Turbine Outlet: 3″ V-Band (3.55″OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability

PSR3584 GEN3 TURBO comes with Larger Turbine Wheel for higher flow.

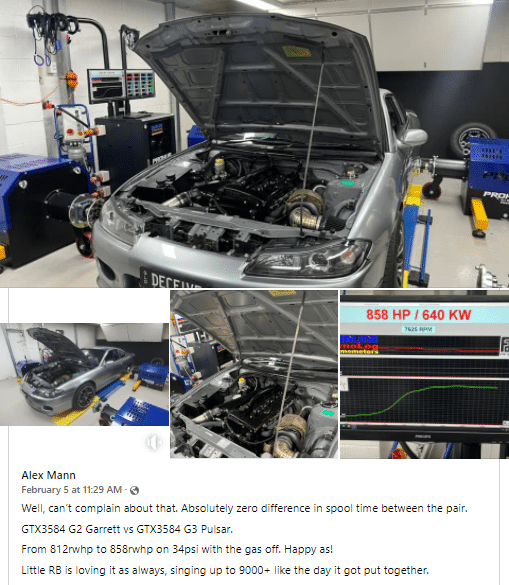

It has been tested and get more nearly 50 hp!
