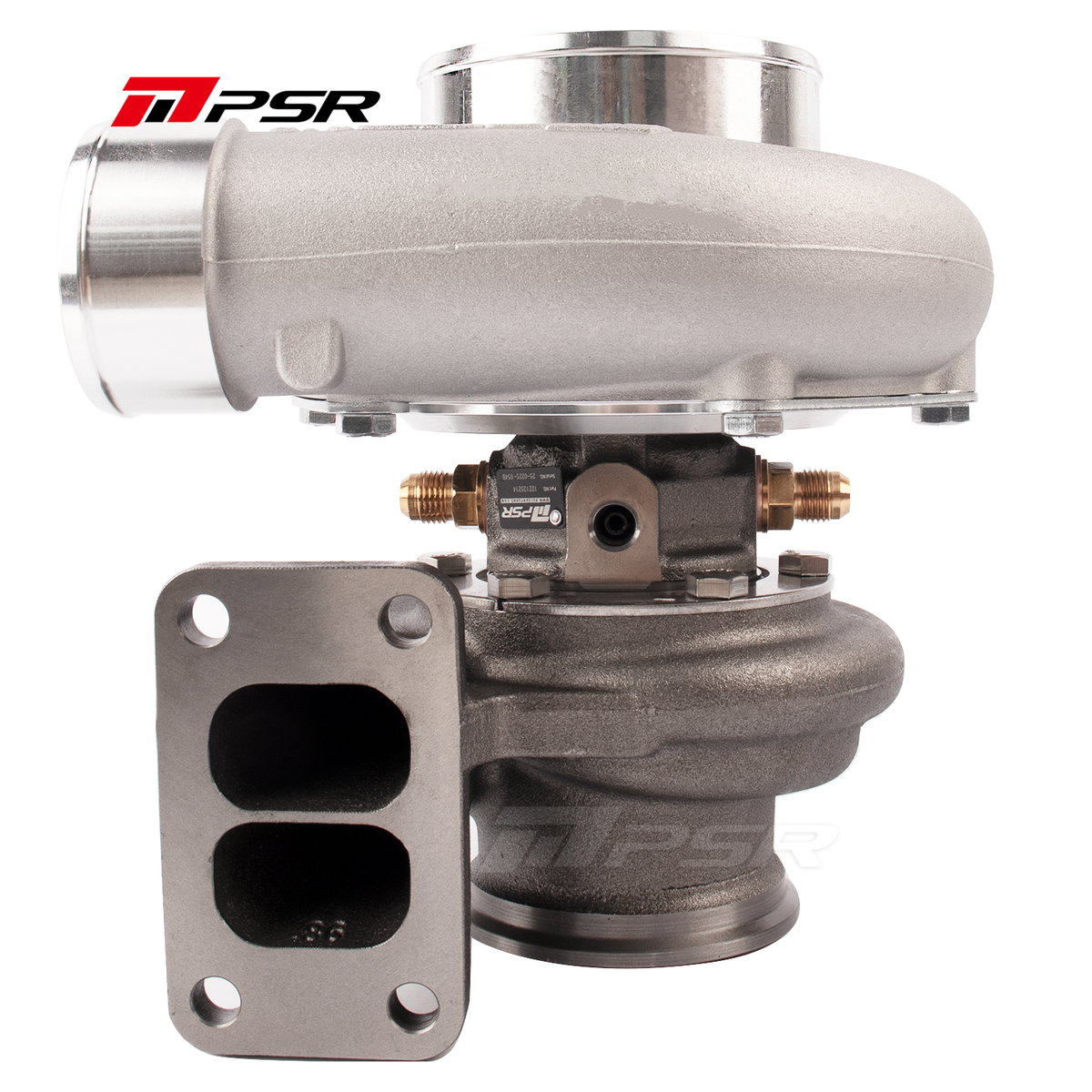

PSR3584 GEN2 Dual Ball Bearing Turbocharger

PSR3584 GEN2 Dual Ball Bearing Turbocharger

From $1,025.00 ~~$0.00~~

or 4 interest-free payments of $333.00 with afterpay

Select an option to add this to your cart

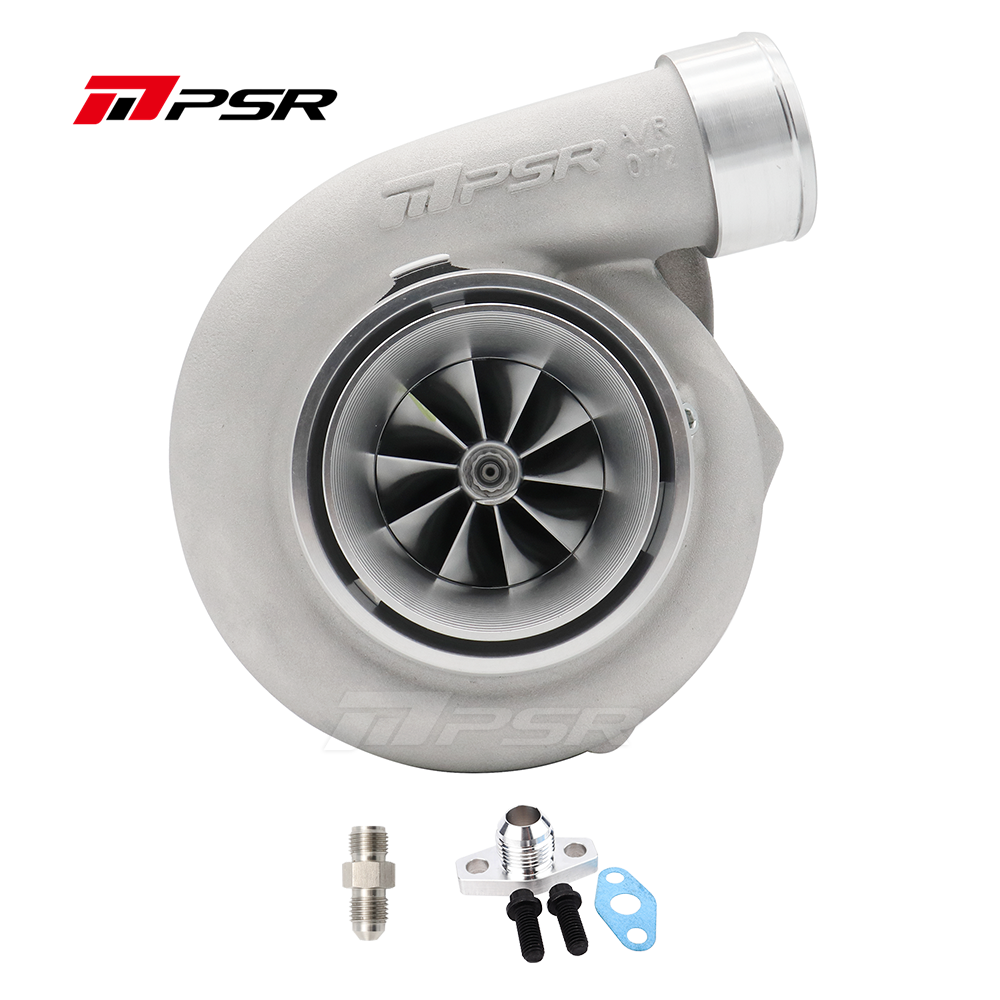

Compressor Housing Options : Standard : T51R Mod : W/O Compressor Housing

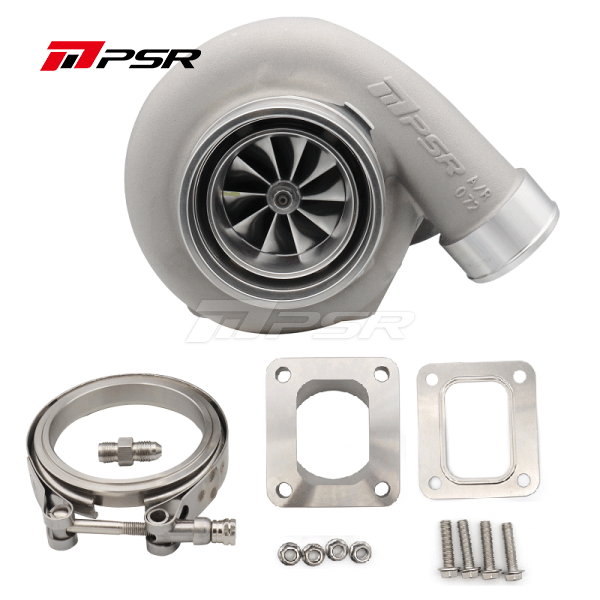

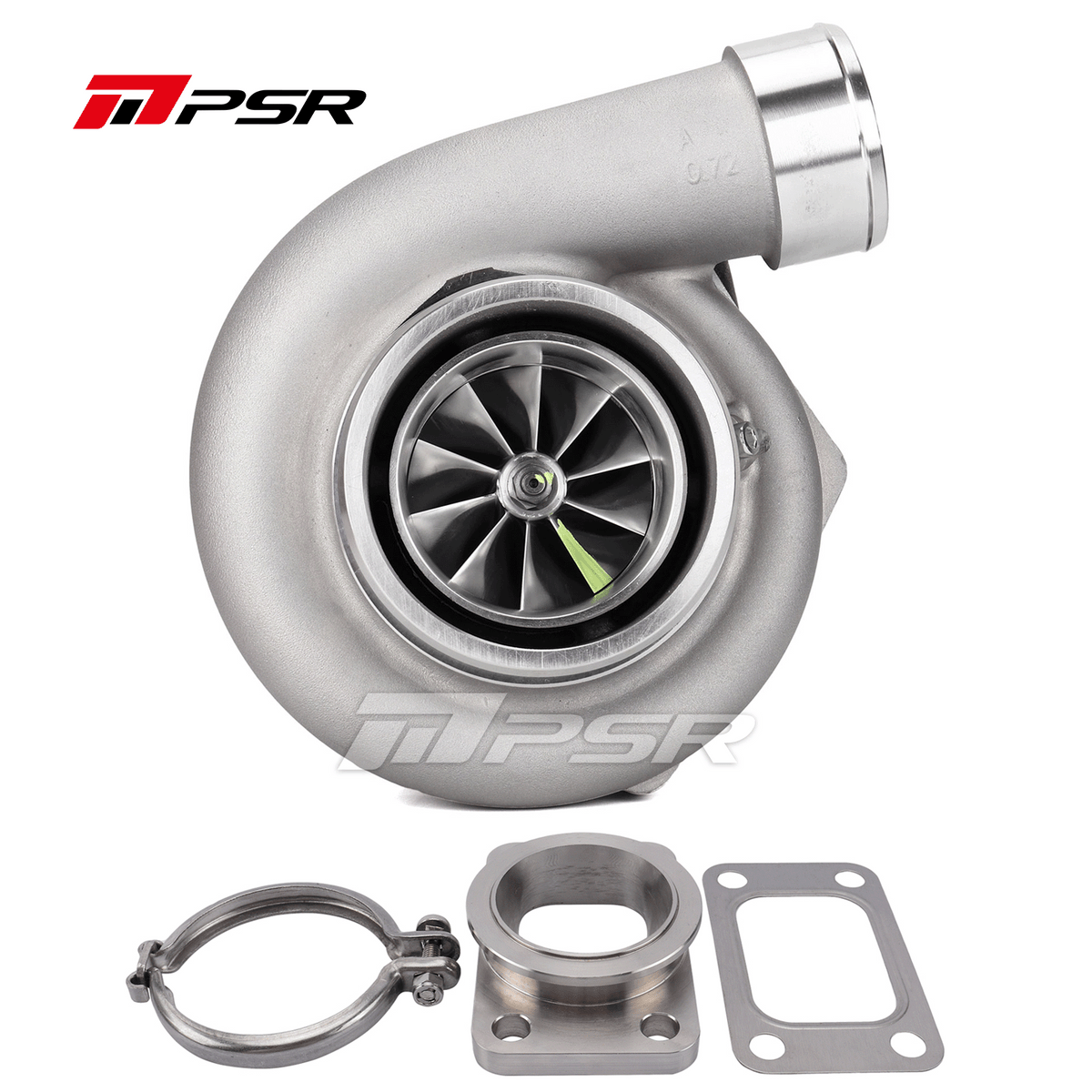

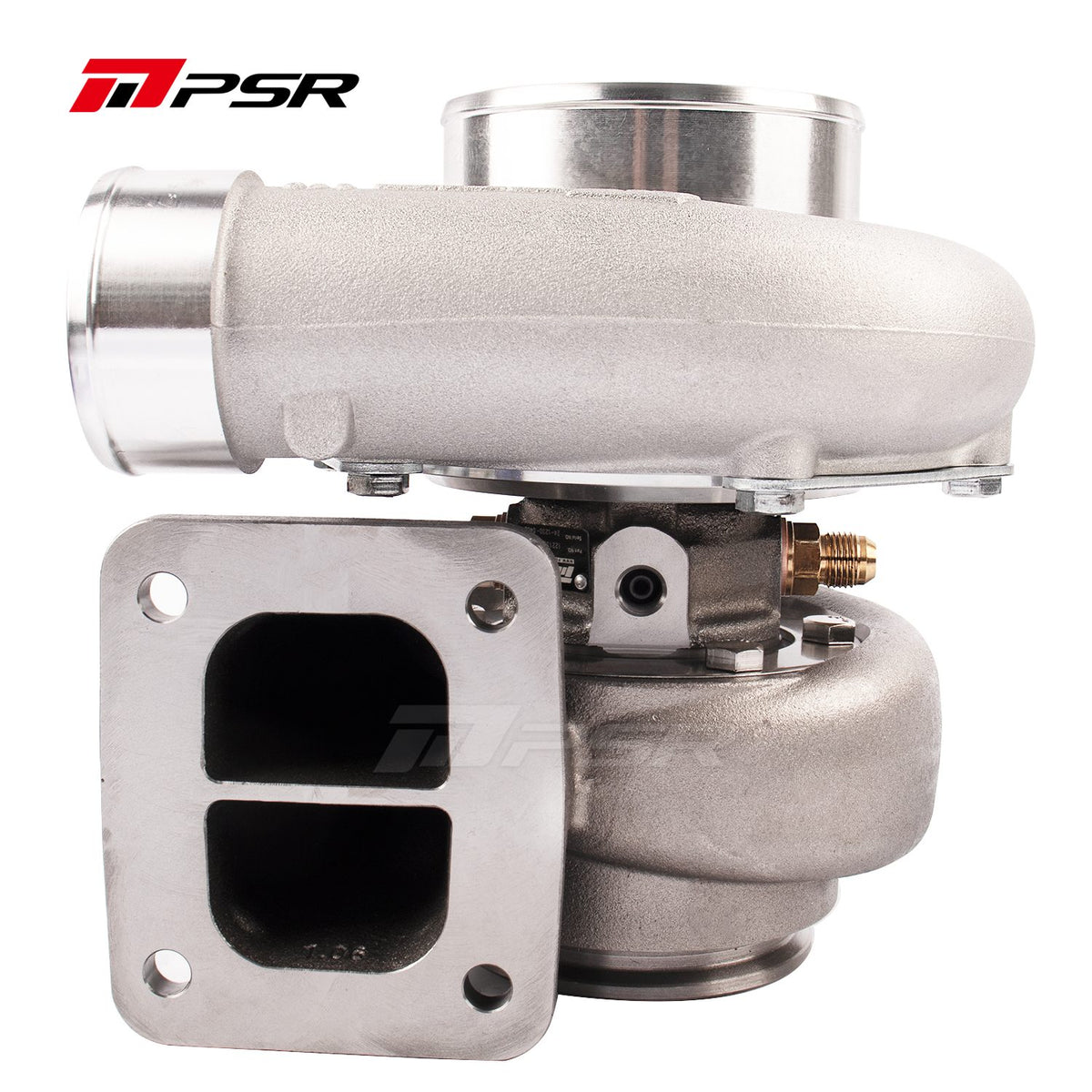

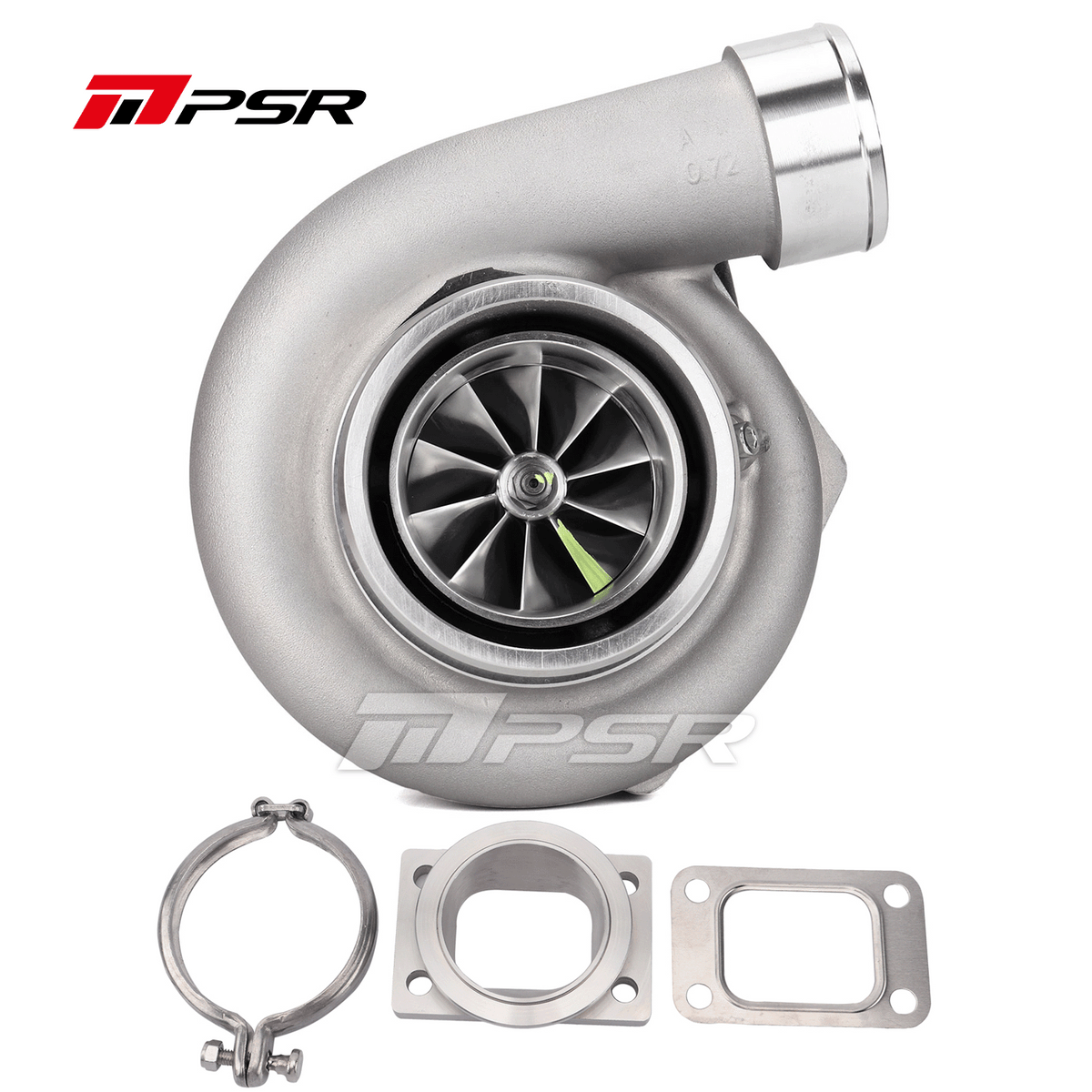

Turbine Housing Options : T3 Divided A/R0.86 : T4 Divided A/R1.06 : T4 open 0.63A/R STAINLESS STEEL : 1.03 STAINLESS STEEL DUAL V-BAND+T4 Adapter : 1.01 DUAL V-BAND+T4 Adapter : .64 STAINLESS STEEL DUAL V-BAND+T4 Adapter : .82 STAINLESS STEEL DUAL V-BAND+T4 Adapter : T4 Divided A/R0.85 : .64 STAINLESS STEEL DUAL V-BAND+T3 Adapter : .64 STAINLESS STEEL DUAL V-BAND+T25 Adapter : .64 STAINLESS STEEL DUAL V-BAND : .82 STAINLESS STEEL DUAL V-BAND+T3 Adapter : .82 STAINLESS STEEL DUAL V-BAND+T25 Adapter : 1.03 STAINLESS STEEL DUAL V-BAND+T3 Adapter : 1.03 STAINLESS STEEL DUAL V-BAND+T25 Adapter : 1.03 STAINLESS STEEL DUAL V-BAND : T3 1.06 V-BAND : .82 STAINLESS STEEL DUAL V-BAND : W/O Turbine Housing : T4 .82 V-BAND : T3 .82 V-BAND : T3 .63 V-BAND : 1.01 DUAL V-BAND : 0.83 DUAL V-BAND

Sold Out

Quantity

PSR3584 GEN2 Dual Ball Bearing Turbocharger

Most orders ship in 1–3 days. Hand-made parts can take 1–4 weeks. In a hurry? Contact us first.

Description

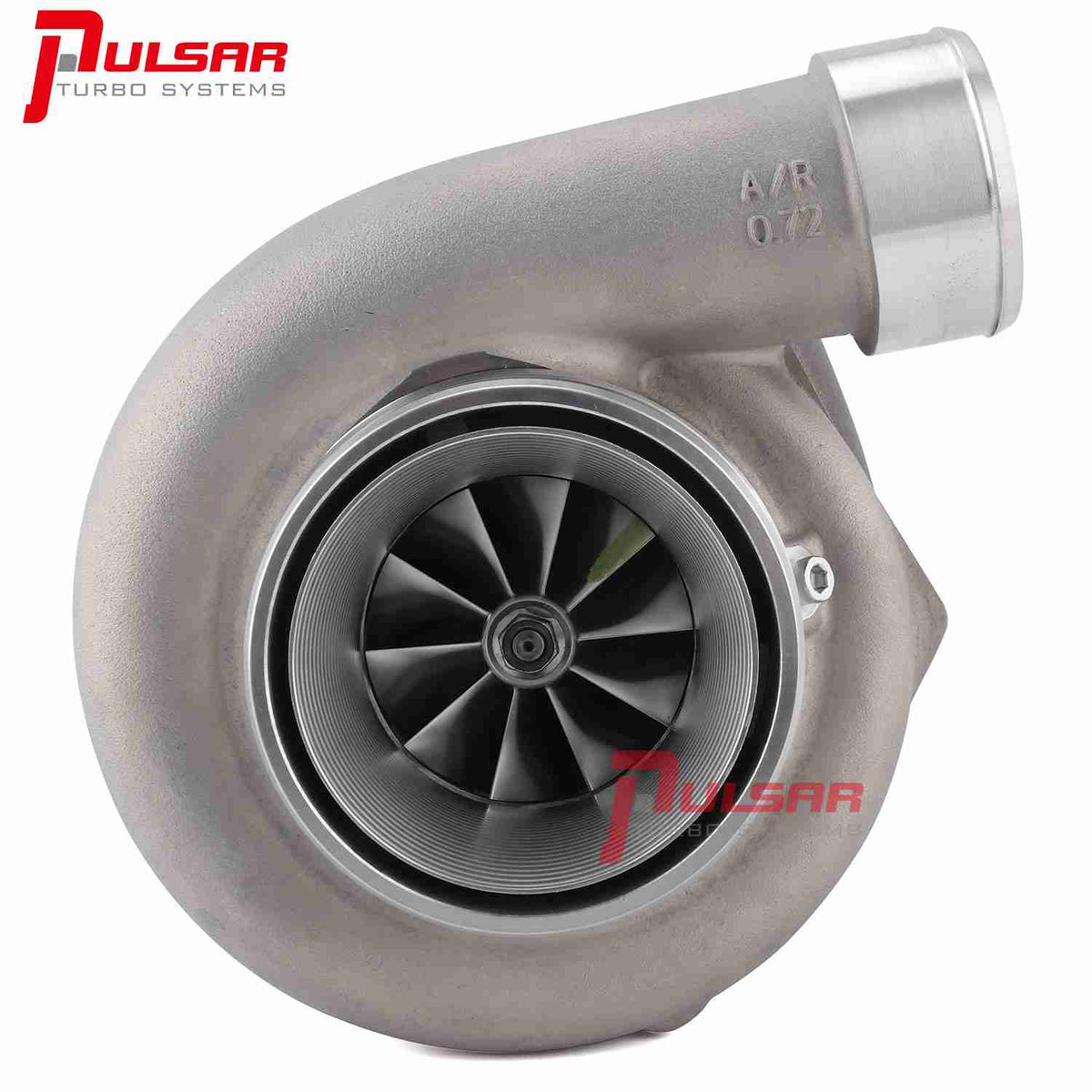

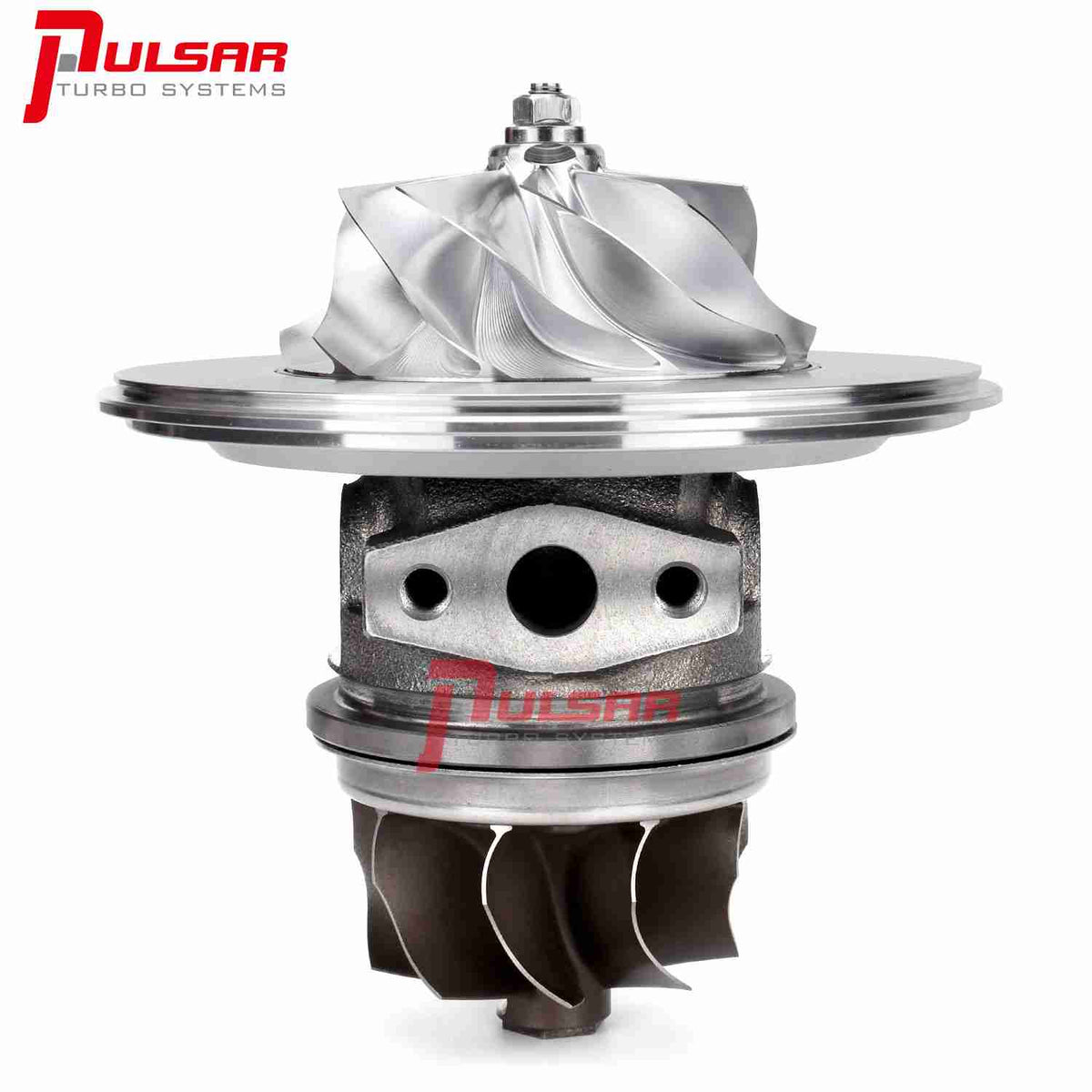

Dual Ceramic Ball Bearing System
10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c Gen2 9 Blade Turbine Wheel with “RS” blade profile design
Gen2 Cover Integrated with the Speed Sensor Port
0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, etc. turbine housings in option

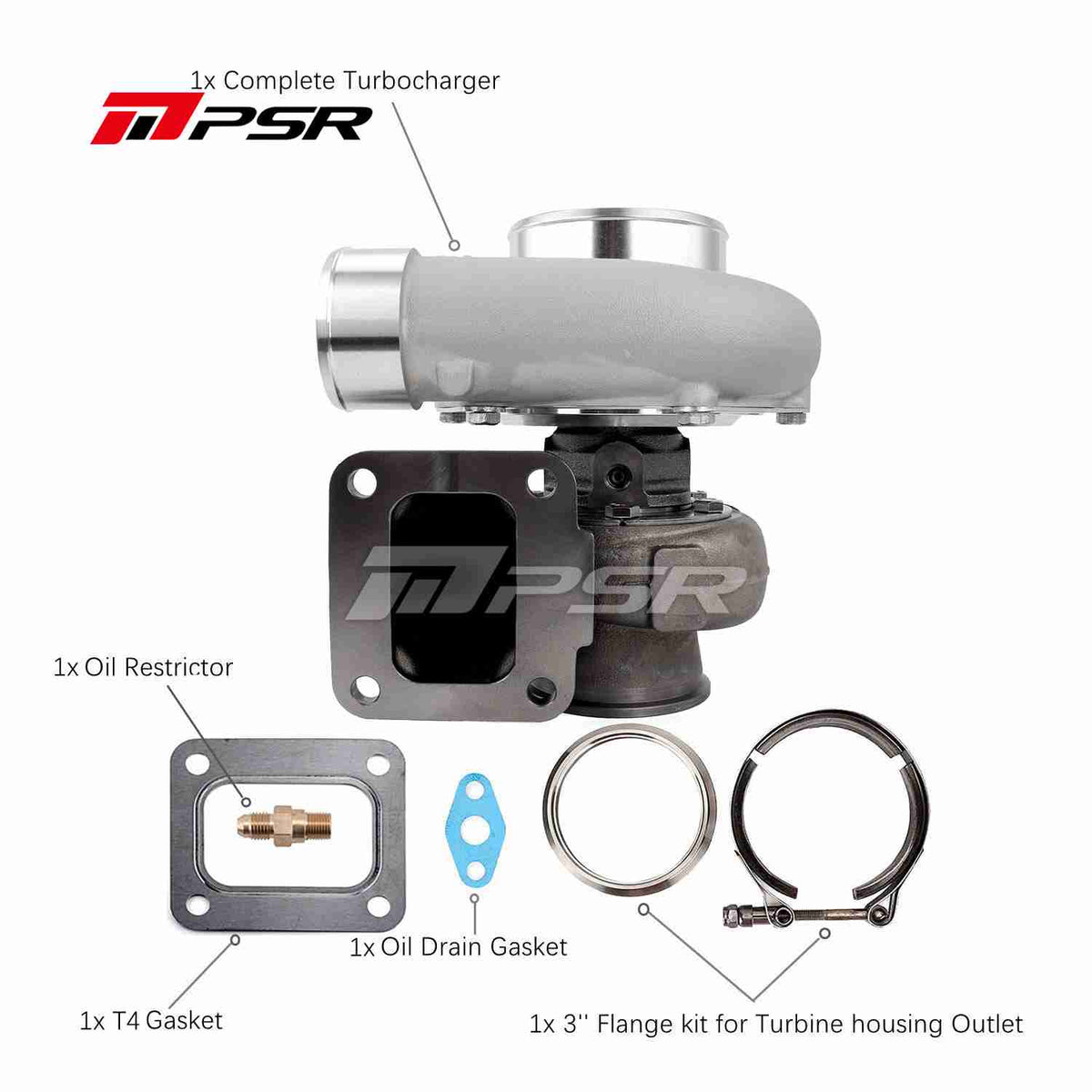

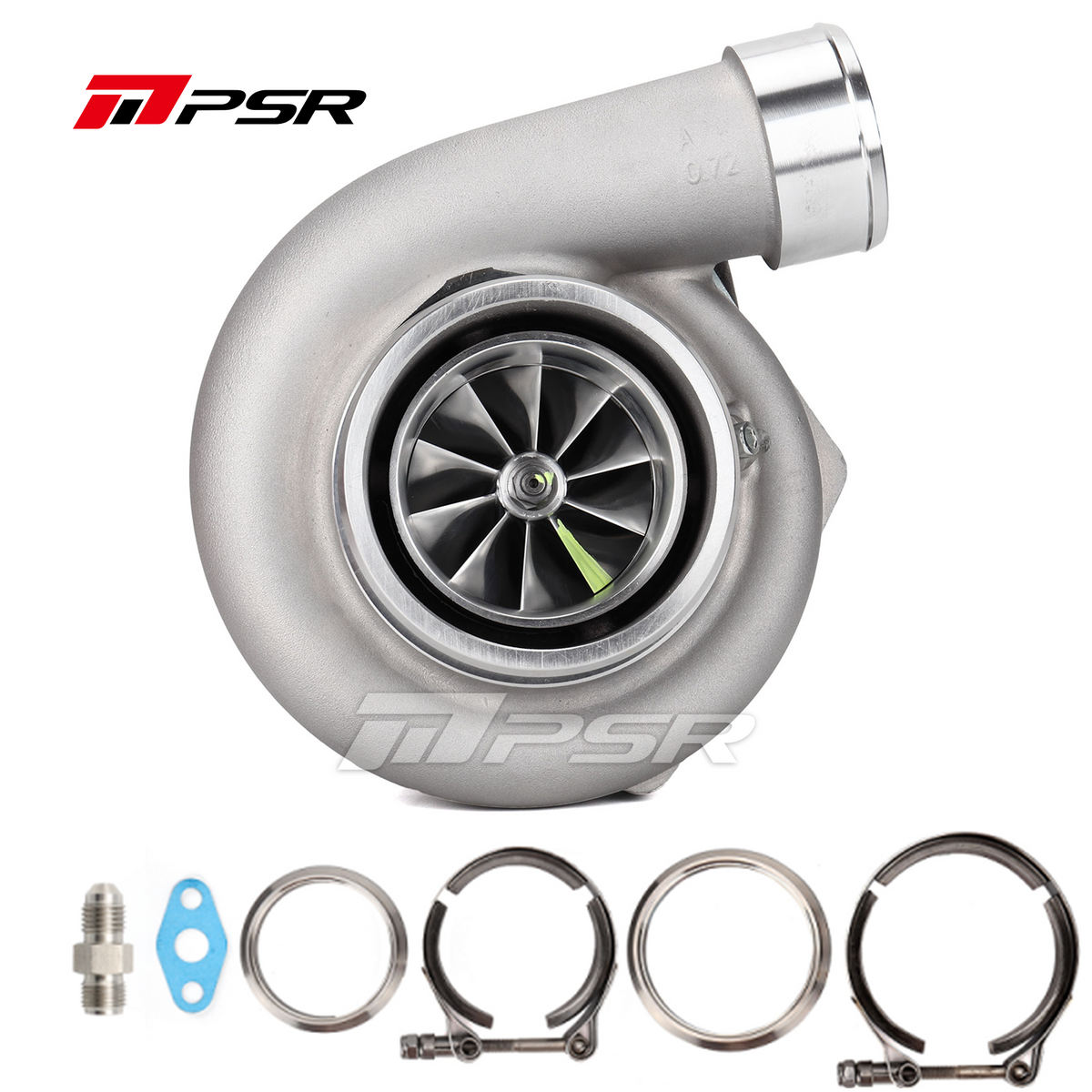

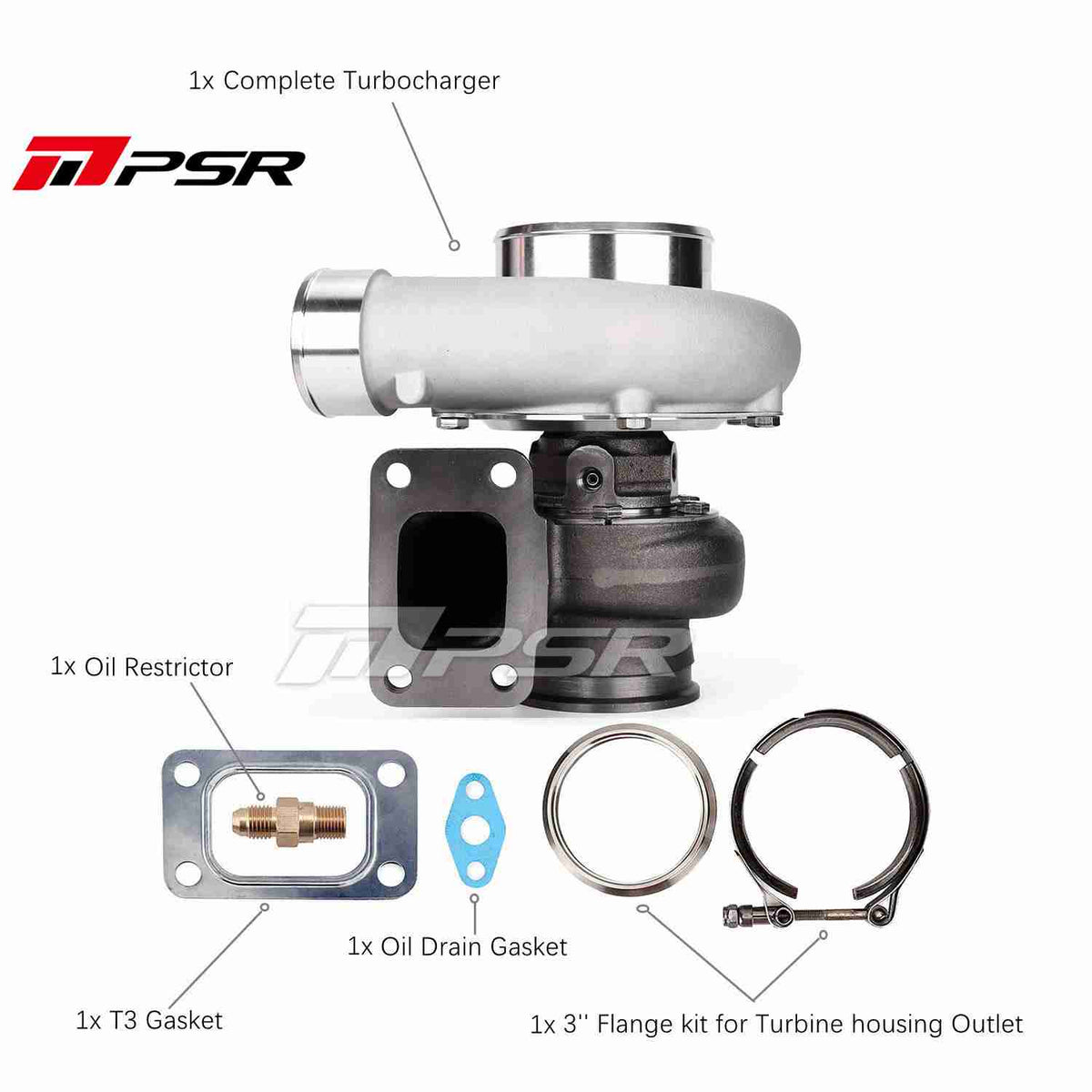

V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP

Compressor Wheel: 67*84mm
Turbine Wheel: 68*62mm (“RS” blade profile)
Compressor Inlet: 4.0 Hose
Compressor Outlet: 2.5 Hose
Turbine Inlet: T3, T4, or 2.5″ V-Band
Turbine Outlet: 3″ V-Band (3.55″OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
