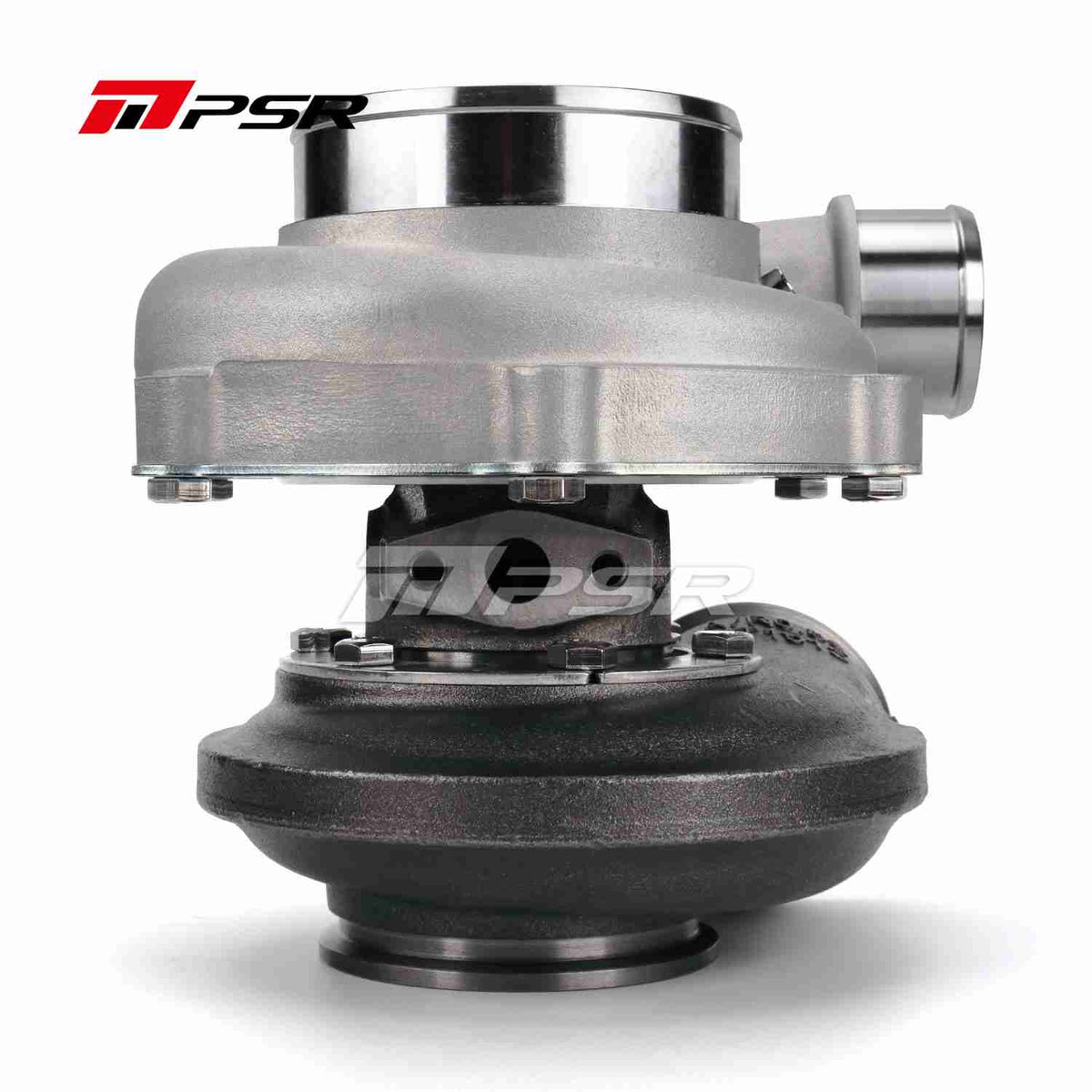

PSR3076 Gen2 Dual Ball Bearing Turbocharger

PSR3076 Gen2 Dual Ball Bearing Turbocharger

From $1,025.00 ~~$0.00~~ /

Select an option to add this to your cart

Compressor Housing Options : T51R Mod : Standard : W/O Compressor Housing

Turbine Housing Options : Dual Vband 0.72A/R with IWG : T25 0.64A/R IWG : T25 0.86A/R IWG : .83 DUAL V-BAND+T4 Adapter : 1.01 DUAL V-BAND+T4 Adapter : 0.64 STAINLESS STEEL DUAL V-BAND+T4 Adapter : .82 STAINLESS STEEL DUAL V-BAND+T4 Adapter : 1.03 STAINLESS STEEL DUAL V-BAND+T4 Adapter : T4 Divided A/R0.85 : T3 A/R1.06 : 1.03 STAINLESS STEEL DUAL V-BAND+T3 Adapter : 0.64 STAINLESS STEEL DUAL V-BAND+T3 Adapter : 0.64 STAINLESS STEEL DUAL V-BAND+T25 Adapter : 0.64 STAINLESS STEEL DUAL V-BAND : .82 STAINLESS STEEL DUAL V-BAND+T3 Adapter : .82 STAINLESS STEEL DUAL V-BAND+T25 Adapter : 1.03 STAINLESS STEEL DUAL V-BAND+T25 Adapter : 1.03 STAINLESS STEEL DUAL V-BAND : 1.01 DUAL V-BAND : W/O Turbine Housing : T3 .63 V-BAND : T3 .82 V-BAND : .83 DUAL V-BAND : .82 STAINLESS STEEL DUAL V-BAND

Actuator Options : PSR Logoed Billet 15psi : PSR Logoed Billet 7.4psi : PSR Logoed Billet 11.6psi : Without Actuator

Sold Out

Quantity

PSR3076 Gen2 Dual Ball Bearing Turbocharger

Most orders ship in 1–3 days. Hand-made parts can take 1–4 weeks. In a hurry? Contact us first.

Description

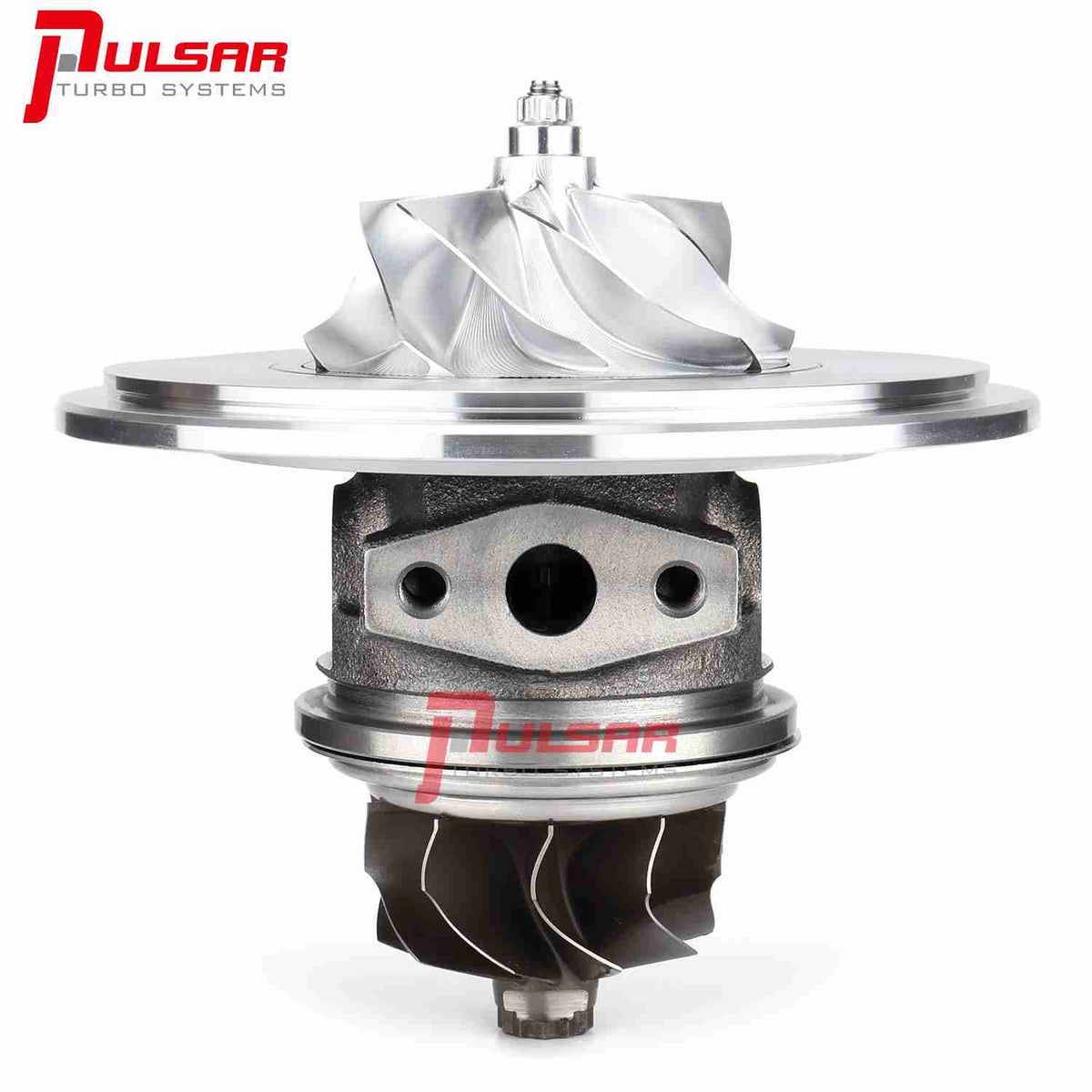

Dual Ceramic Ball Bearing System

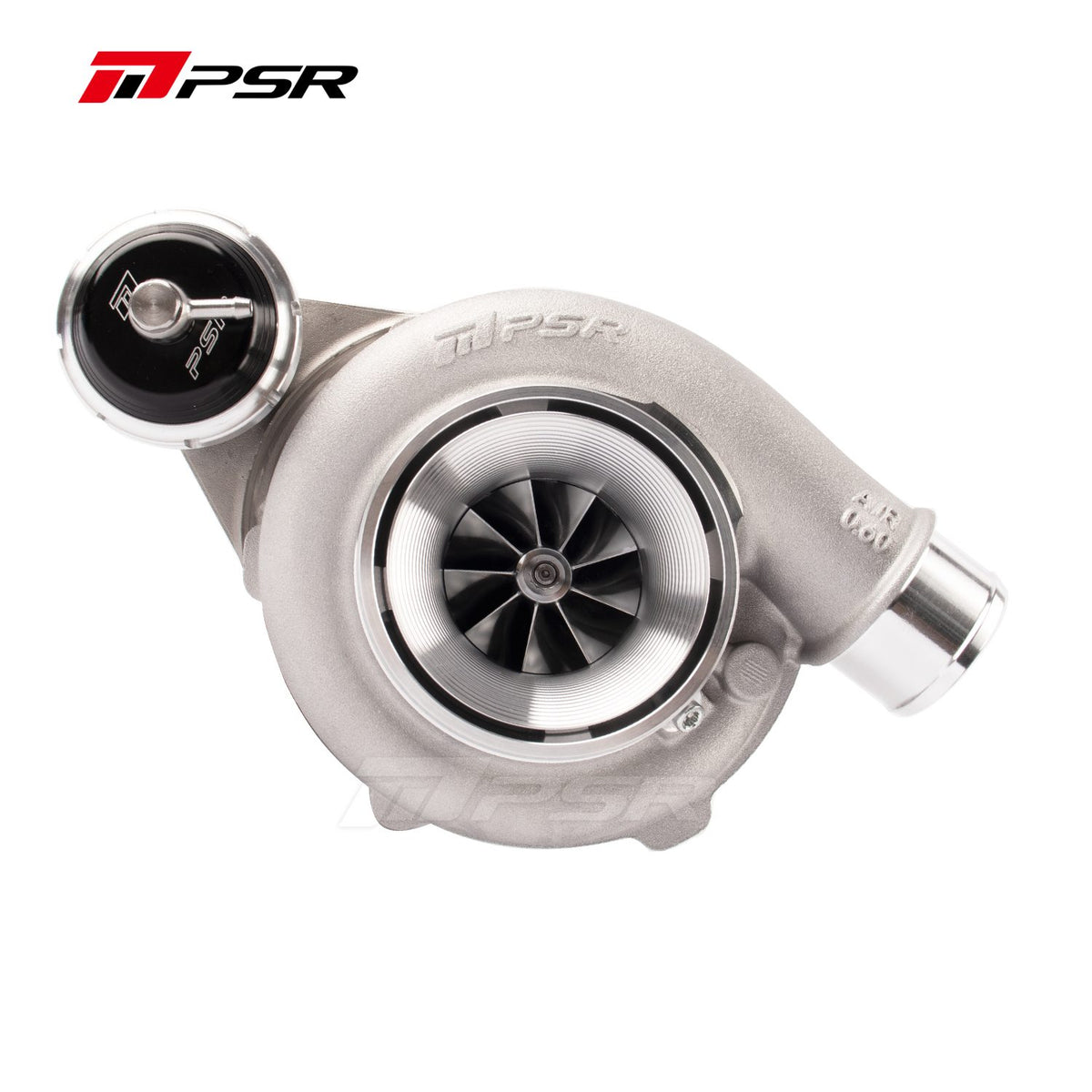

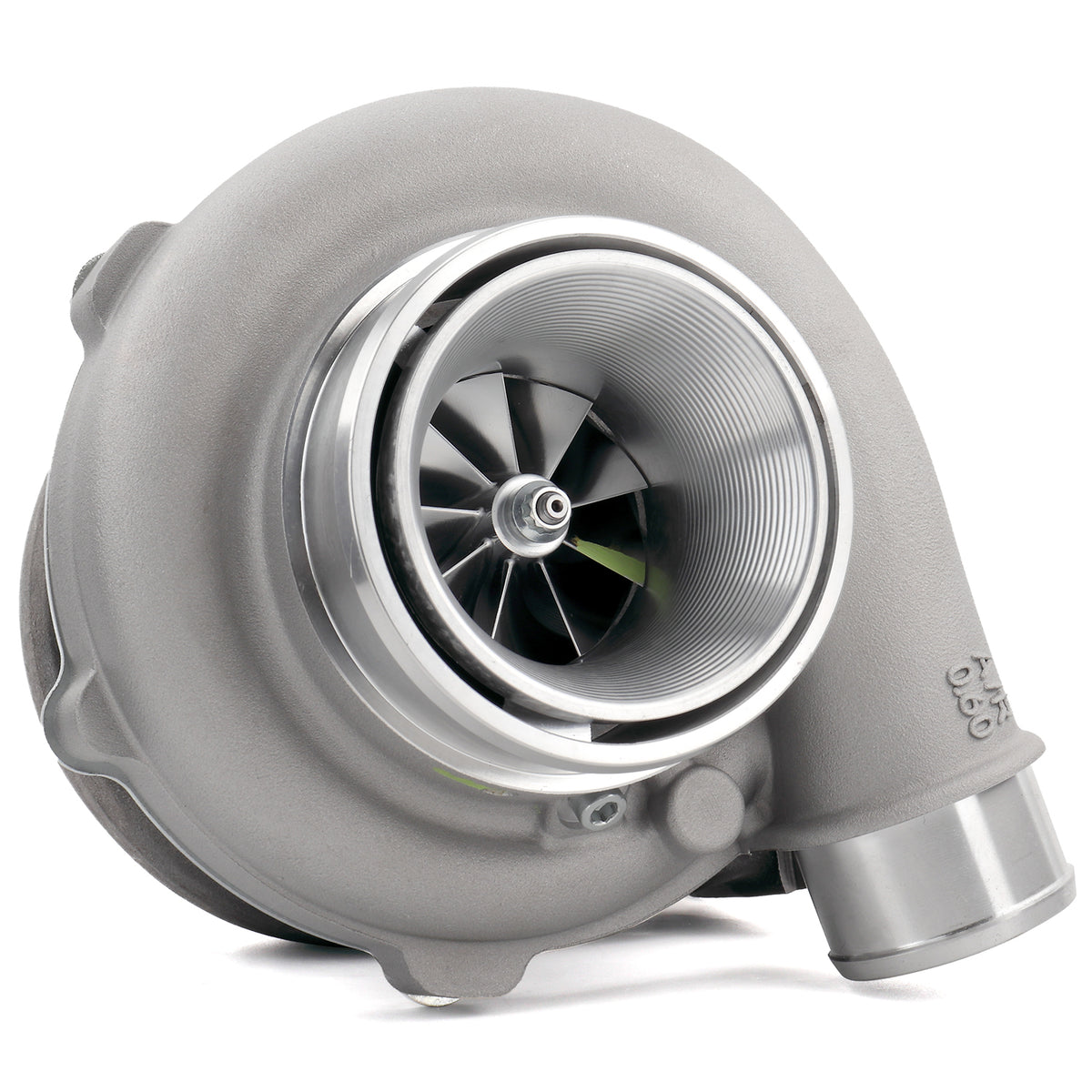

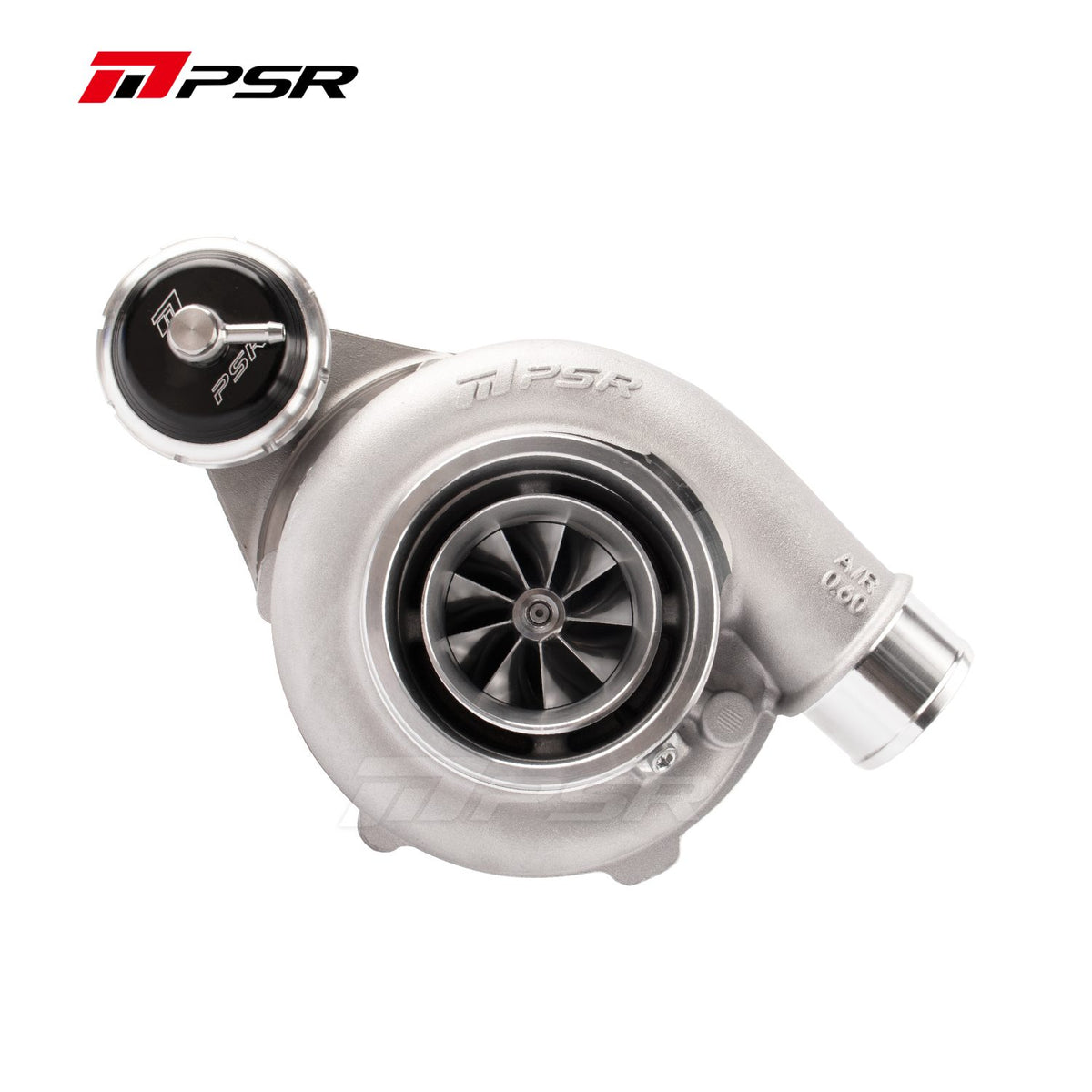

9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel
Gen2 Cover Integrated with the Speed Sensor Port

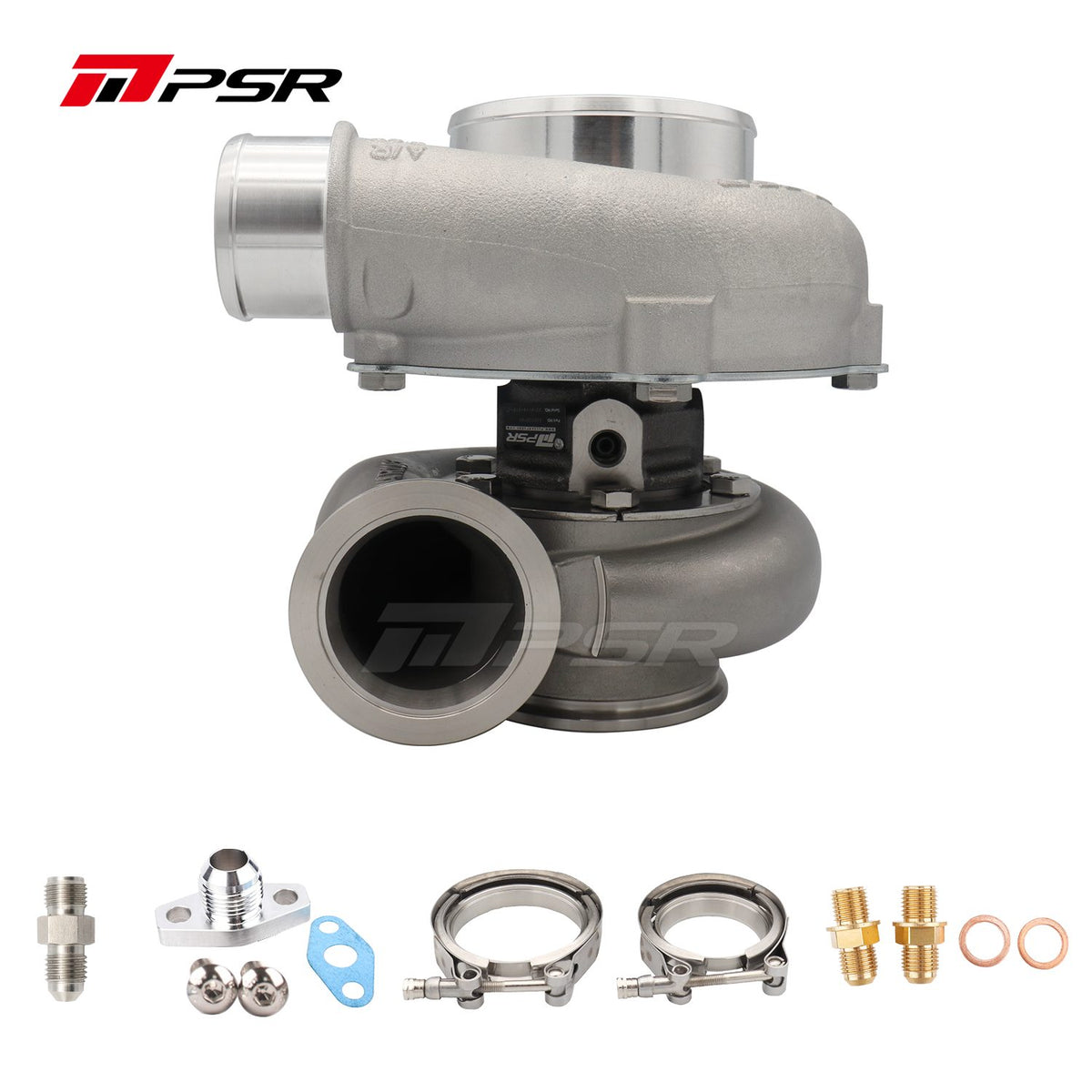

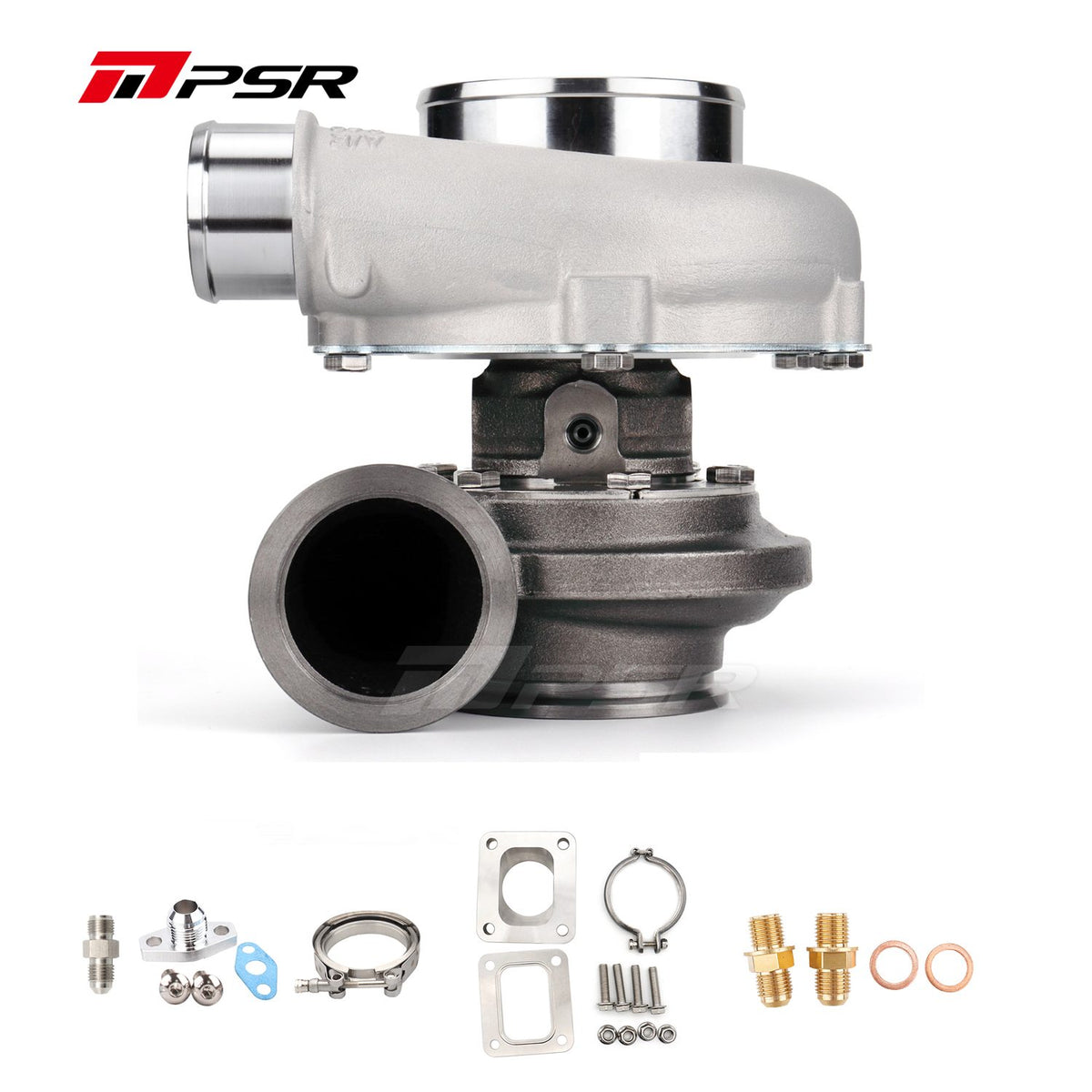

0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, 0.82, 1.03 A/R dual v-band stainless steel turbine housing etc. turbine housings in option
V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP

Compressor Wheel: 58*76mm
Turbine Wheel: 60*55mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2″ Hose

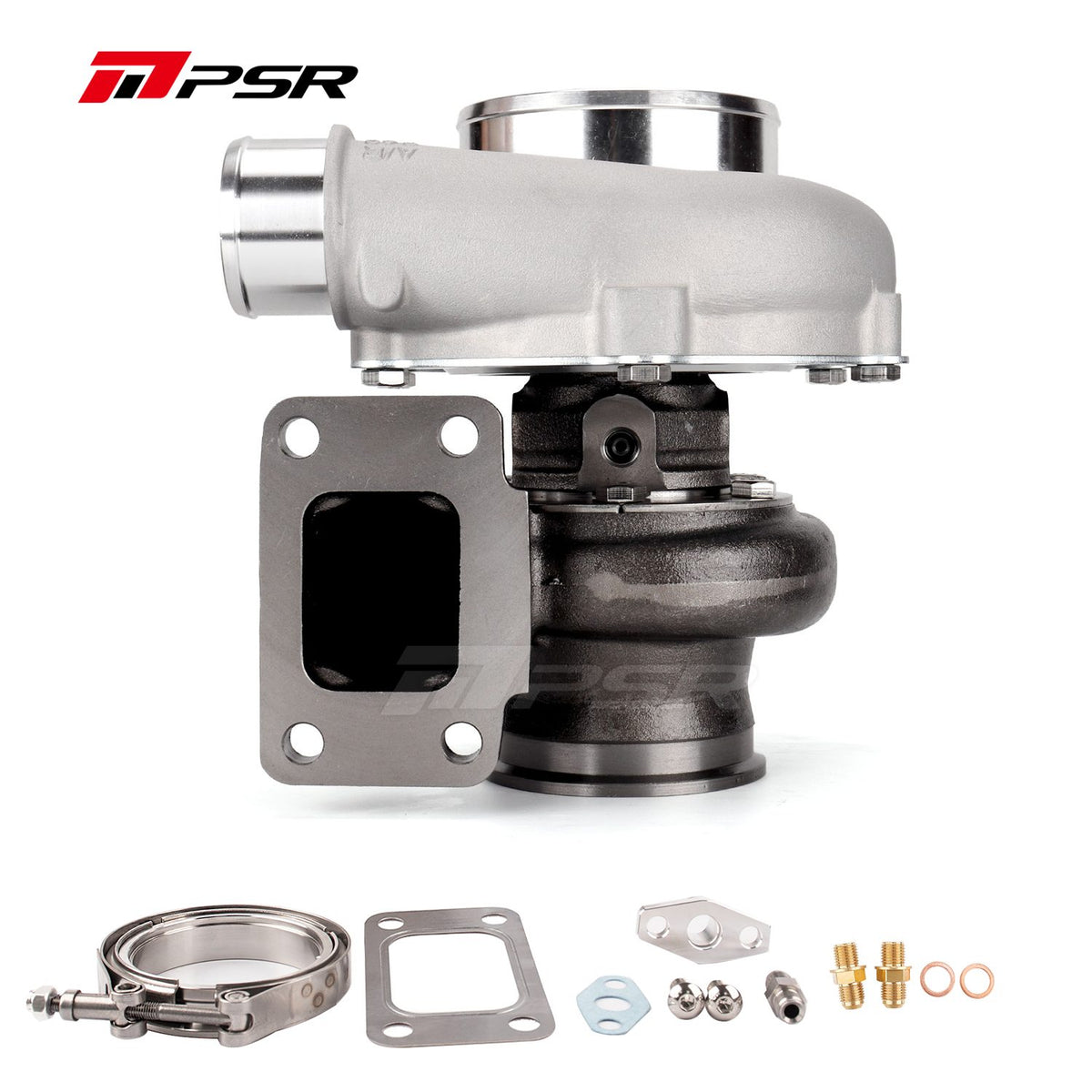

Turbine Inlet: T3, T4 or 2.5″ V-Band
Turbine Outlet: 3″ V-Band (3.55″OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
