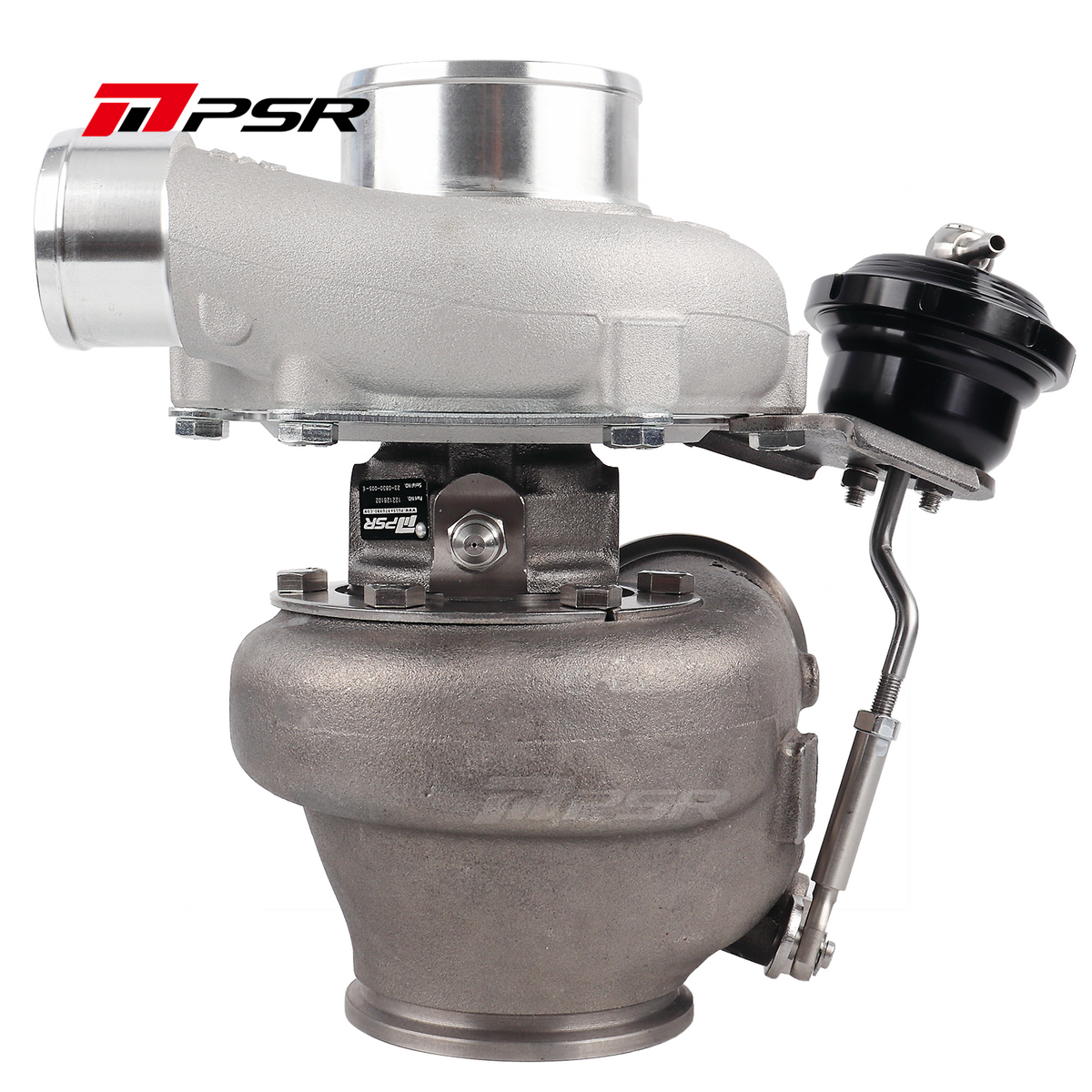

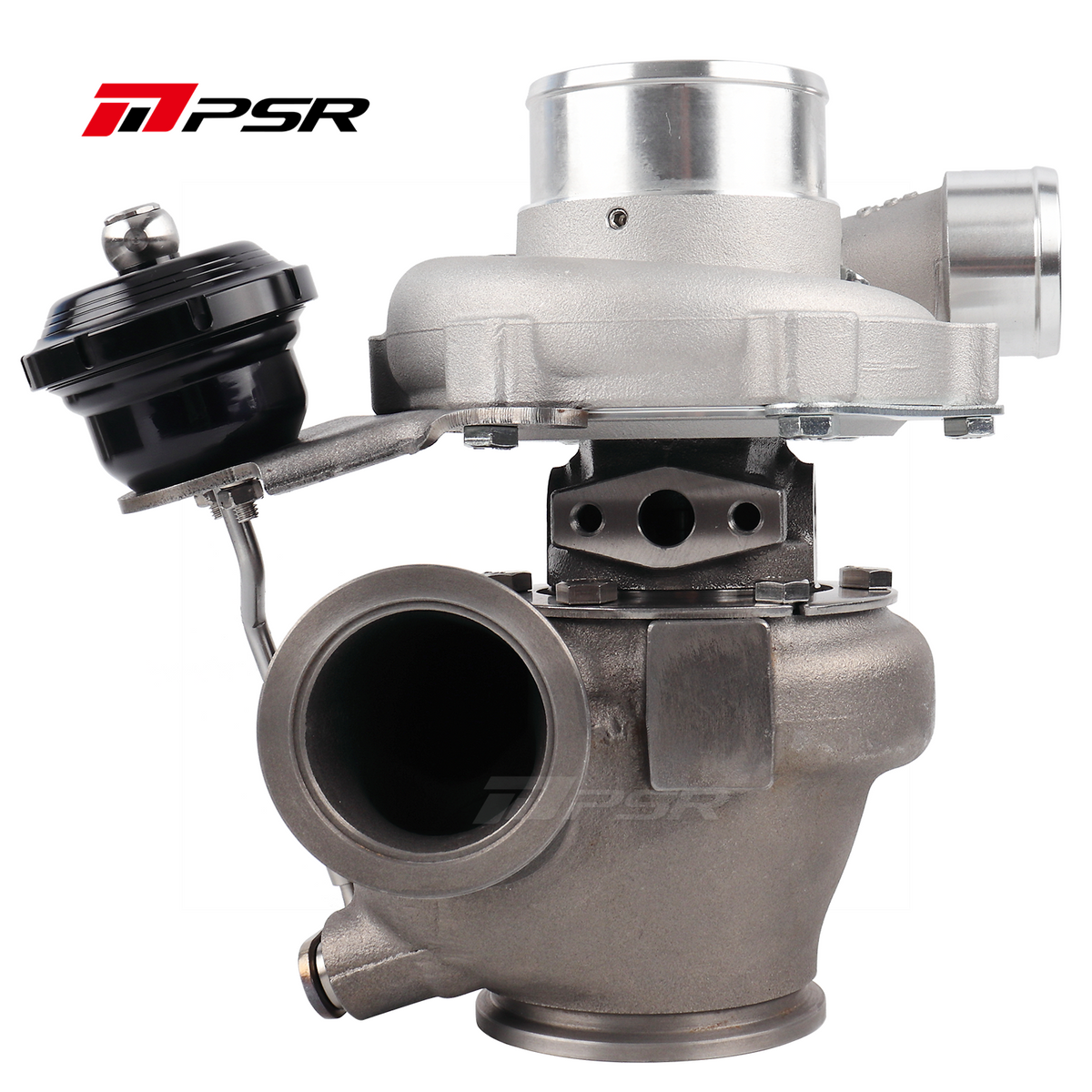

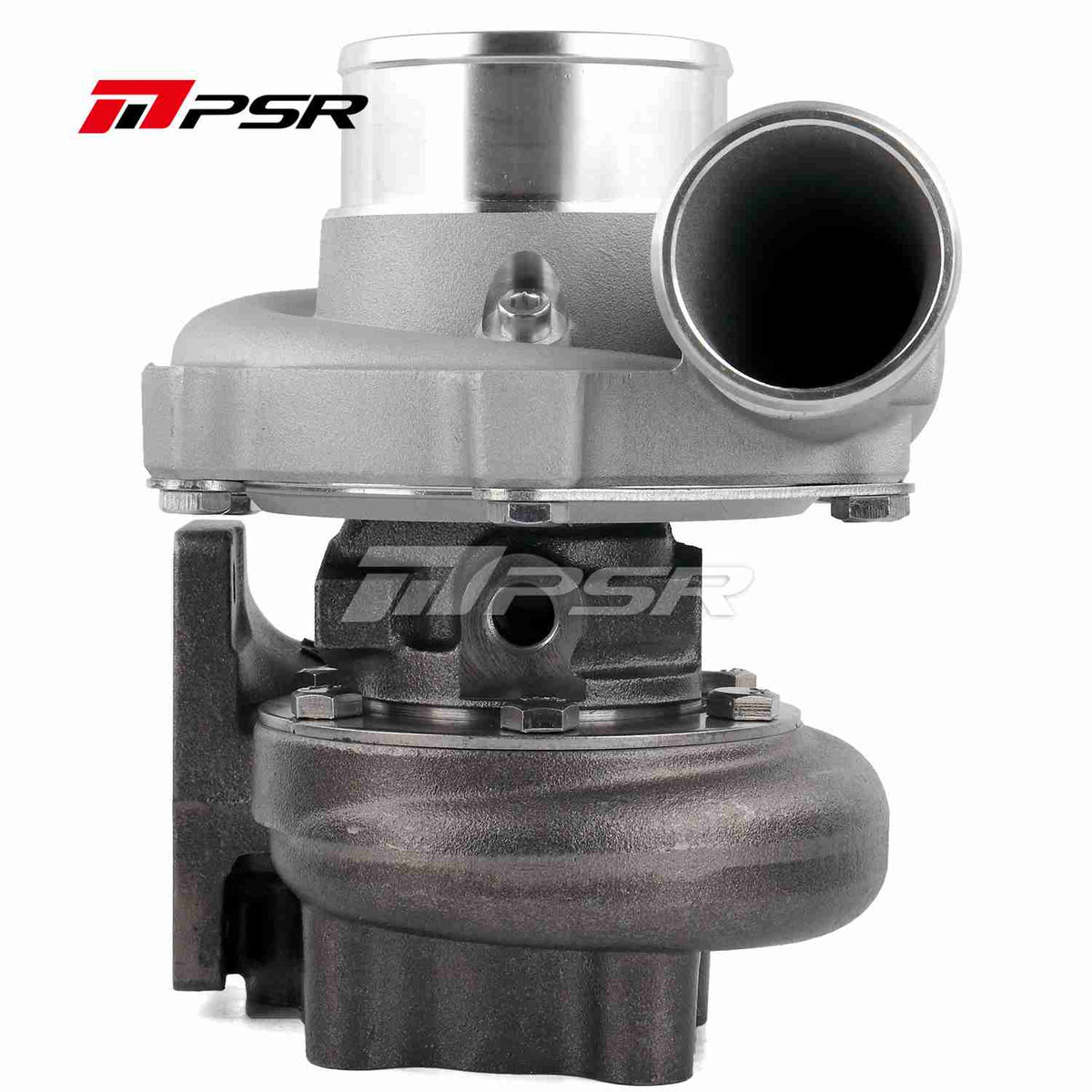

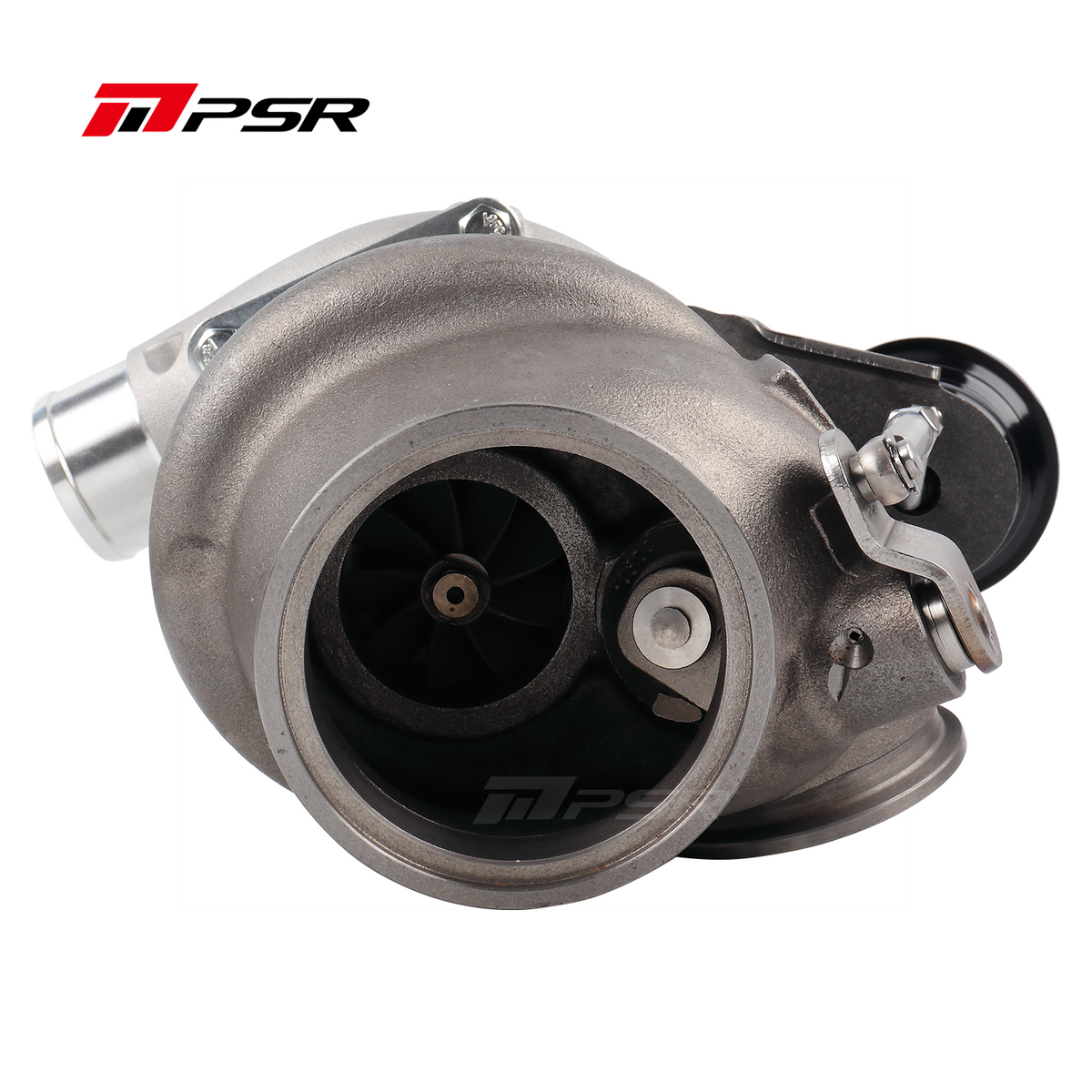

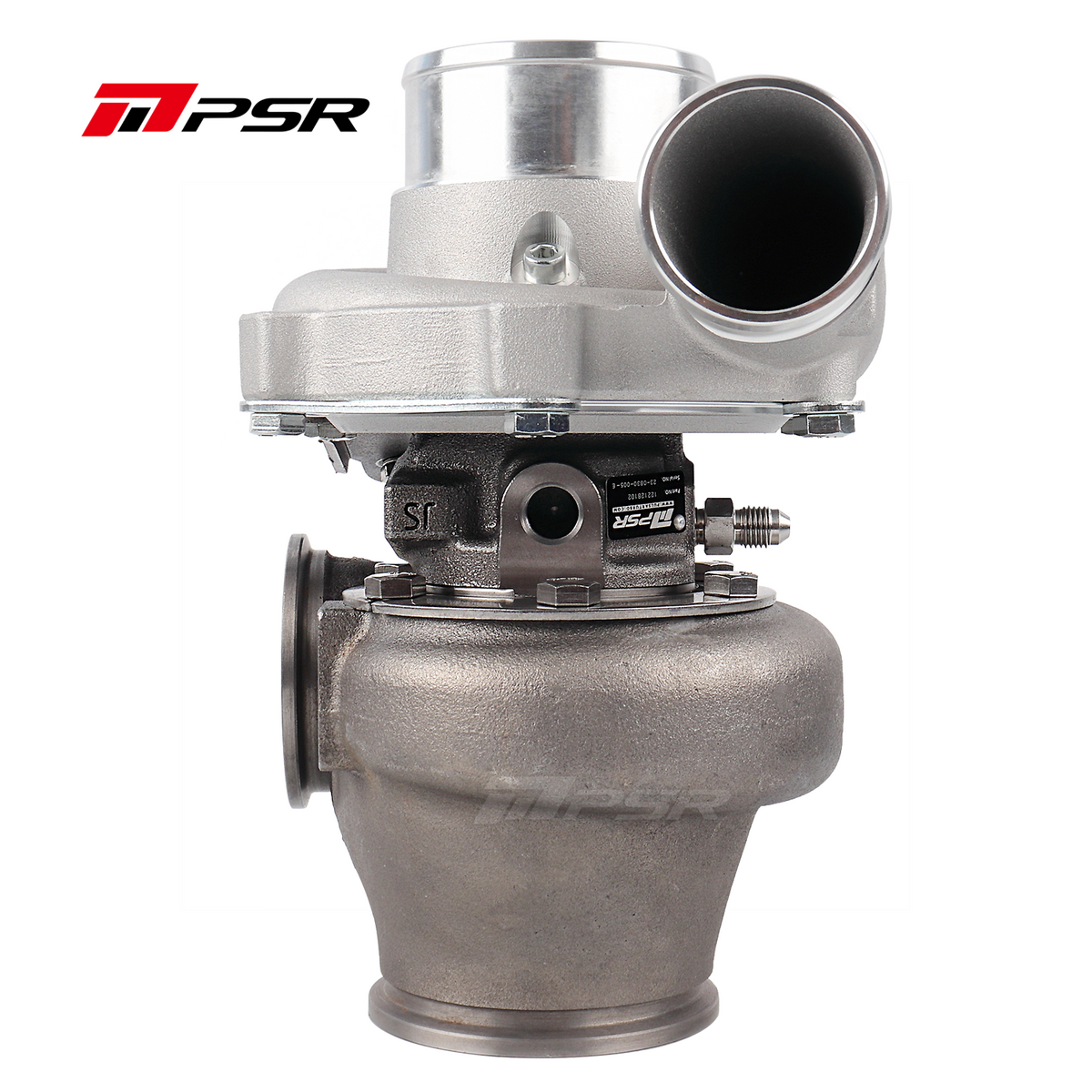

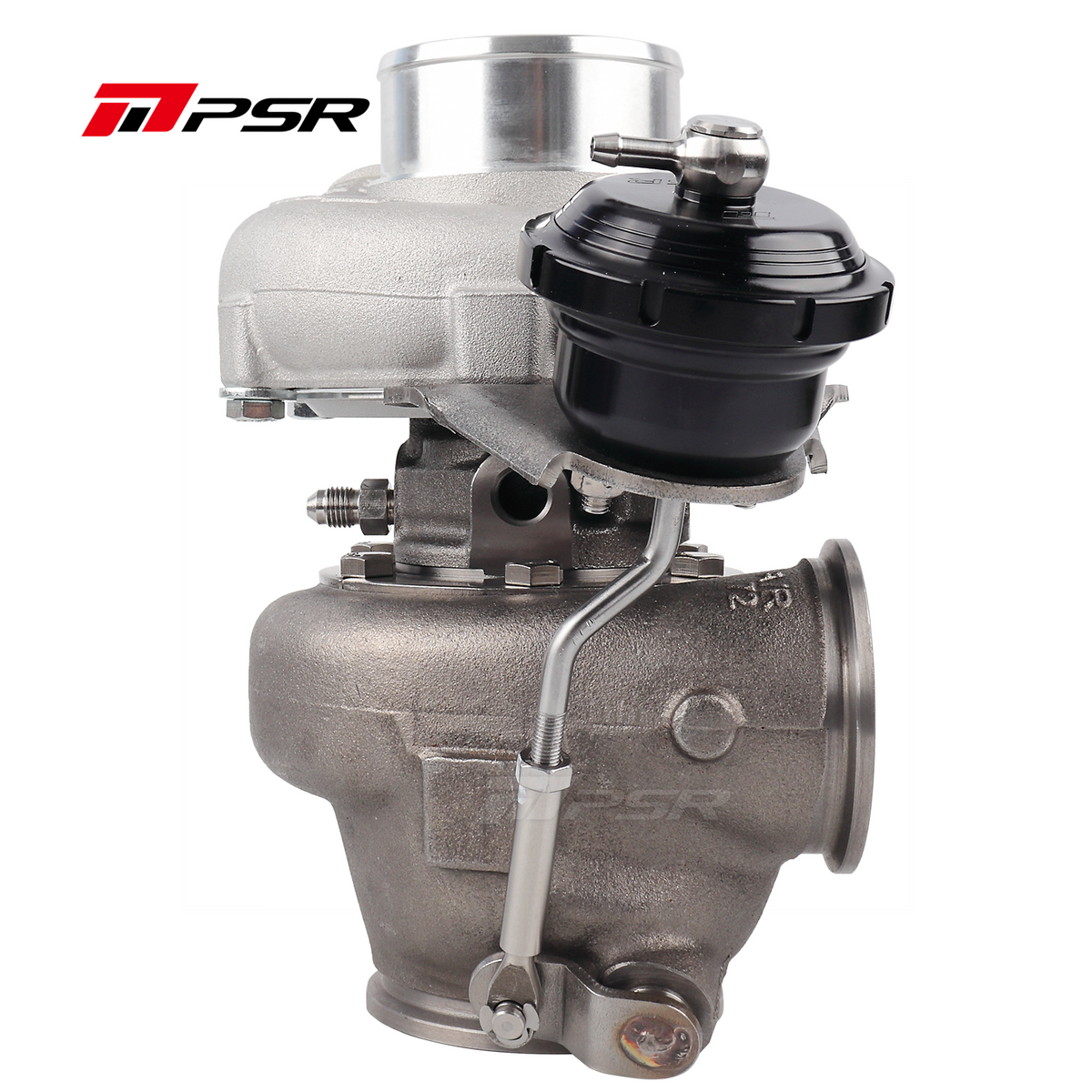

PSR2867 Gen2 Dual Ball Bearing Turbocharger

PSR2867 Gen2 Dual Ball Bearing Turbocharger

From $1,025.00 ~~$0.00~~

or 4 interest-free payments of $486.75 with afterpay

Select an option to add this to your cart

Compressor Housing Options : T51R MOD : Standard : Without Compressor Housing

Turbine Houisng Options : Dual Vband 0.72A/R IWG : T25 .86 5 Bolt : T25 .64 5 Bolt : .82 SS Dual V-Band+T25 Adapter : .64 Stainless Steel Dual V-Band+T3 Adapter : 0.82 Stainless Steel Turbine Housing + Vband to T3 adapter : .64 Stainless Steel Dual V-Band+T25 Adapter : .64 Stainless Steel Dual V-Band : Without Turbine Housing : .82 SS Dual V-Band

Actuator Options : PSR Billet 15psi : PSR Billet 7.4psi : PSR Billet 11.6psi : Without Actuator : Stamping 7.4psi : Stamping 14psi : Stamping 7.4psi (102128148) : Stamping 11.6psi

Sold Out

Quantity

PSR2867 Gen2 Dual Ball Bearing Turbocharger

Most orders ship in 1–3 days. Hand-made parts can take 1–4 weeks. In a hurry? Contact us first.

Description

Dual Ceramic Ball Bearing System
8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 9-blade Turbine Wheel
Gen2 Cover Integrated with the Speed Sensor Port

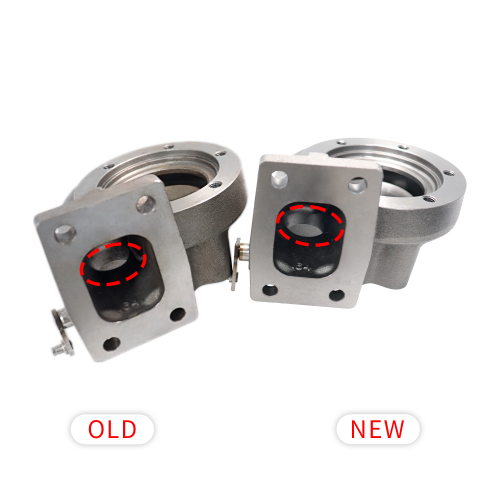

0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.64, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option
V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: ~45 lb/min, rated @ 550 FWHP

Compressor Wheel: 50*67mm
Turbine Wheel: 54/47mm
Compressor Inlet: 3″ Hose
Compressor Outlet: 2″ Hose
Turbine Inlet: T25 or 2.5″ V-Band
Turbine Outlet: 5 Bolt or 3″ V-Band (3.55 OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
