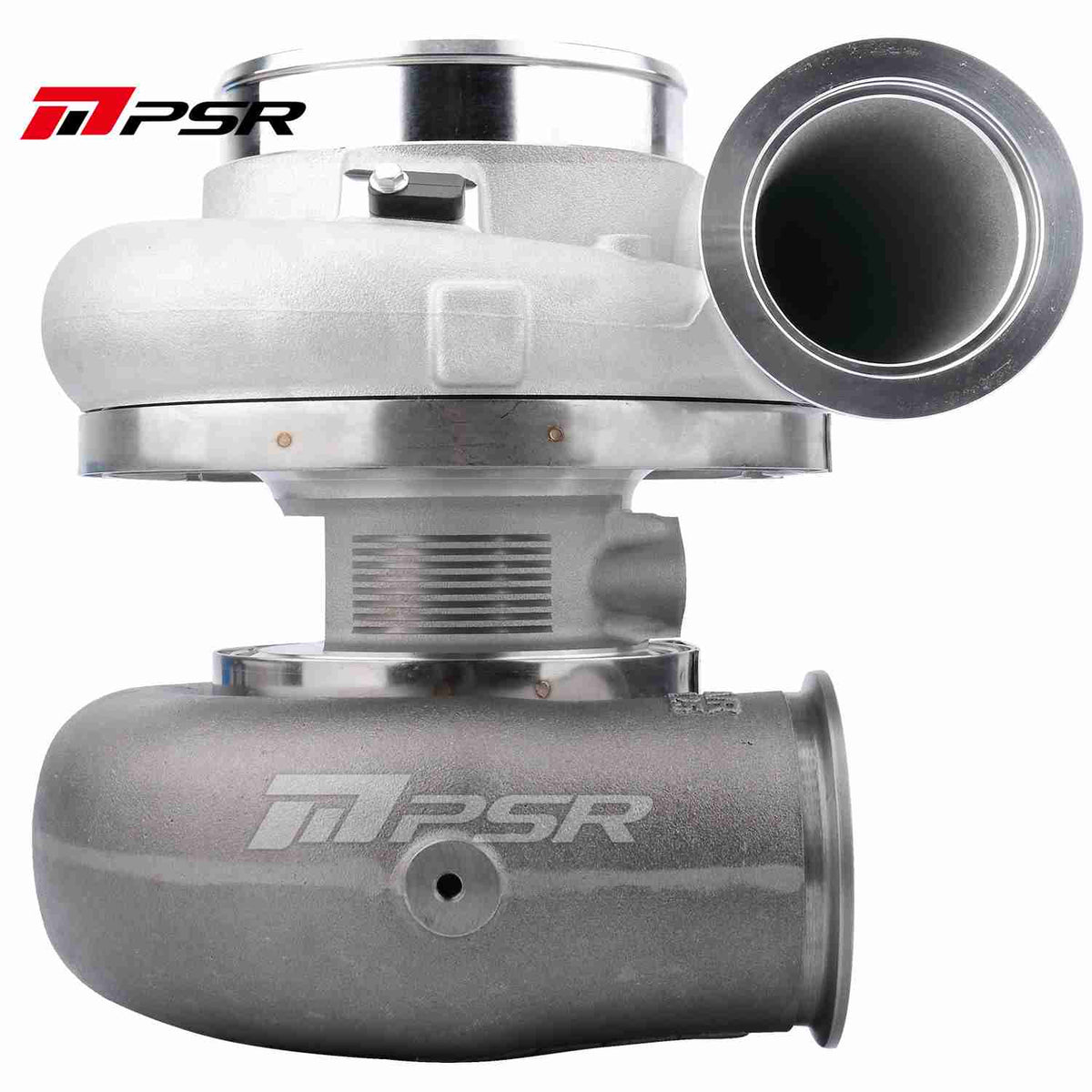

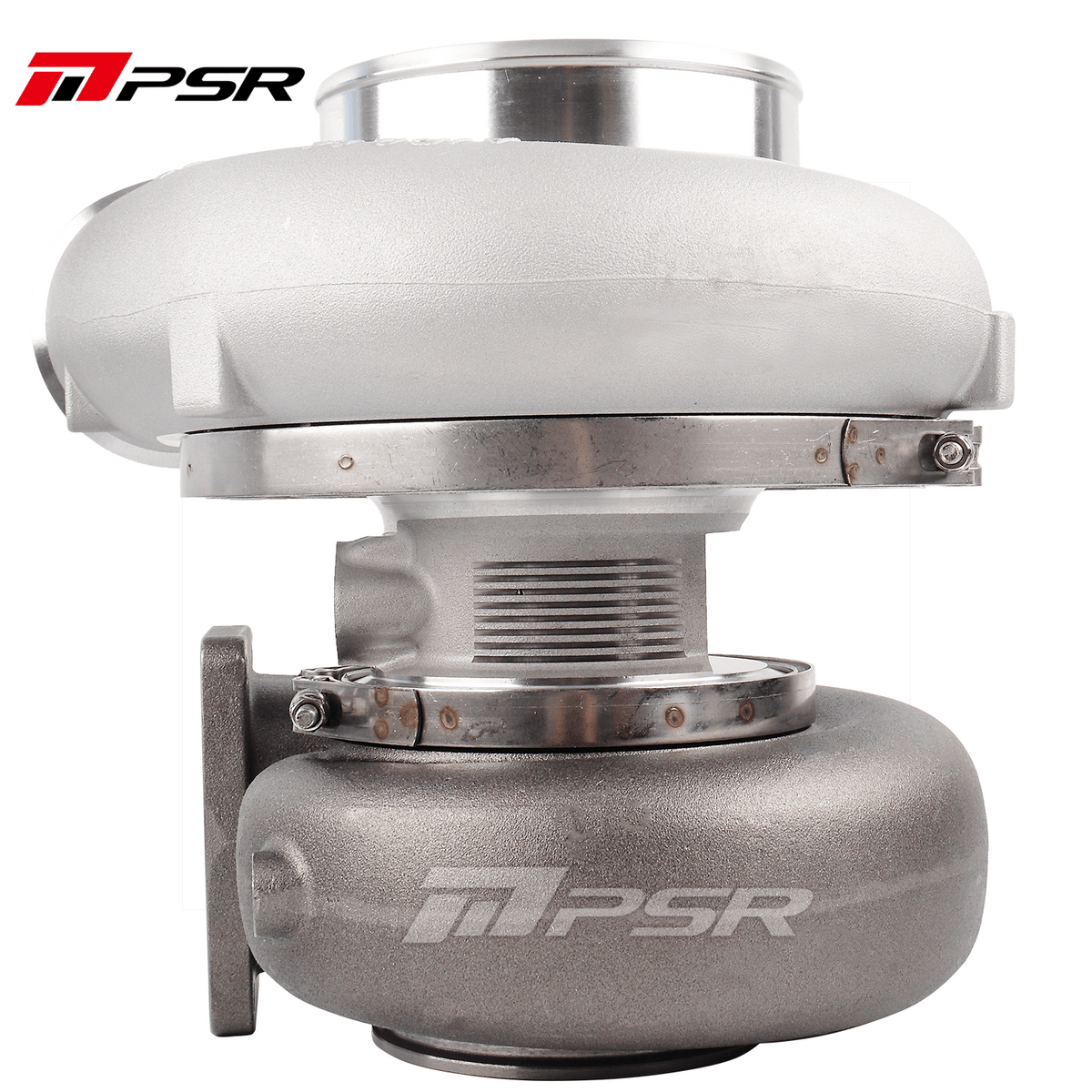

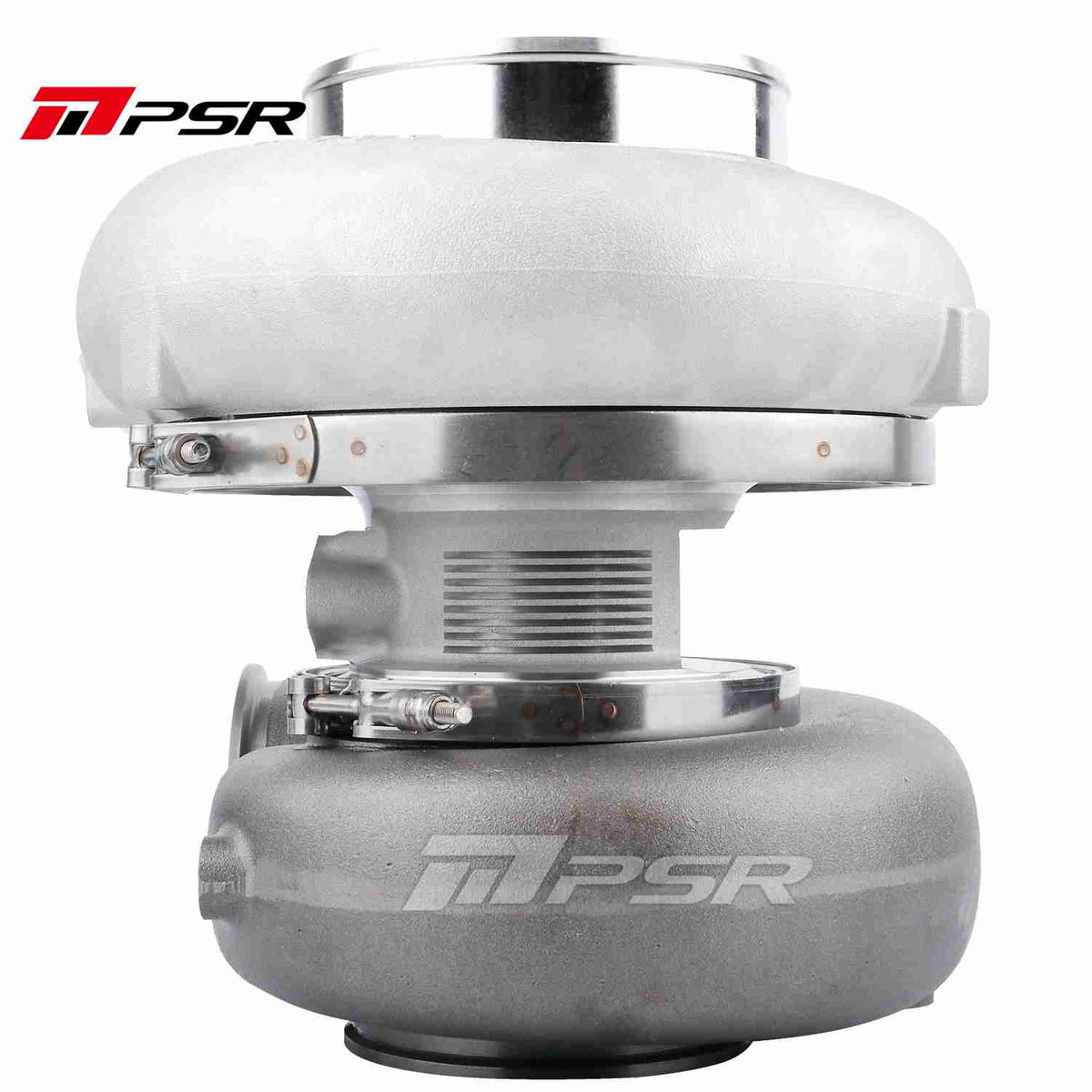

PSR PRO98 HP Rating 2550

From $3,791.00 ~~$0.00~~ /

Select an option to add this to your cart

Compressor Housing Options : without Compressor Housing : T51R MOD : Standard

Turbine Housing Options : without Turbine Housing : T6 Open 1.25 A/R : Dual V-Band 1.09 A/R : Dual V-Band 1.41 A/R : T6 Open 1.41 A/R : Dual V-Band 1.25 A/R

Quantity

The dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion

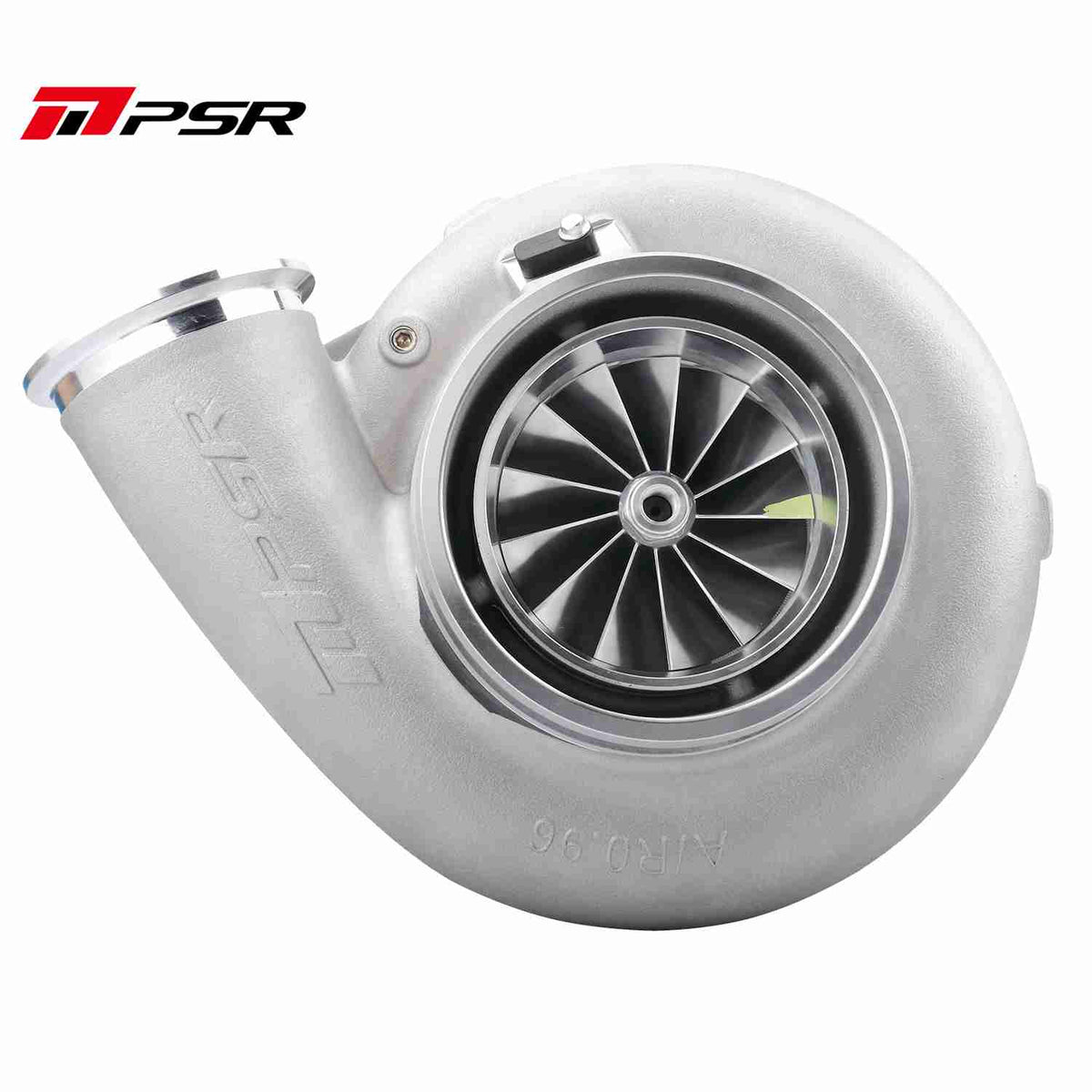

13 Blade G-Aero billet compressor wheel 98mm inducer produces up to 2550 hp

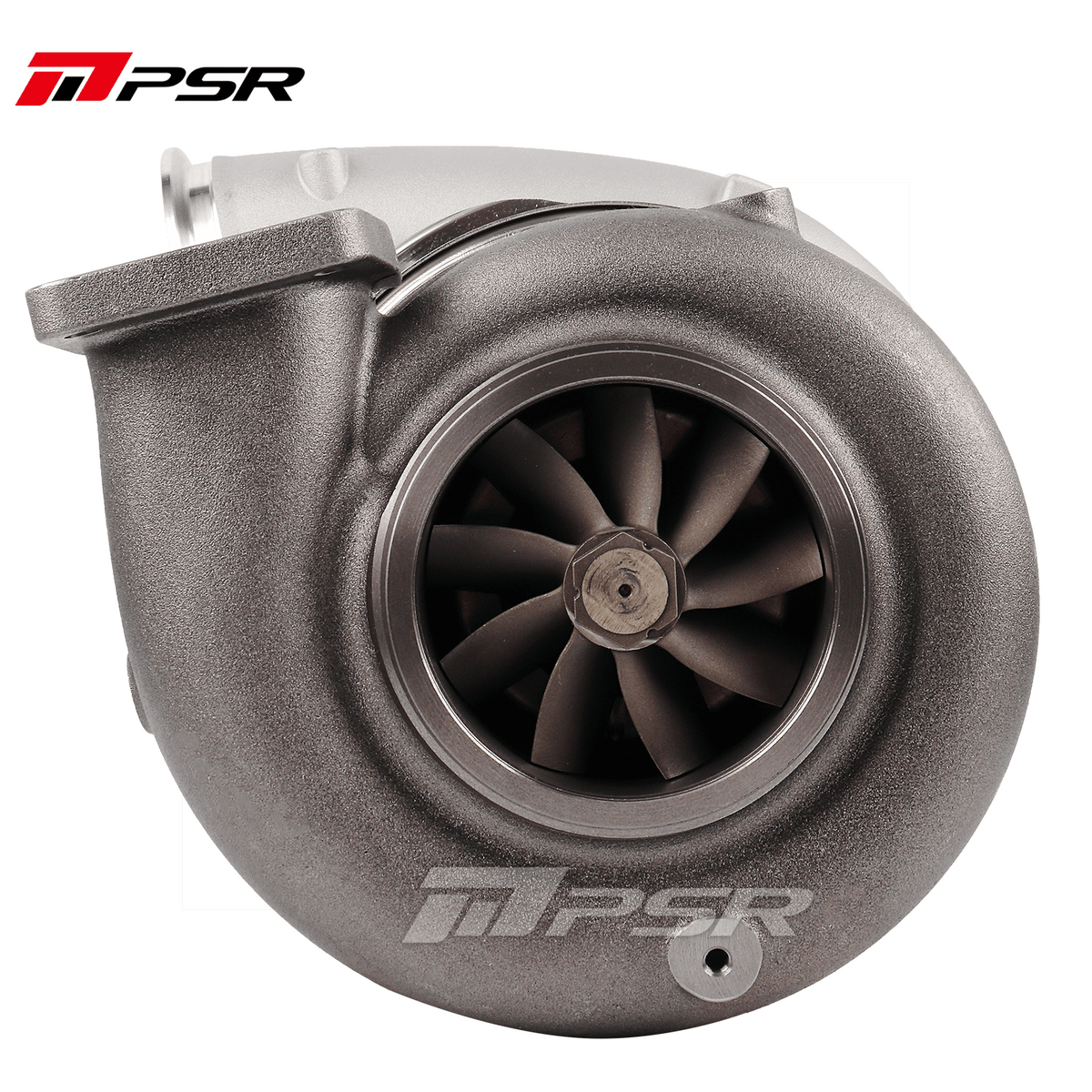

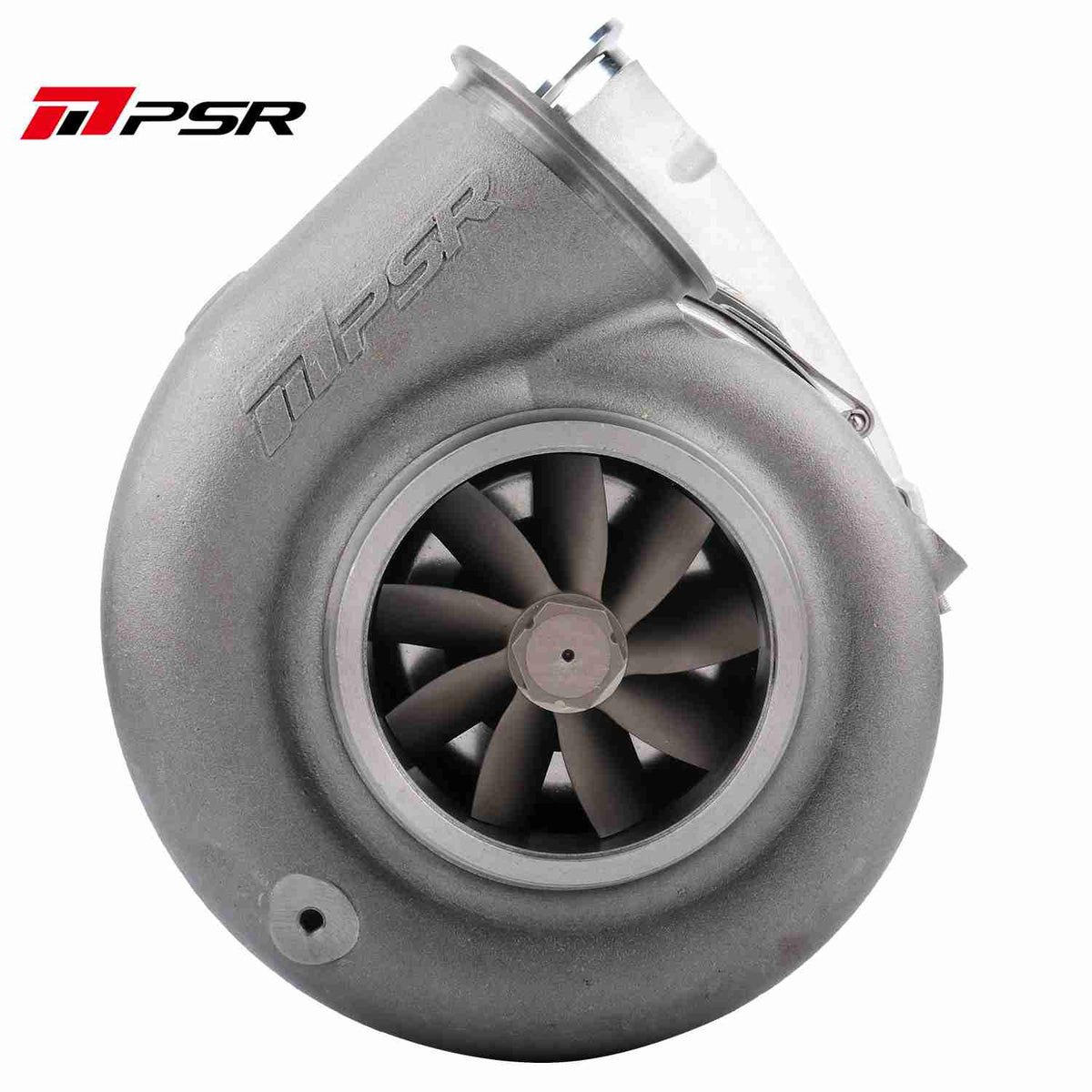

9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow

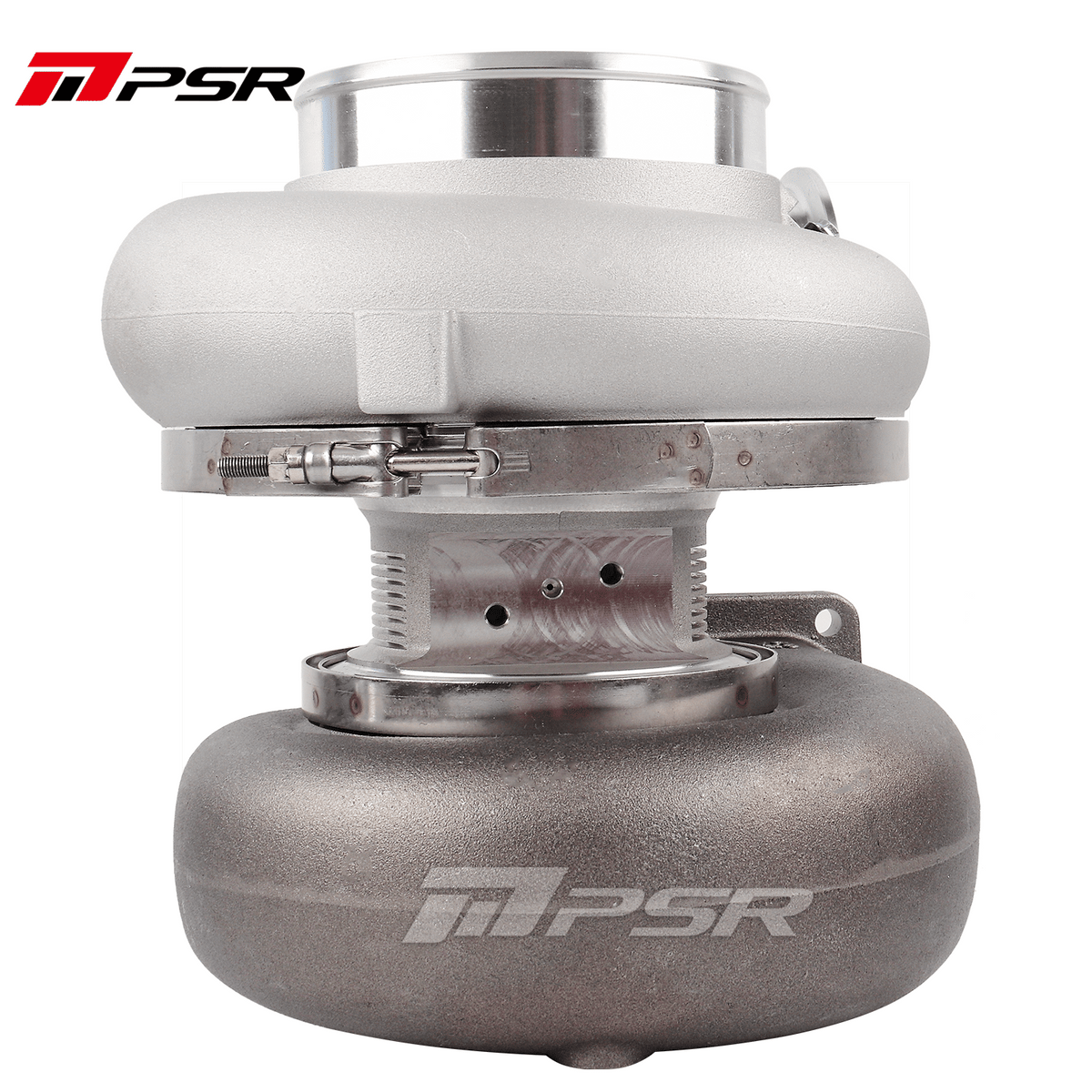

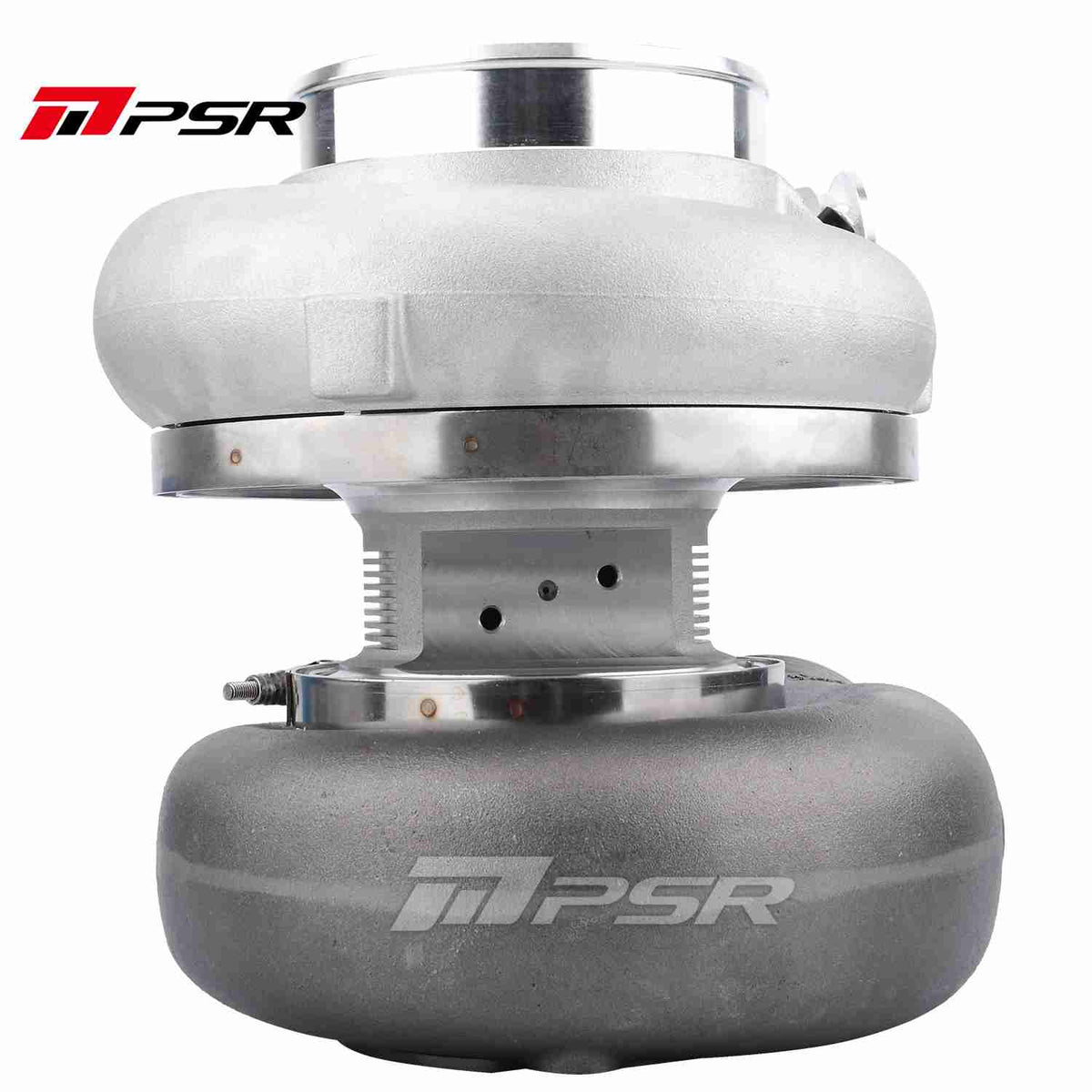

Fin cooled aluminum center housing, lighter weight
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Installation Hardware: 4-Inch flange kit for Comp. Outlet, 3.5-Inch flange kit for Turb. Inlet, 5-Inch flange kit for Turb. The outlet and oil Drain Fitting kits are included by default
Oil Feed Fitting(-4AN, 1.65mm (0.065-Inch) Orifice) included

Compressor Wheel: 98.4×133.5×142.4mm
Turbine Wheel: 118x112mm
Compressor Inlet: 6” Hose
Compressor Outlet: 4” V-band
Compressor Housing A/R: 0.96

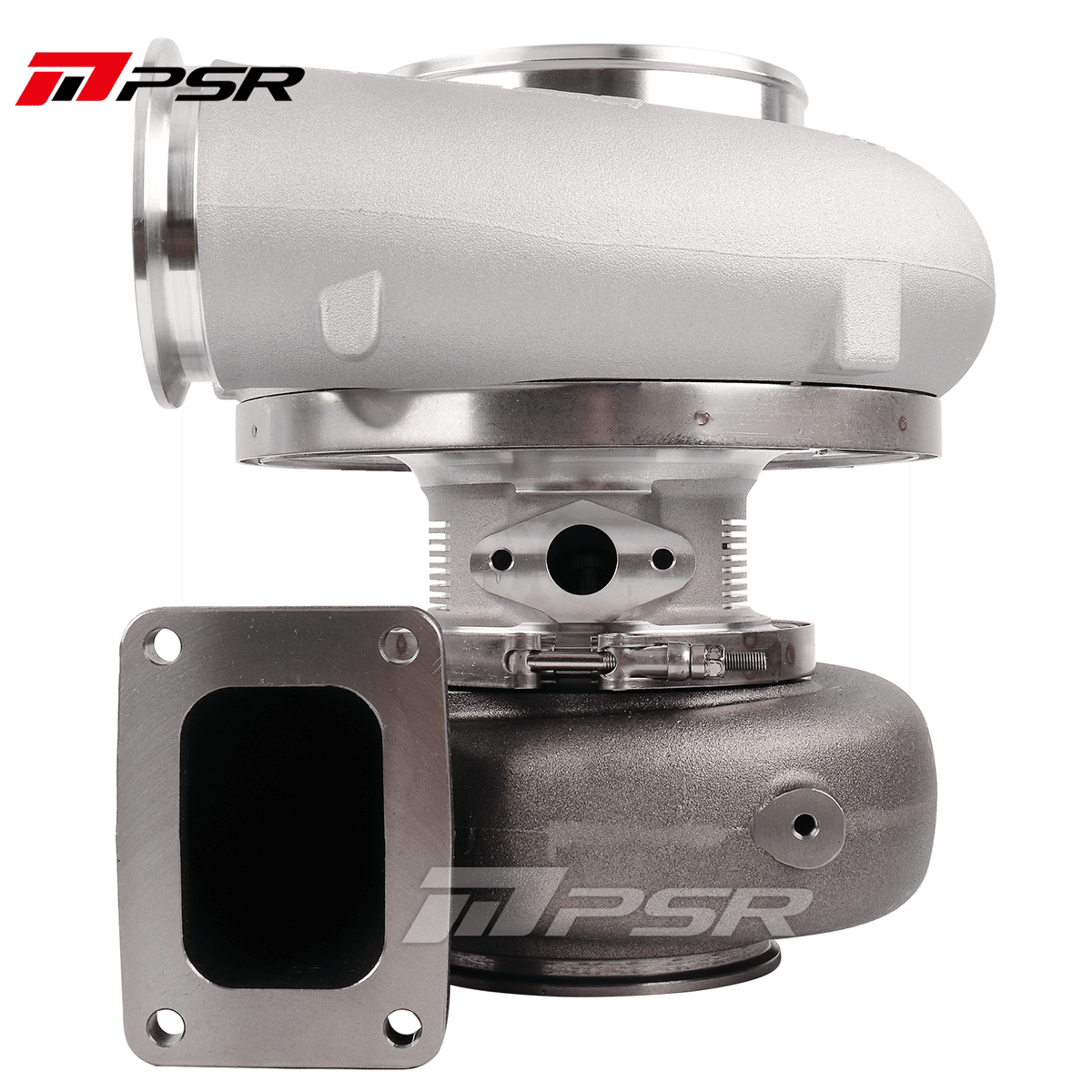

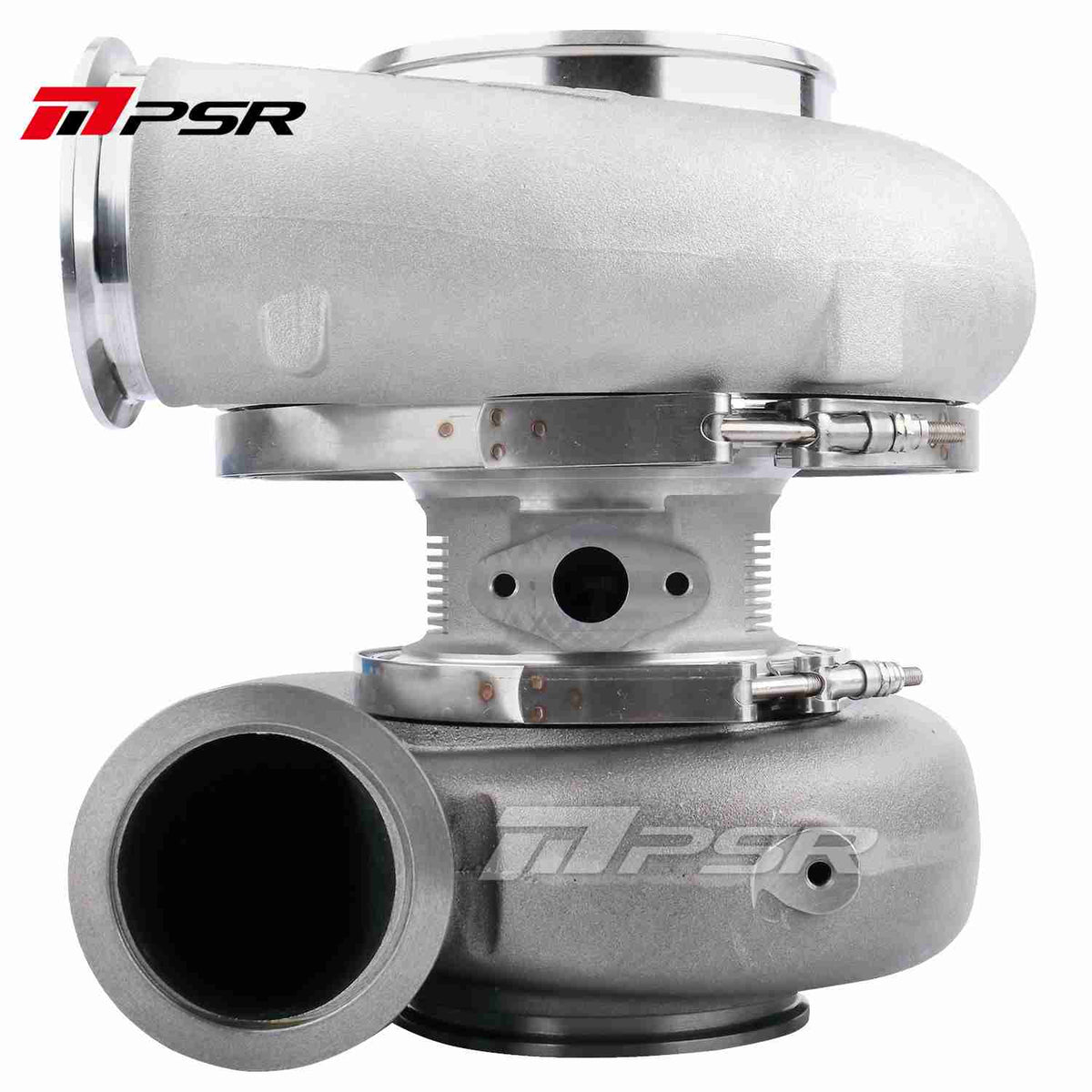

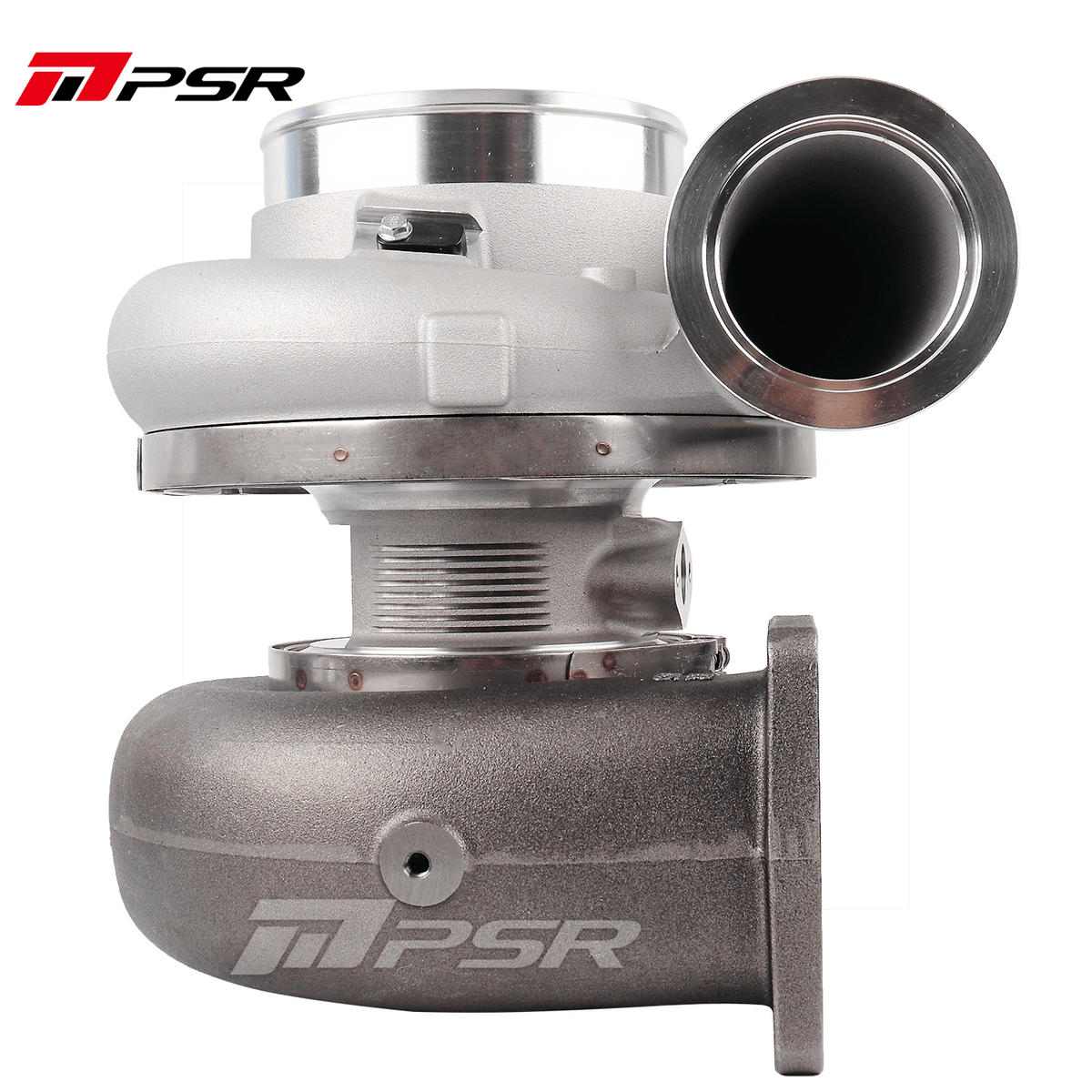

Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
Turbine Outlet: 5” V-Band
Turbine Housing A/R: 1.09/1.25/1.41
Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
Oil Drain: See graph below(OIL OUTLET)
