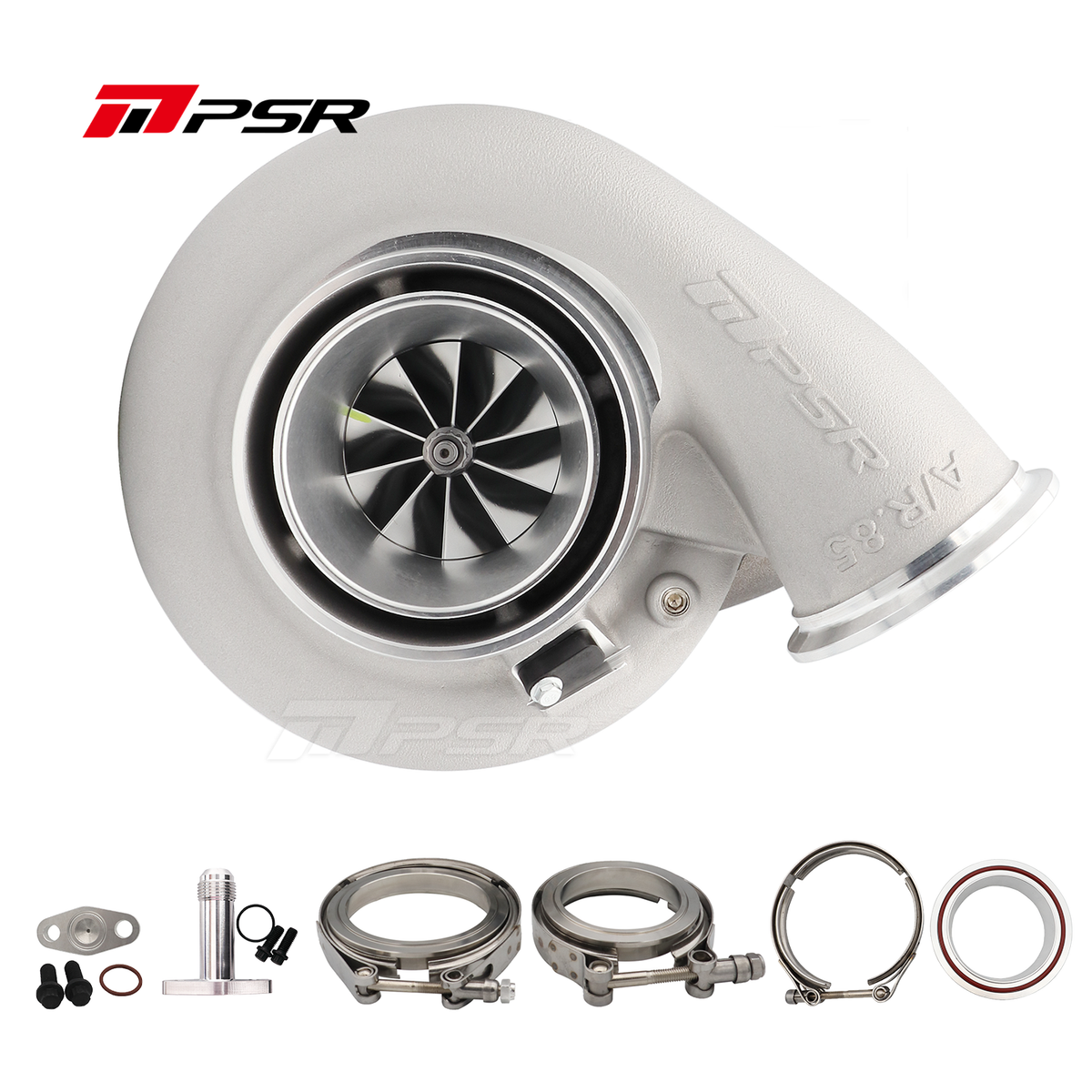

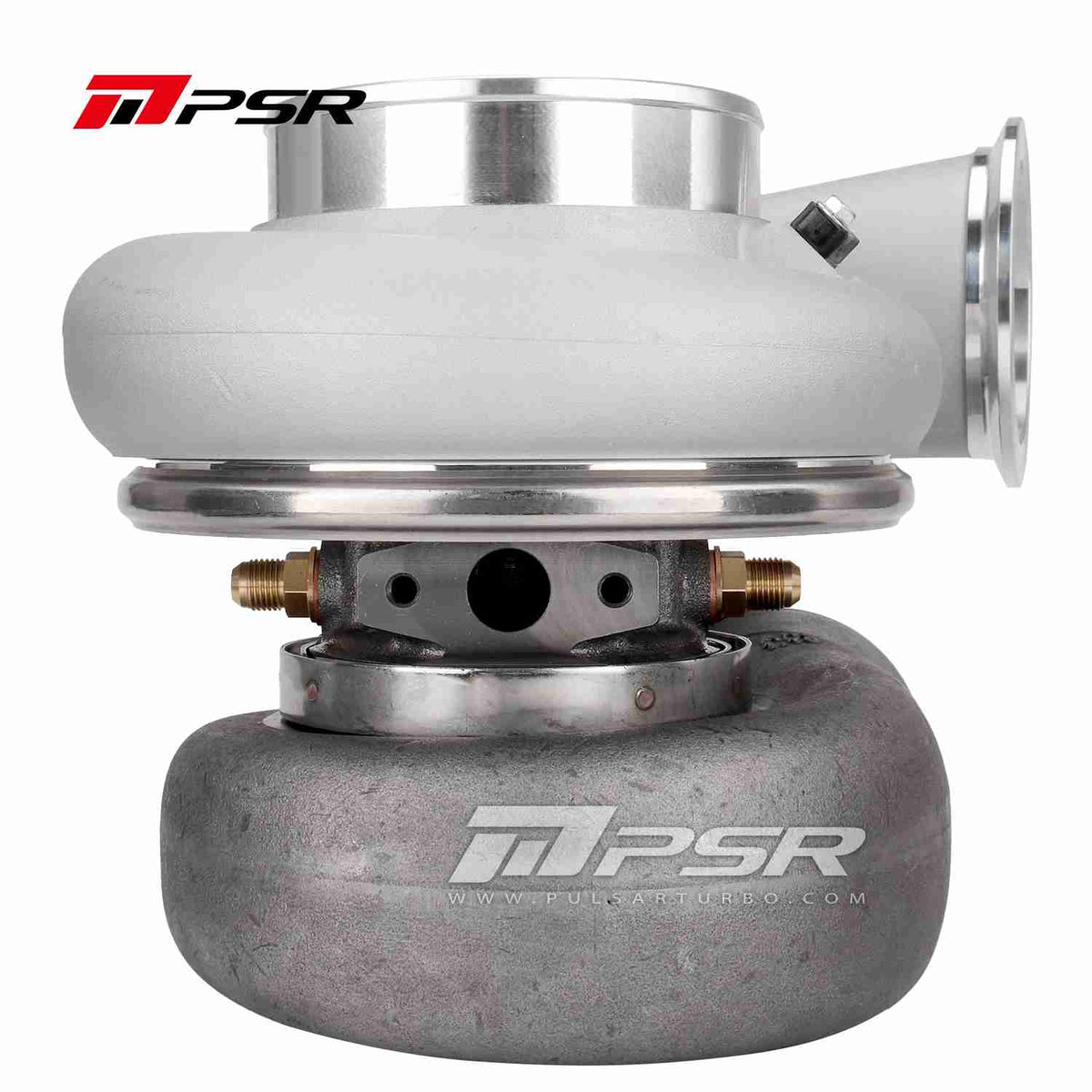

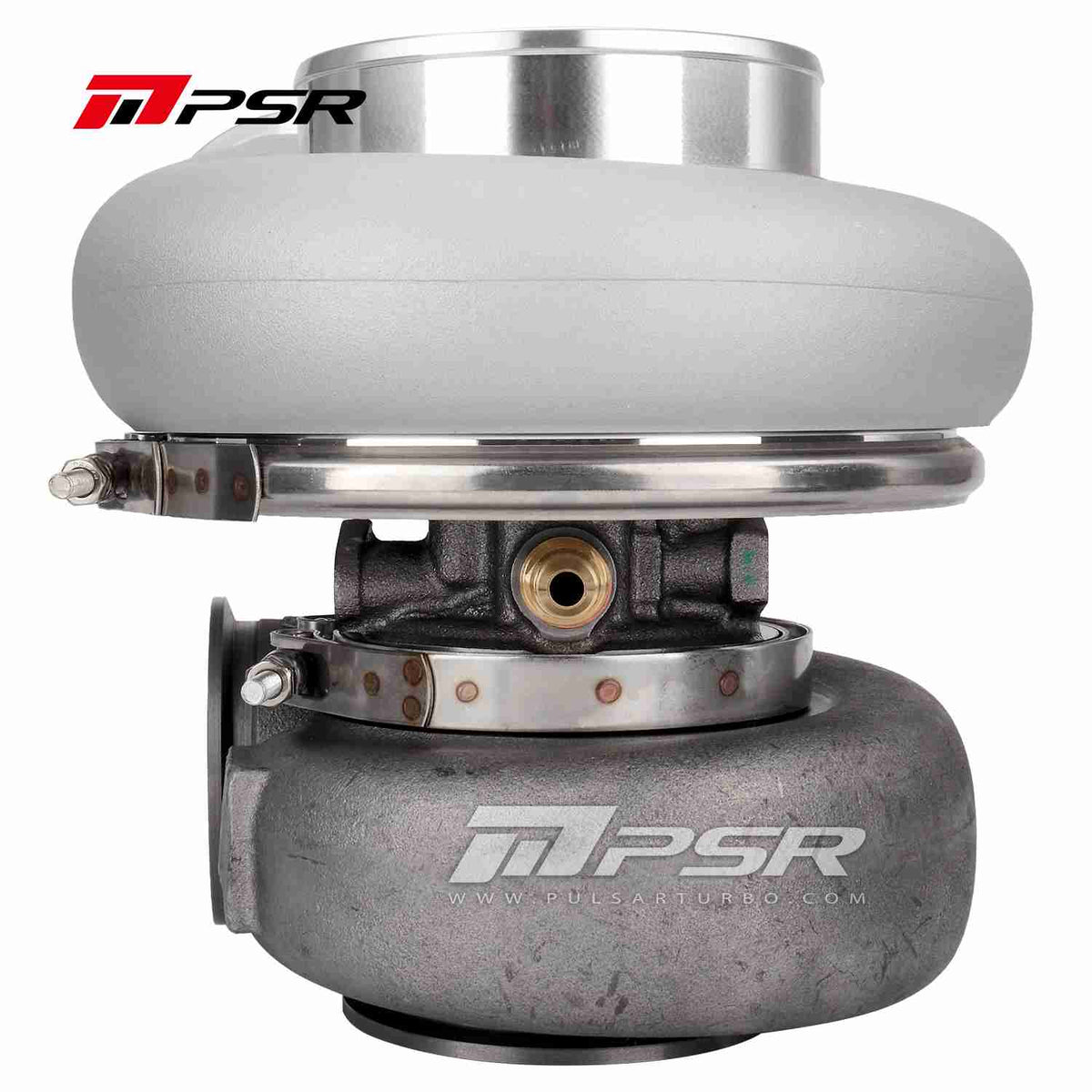

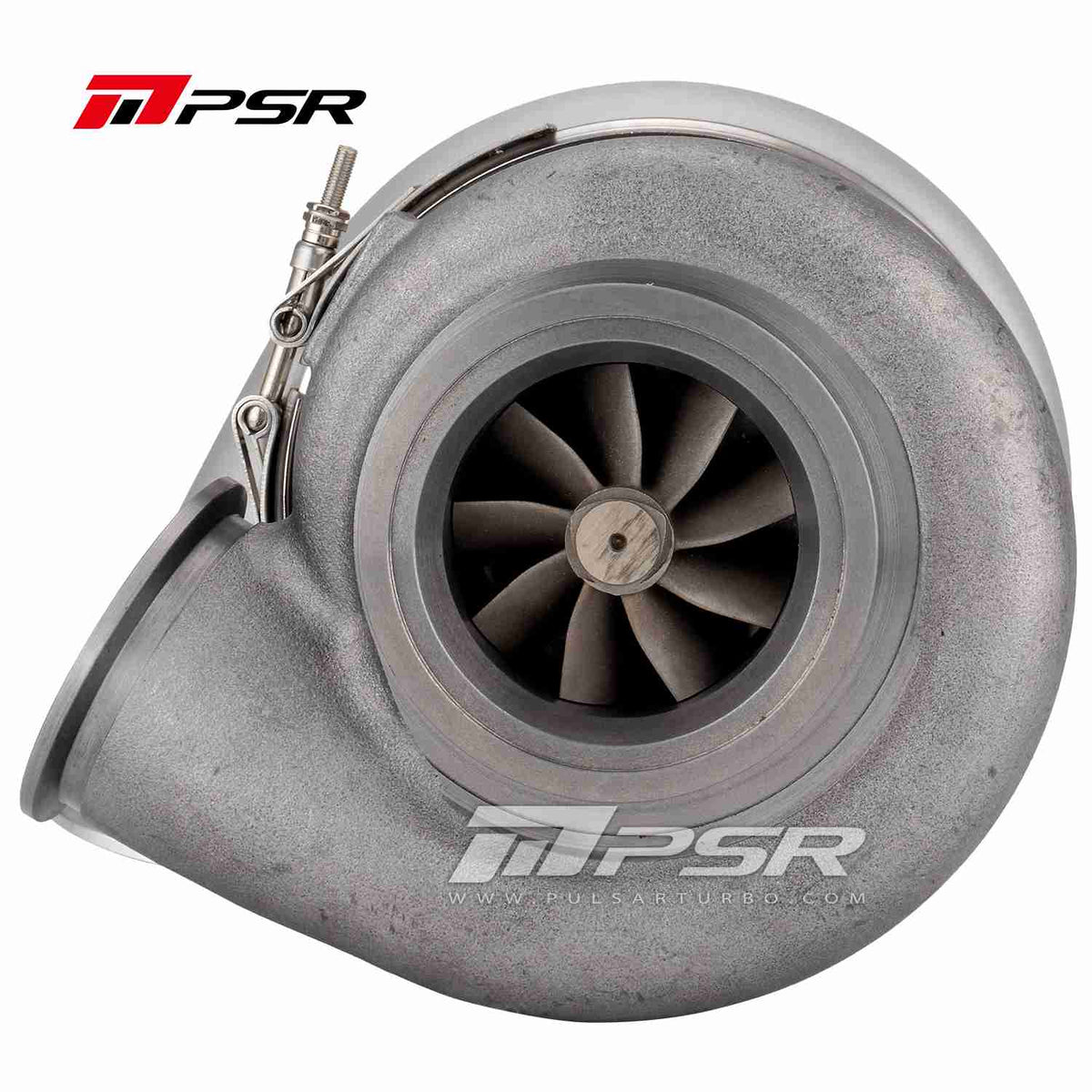

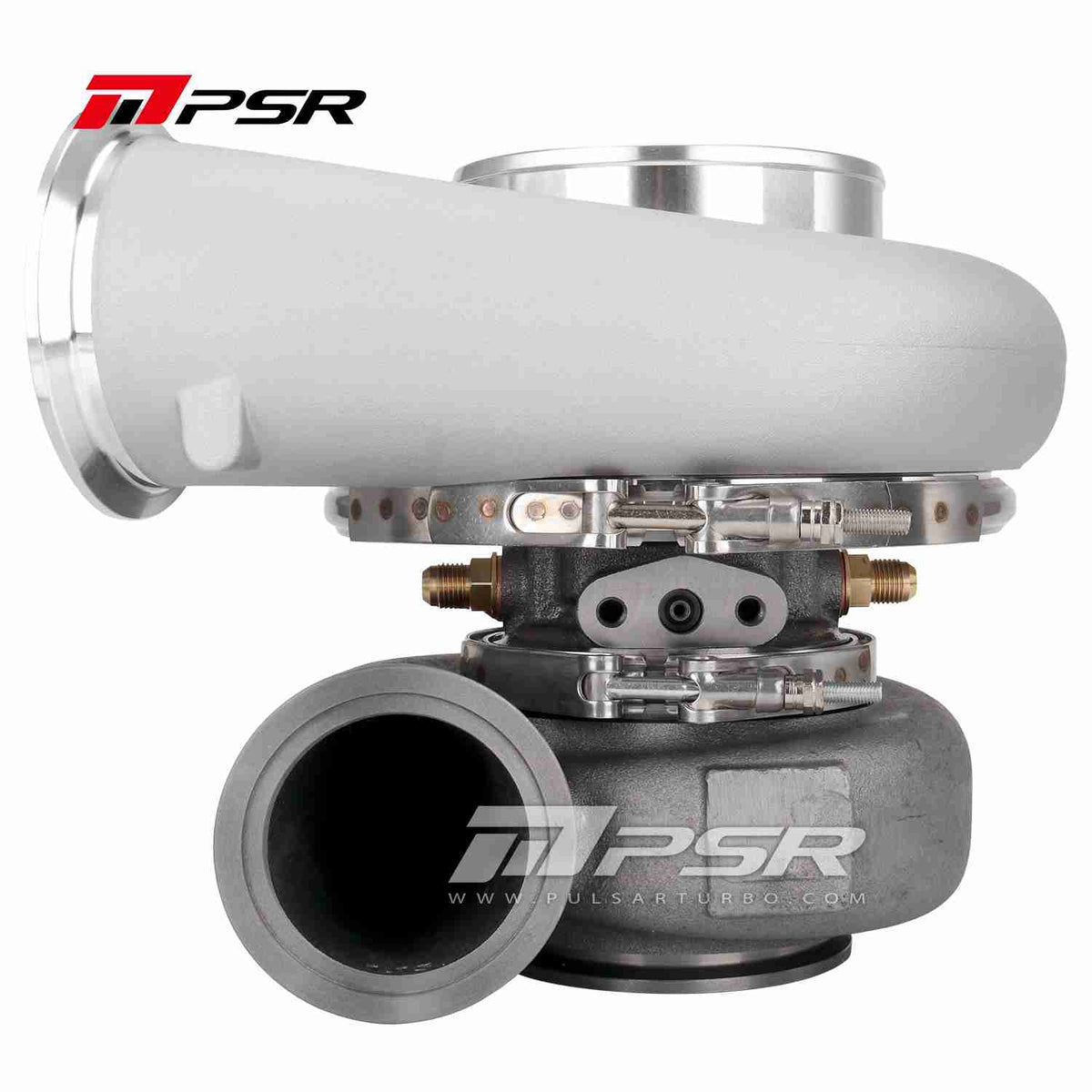

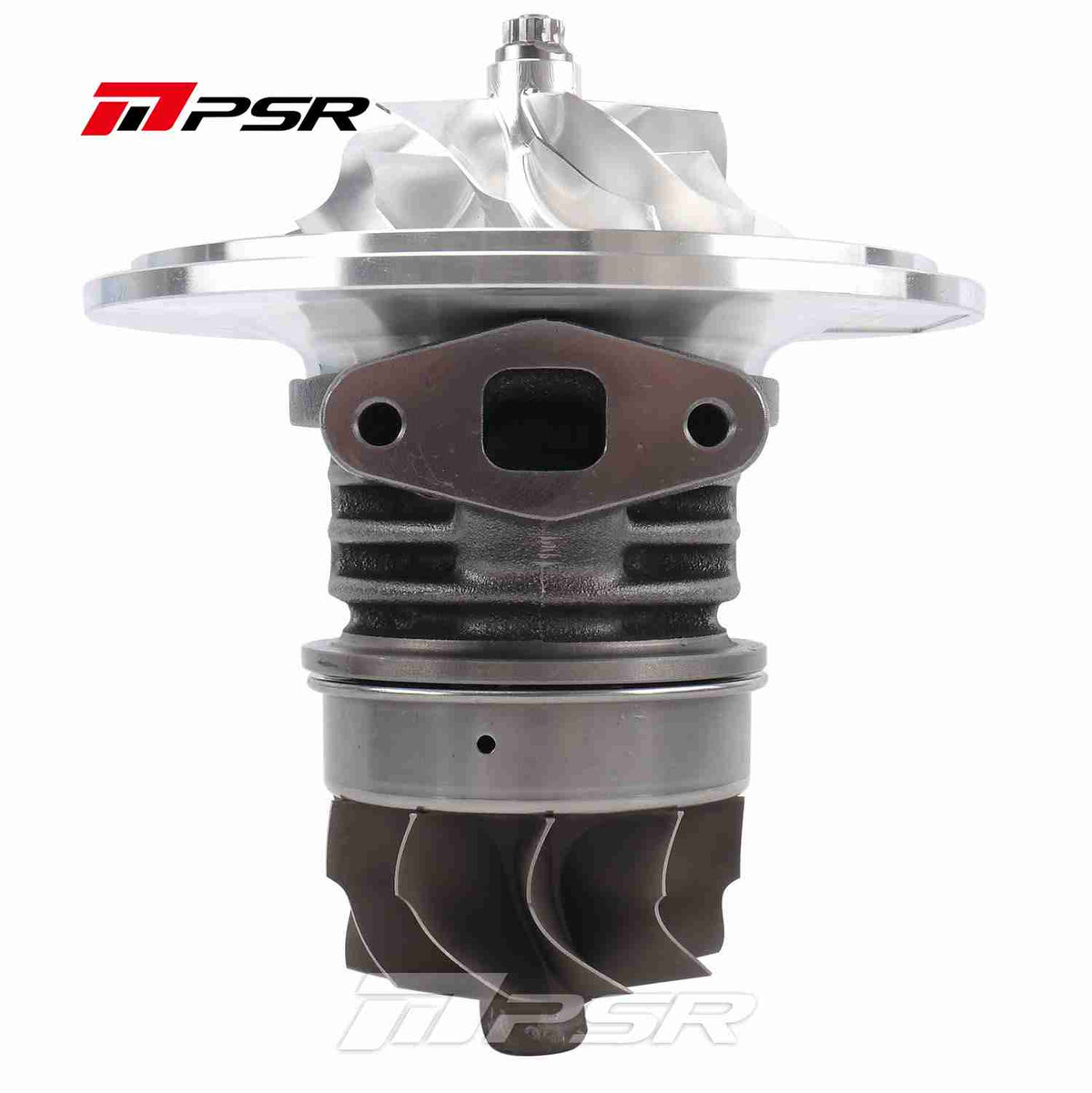

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

From $1,803.00 ~~$0.00~~ /

Select an option to add this to your cart

Turbine Housing Options : Without Turbine housing : T4(divided) inlet, Vband Outlet, 0.95A/R : T4(divided) inlet, Vband Outlet, 1.01A/R : T4(divided) inlet, Vband Outlet, 1.15A/R : T4(open) inlet, Vband Outlet, 1.15A/R : Vband inlet, Vband outlet, 1.15A/R : T4(divided) inlet, Vband Outlet, 1.28A/R : Vband inlet, Vband outlet, 1.28A/R : T4(divided) inlet, Vband Outlet, 1.44A/R : Vband inlet, Vband outlet, 1.01A/R

Compressor Housing Options : Std : Without Compressor Housing

Quantity

PSR Class Legal 6782G Dual Ball Bearing Turbocharger

Most orders ship in 1–3 days. Hand-made parts can take 1–4 weeks. In a hurry? Contact us first.

Description

PSR Class Legal Turbo with 67/98mm Compressor wheel
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
8 Turbine housing in option
Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default

-Compressor Wheel: 67*98mm

-Turbine Wheel: 81.6*89mm

-Compressor Inlet: 5″ Hose

-Compressor Outlet: 3″ V-Band

-Water Ports: -6AN

-Oil Feed: Flange Required

-Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl’)

-Eight Turbine housings in Option:

T4(Divided) inlet, Vband outlet, 1.01 A/R
T4(Open) inlet, Vband outlet, 1.15 A/R
T4(Divided) inlet, Vband outlet, 1.15 A/R
T4(Divided) inlet, Vband outlet, 1.28 A/R
T4(Divided) inlet, Vband outlet, 1.44 A/R
Vband inlet and Vband outlet, 1.01 A/R
Vband inlet and Vband outlet, 1.15 A/R
Vband inlet and Vband outlet, 1.28 A/R
