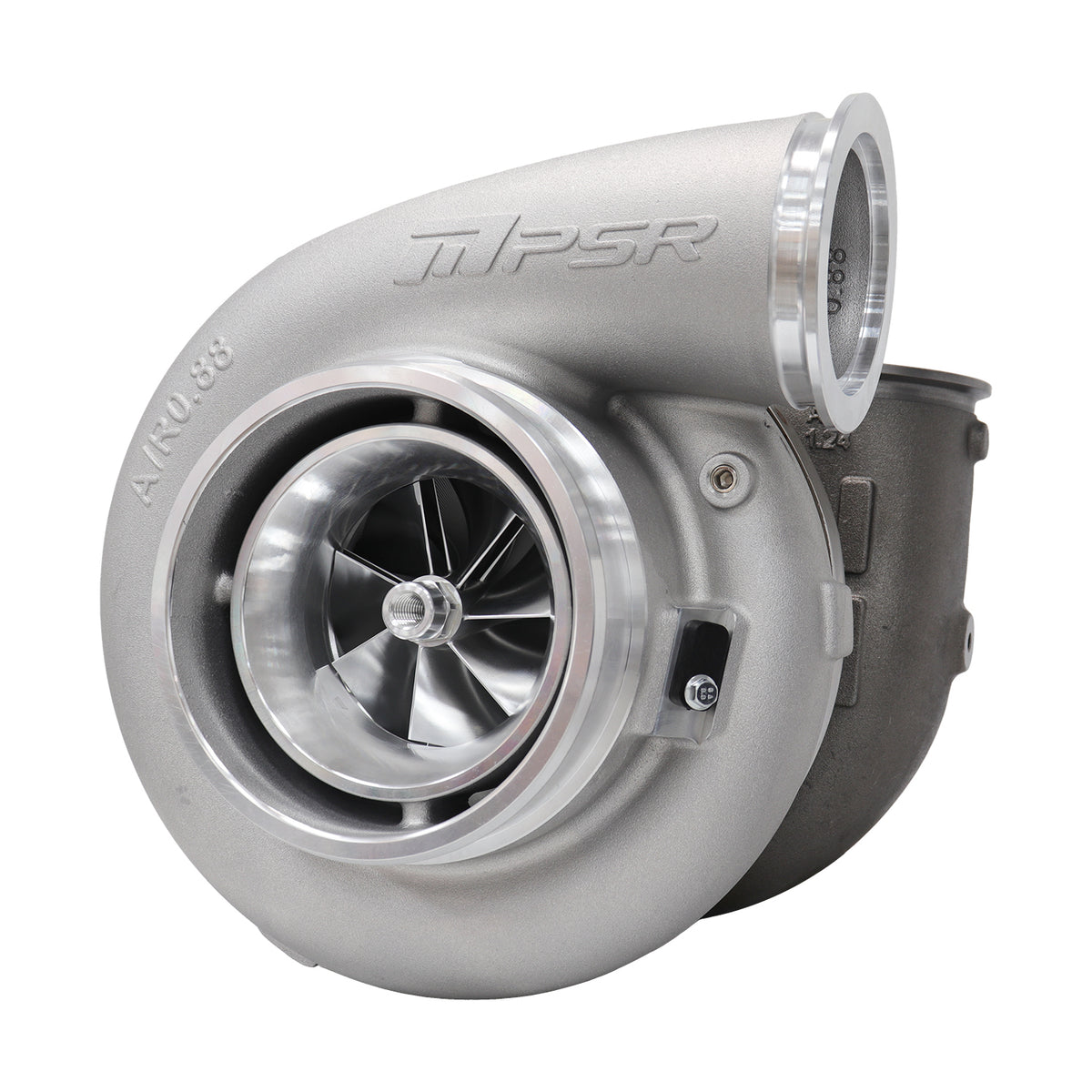

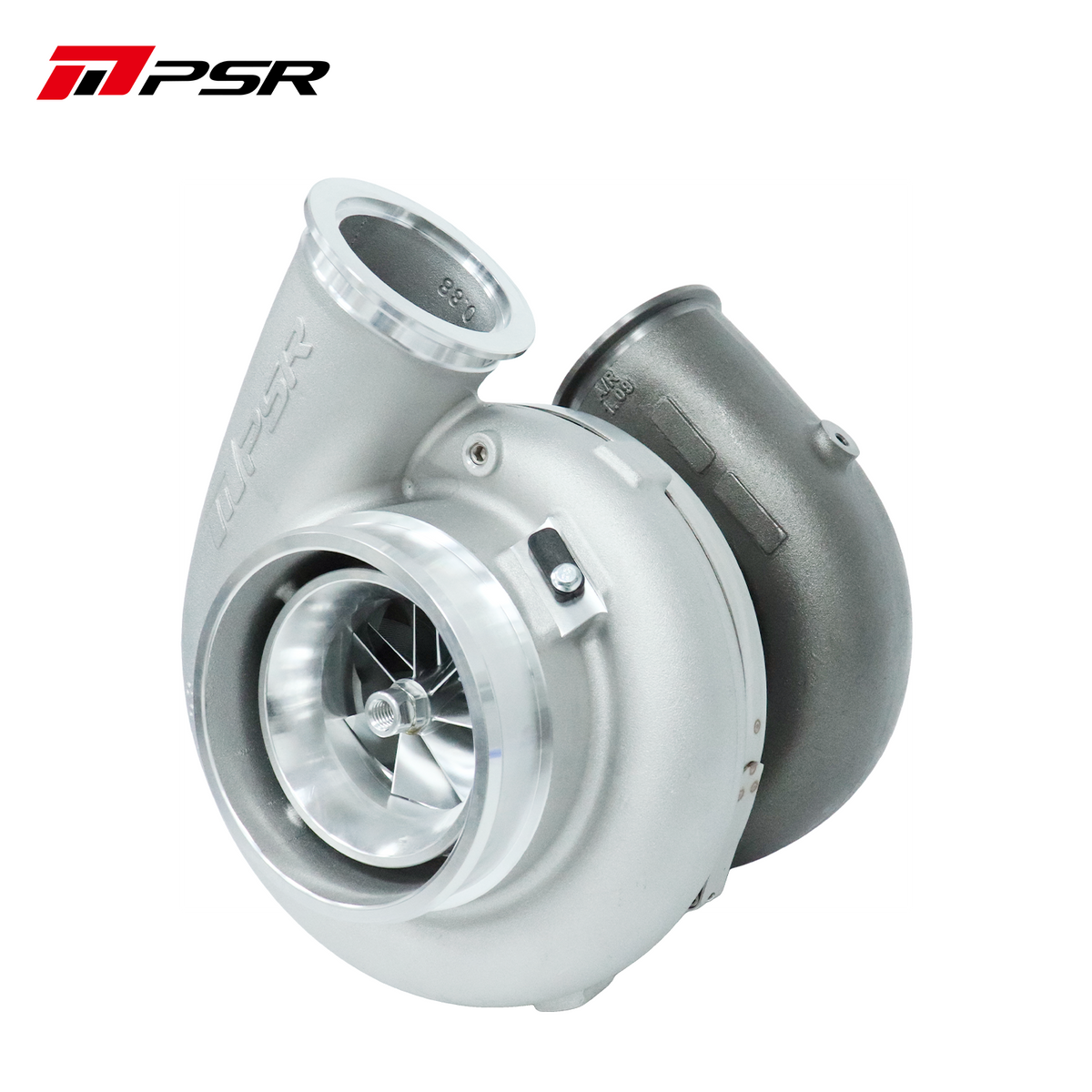

Description

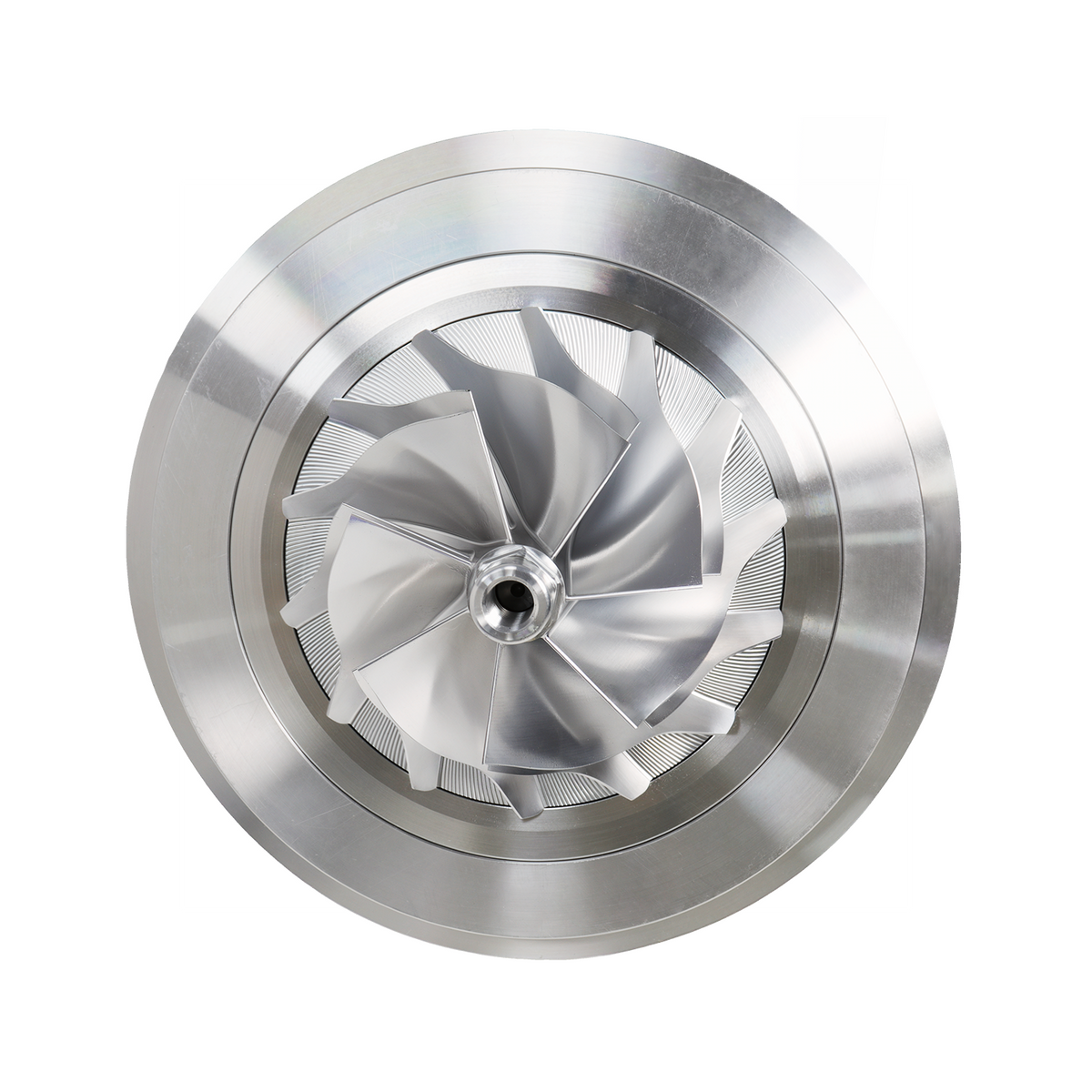

- 7+7 Blade GR compressor wheel will get more air flow

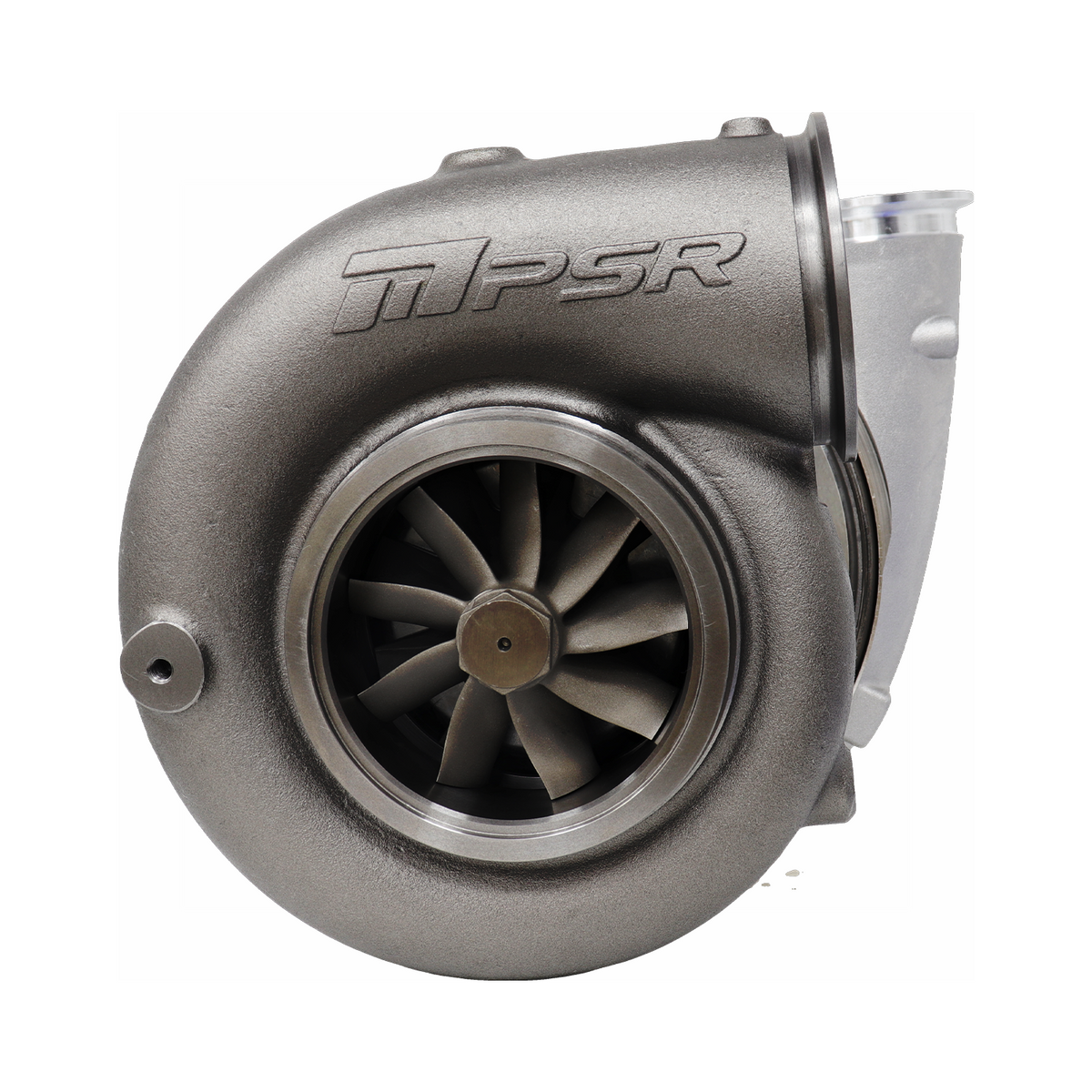

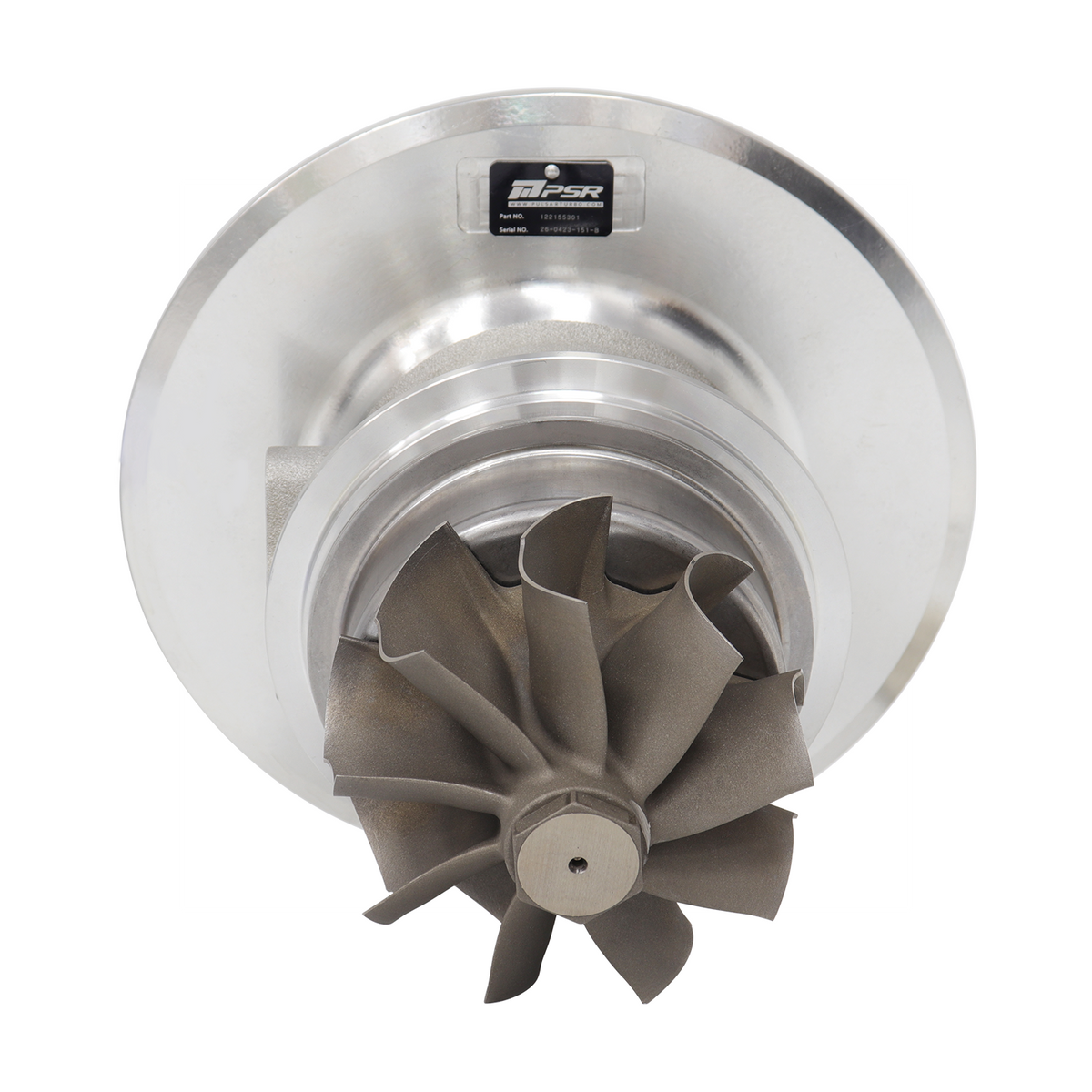

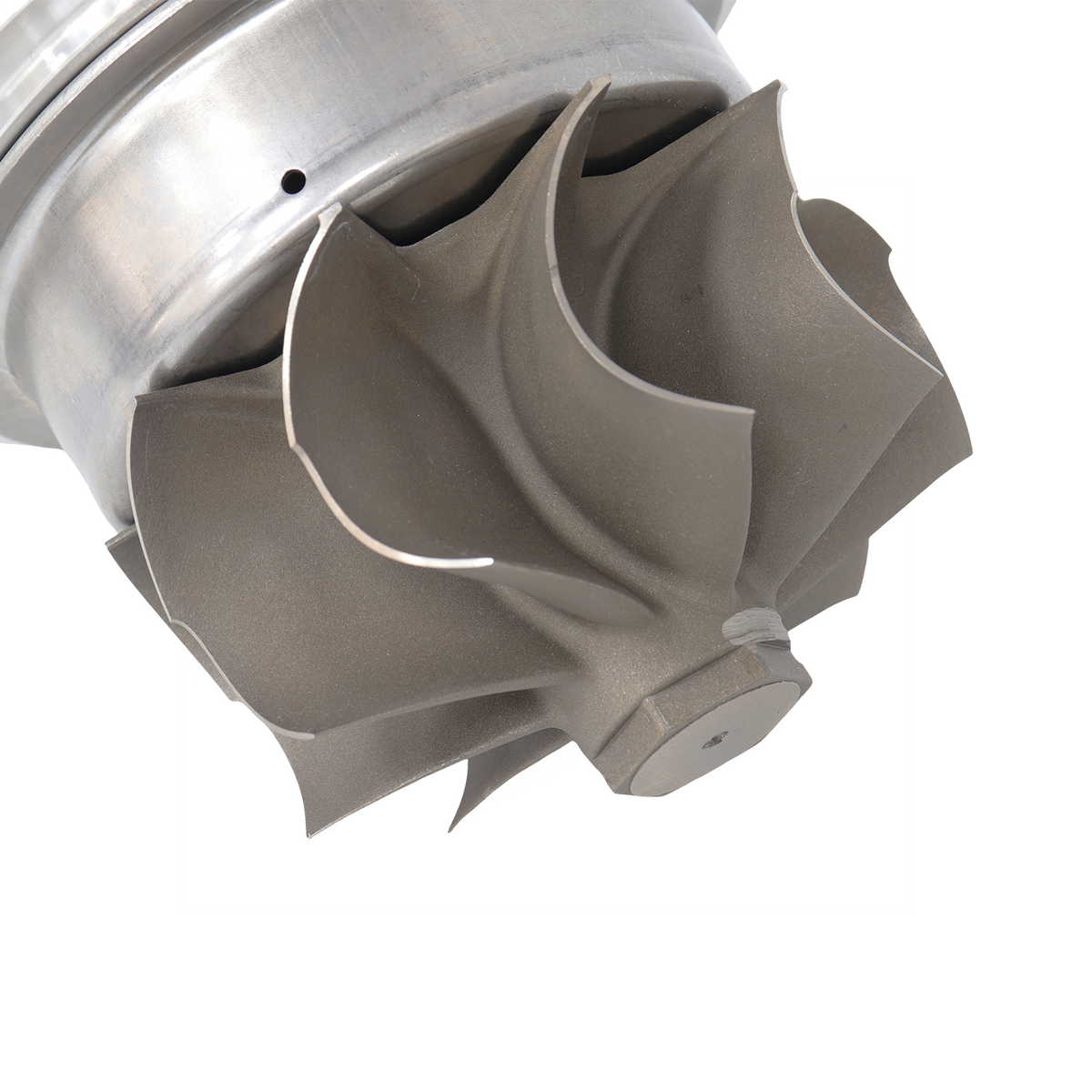

- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, with 0.25 inches MWE Groove, cover integrated with the speed sensor and pressure ports

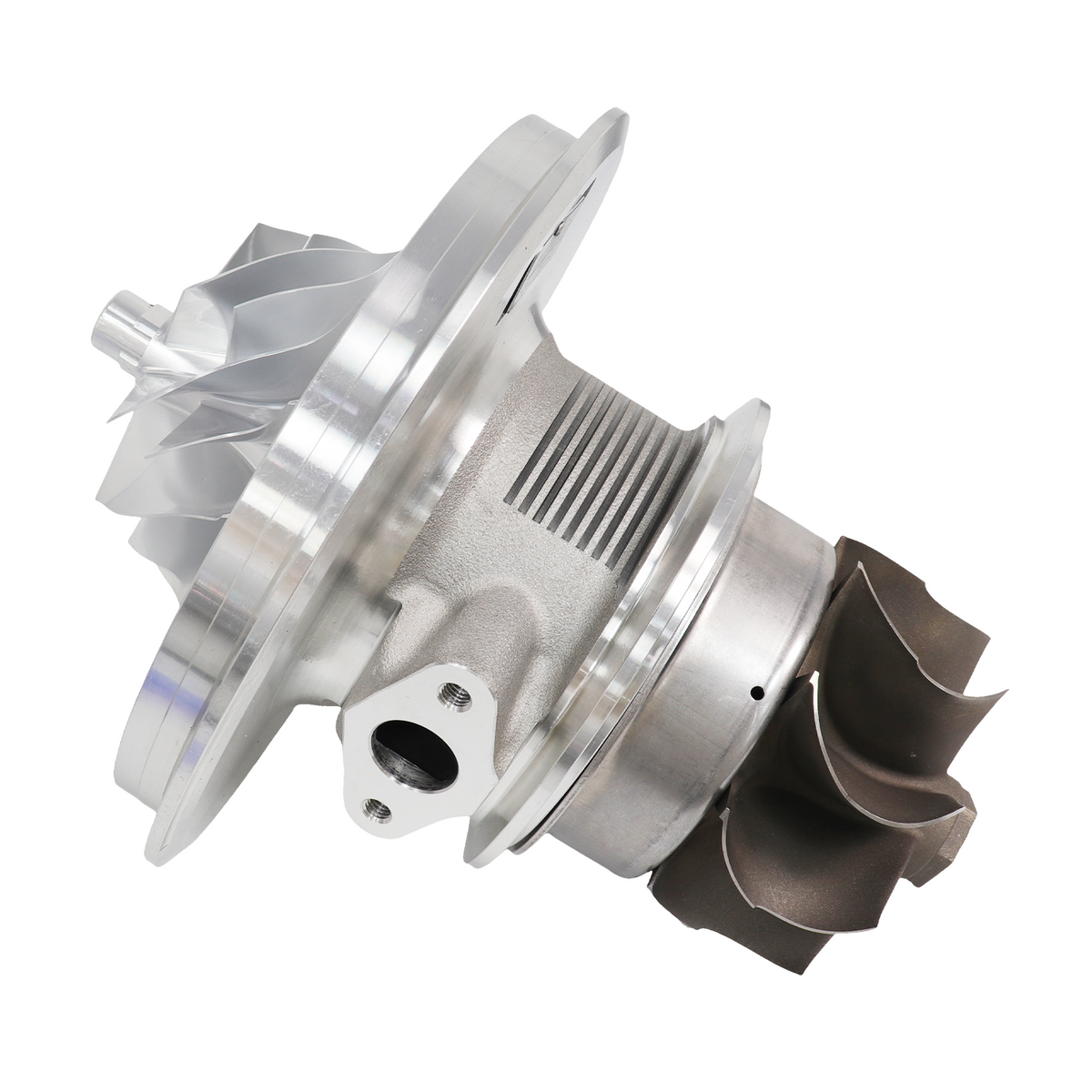

- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft motion

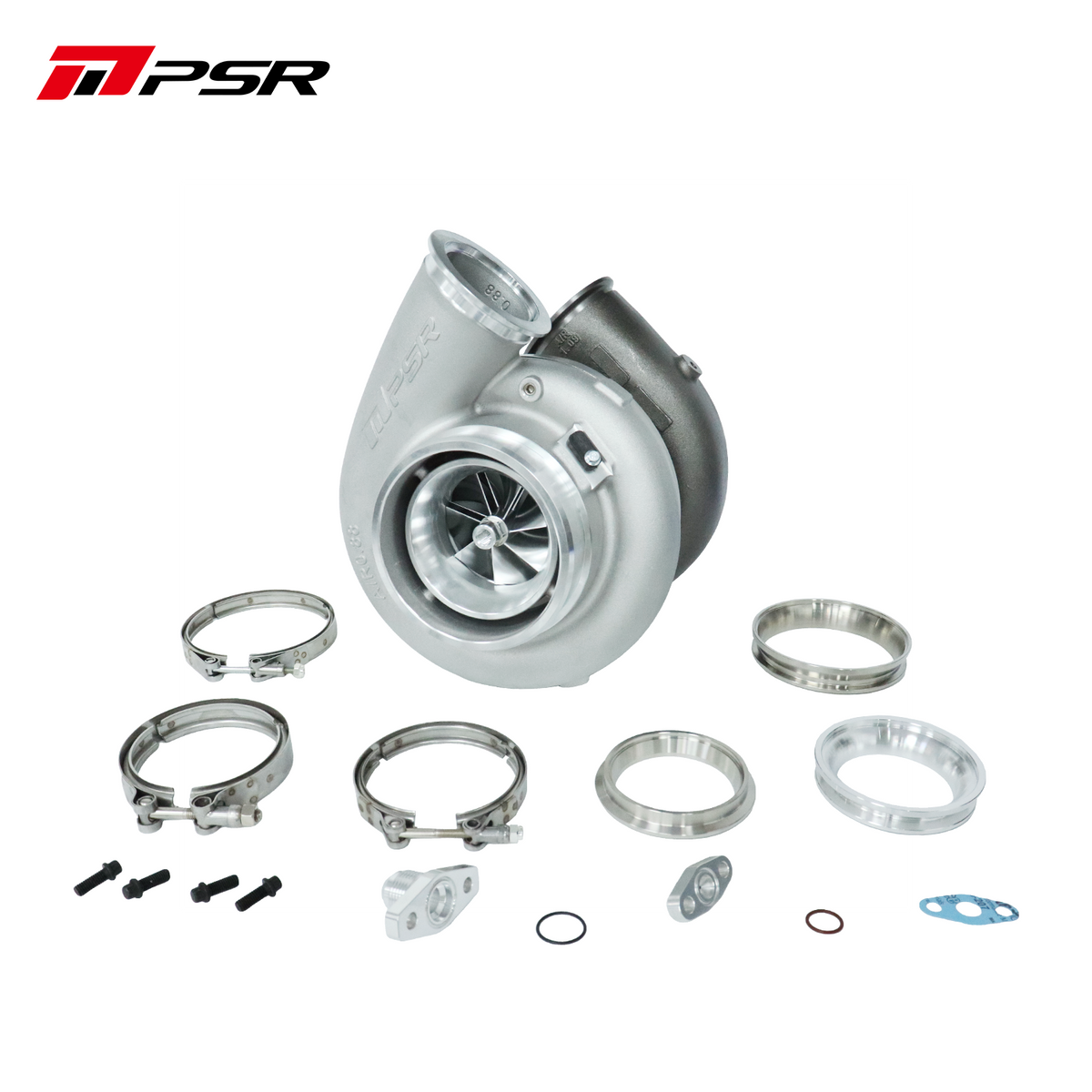

- Installation Hardware: 4” flange kit for Comp. Outlet, 3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kits are included by default
- Oil Feed Fitting(-4AN 1.65mm (0.065″) Orifice) included
- Max Engine HP: 2350
- Compressor Wheel: 88.7x133mm, 7+7 Blade
- Turbine Wheel: 112x106mm
- Oil Feed: See graph below(OIL INLET), an oil feed flange included: -4AN ∅ 1.65mm (0.065″) Orifice
- Oil Drain: See graph below(OIL OUTLET)
- Compressor Inlet: 6″ Hose
- Compressor Outlet: 4″ V-Band
- Turbine housing option:
-
- Vband inlet (fits 3.5″ OD tubing) and Vband outlet (fits 5″ OD tubing), 1.24 A/R
