Description
- Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 7+7 Blade GR compressor wheel will get more air flow

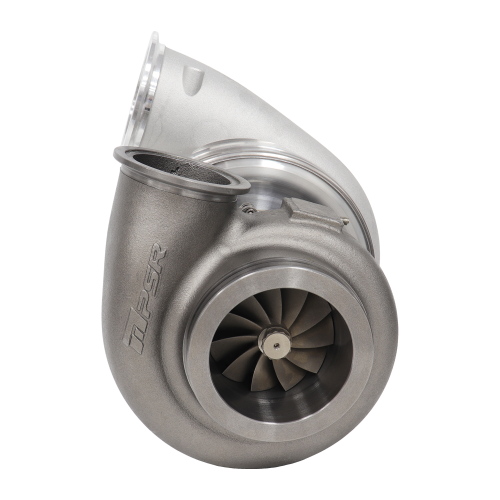

- Inconel 713c 11 Blade Turbine Wheel
- T4 divided and V-Band In/out are available in turbine housing option
- Vband Flange kit for the exhaust housing included
-
Related Racing: XFWD, SFWD, World Cup Finals, HDAY…

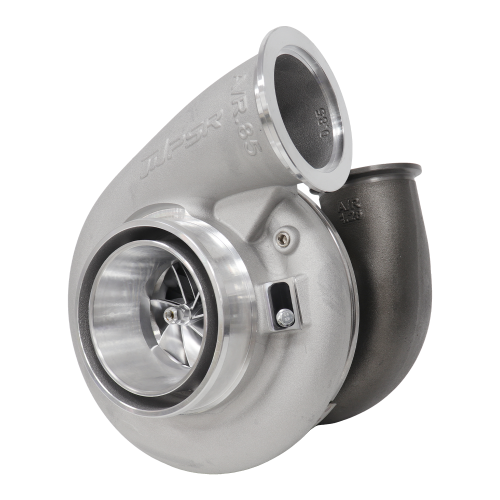

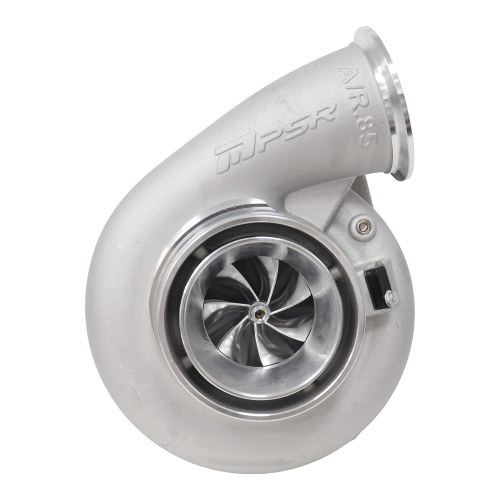

- Billet Compressor Wheel: 73.9 x102.4mm, 7+7 Blade
- Turbine Wheel: 85 x 89.5mm, 11 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)

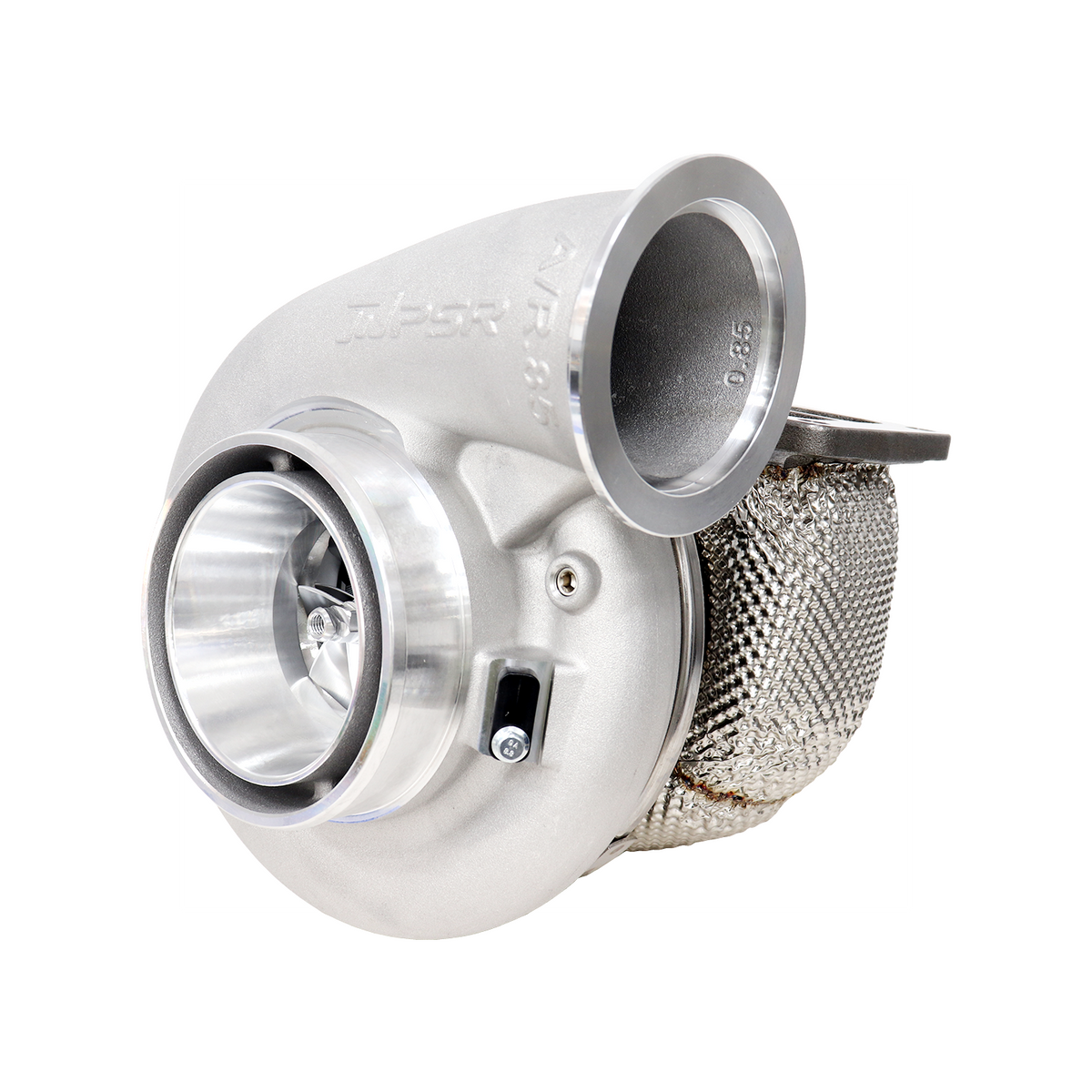

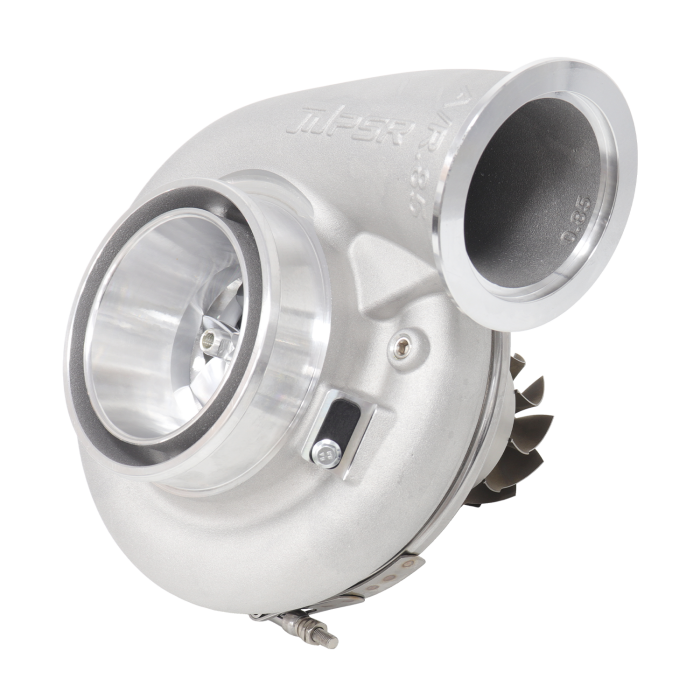

- Compressor Cover: 5.0” Hose Inlet/3″ V-Band Outlet

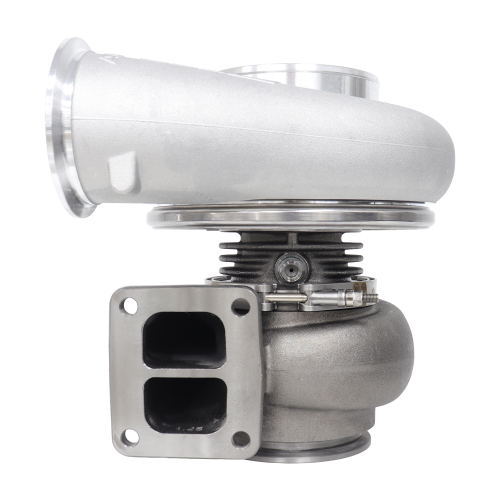

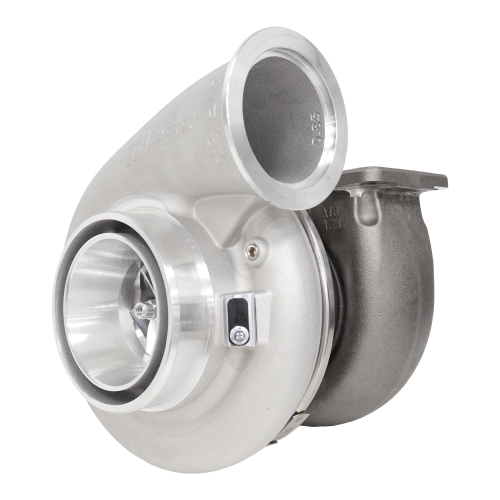

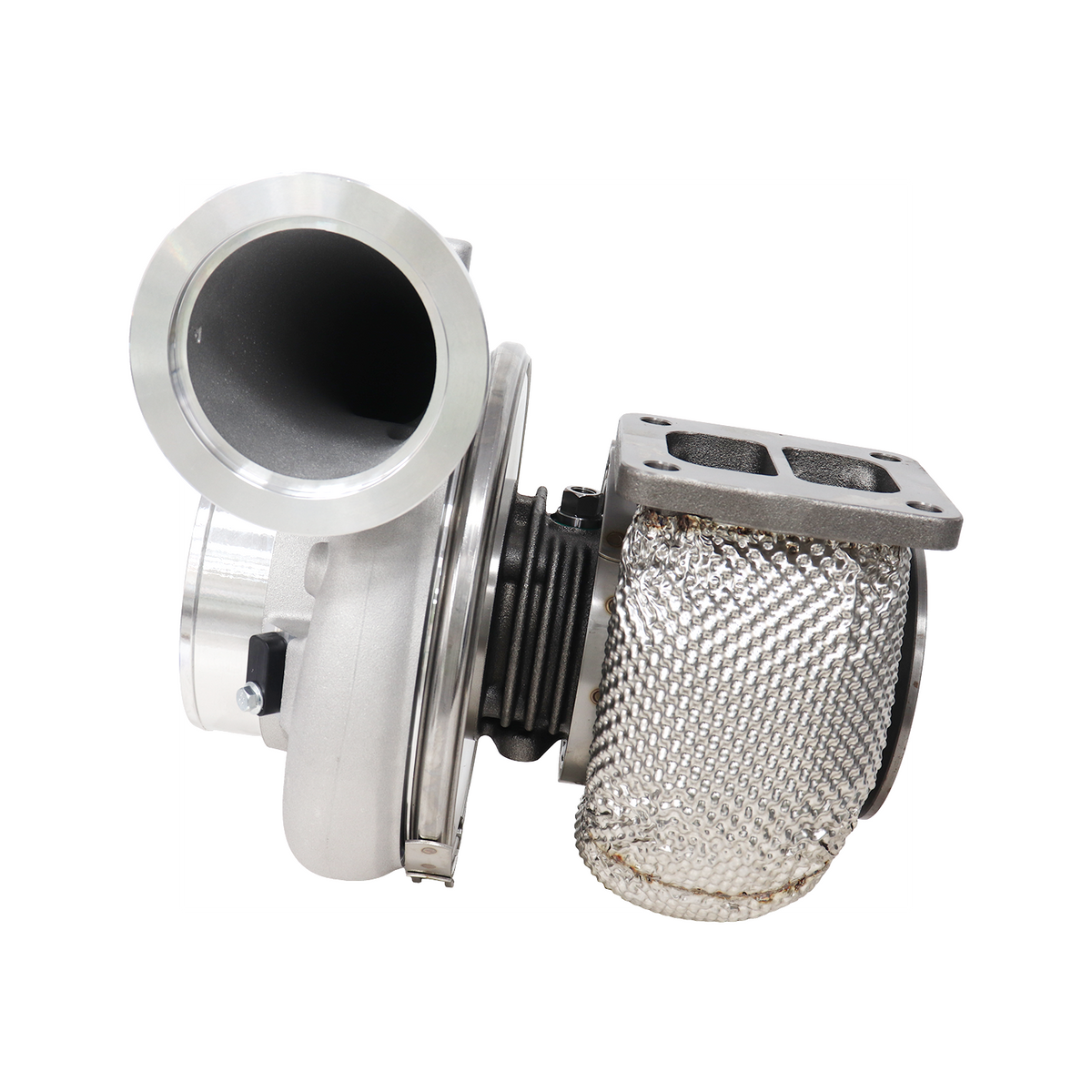

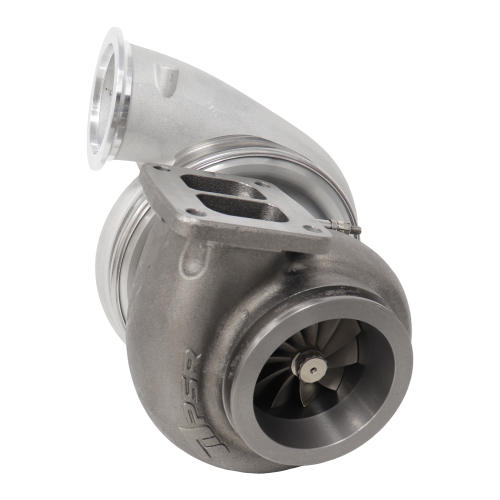

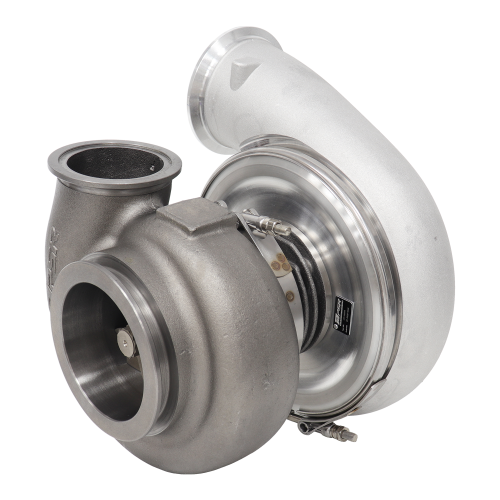

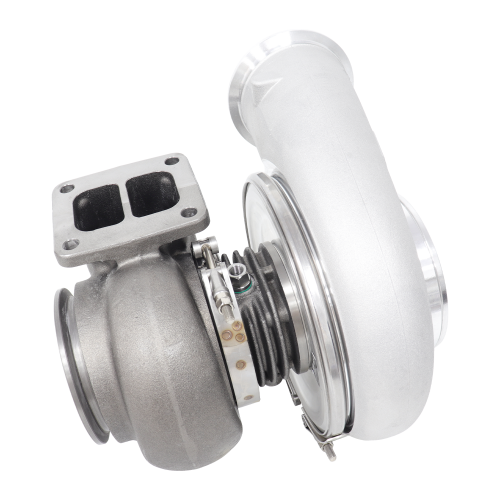

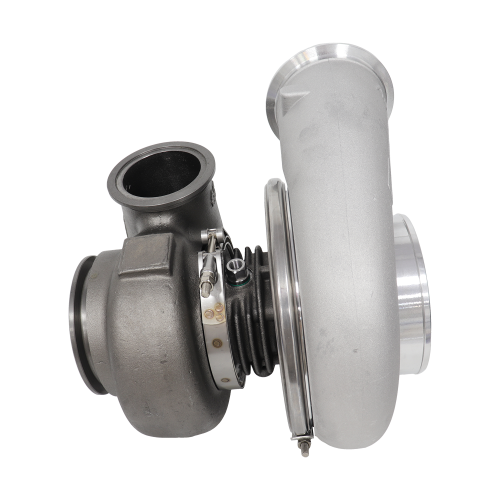

- Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
- The internal oil feed port is 0.9mm(An oil restrictor is not needed)
- Oil feed fitting: 1/8-27 NPSF(Drawing)
- Oil Drain: -12AN
