7+7 Blade GR compressor wheel will get more air flow
9 Blade PTG-Aero Inconel 713c turbine wheel

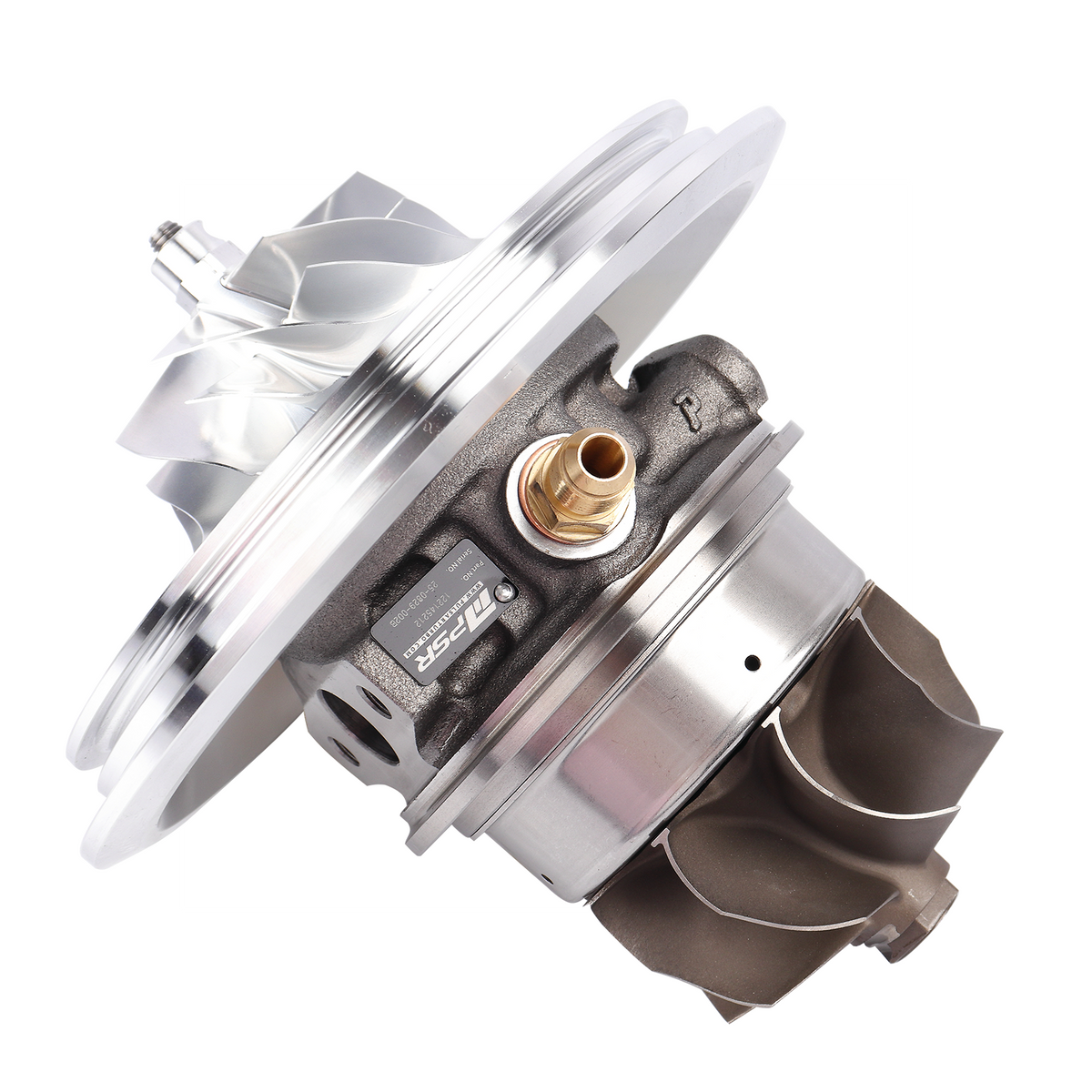

Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

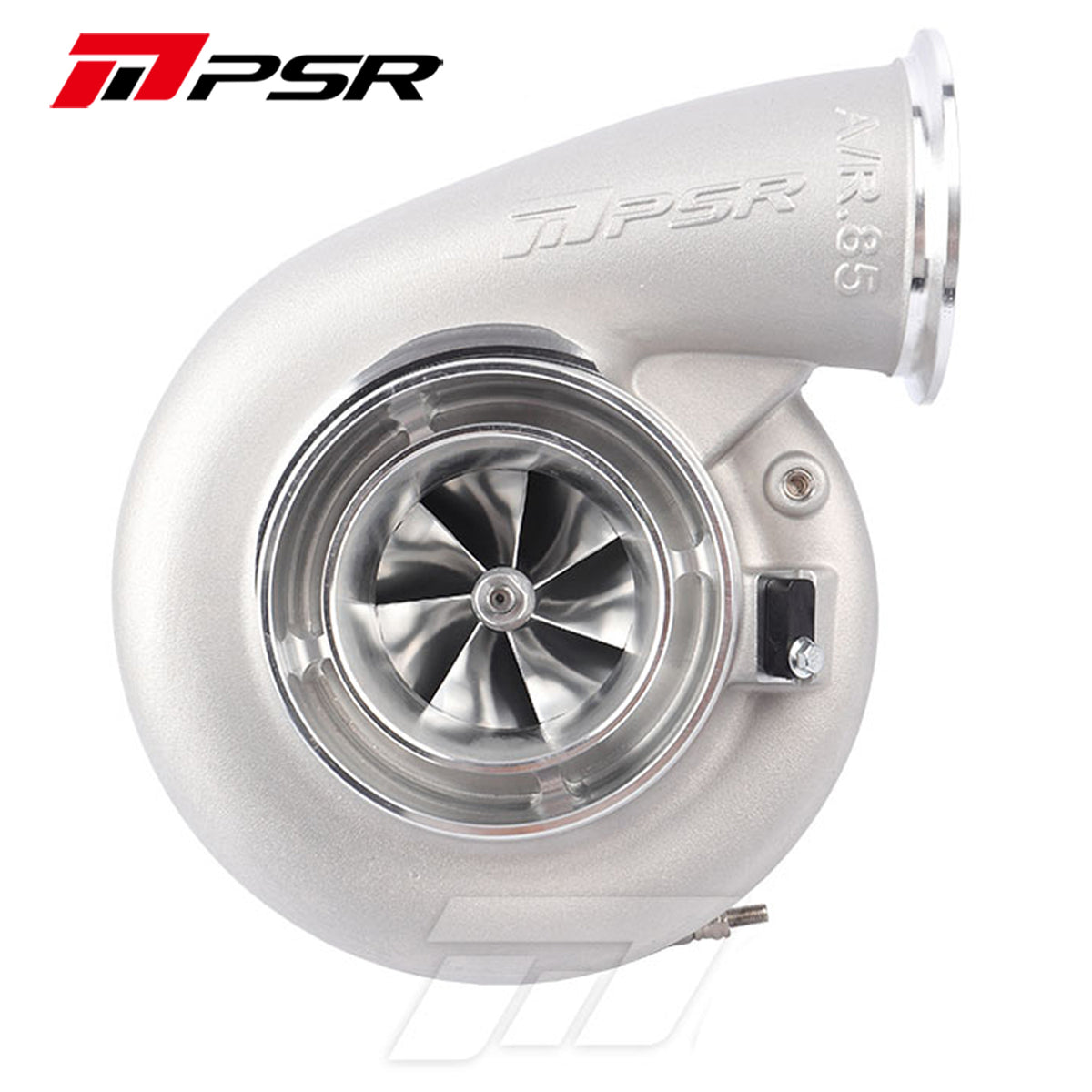

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
8 Options in Turbine Housing
Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting(-4AN ∅ 1.65mm (0.065″) Orifice) included
Related Racing: XFWD, SFWD, World Cup Finals, HDAY…
Description:
Compressor Wheel: 73.9*102mm, 7+7
Turbine Wheel: 82*75mm
Compressor Inlet: 5″ Hose
Compressor Outlet: 3″ V-Band
Turbine Inlet: 3″ V-Band, T4 divided or T4 open
Turbine Outlet: 3.5″ V-Band or 4″ V-Band
Water Ports: -6AN
Oil Feed Fitting(-4AN ∅ 1.65mm (0.065″) Orifice) included
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
Turbine housing option:
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 0.95 A/R
T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
