Description

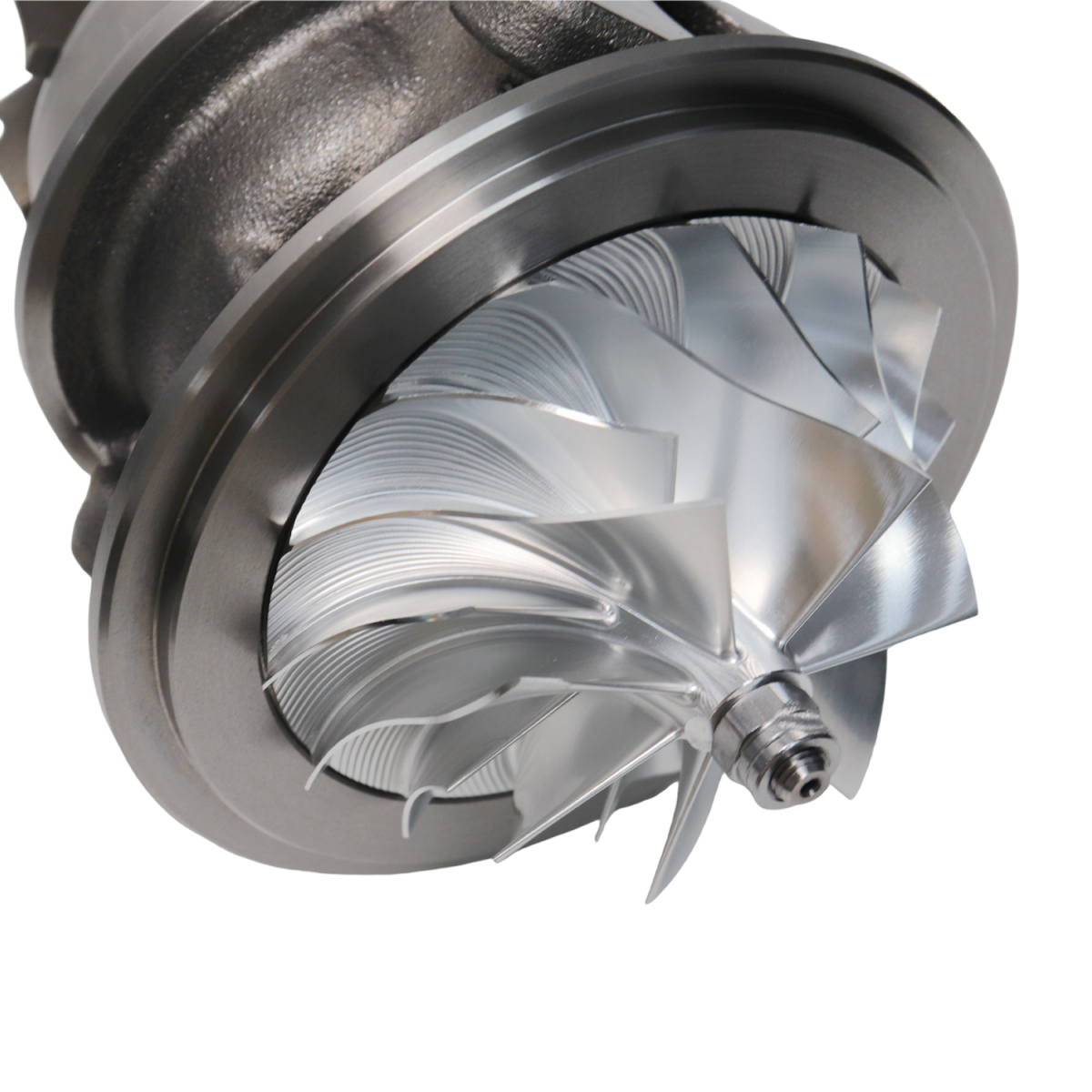

- Billet compressor wheel 67/89mm

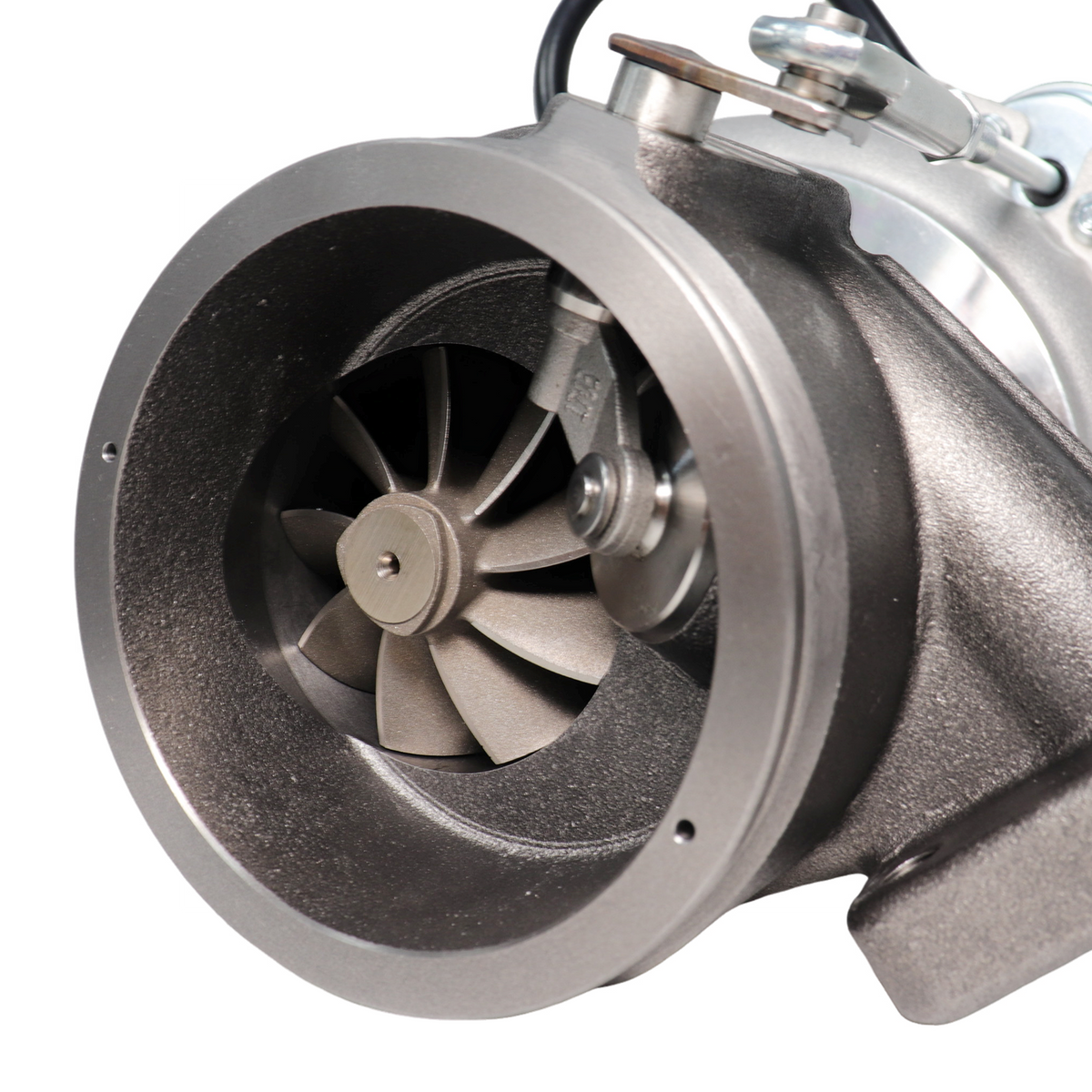

- Upgraded 76/67mm turbine wheel for high flow, cutback style
- 360 degree thrust bearing CNC machined from Cooper Bar
- Stepped gap seal ring on compressor and turbine end

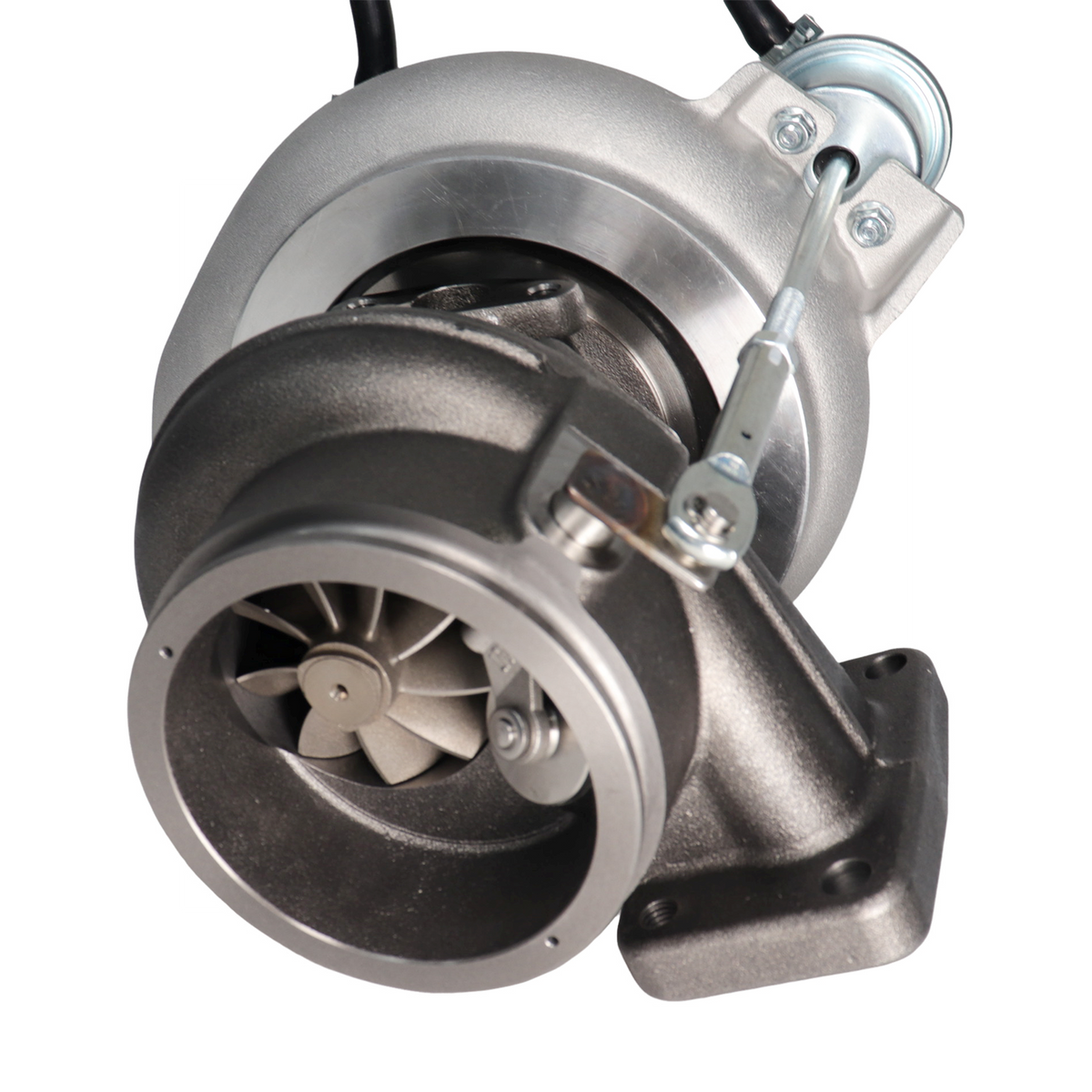

- Fit for 04.5-07 Dodge Ram with Cummins 5.9L diesel engine, HE351CW TURBO
- Please note that modification on turbine housing is required, cuz the turbine wheel is bigger.
-Stage 3:
This turbo comes with the bigger turbine wheel, 76/67mm, which is upgraded from 65/58mm.
It could greatly help to increase air flow and horsepower.
The compressor wheel is also upgraded to a 67mm billet one, which is good for up to 725hp!
-Application:
Modifications are required
Fits for 2004.5-2007 Dodge Ram with Cummins 5.9L diesel engine, HE351CW TURBO
-Item Details:
Billet Compressor Wheel Inducer: 67/89.1mm/95mm, 7+7 Blade
Turbine wheel: 76/67mm
Stepped gap seal ring on the turbine end
Stepped gap seal ring on the compressor end
Twin hydrodynamic journal bearings
360 degree thrust Bearing CNC machined from COOPER BAR
-Reference Part Number:
4043600 4036835 4037001 4089797 4089673 4037002 4089673 4089797
5143256AA R5143256AA 100229R 4043600 4036836 4037001 4043600R
