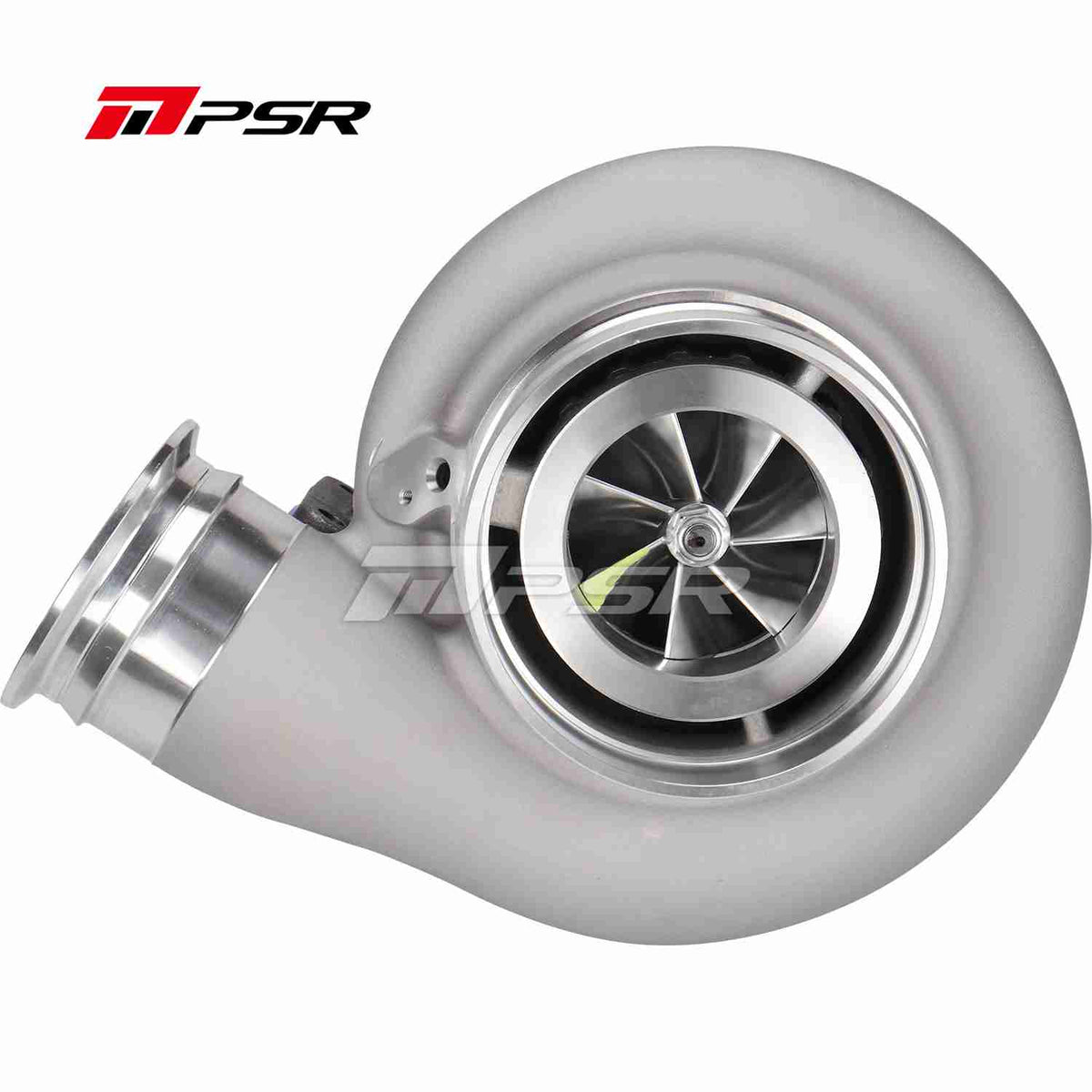

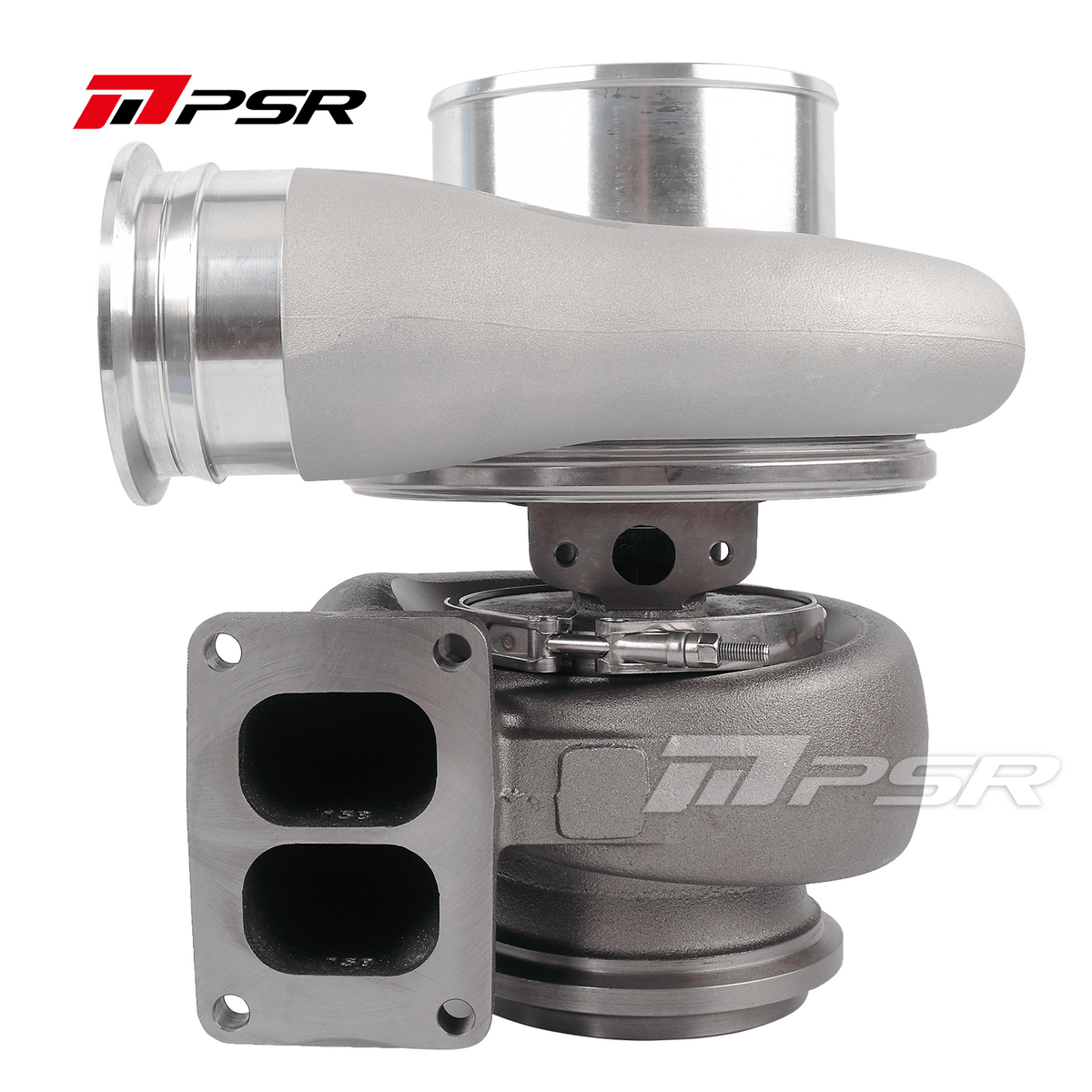

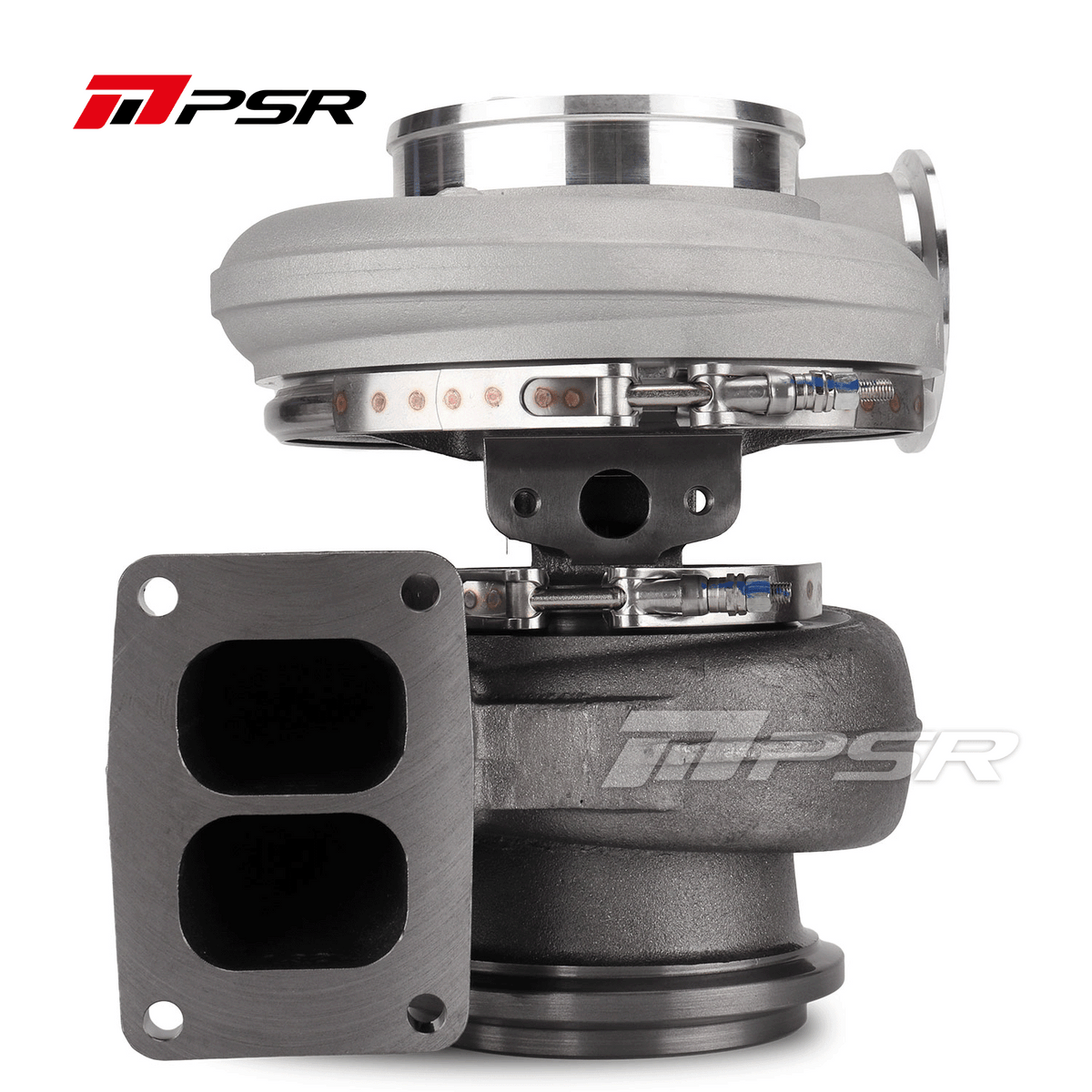

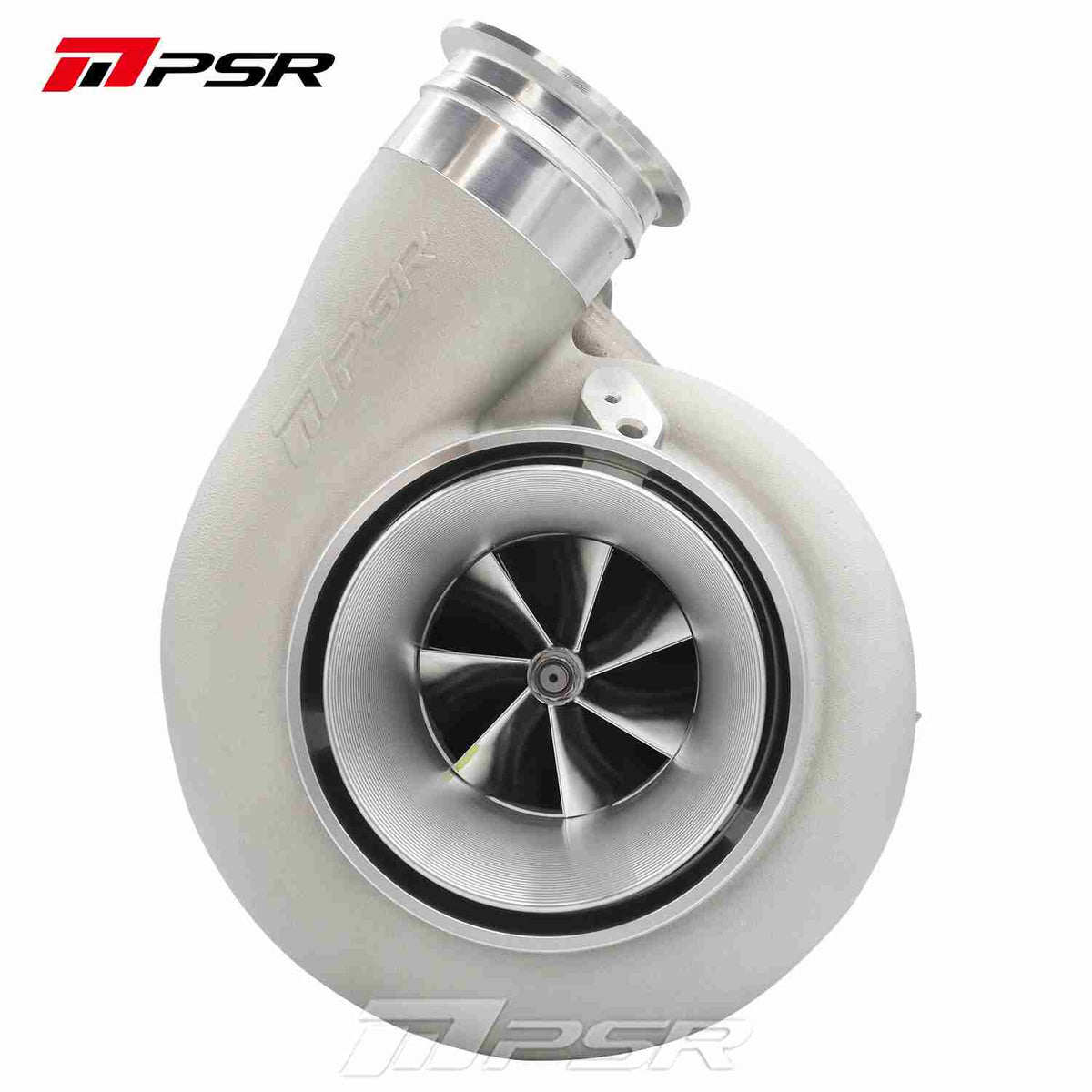

PSR 492 Journal Bearing Billet Compressor Wheel Turbocharger

• Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
• Inconel 713 turbine wheel for high-temperature operation
• T6 Divided turbine housings in 1.15A/R 1.32A/R 1.45A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
• T4 Divided turbine housing in 1.25 A/R with 4” Vband Outlet

Recommending Engine Displacement: 3.0-8.0L

HP Rating 750-1650

Features:

• Compressor Wheel Options: 92*122mm 7+7 Blade
• Billet Compressor Wheels with Extended Tip Technology
• 96/88mm, 101/91.3mm, 110/99mm in Turbine Wheel Options
• STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
• -12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box

Details:

• Compressor Inlet: 5.5” Slip-Fit
• Compressor Outlet: V-band
• Turbine Housing A/R: 1.15, 1.25, 1.32,1.45 and 1.58 in Option
• Turbine Housing Inlet: T4 Divided, T6 Open and T6 Divided in Option

*  V-band Flange Kits are available:

• TRB. Outlet 4” Flange&Clamp Kit(164340001): $69.99
• TRB. Outlet 5” Flange&Clamp Kit(164340002): $49.99
• COMP. Outlet 3” Flange&Clamp Kit(164340003): $49.99
• COMP. Outlet 3.5” Flange&Clamp Kit(164340004): $54.99
• COMP. Outlet 4” Flange&Clamp Kit(164340005): $59.99
