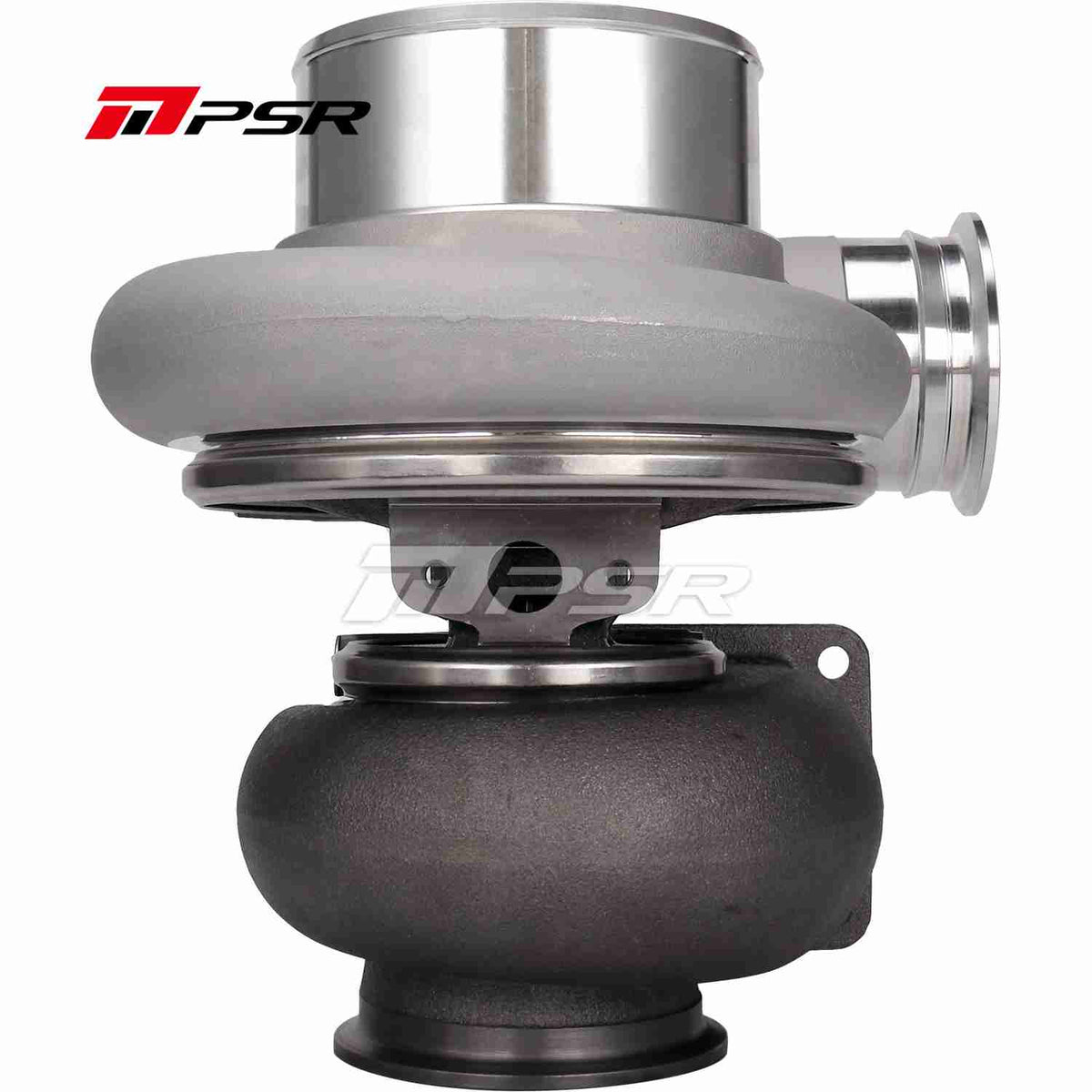

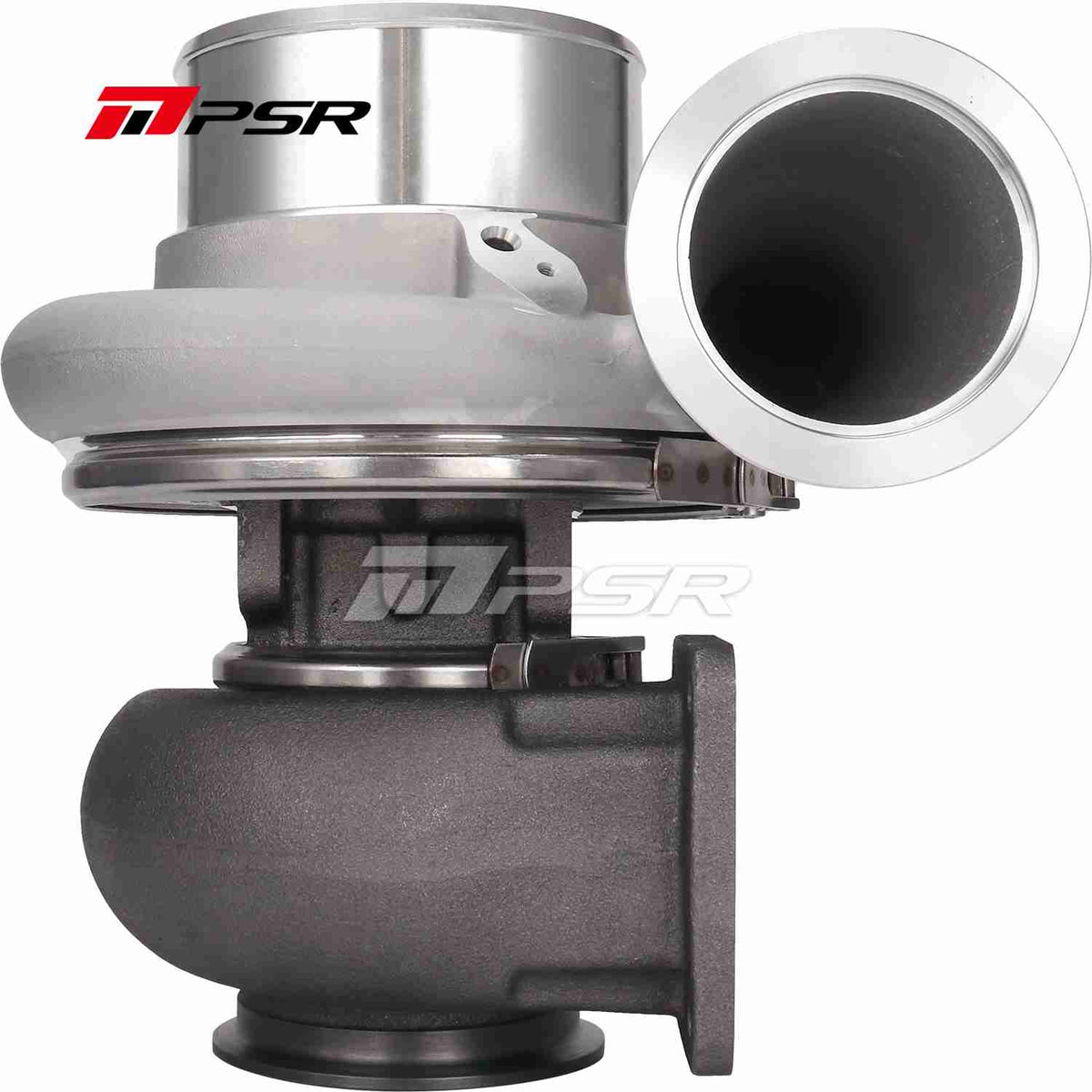

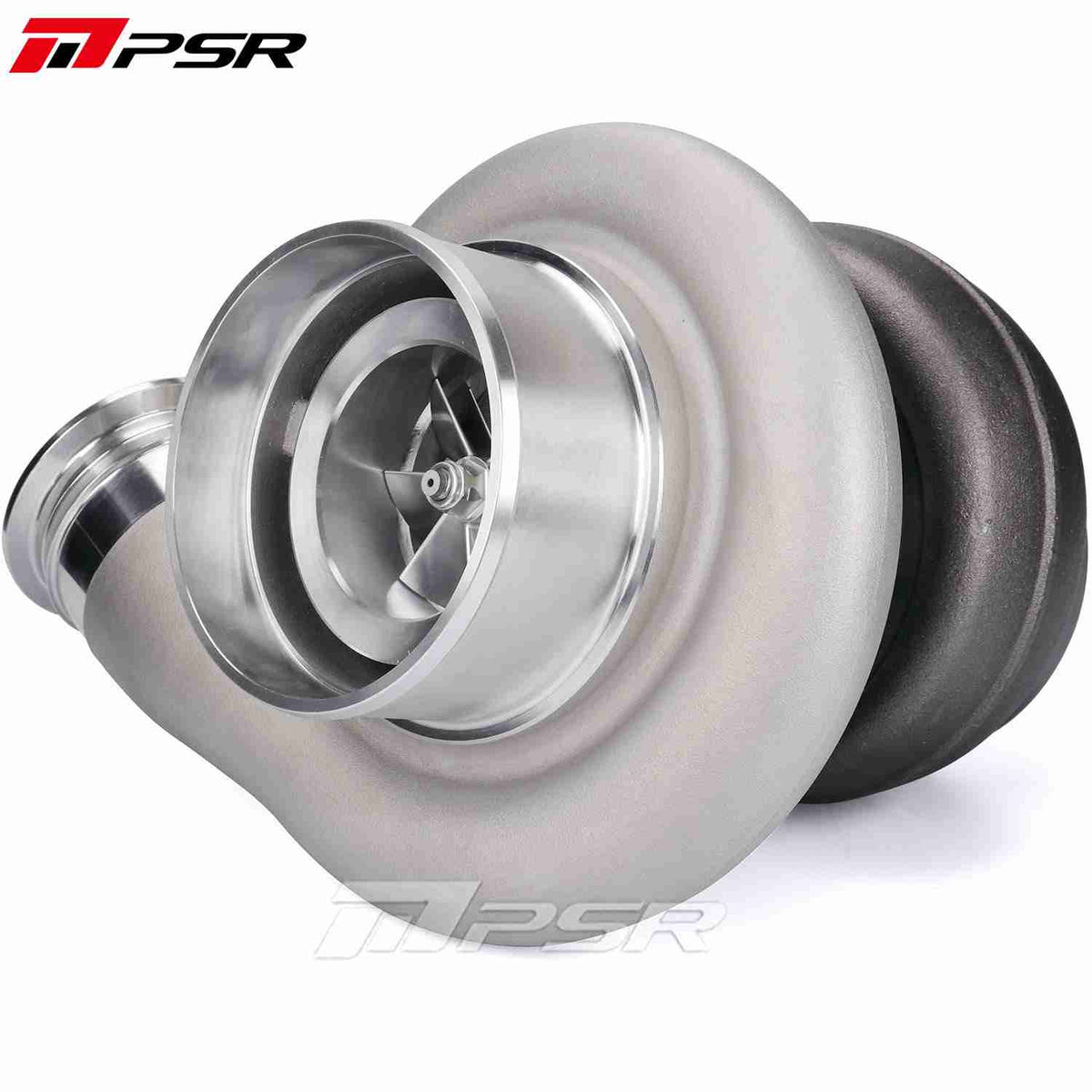

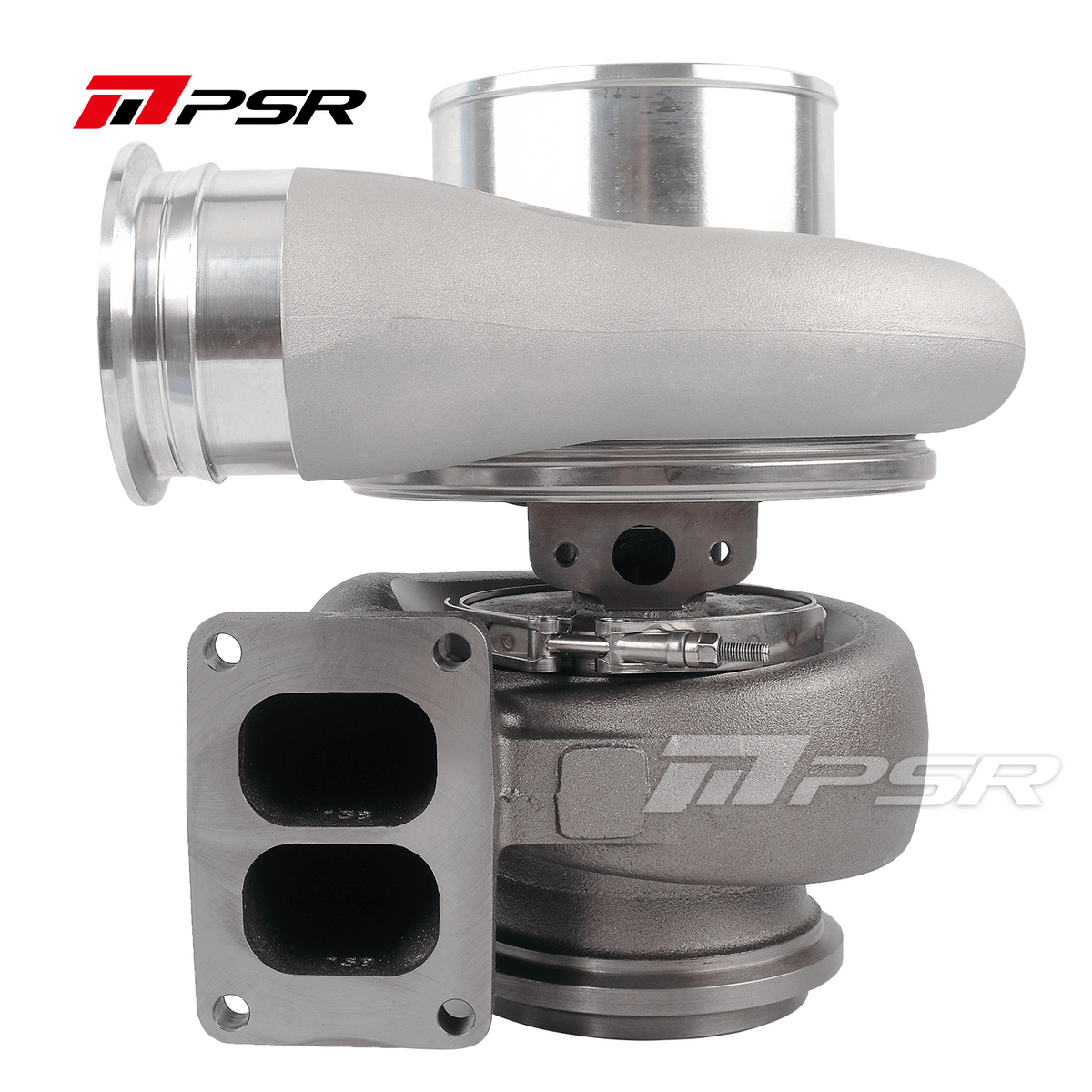

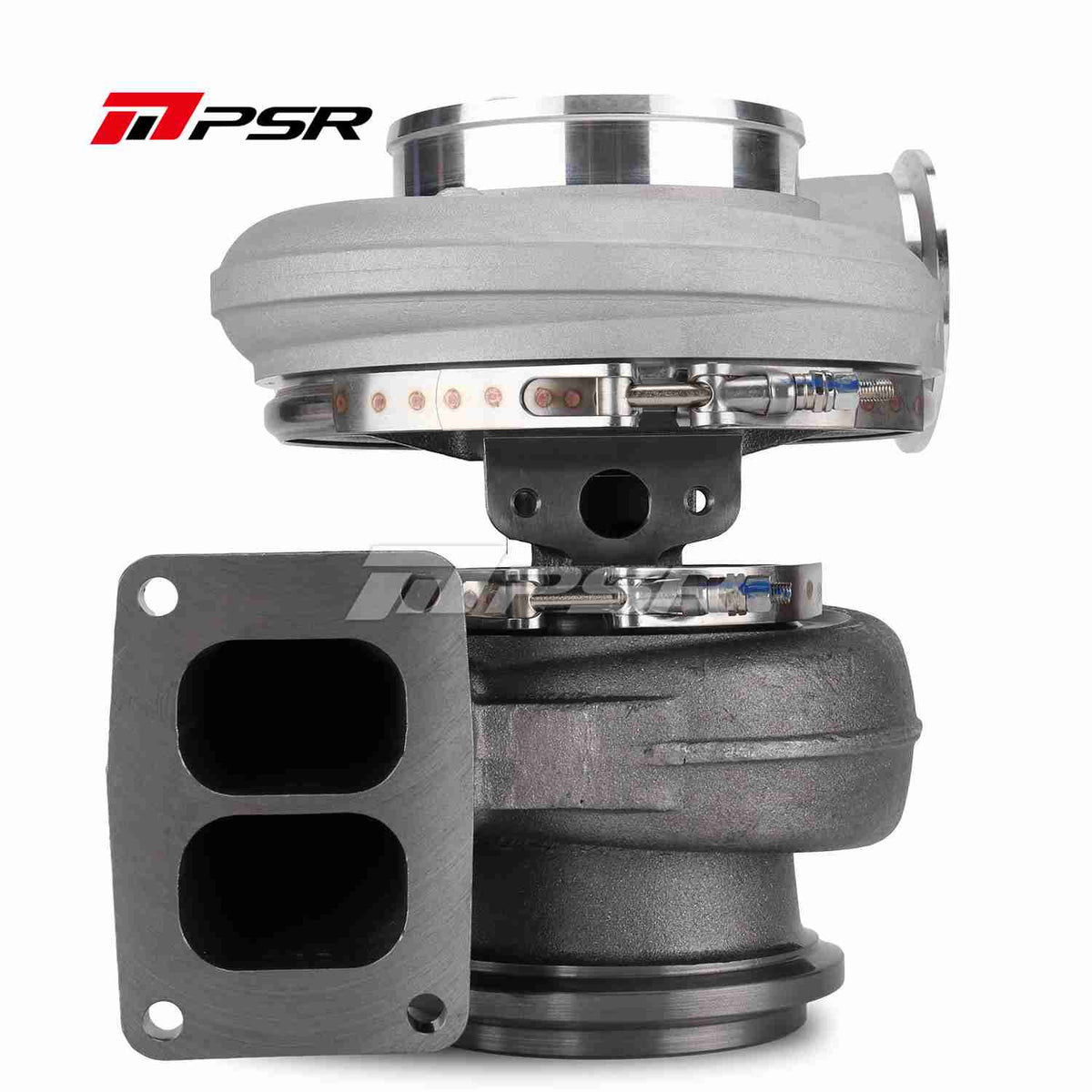

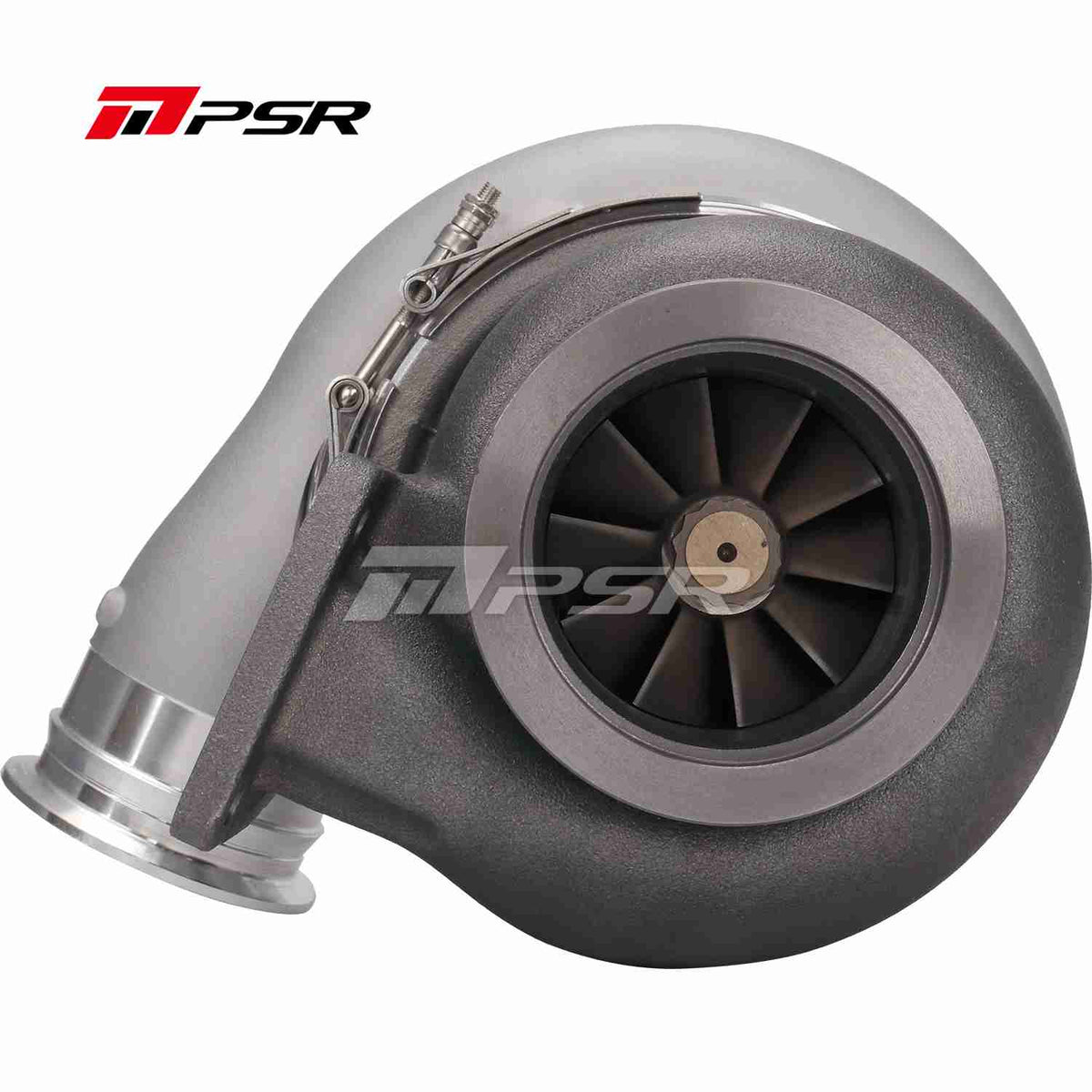

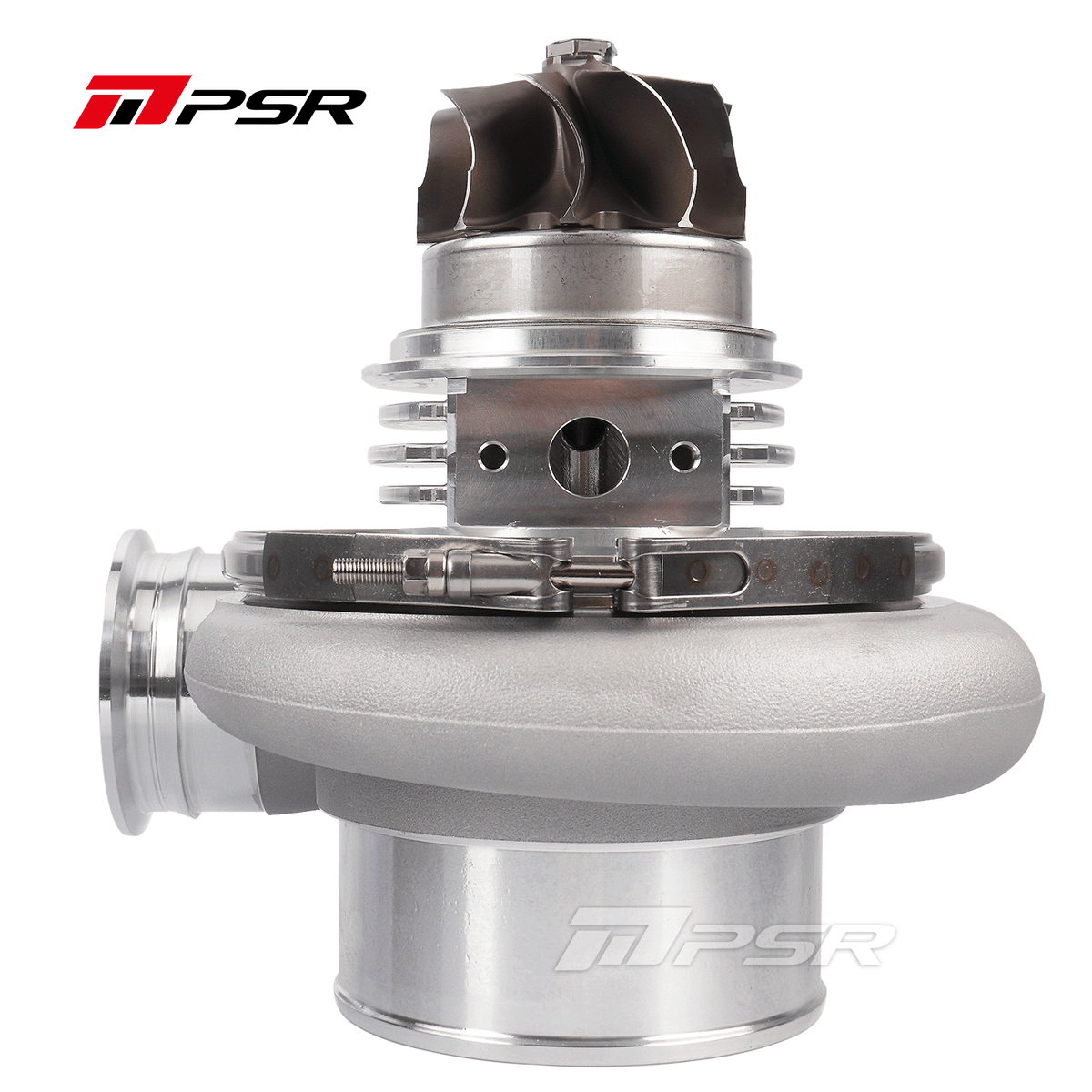

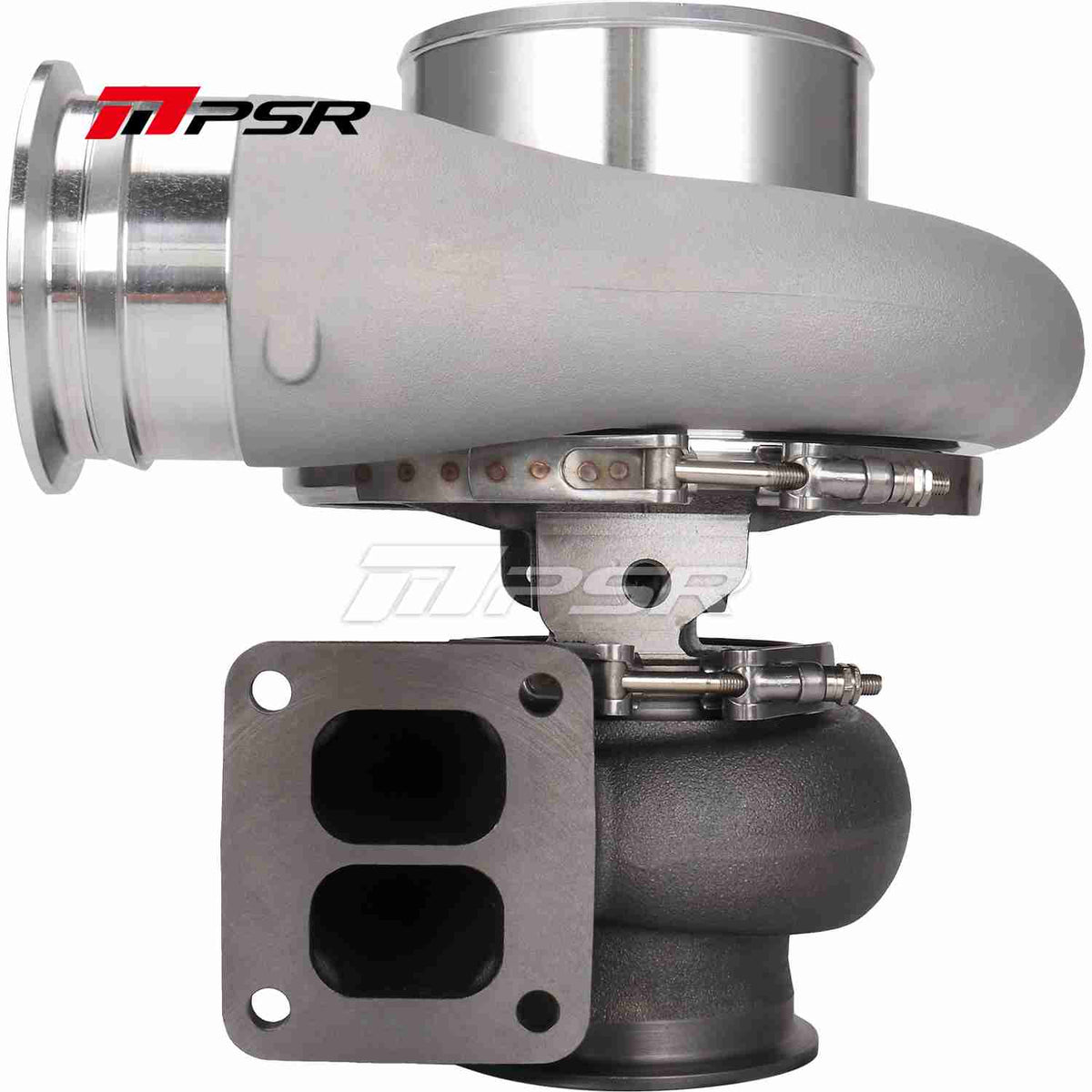

PSR 485 Journal Bearing Billet Compressor Wheel Turbocharger

PSR 485 Journal Bearing Billet Compressor Wheel Turbocharger

From $1,496.00 ~~$0.00~~

or 4 interest-free payments of $476.50 with afterpay

Select an option to add this to your cart

Compressor Housing Options : T51R MOD : Standard

Turbine Wheel Options : 96/88mm : 87.4/81.7mm : 101/91.3mm : 83/74mm

Turbine Housing Options : without Turbine Housing : T6 divided 1.45 A/R : T6 divided 1.15A/R : T6 divided 1.58 A/R : T6 divided 1.32 A/R : T4 divided 1.25A/R : T4 divided 1.1A/R

Sold Out

Quantity

PSR 485 Journal Bearing Billet Compressor Wheel Turbocharger

Most orders ship in 1–3 days. Hand-made parts can take 1–4 weeks. In a hurry? Contact us first.

Description

Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
Inconel 713 turbine wheel for high-temperature operation
T6 Divided turbine housings in 1.15A/R 1.32A/R 1.45A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange
T4 Divided turbine housing in 1.10A/R, 1.25 A/R with 4” Vband Outlet

Recommending Engine Displacement: 3.0-8.0L

HP Rating 750-1350

Features:?

Compressor Wheel: 85*115mm 6+6 Blade
Billet Compressor Wheels with Extended Tip Technology
83/74mm, 87.4/81.7mm, 96/88mm, 101/91.3mm in Turbine Wheel Options
STD and T51R MOD in option for Compressor Cover with Speed Sensor Port integrated
-12AN Oil Drain Flange and TRB. Inlet Gasket Come in Box

Details:

Compressor Inlet: 5.5 inches Slip-Fit
Compressor Outlet: V-band
Turbine Housing A/R: 1.10, 1.15, 1.25, 1.32,1.45 and 1.58 in Option
Turbine Housing Inlet: T4 Divided and T6 Divided in Option

* V-band Flange Kits are available:
