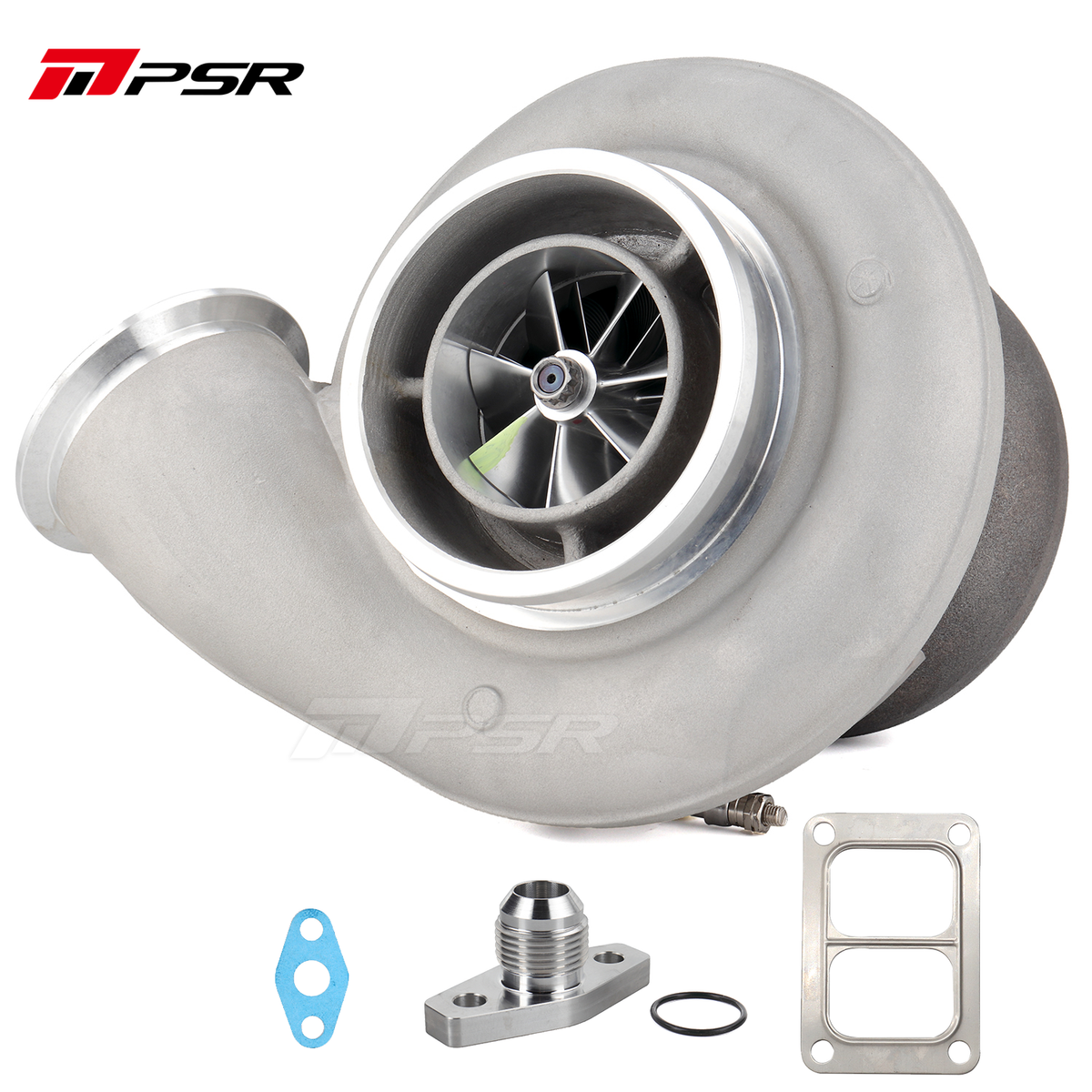

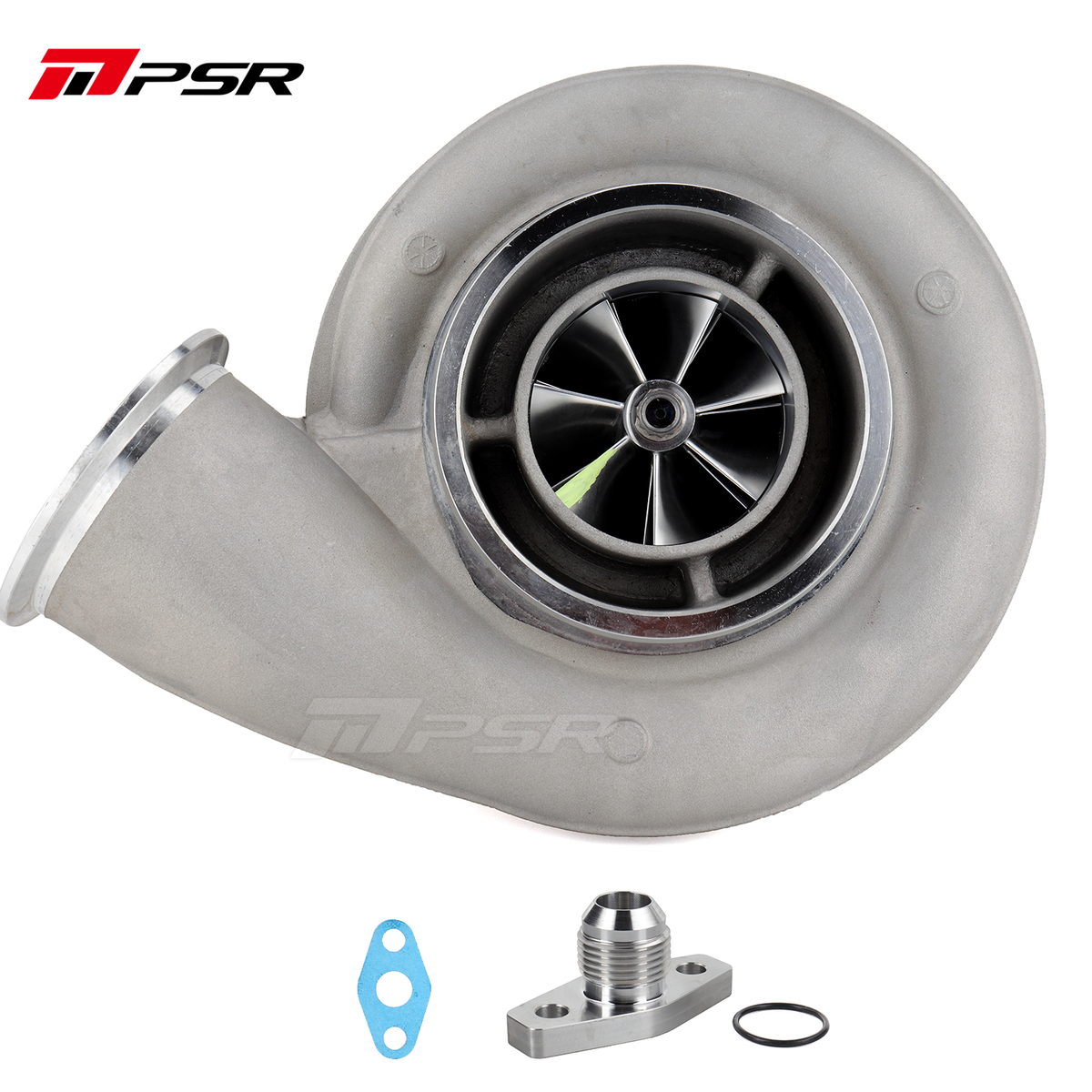

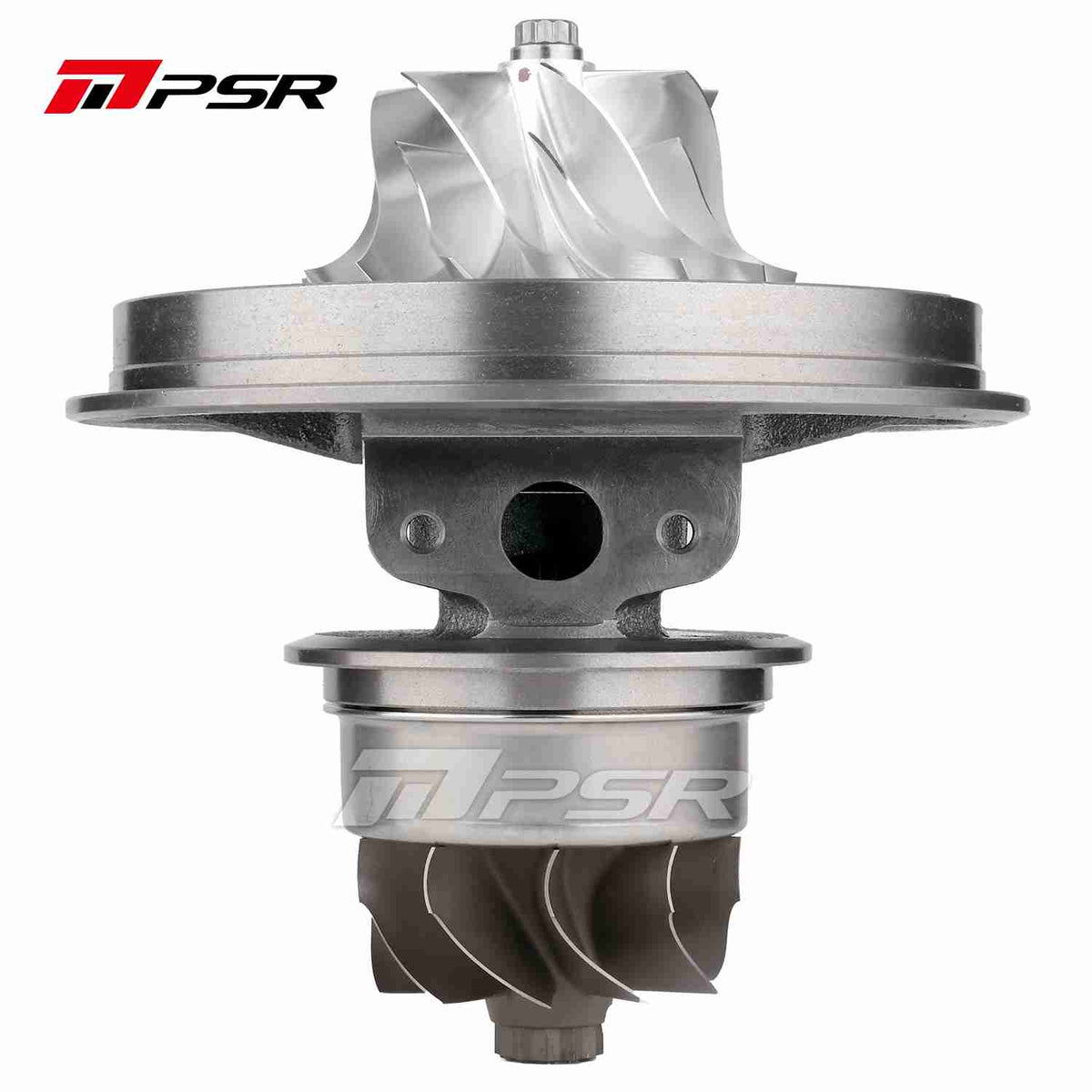

PSR 475 Journal Bearing Billet Compressor Wheel Turbocharger

• Billet compressor wheel with extended tip technology for the ultimate in aerodynamics
• Inconel 713 turbine wheel for high-temperature operation

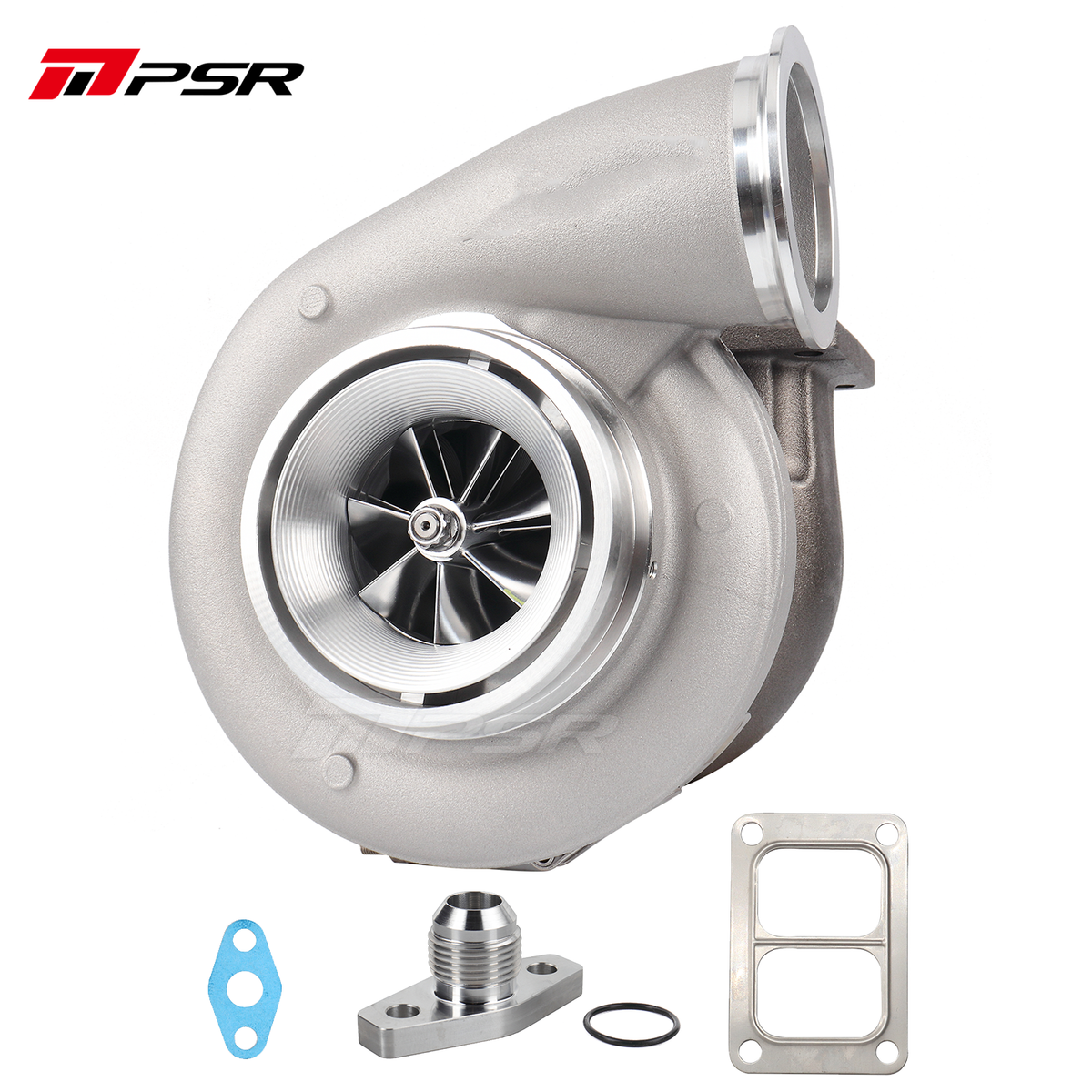

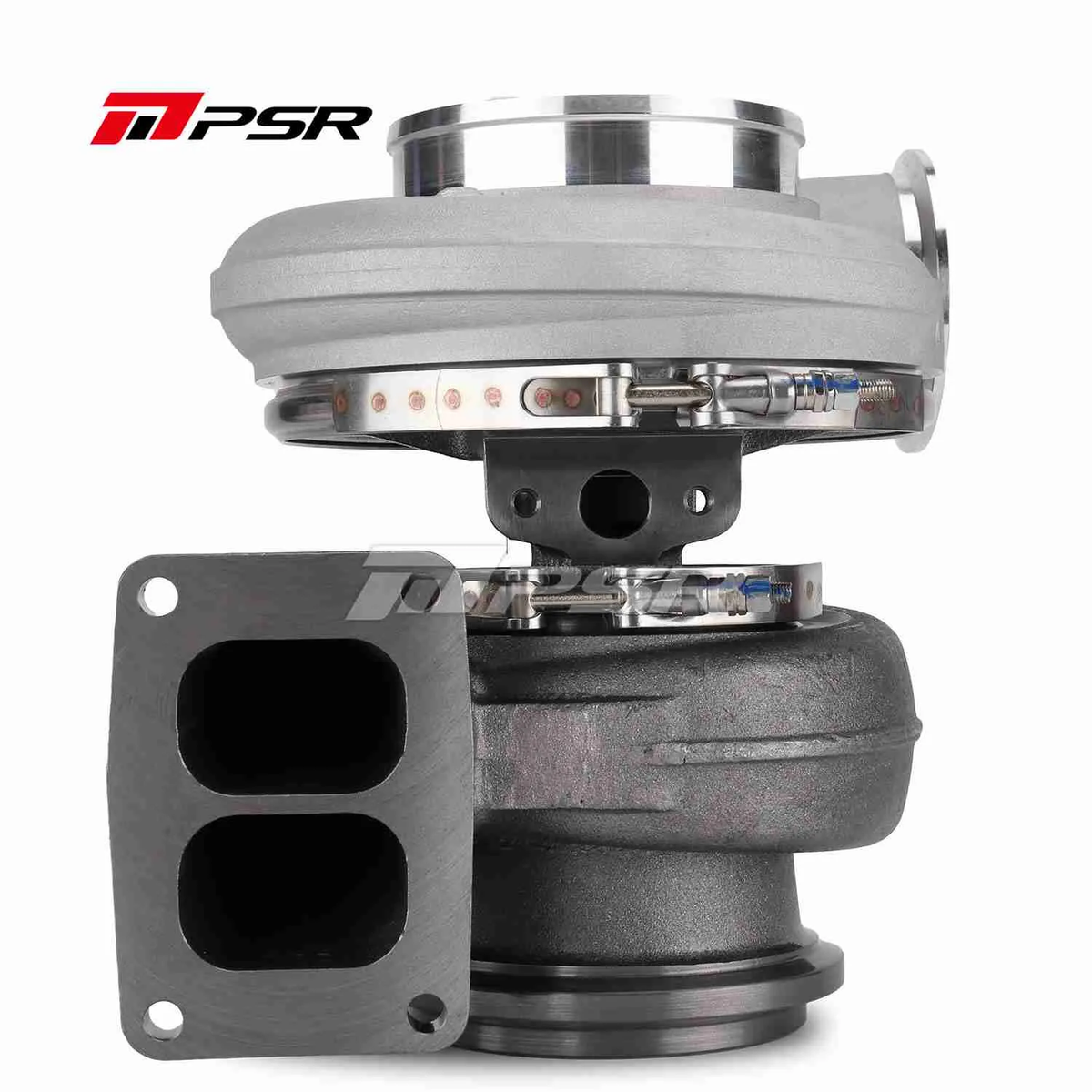

• T6 Divided turbine housings in 1.15A/R, 1.32A/R or 1.58 A/R with 5″ V Band Outlet 5.75 OD Marmon flange

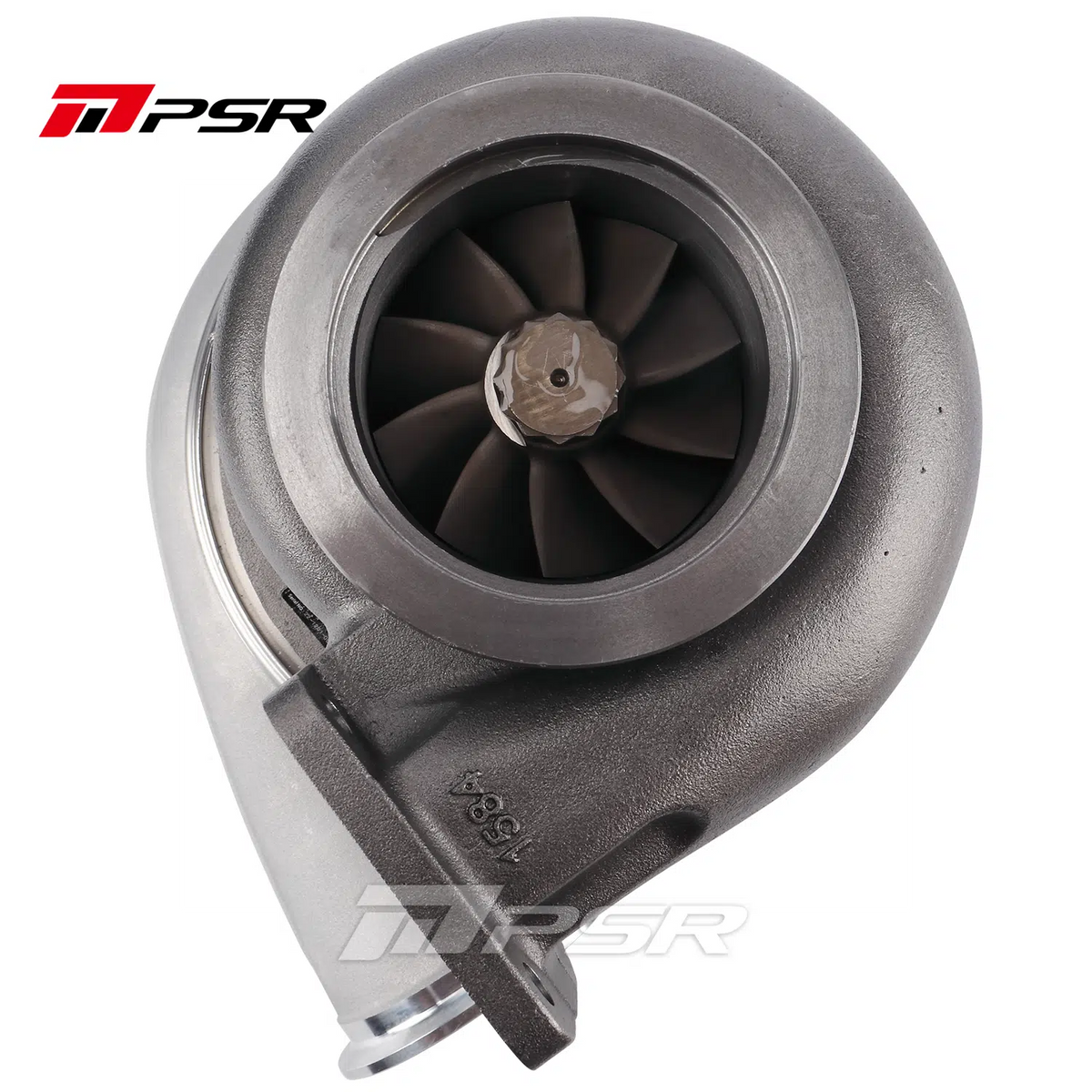

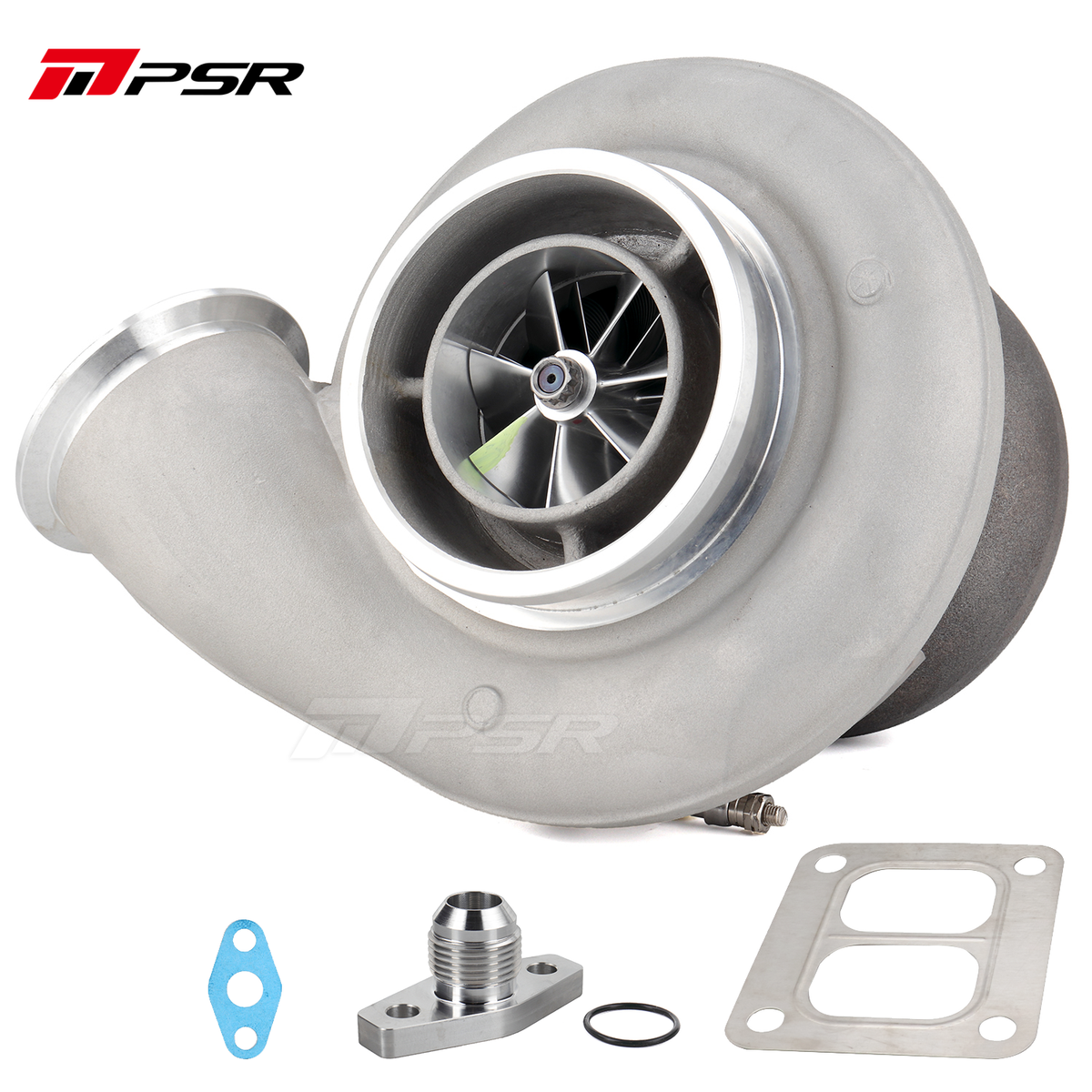

• T4 Divided turbine housing in 0.9A/R, 1.10A/R or 1.25 A/R with 4” Vband Outlet

Recommending Engine Displacement: 3.0-8.0L

HP Rating 500-1000

Features:

• Compressor Wheel: 75*101mm 7+7
• Billet Compressor Wheels with Extended Tip Technology
• 83/74mm, 87.4/81.7mm, 96/88mm in Turbine Wheel Options
• STD Compressor Cover without Speed Sensor Port integrated
• T51R MOD Compressor Cover without Speed Sensor Port integrated
• -12AN Oil Drain Flange

Details:

• Compressor Inlet: 5″ Slip-Fit
• Compressor Outlet: V-band
• Turbine Housing A/R: 0.9, 1.10, 1.15, 1.25, 1.32 and 1.58 in Option
• Turbine Housing Inlet: T4 Divided and T6 Divided in Option

 V-band Flange Kits are available:

• TRB. Outlet 4″ Flange&Clamp Kit(164340001): $69.99
• TRB. Outlet 5″ Flange&Clamp Kit(164340002): $49.99
• COMP. Outlet 3″ Flange&Clamp Kit(164340003): $49.99
• COMP. Outlet 3.5″ Flange&Clamp Kit(164340004): $54.99
• COMP. Outlet 4″ Flange&Clamp Kit(164340005): $59.99
