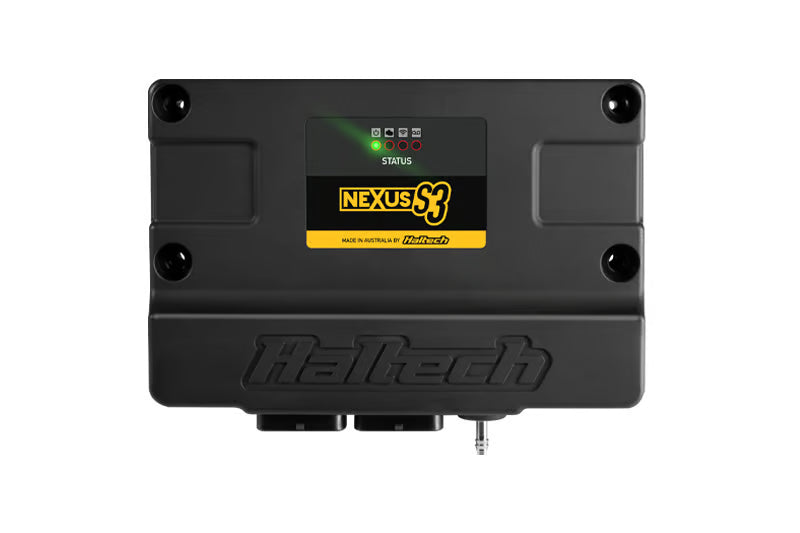

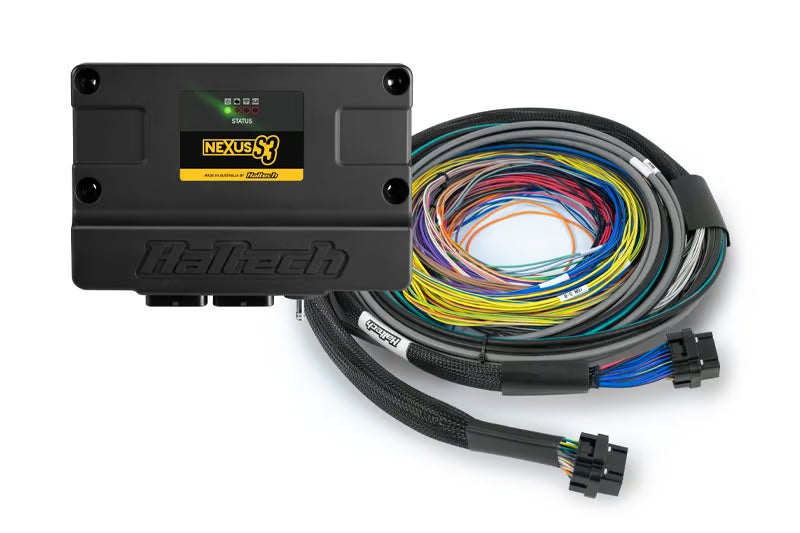

ECU OVERVIEW
Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
- 1 x ECR output
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
- Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory

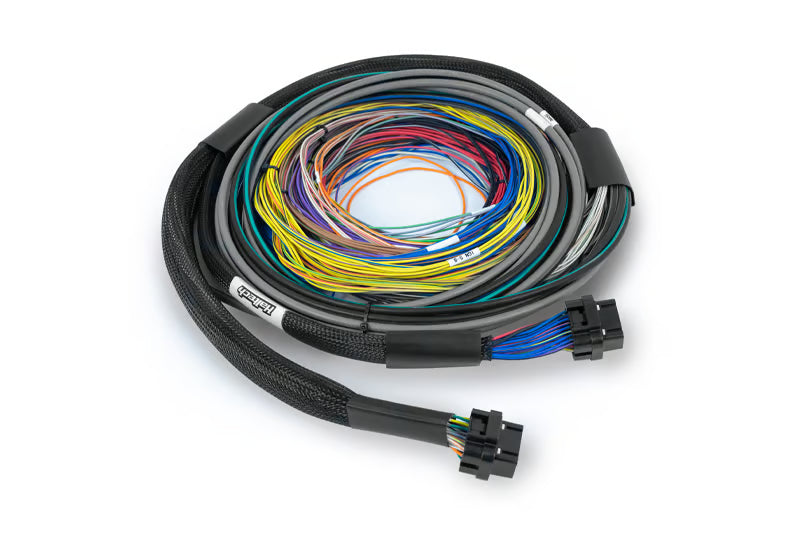

HARNESS OVERVIEW
Ideal for modified street cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are colour coded and clearly labelled. Connect your Haltech ECU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map and you're ready to go!
- Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.
- The wiring diagram is accompanied by the quick start guide and software is downloadable from the Haltech Website.
ECU FEATURES
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
- On-board datalogging (128MB)
AUTOMATIC TRANSMISSION CONTROL
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
| Analog Voltage Inputs (AVI) |
11 |
| Differential Engine Position Inputs |
2 (Trigger and Home) |
| Digital Pulsed Inputs (DPI) |
0 |
| Synchronized Pulsed Inputs (SPI) |
6 |
| Knock Sensor Inputs |
2 |
| On-board Wideband Controller |
1 x NTK/LSU 4.9 |
| Injection |
8 (peak and hold) |
| Ignition |
8 |
| Ignition Switch Input |
1 |
| Engine Control Relay output |
1 |
| Total Digital Pulsed Outputs (DPO) |
6 |
| Half Bridge Outputs (HBO) |
4 8A |
| On-Board PDM |
NO |
| 25A High Current Outputs (HCO) |
0 |
| CAN Bus Networks |
2 |
| MAP sensor |
Internal (4 BAR) |
| Inertia / G-Sensor |
NO |
| USB 2.0 |
USB-C |
| Low Power Up via Cable |
YES |
| Wi-Fi |
YES |
| Compatible with Haltech Connect App |
YES |
| Anti-Lag/Rotational Idle |
YES |
| Boost Control |
4D Closed Loop |
| Closed Loop O2 Control |
Dual |
| CO2 Control |
YES |
| Drive-By-Wire Throttle |
Dual |
| Engine Protection |
Multi-Level |
| Flat Shift Support |
Advanced |
| Flex Fuel |
YES |
| Intake Air Bleed Control |
YES |
| Knock Control |
Dual |
| Launch Control |
YES |
| Long Term Learning |
Up to 4D |
| Nitrous Control Stages |
Up to 6 |
| Race Timer |
YES |
| Rolling Anti-Lag |
YES |
| Shock Travel & Ride Height |
YES |
| Torque Management (Driveshaft and Engine RPM Targeting) |
YES |
| Traction Control |
YES |
| Trans Brake |
YES |
| Tuning Table Resolution |
32x32x8 4D |
| Variable Cam Control |
Up to 4 |
| Onboard storage |
128MB |
