VCU OVERVIEW

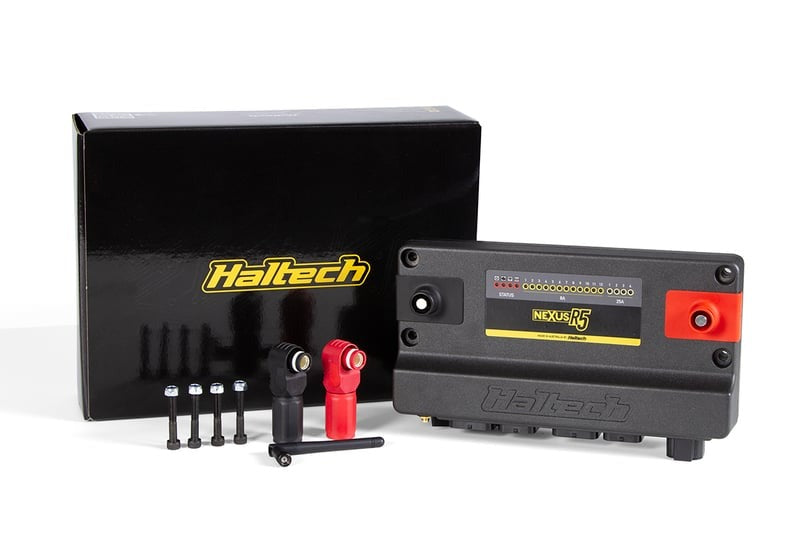

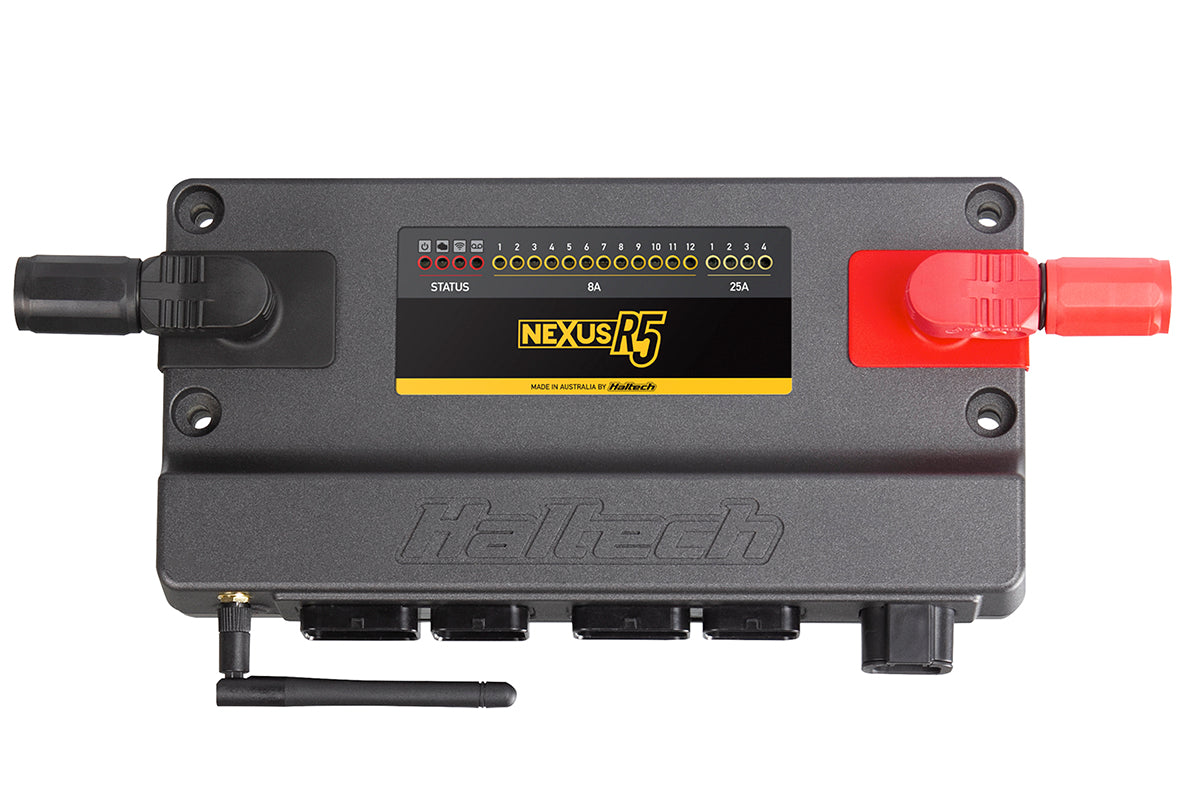

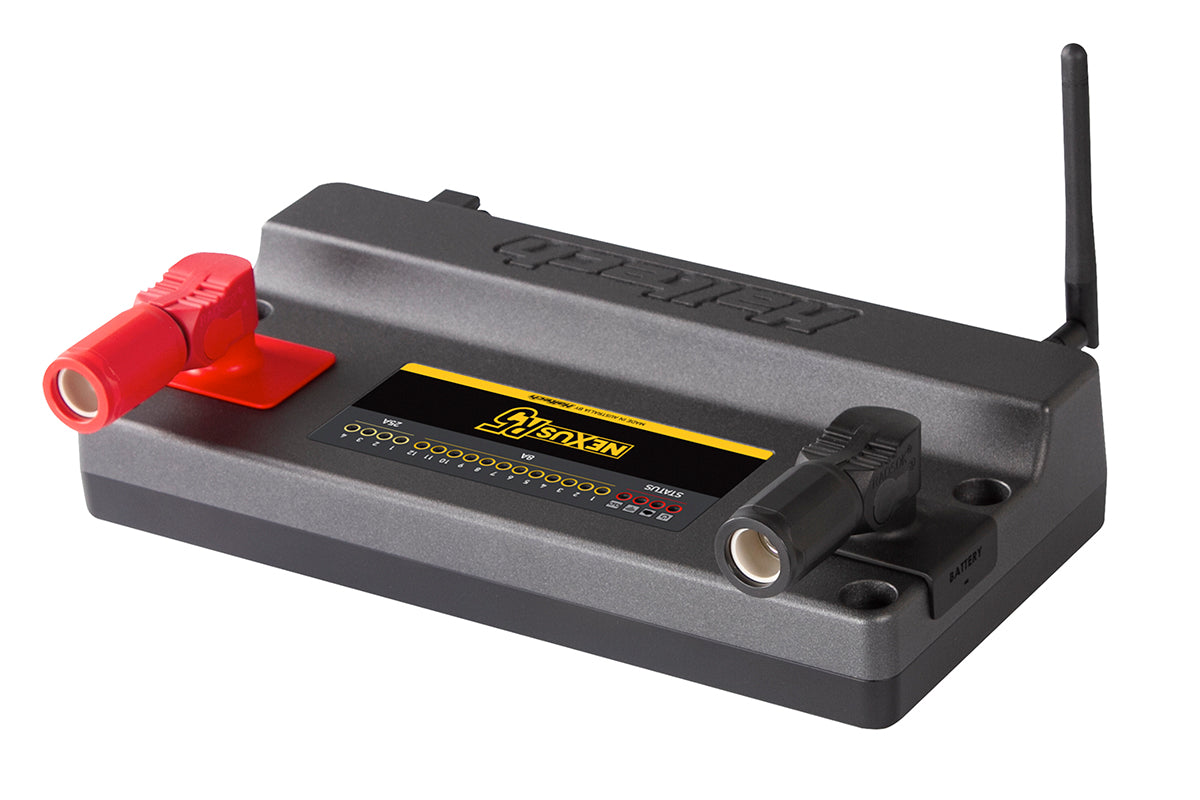

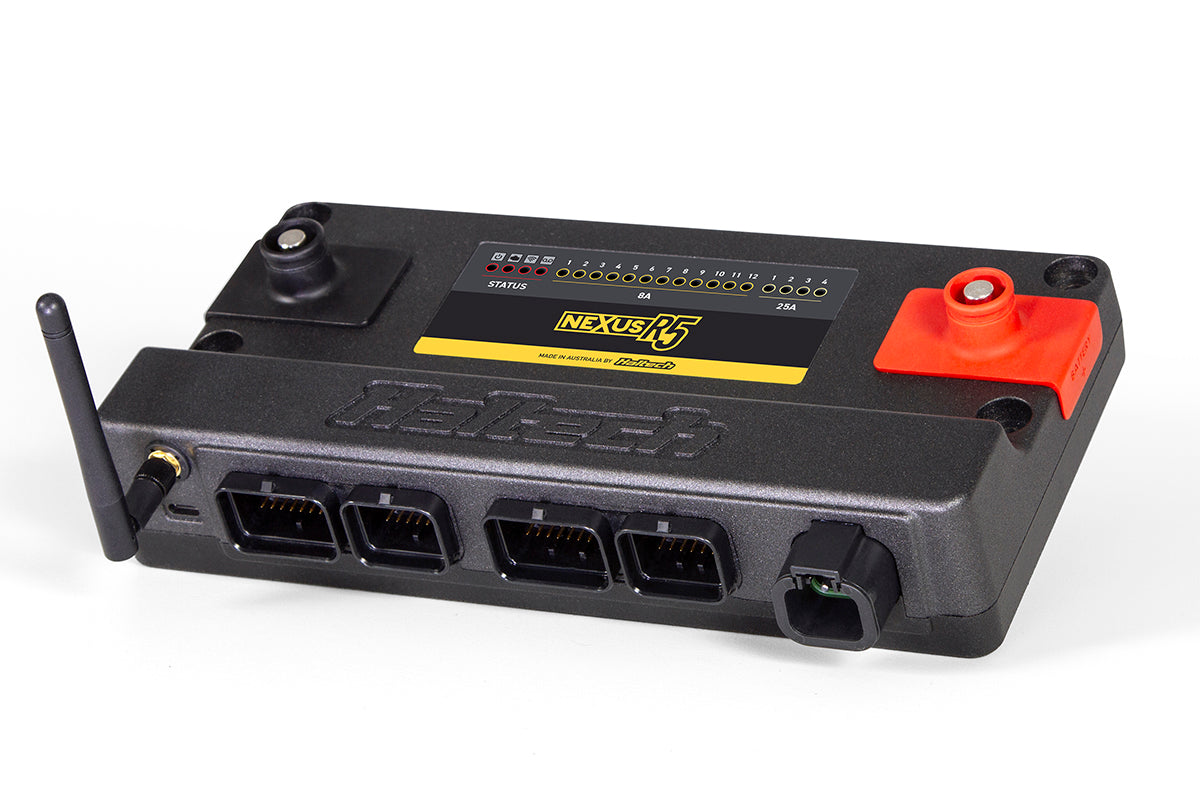

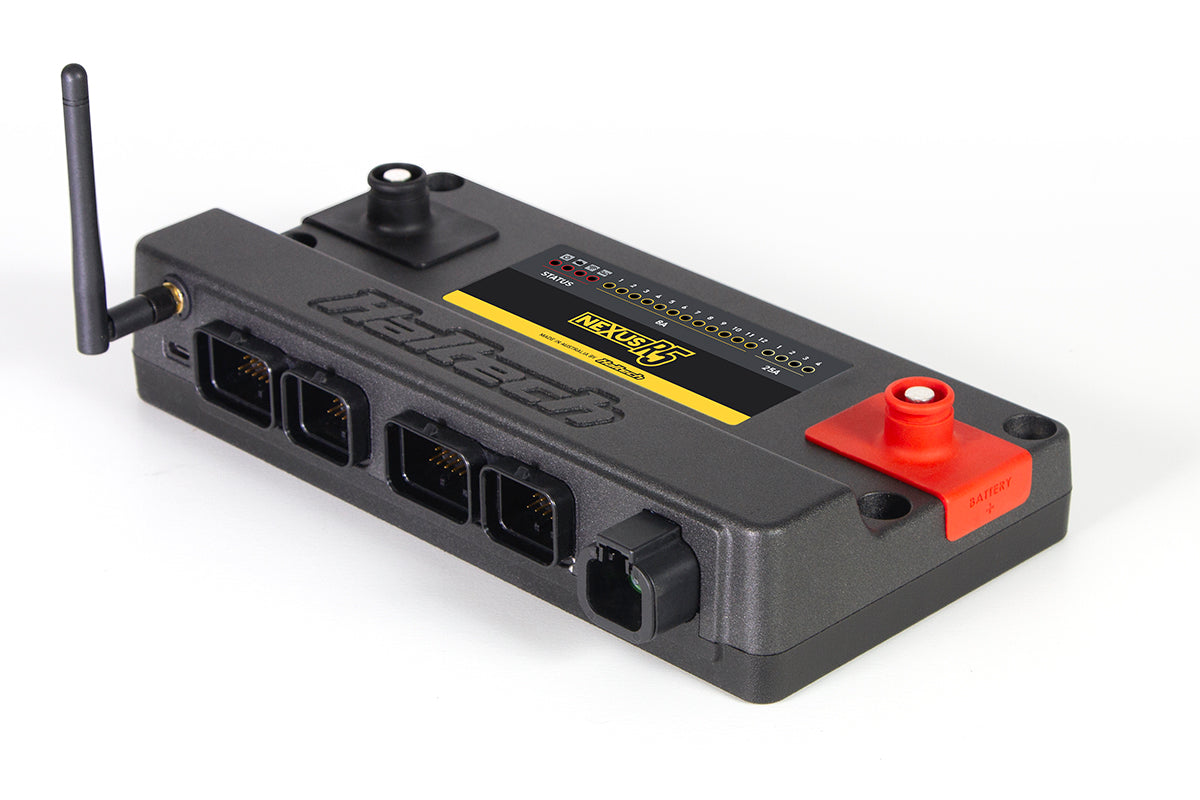

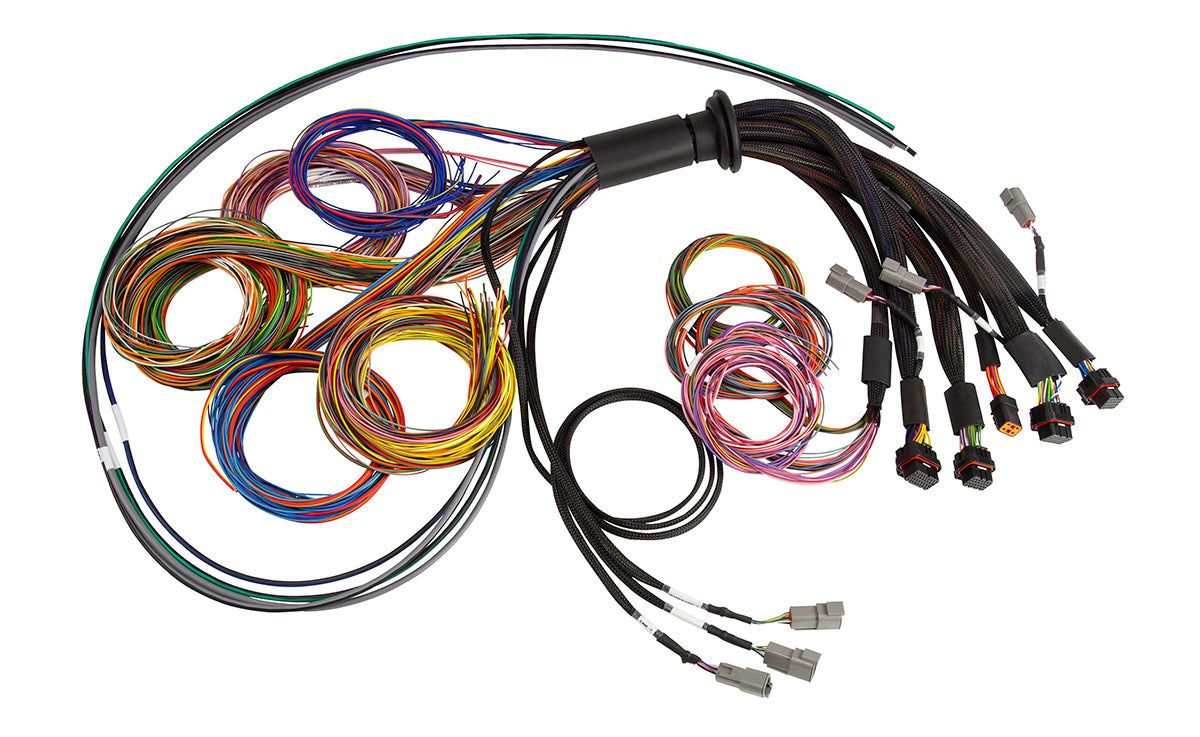

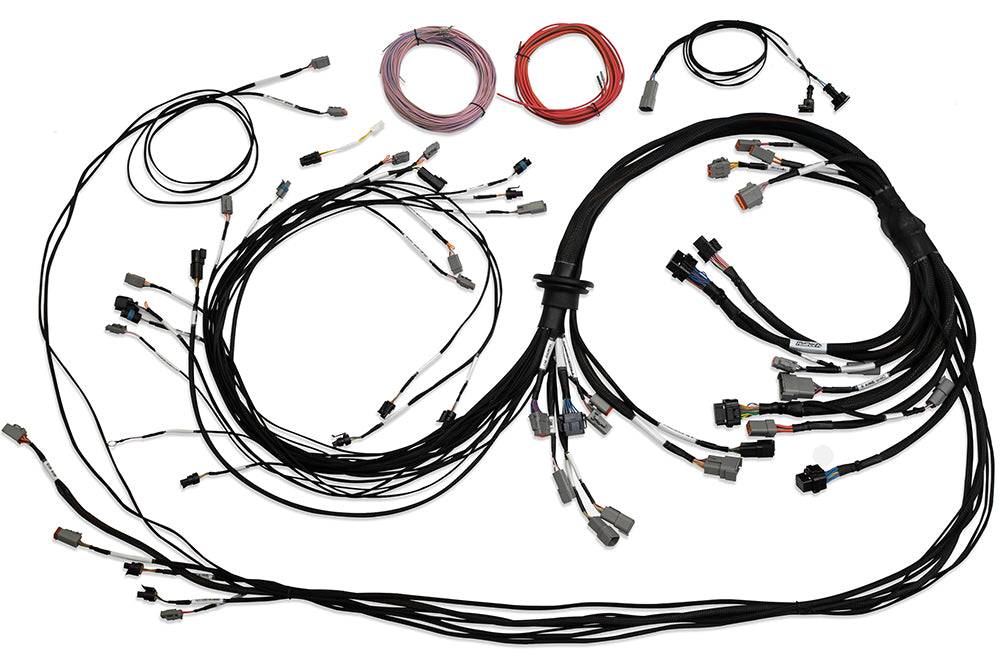

Nexus R5 is Haltech's flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
- 18 x peak/hold injector drivers (can be used as low side drive outputs)
- 12 x low current ignition outputs (can be used as low side drive outputs)
- 8 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 2 x onboard wideband controllers, supporting NTK and LSU4.9
- 3 x CAN ports with switchable termination
- Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 512MB of internal memory
VCU FEATURES
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
AUTOMATIC TRANSMISSION CONTROL
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
| Analog Voltage Inputs (AVI) |
23 |
| Differential Engine Position Inputs |
2 (Trigger and Home) |
| Digital Pulsed Inputs (DPI) |
0 |
| Synchronized Pulsed Inputs (SPI) |
10 |
| Knock Sensor Inputs |
2 |
| On-board Wideband Controller |
2 x NTK/LSU 4.9 |
| Injection |
18 (peak and hold) |
| Ignition |
12 |
| Ignition Switch Input |
1 |
| Engine Control Relay output |
0 |
| Total Digital Pulsed Outputs (DPO) |
8 |
| Half Bridge Outputs (HBO) |
4 8A |
| On-Board PDM |
YES |
| 25A High Current Outputs (HCO) |
4 |
| CAN Bus Networks |
3 |
| MAP sensor |
External |
| Inertia / G-Sensor |
YES |
| USB 2.0 |
USB-C |
| Low Power Up via Cable |
YES |
| Wi-Fi |
YES |
| Compatible with Haltech Connect App |
YES |
| Anti-Lag/Rotational Idle |
YES |
| Boost Control |
4D Closed Loop |
| Closed Loop O2 Control |
Dual |
| CO2 Control |
YES |
| Drive-By-Wire Throttle |
Dual |
| Engine Protection |
Multi-Level |
| Flat Shift Support |
Advanced |
| Flex Fuel |
YES |
| Intake Air Bleed Control |
YES |
| Knock Control |
Dual |
| Launch Control |
YES |
| Long Term Learning |
Up to 4D |
| Nitrous Control Stages |
Up to 6 |
| Race Timer |
YES |
| Rolling Anti-Lag |
YES |
| Shock Travel & Ride Height |
YES |
| Torque Management (Driveshaft and Engine RPM Targeting) |
YES |
| Traction Control |
YES |
| Trans Brake |
YES |
| Tuning Table Resolution |
32x32x8 4D |
| Variable Cam Control |
Up to 4 |
| Onboard storage |
512MB |
