Nexus IO16 Input/Output Expander with Plug and Pin Kit
Nexus IO16 Input/Output Expander with Plug and Pin Kit
Nexus IO16 Input/Output Expander with Plug and Pin Kit
Nexus IO16 Input/Output Expander with Plug and Pin Kit
Nexus IO16 Input/Output Expander with Plug and Pin Kit
Nexus IO16 Input/Output Expander with Plug and Pin Kit
Nexus IO16 Input/Output Expander with Plug and Pin Kit
Nexus IO16 Input/Output Expander with Plug and Pin Kit

Nexus IO16 Input/Output Expander with Plug and Pin Kit

From $951.00 $0.00

or 4 interest-free payments of $237.75 with afterpay

/
Subscription
Taxes included

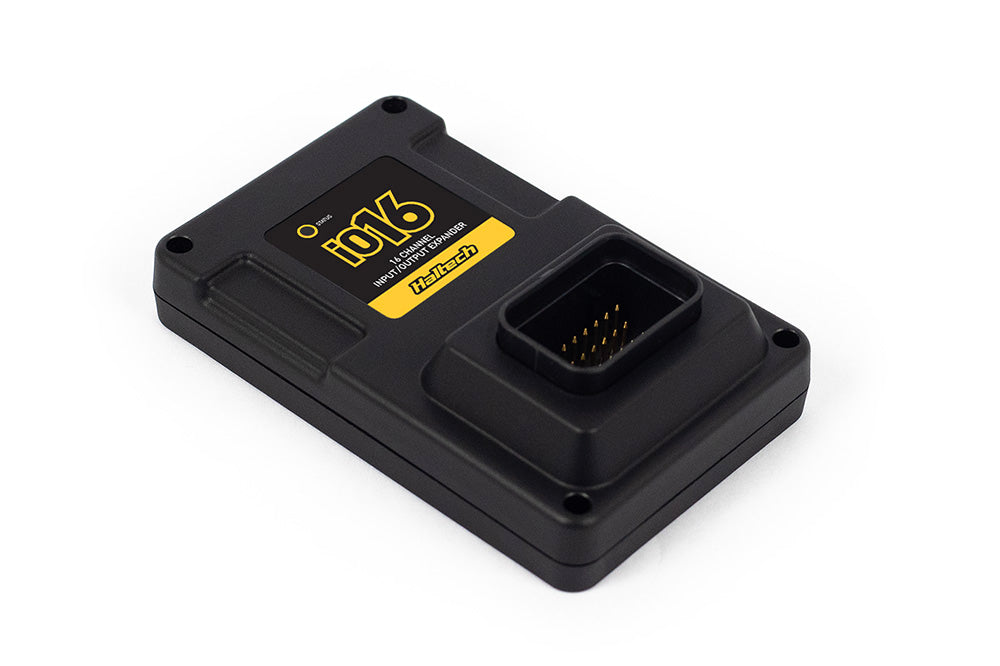

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

Features

6 x Analogue Voltage Inputs (AVI)

4 x Synchronised Pulsed Inputs (SPI)

6 x Half Bridge Outputs (HBO)

  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V
  • Reluctor/Digital
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V
  • 8A current (sink/source)
  • Capable of 0-100% duty cycle
  • 2.2khz switching speed
  • NOT suitable for DBW throttle application
  • 3 x 5V output (sensor power)
  • 4 x Sensor ground

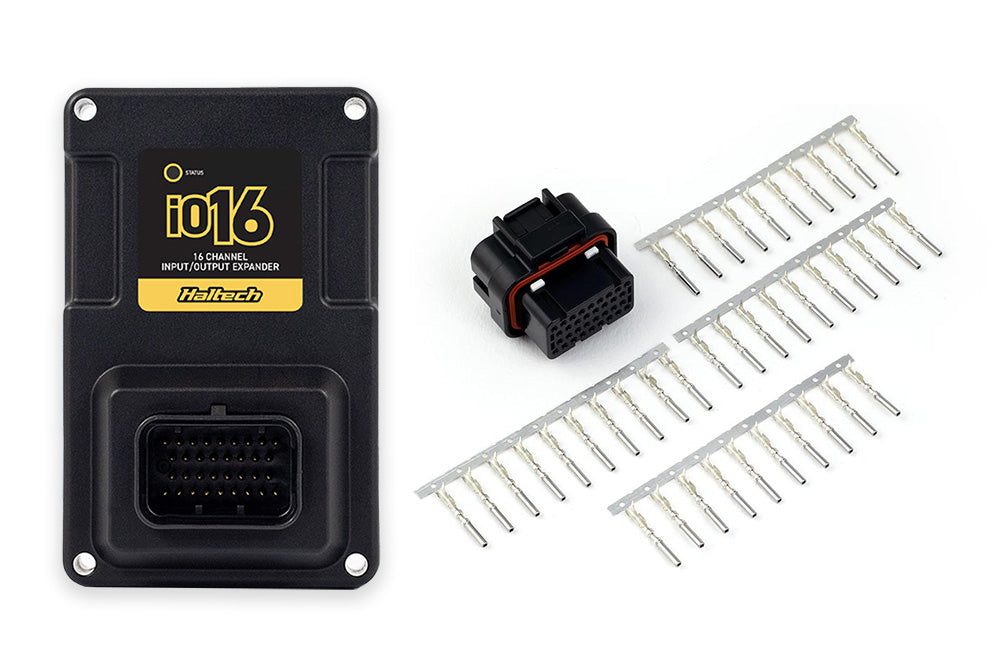

Includes: IO16 and Connector Kit
