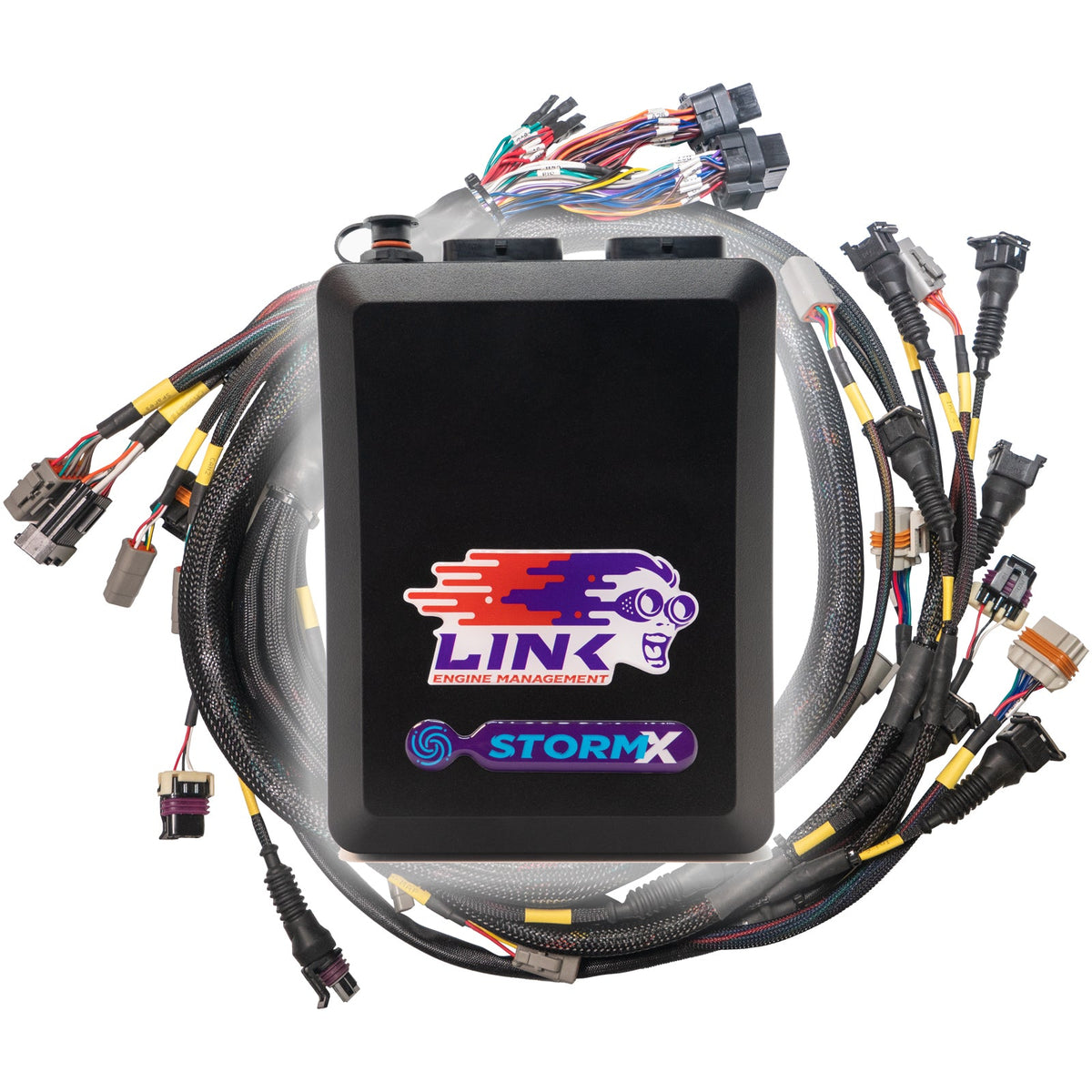

G4X StormX ECU + Terminated LS Engine Harness Drive-by-Cable Bundle

**The Quickest and Most Efficient Way to Connect a Link ECU to Your Drive-by-Cable LS V8 Engine**

This bundle provides the fastest, easiest, and most cost-effective solution for integrating a Link ECU with your Drive-by-Cable LS V8 engine.

**Bundle Includes:**

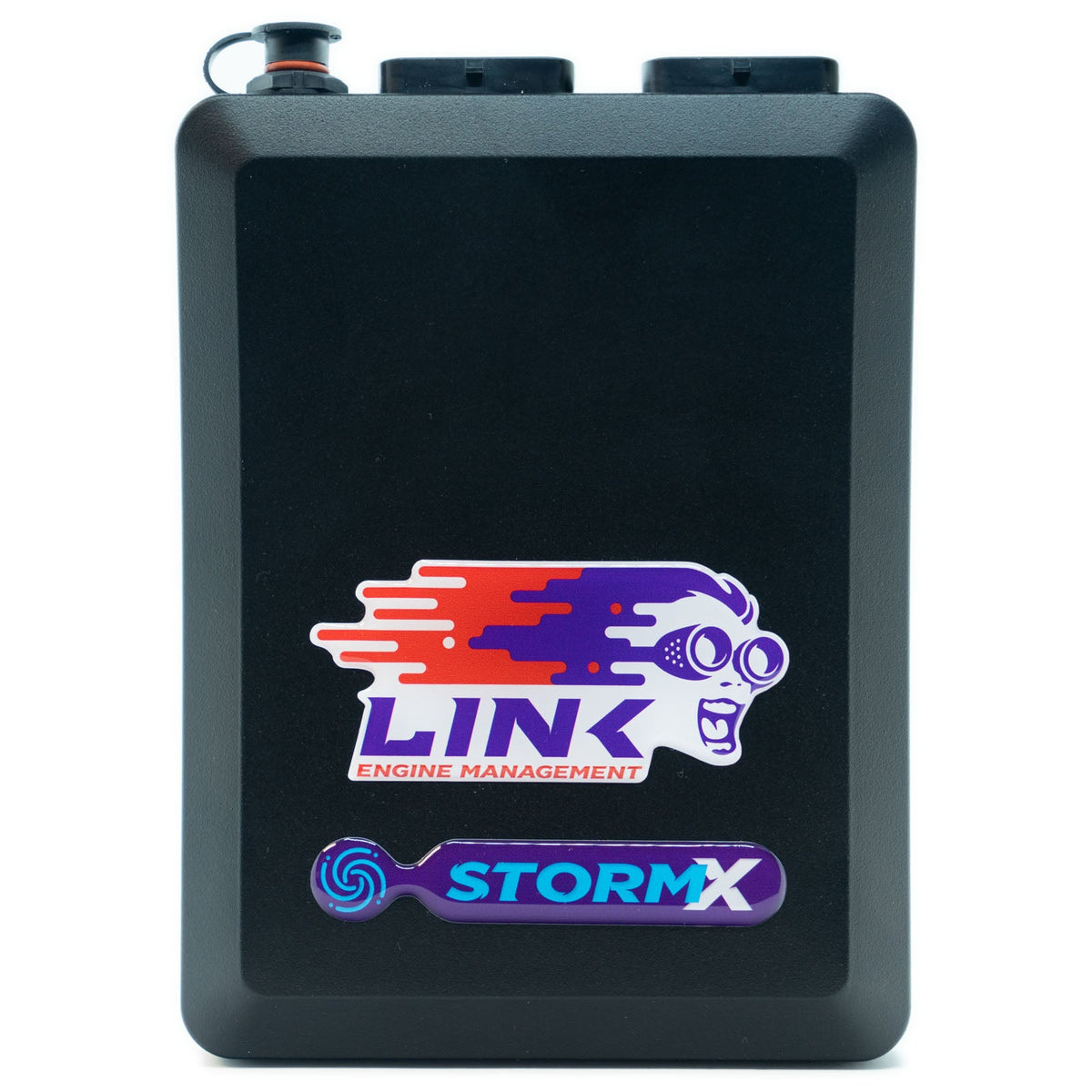

- G4X StormX ECU (8 Injector Drives and 8 Ignition Drives)

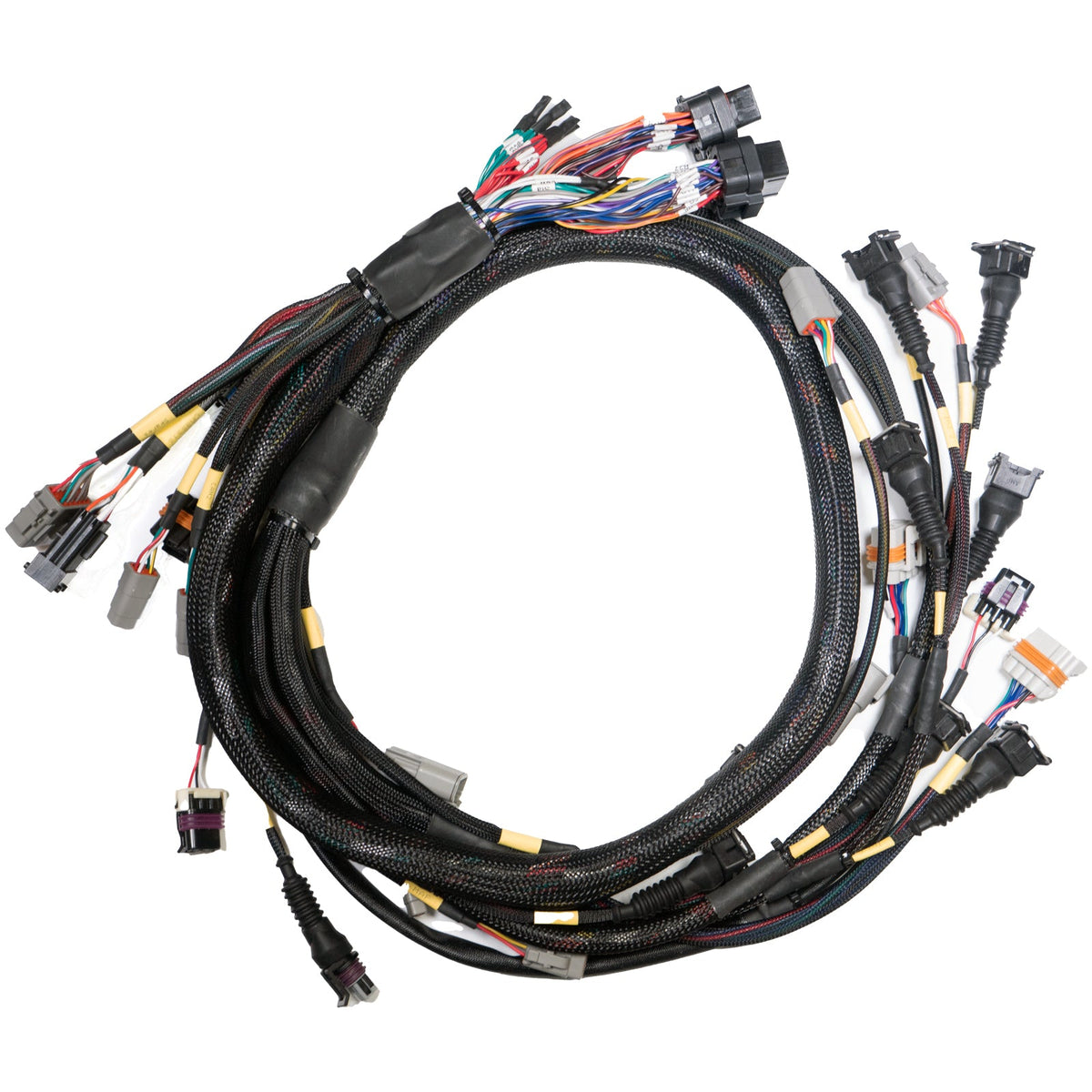

- Terminated Engine Harness for GM LS GEN3/4*

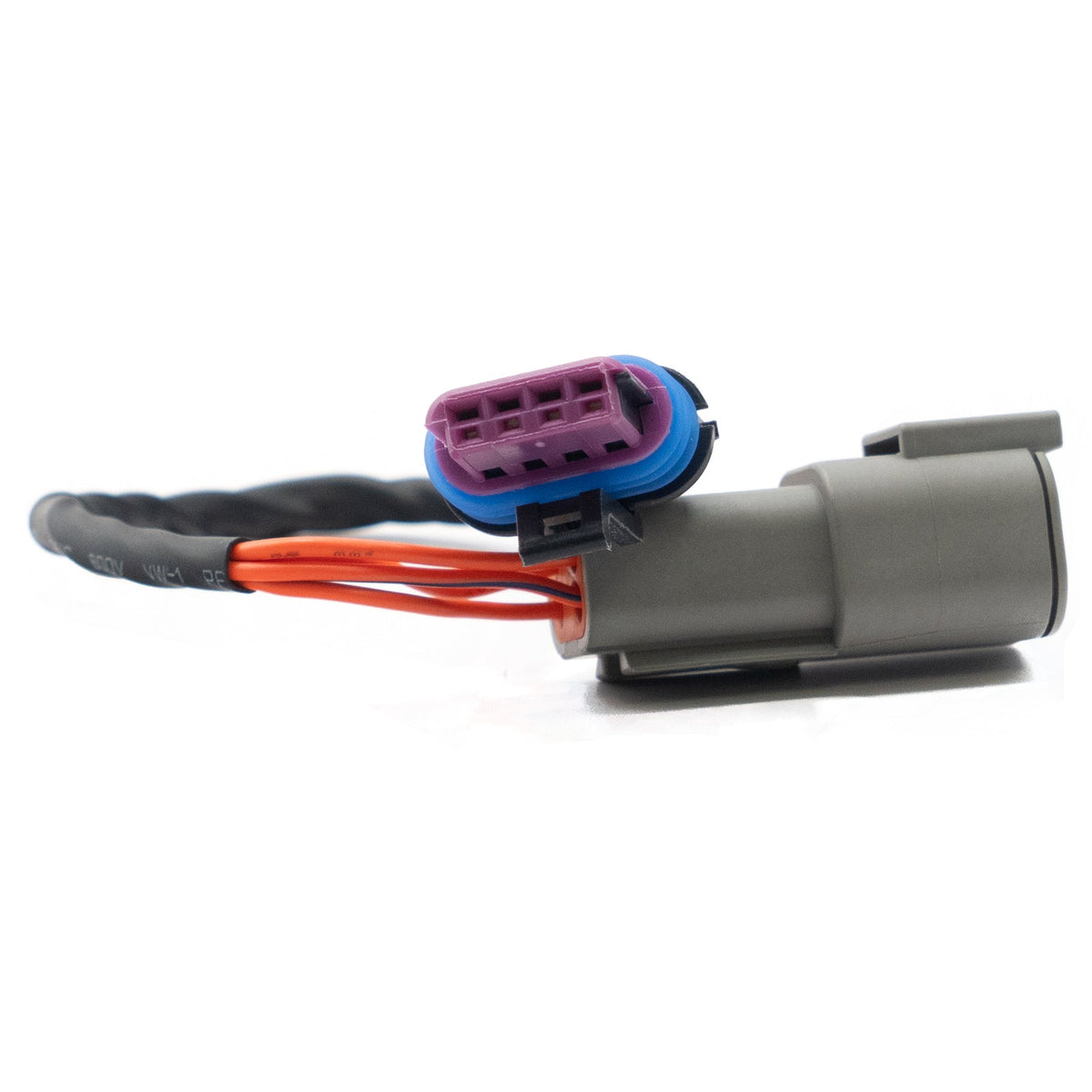

- LS Stepper Adapter Harness

**Notes for Use with Gen 4 Engines:**
1. **Cam Sensor Harness Extension:** Required to accommodate the front-mounted cam sensor on Gen 4 LS engines.
2. **Crank Sensor Connector Modification:** A minor adjustment is necessary; refer to the "Crank Connector" section in the installation manual for detailed instructions.
3. **Injector Connector Adapters:** Most Gen 4 engines will require adapters to USCAR connectors. Verify your injector connector type and use Link PN 101-0287 if needed.
4. **Knock Sensor Support:** To utilize factory Gen 4 knock sensors, the Link LS Gen 4 Knock Adapter Loom (PN 101-0306) is required.
5. **MAP Sensor Support:** For compatibility with the factory Gen 4 MAP sensor, use the Link LS MAP Adapter Loom along with a Gen 3 to Gen 4 MAP sensor extension harness. Alternatively, a Link MAP sensor can be directly integrated with the harness.
6. **Fuse Box and Relay:** If additional power management is required, purchase part number 101-0310 separately.

**PCLink Base Maps**
- Gen 3 Cable Throttle Base Map for G4X XtremeX/StormX
- Gen 4 Cable Throttle Base Map for G4X XtremeX/StormX

**Harness Manual**
Access the Online Instruction Manual for comprehensive installation guidance.
