Availability: Back Order - expected to ship within 2 - 4 weeks
SUITS: MY95-97 Toyota LandCruiser 80 Series with 1FZ-FE and manual transmission only. Supports sub tank transfer system. (European delivered models please confirm your ECU pin out with Haltech before ordering)

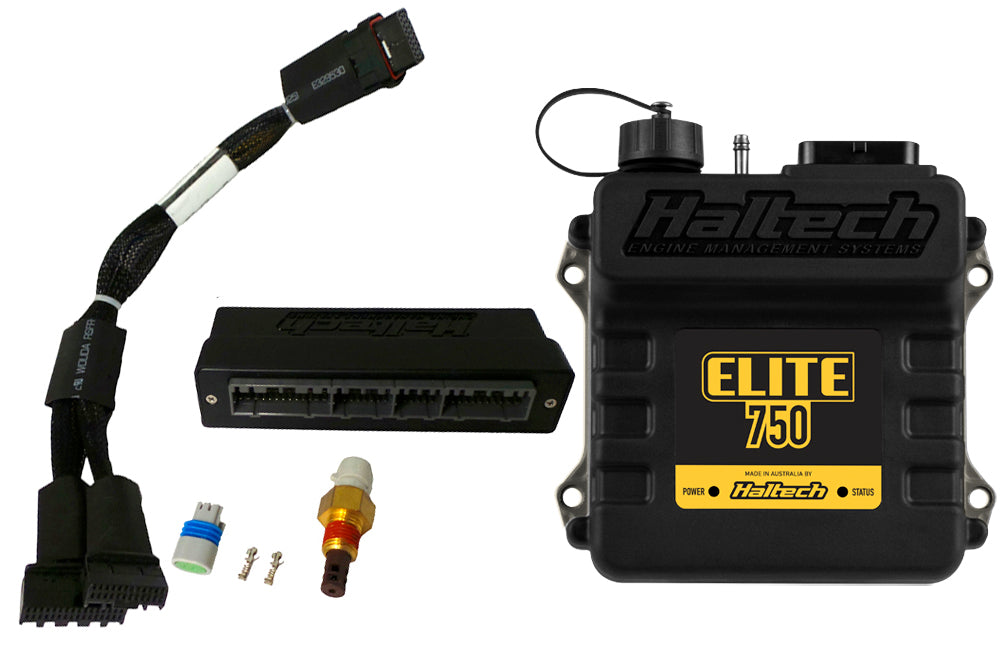

INCLUDES: Elite 750 ECU, Pug'n'Play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins. waterproof USB cap, USB programming cable and USB software key.
NOTES: Spare ignition outputs can be used (via custom wiring) to convert from distributor to direct fire ignition system (6 individual coils). E750 ECU does NOT support the factory idle speed stepper motor control. Please use an E2000/2500 ECU if this function is required.
- harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.
- programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.
ECU FUNCTIONS
- Low Impedance Injector control with Programmable Injector Peak and Hold
- Flex Fuel Function (Direct sensor input) - Tune your engines boost, fuel and ignition by ethanol content
- Flexible tuning setup for Petrol (Gasoline), Methanol and Ethanol allows you to simply select your fuel type E85 flex-fuel ready - direct connection to sensor
- Closed Loop O2 Control - for precise tuning (With optional external CAN O2 Wideband Controller Kit). Long-Term Learning
- Closed Loop Idle Speed Control with learning for consistent idle stability. Requires 1 or 2 user-defined outputs (BAC type)
- Long-term learning (Autotune) on fuel, cam & idle control maps (up to 3D)
- Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics
- CAN Bus communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
- 2 Injection Stages for use with Rotary Engines
- Variable cam control - Independently control a single camshaft - Requires a minimum of 1 user-defined input & output.
- Variable Cam Control supported for engines with a single cam sensor only, located on the variable cam. VVT Engines Supported - Toyota 1JZ/2JZ VVT, Toyota 1ZZ and 2ZZ, Mazda MX5 NB with VVT, Mazda / Ford Duratec, Suzuki M Series
ADVANCED TUNING
- Tuning Table Resolution up to 16 x 32
- Limitless tuning flexibility -Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
- tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility - Dual mapping is a thing of the past.
- Per Cylinder Tuning Correction - 3D
- Wideband O2 - Connect up to 2 Channels via CAN expansion devices
- Thermocouples/EGT (Exhaust Gas Temperature) - Connect up to 12 Channels via external CAN expansion devices
- Nitrous control with advanced programming of wet or dry nitrous kits with on/off delays.
- 3D fuel and ignition corrections available.
- Boost Control -Intelligent 3D Open loop, with flexible user-definable axis and 6 fully user definable corrections
- modes - example boost by gear, road speed etc.
