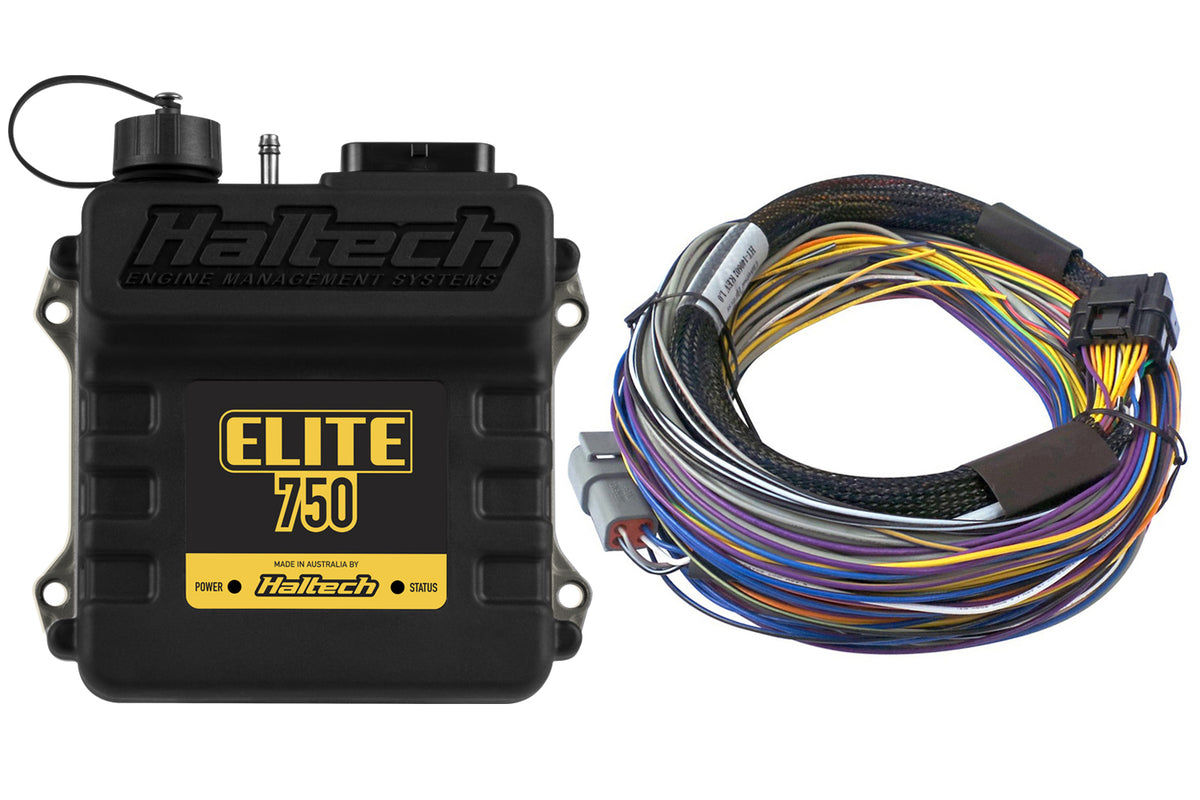

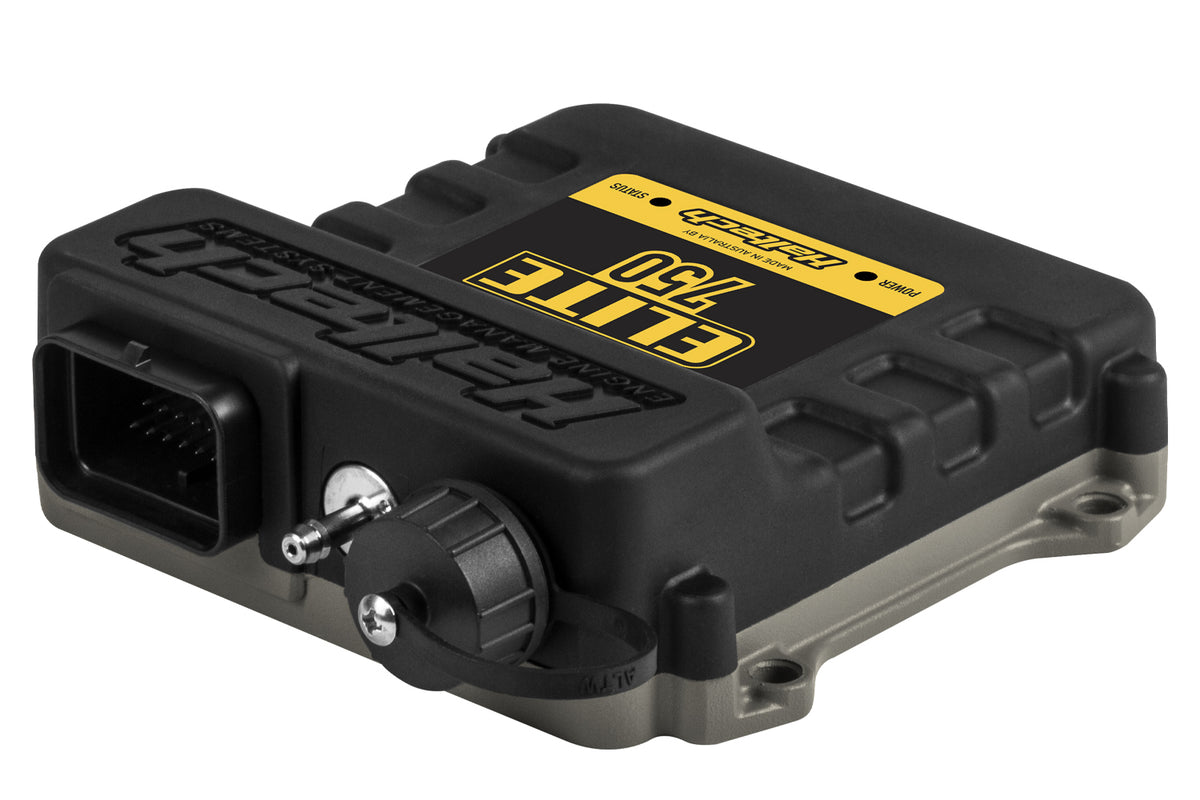

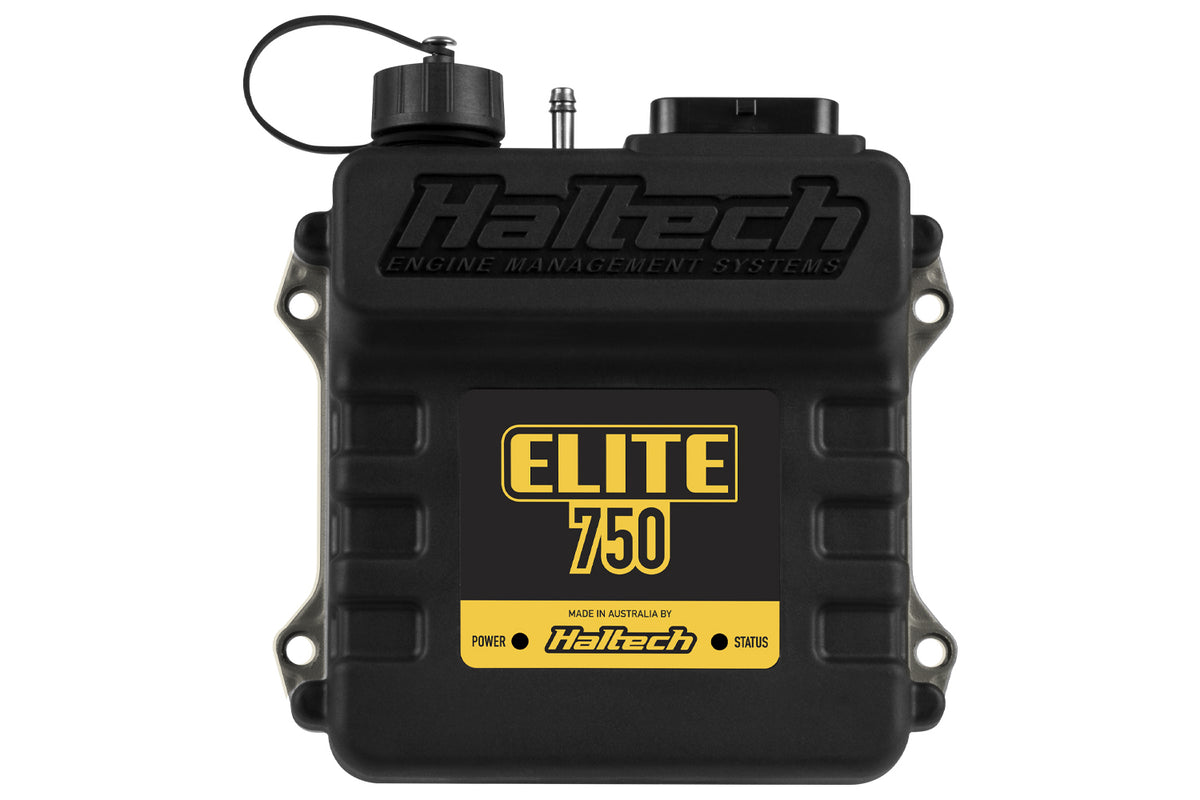

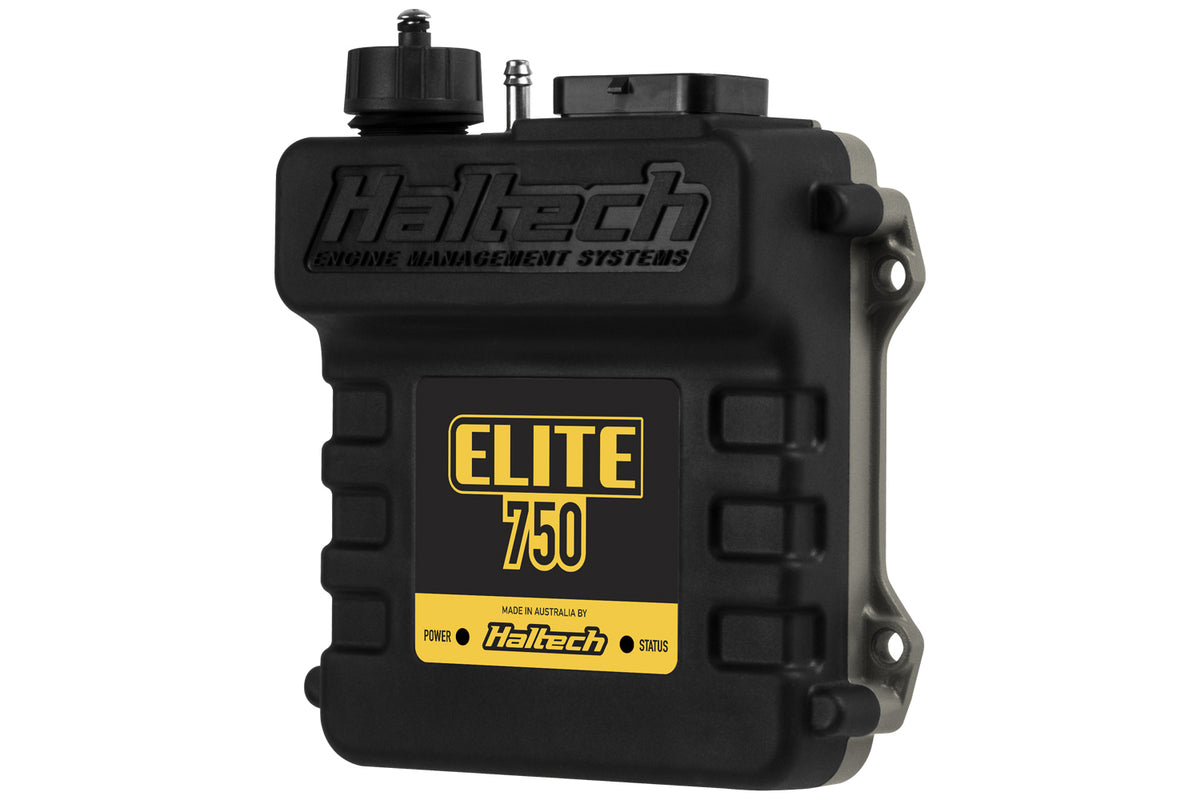

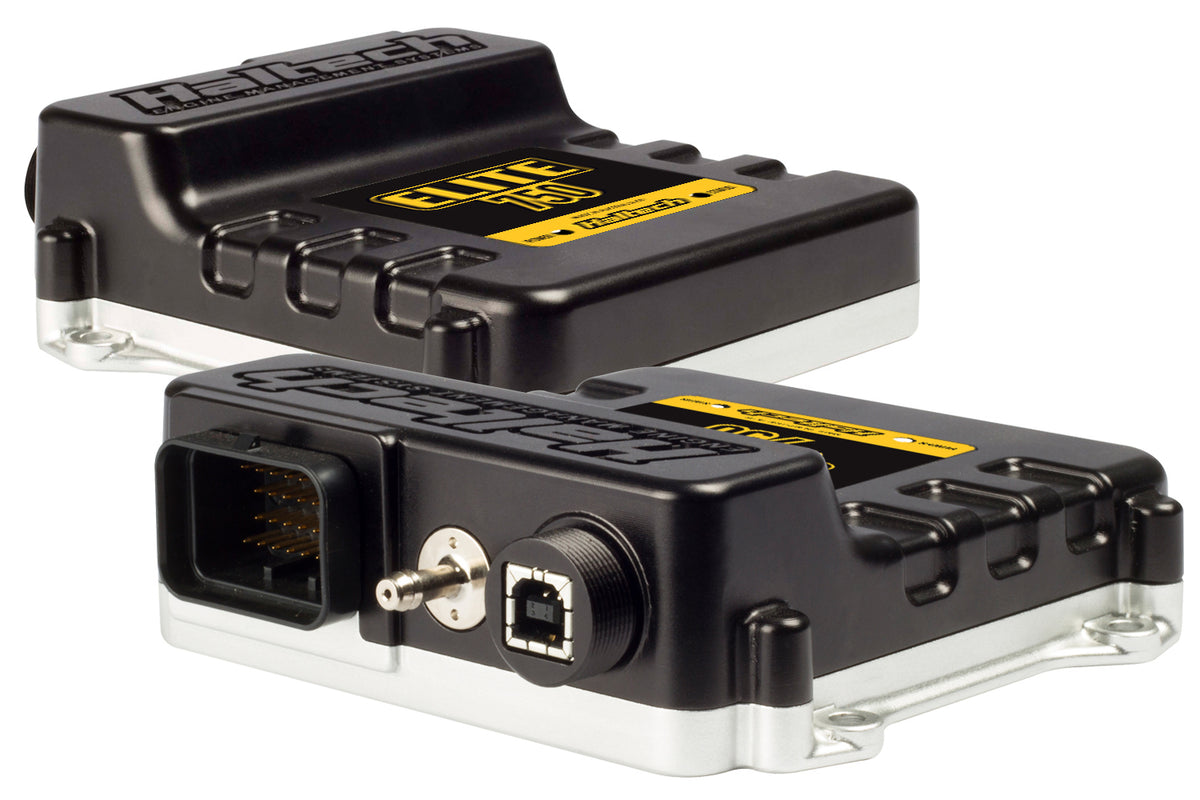

Elite 750 ECU

Elite 750 ECU

Regular price
$1,690.99 NZD
Sale price
$1,690.99 NZD
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

OUTPUTS: Up to 6 injector and 6 ignition.
SUITS: Universal 1-12 cylinder or 2-3 rotor applications.
INCLUDES: Elite 750 ECU, Waterproof USB cap, USB programming cable and software USB Key.
NOTES: Single connector ECU ideal for basic 6 cylinder or 2 rotor engine, basic EFI conversions, single VVTi engines.
ECU FUNCTIONS
  • Low Impedance Injector control with Programmable Injector Peak and Hold
  • Flex Fuel Function (Direct sensor input) - Tune your engines boost, fuel and ignition by ethanol content
  • Flexible tuning setup for Petrol (Gasoline), Methanol and Ethanol allows you to simply select your fuel type E85 flex-fuel ready - direct connection to sensor

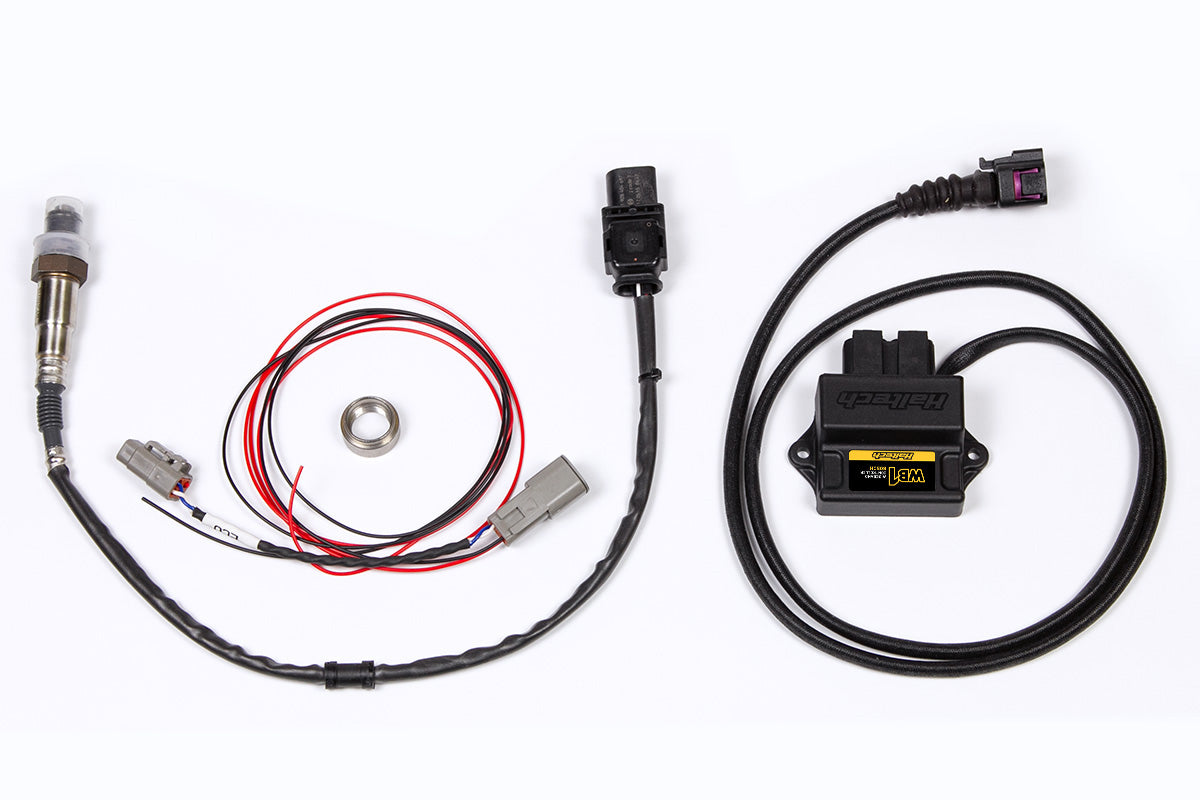

  • Closed Loop O2 Control - for precise tuning (With optional external CAN O2 Wideband Controller Kit). Long-Term Learning
  • Closed Loop Idle Speed Control with learning for consistent idle stability. Requires 1 or 2 user-defined outputs (BAC type)
  • Long-term learning (Autotune) on fuel, cam & idle control maps (up to 3D)
  • Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics

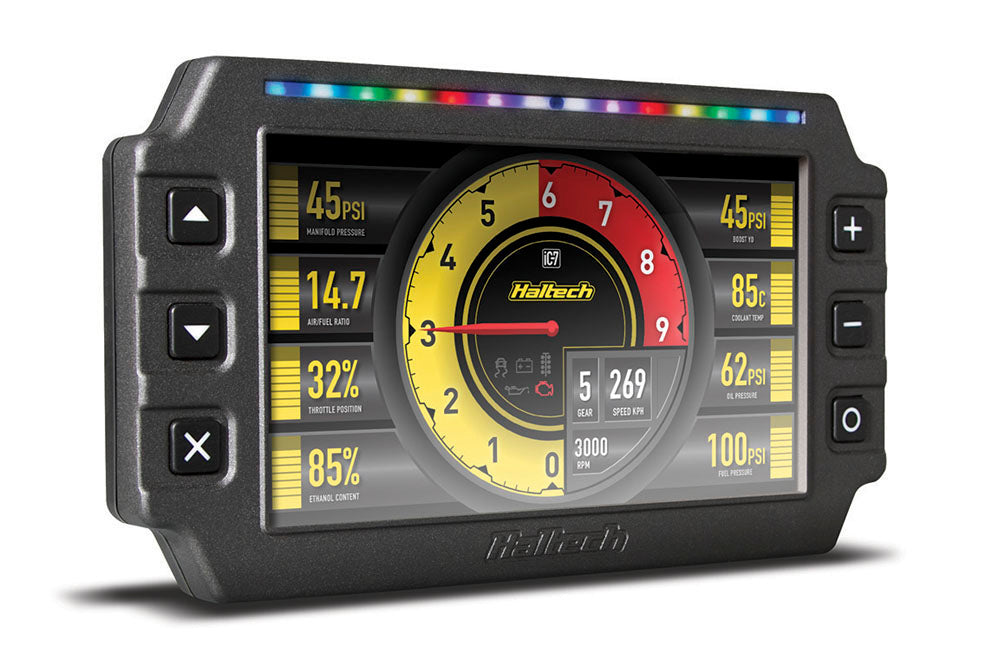

  • CAN Bus communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
  • 2 Injection Stages for use with Rotary Engines
  • Variable cam control - Independently control a single camshaft - Requires a minimum of 1 user-defined input & output.
  • Variable Cam Control supported for engines with a single cam sensor only, located on the variable cam. VVT Engines Supported - Toyota 1JZ/2JZ VVT, Toyota 1ZZ and 2ZZ, Mazda MX5 NB with VVT, Mazda / Ford Duratec, Suzuki M Series
ADVANCED TUNING
  • Tuning Table Resolution up to 16 x 32
  • Limitless tuning flexibility -Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
  • tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility - Dual mapping is a thing of the past.
  • Per Cylinder Tuning Correction - 3D
  • Wideband O2 - Connect up to 2 Channels via CAN expansion devices
  • Thermocouples/EGT (Exhaust Gas Temperature) - Connect up to 12 Channels via external CAN expansion devices
  • Nitrous control with advanced programming of wet or dry nitrous kits with on/off delays.
  • 3D fuel and ignition corrections available.
  • Boost Control -Intelligent 3D Open loop, with flexible user-definable axis and 6 fully user definable corrections
  • modes - example boost by gear, road speed etc.
