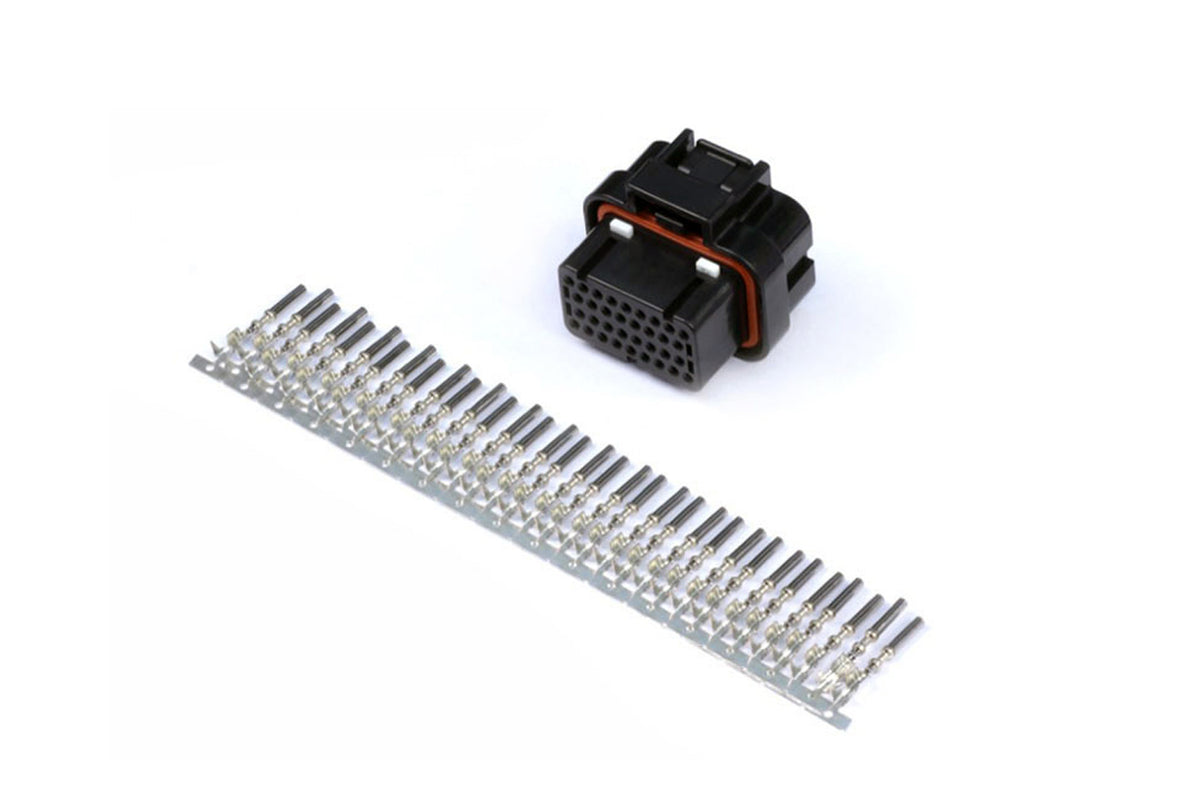

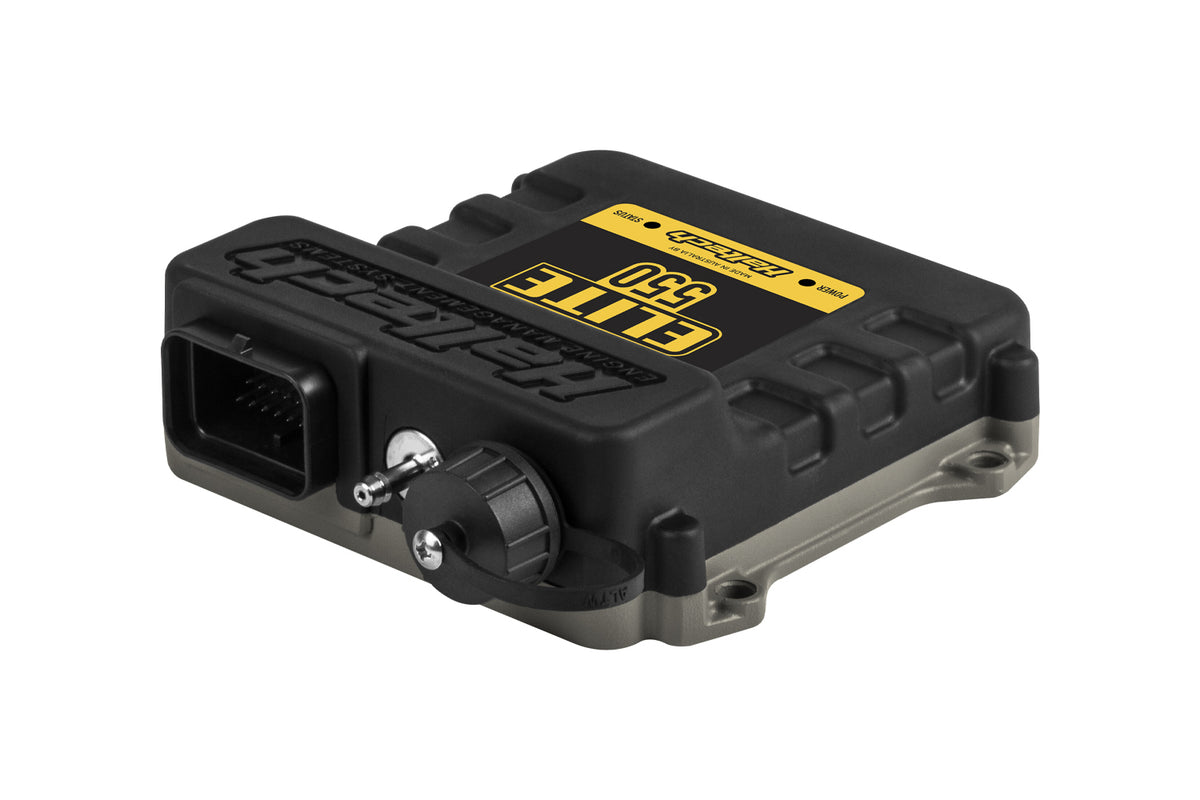

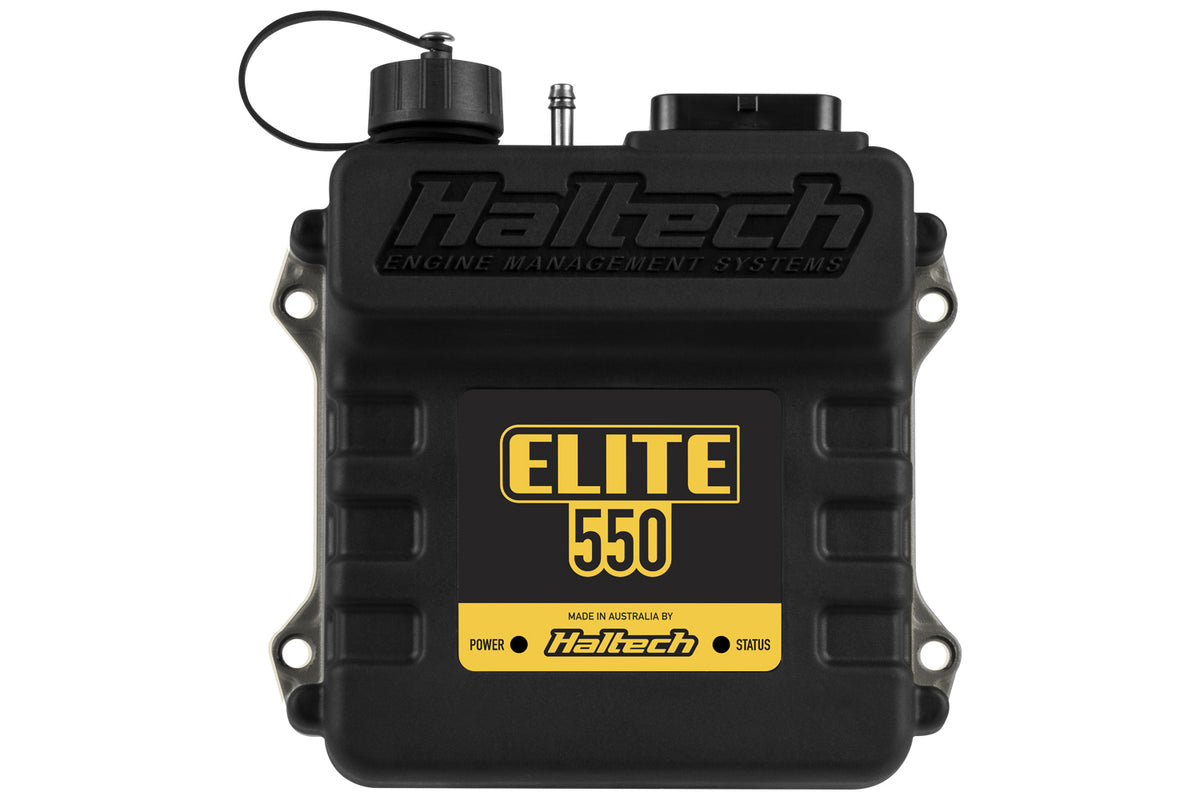

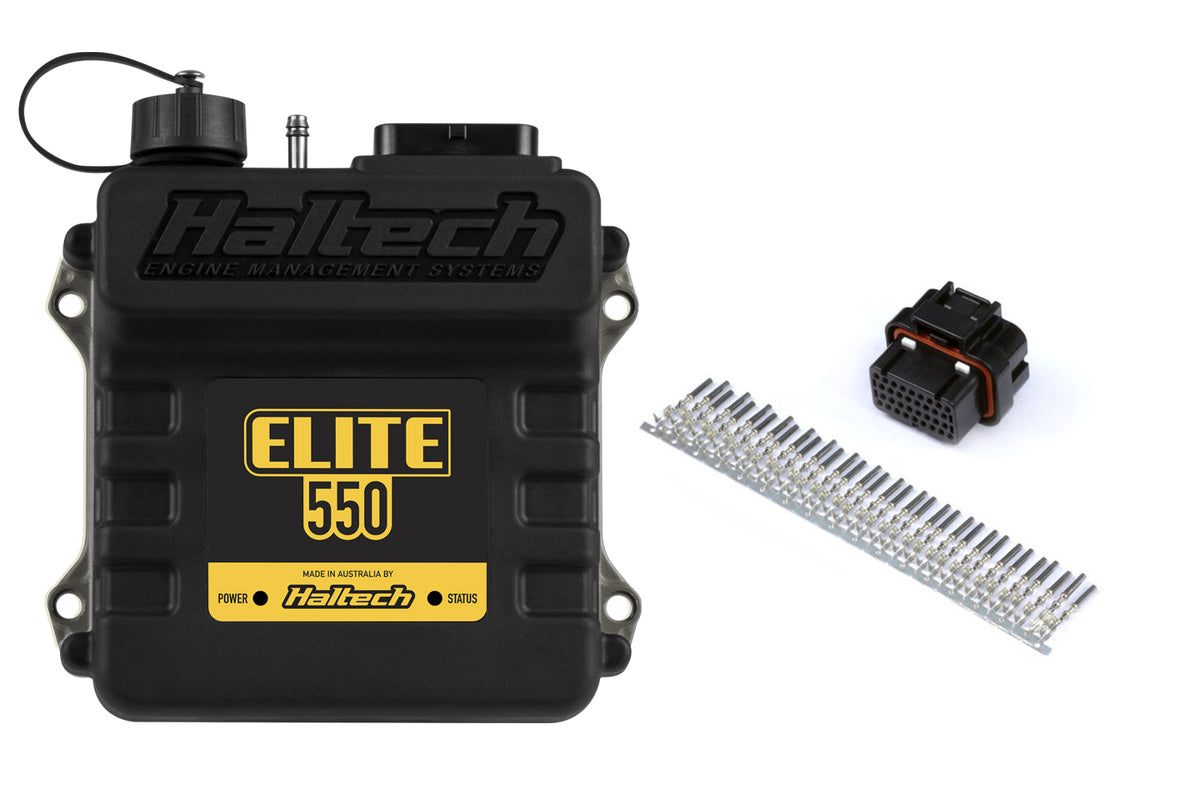

INCLUDES: 1 x Elite 550 ECU + Plug and Pins to suit
ECU FUNCTIONS
- Low Impedance Injector control with Programmable Injector Peak and Hold Currents

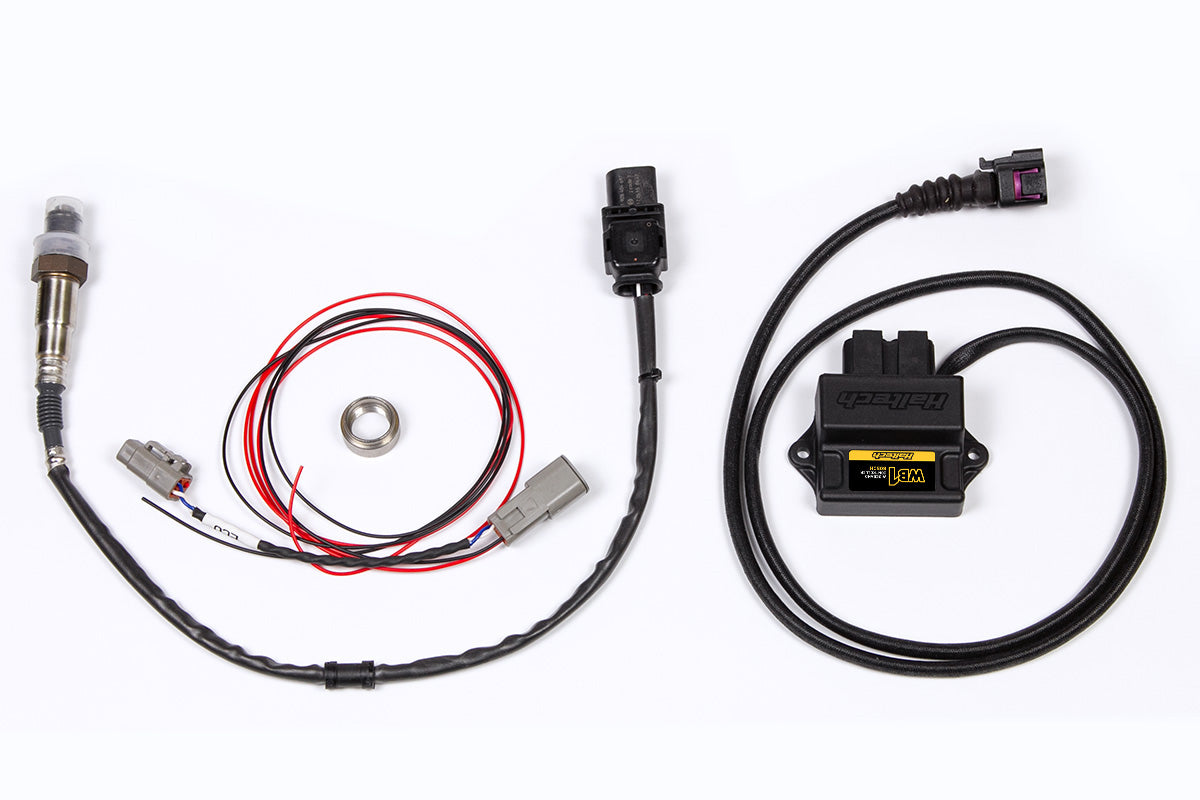

- Closed Loop O2 Control - for precise tuning (With optional external CAN O2 Wideband Controller Kit).
- Closed Loop Idle Speed Control - requires 1 or 2 user defined outputs (BAC type)
- Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics
- CAN Bus communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
- 2 Injection Stages for use with Rotary Engines
- ECU comes fully enabled, no additional charges for advanced features.
ADVANCED TUNING
- Tuning Table Resolution up to 32 x 16
- Limitless tuning flexibility -Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
- tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility - Dual mapping is a thing of the past.
- Per Cylinder Tuning Correction - 3D
- Wideband O2 - Connect up to 2 Channels via CAN expansion devices
- Thermocouples/EGT (Exhaust Gas Temperature) - Connect up to 12 Channels via external CAN expansion devices
- Boost Control -Intelligent 3D Open loop, with flexible user definable axis and 6 fully user definable corrections
- modes - example boost by gear, road speed etc.
