haltech

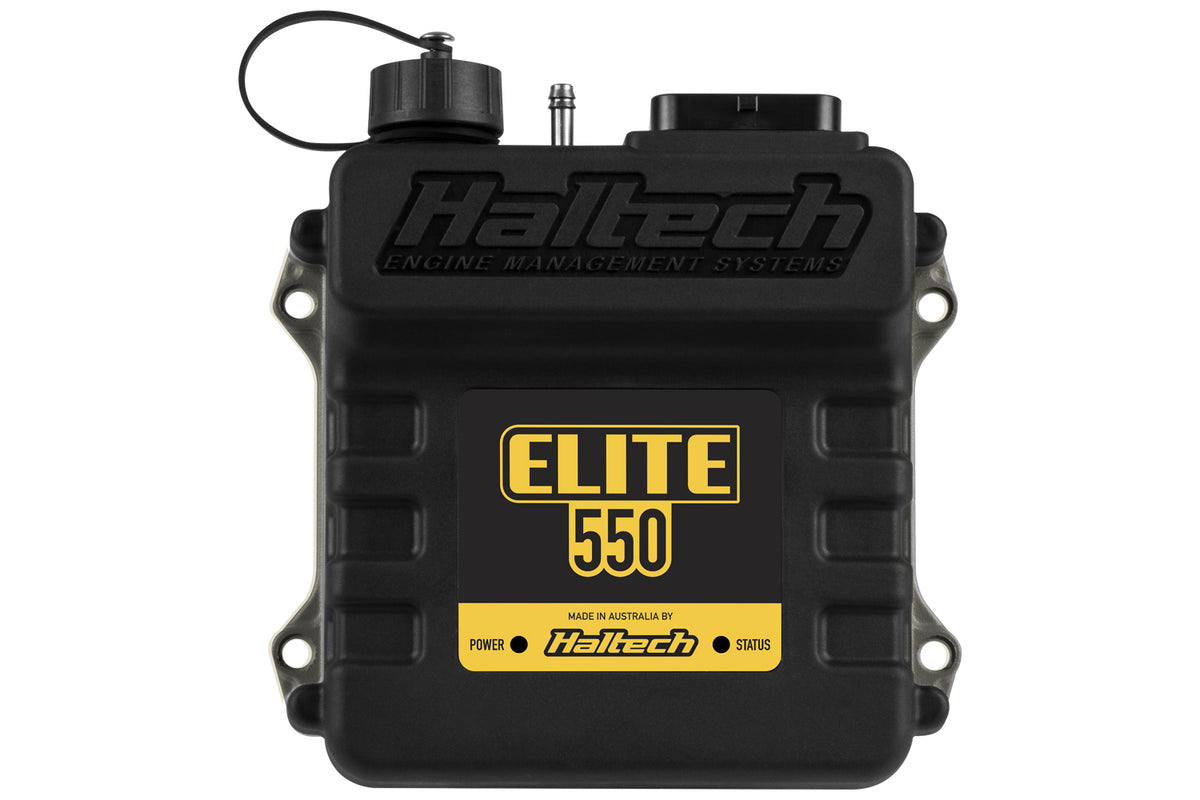

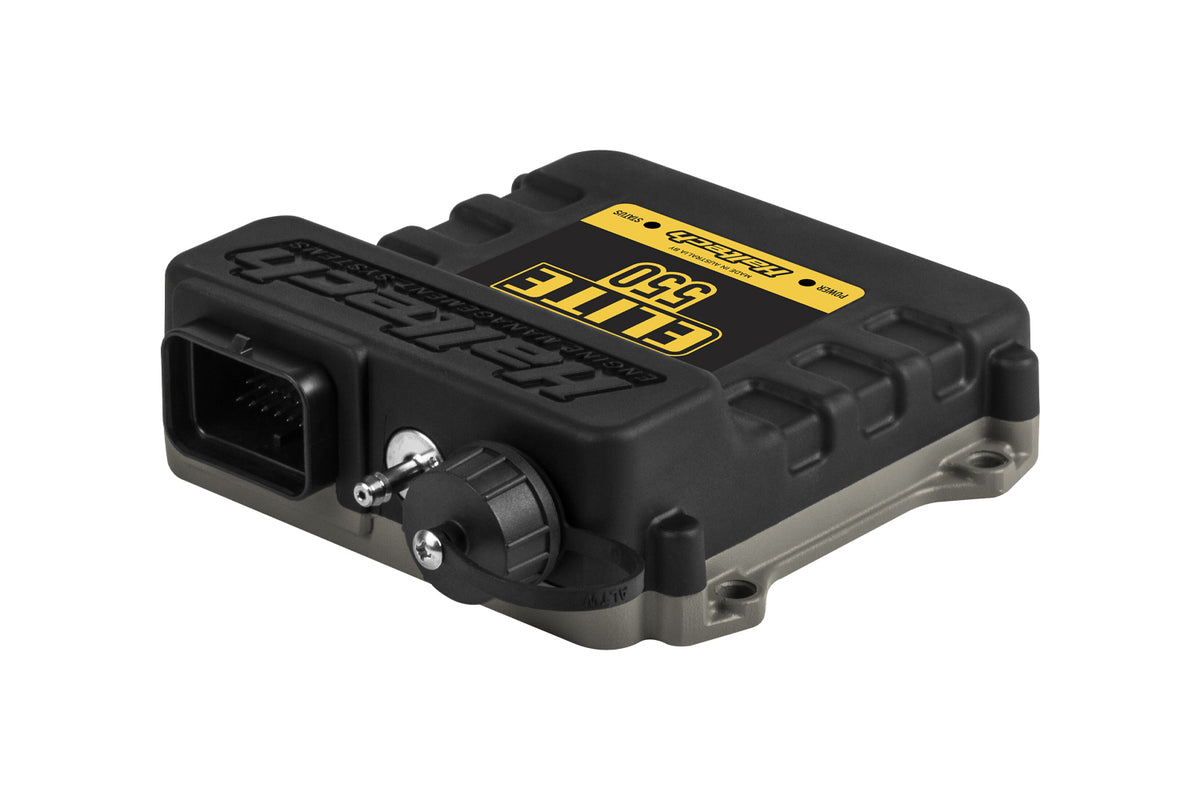

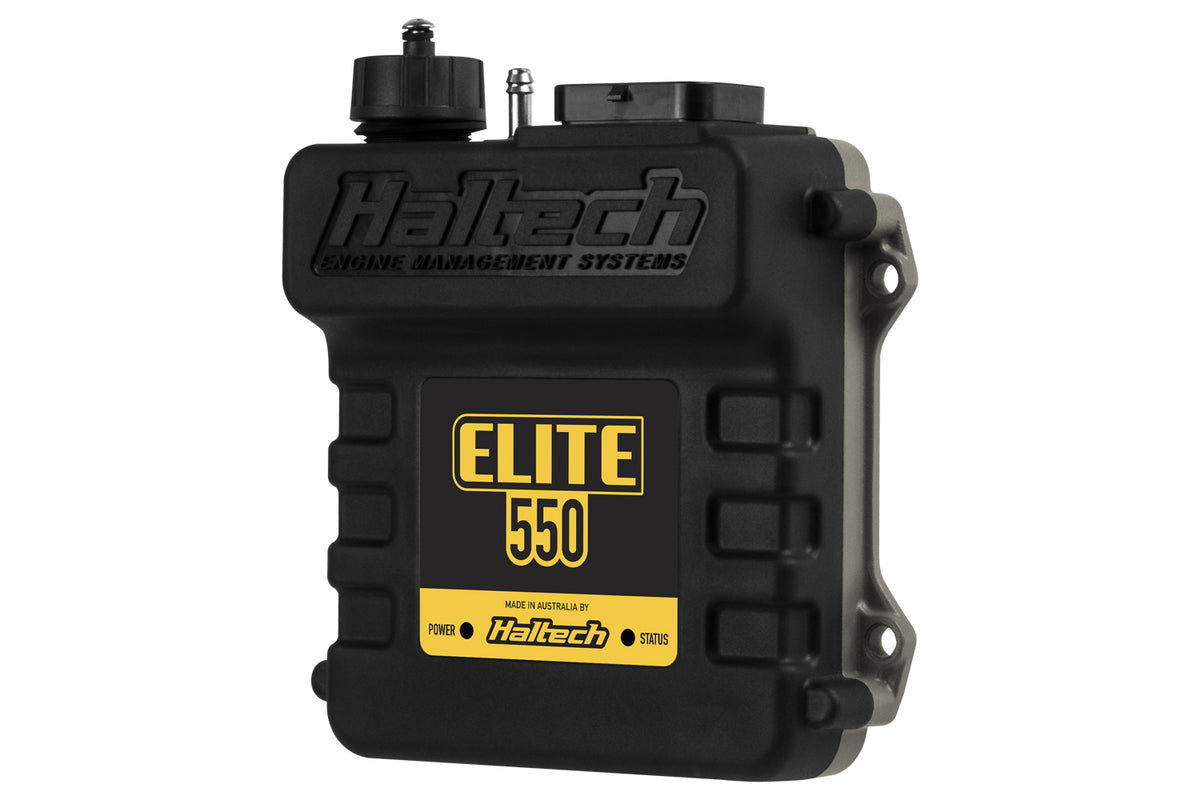

Elite 550 ECU

$1,240.00
  • Elite 550 ECU

haltech

Elite 550 ECU

$1,240.00
OUTPUTS: Up to 4 injector and 4 ignition.
SUITS: Universal 1-8 cylinder or 2 rotor applications.

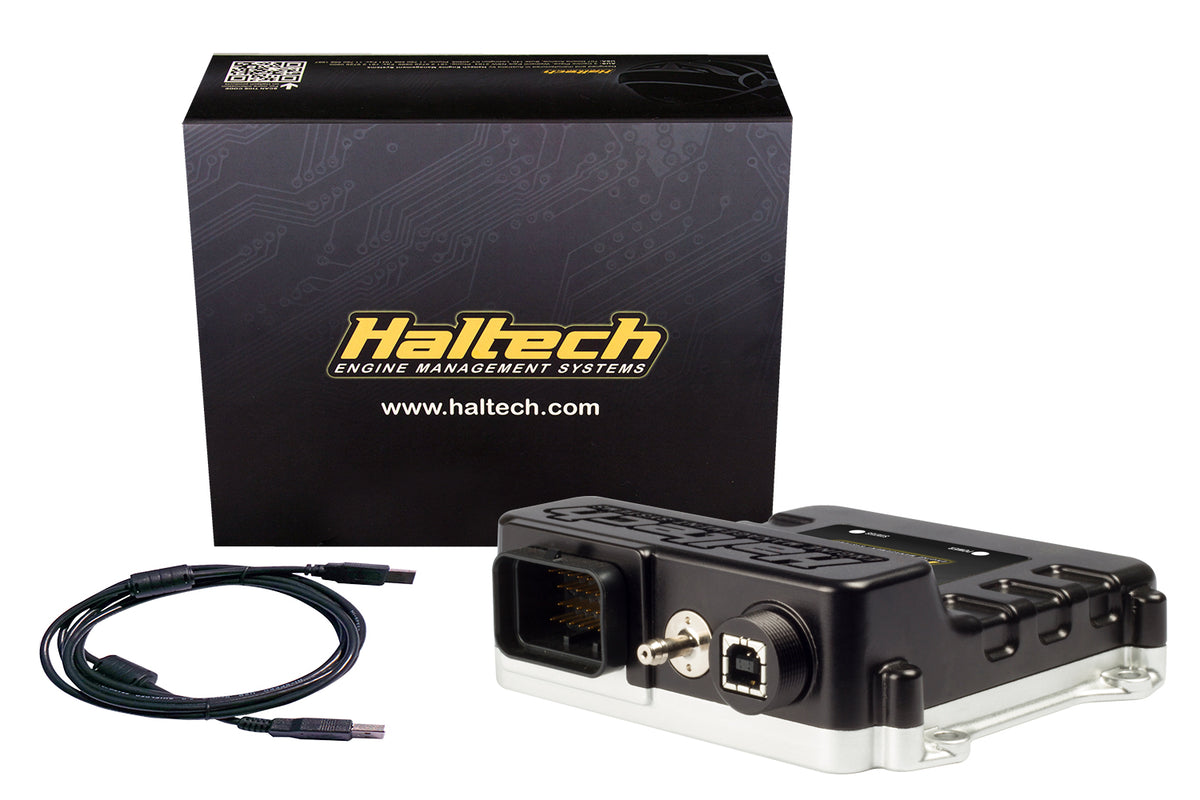

INCLUDES: Elite 550 ECU, Waterproof USB cap, USB programming cable and software CD.
NOTES: Haltech's entry level, single connector ECU. Ideal for basic 4 cylinder or 2 rotor engine applications and basic EFI conversions.
ECU FUNCTIONS
  • Low Impedance Injector control with Programmable Injector Peak and Hold Currents

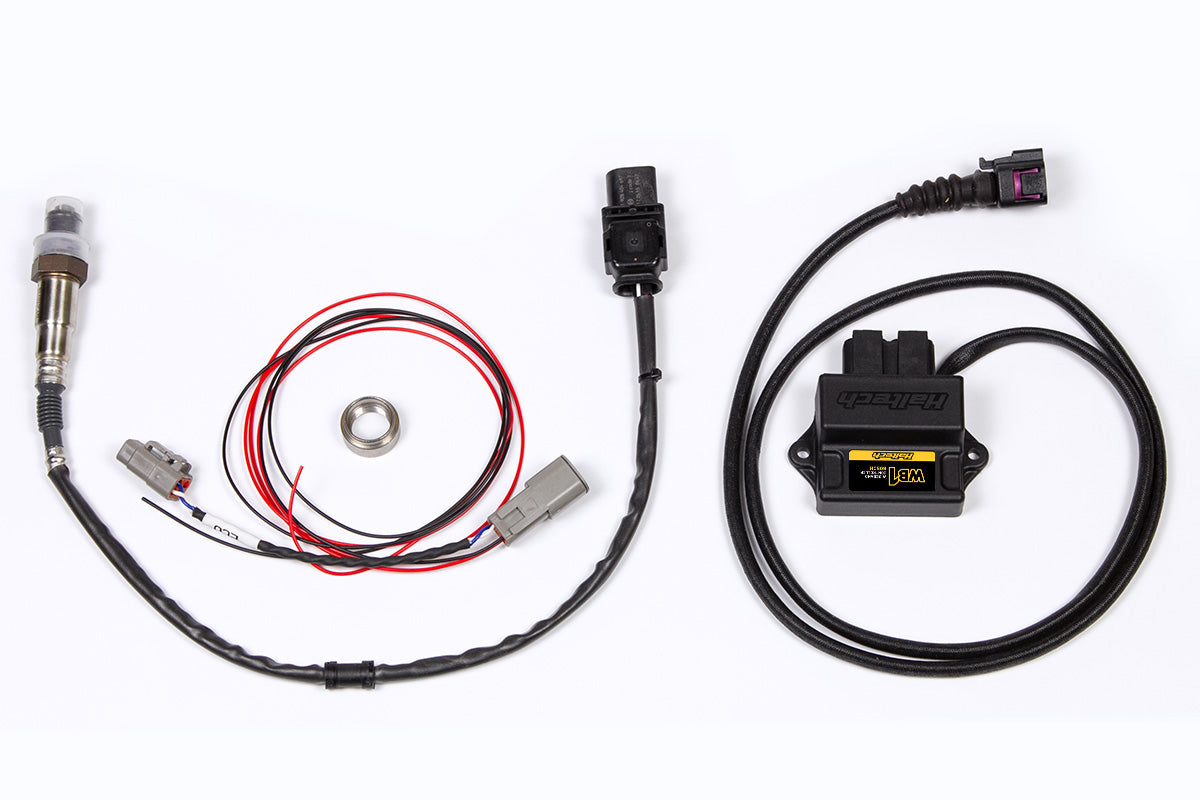

  • Closed Loop O2 Control - for precise tuning (With optional external CAN O2 Wideband Controller Kit).
  • Closed Loop Idle Speed Control - requires 1 or 2 user defined outputs (BAC type)
  • Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics
  • CAN Bus communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
  • 2 Injection Stages for use with Rotary Engines
  • ECU comes fully enabled, no additional charges for advanced features.
ADVANCED TUNING
  • Tuning Table Resolution up to 32 x 16
  • Limitless tuning flexibility -Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
  • tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility - Dual mapping is a thing of the past.
  • Per Cylinder Tuning Correction - 3D
  • Wideband O2 - Connect up to 2 Channels via CAN expansion devices
  • Thermocouples/EGT (Exhaust Gas Temperature) - Connect up to 12 Channels via external CAN expansion devices
  • Boost Control -Intelligent 3D Open loop, with flexible user definable axis and 6 fully user definable corrections
  • modes - example boost by gear, road speed etc.
