2.5m 'A' Loom for Link G4, G4+, G4X and G5 Wire-in ECUs

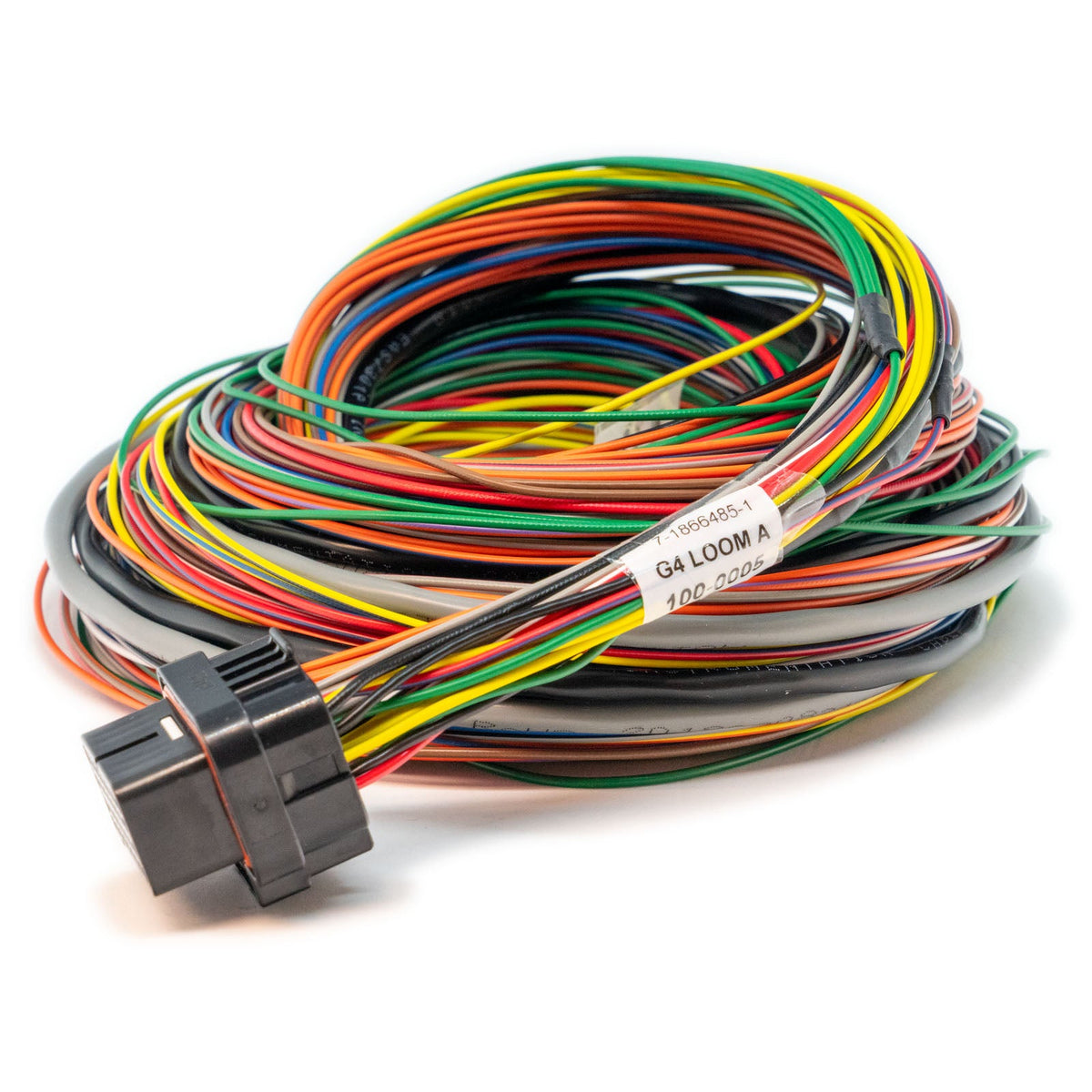

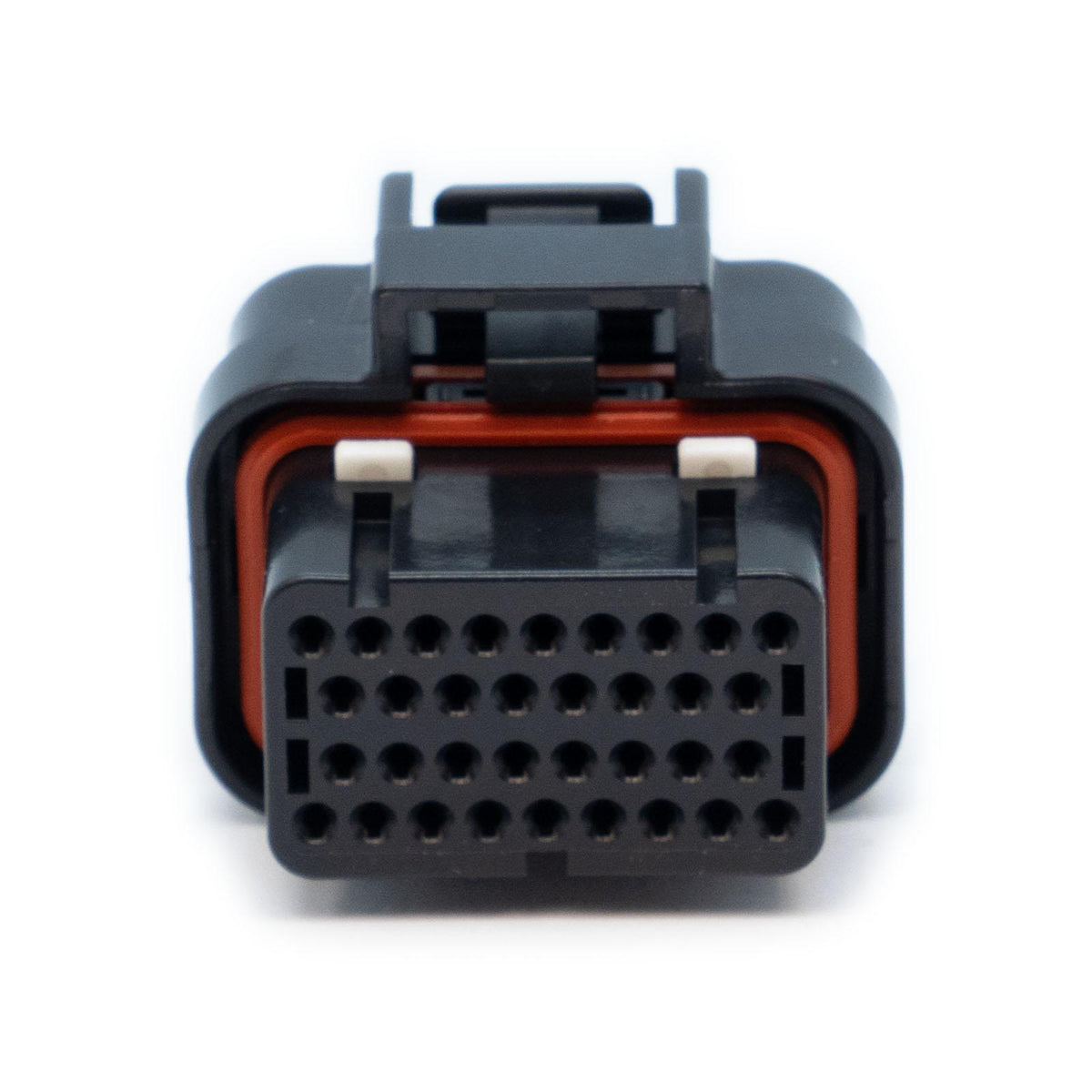

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 2.5m Link A Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.
While designed for compatible Link Wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.
Please note: Link Wire-In ECUs that use two ECU connectors require both an A Loom and B Loom. The 2.5m B Loom is sold separately (PN 101-0006).
Models Supported
All Link G5 Wire-In ECUs
All Link G4X Wire-In ECUs
Link G4+ Atom and Atom II
Link G4+ Monsoon
Link G4+ Storm Blue & Storm Black
Link G4+ Fury
Link G4+ Xtreme
Link G4+ Thunder
Link G4 Storm
Link G4 RX
Link G4 Xtreme
Vipec V44
Vipec i44
Vipec V88
Vipec i88
Warnings Does not suit earlier G4 (Pre G4+) Atoms.
