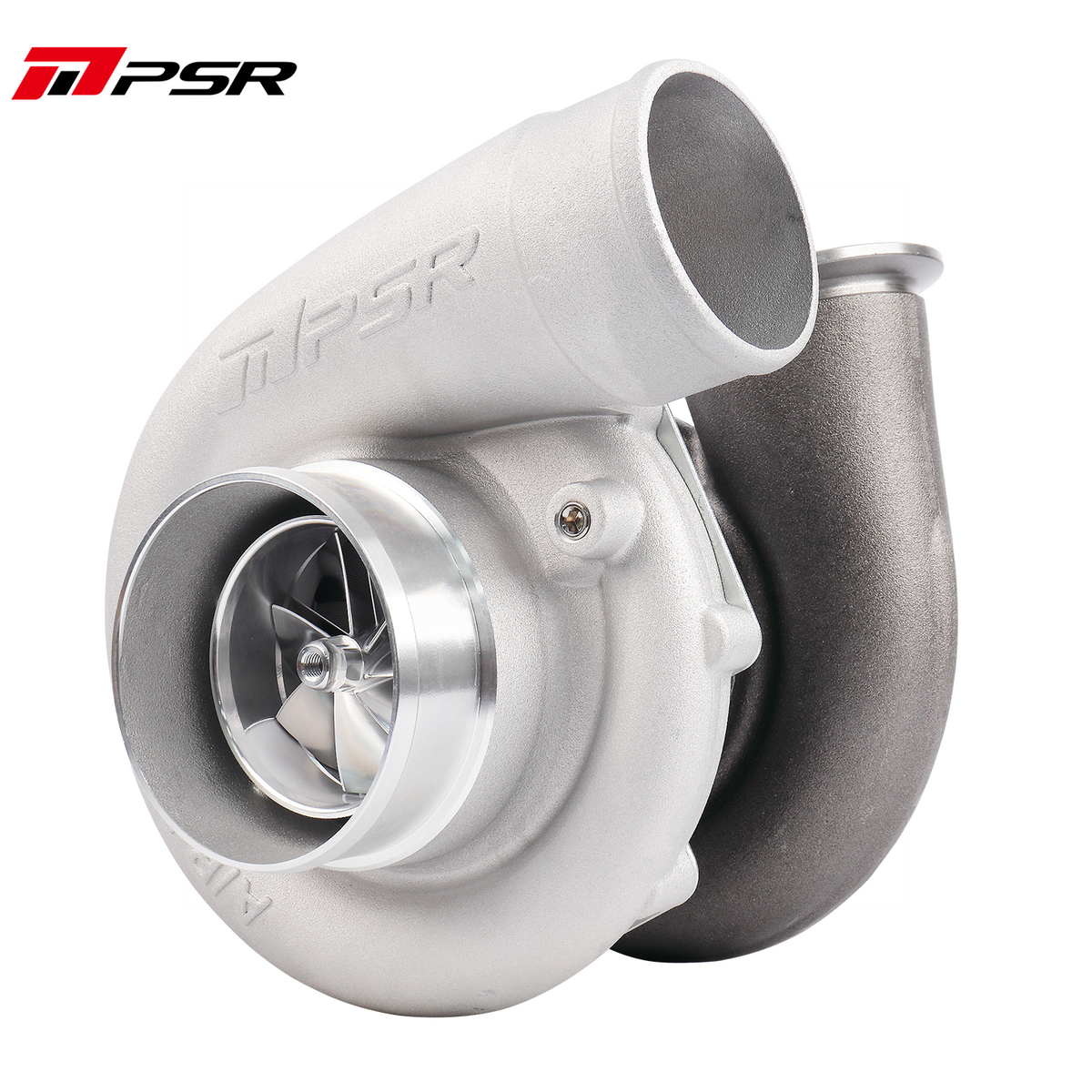

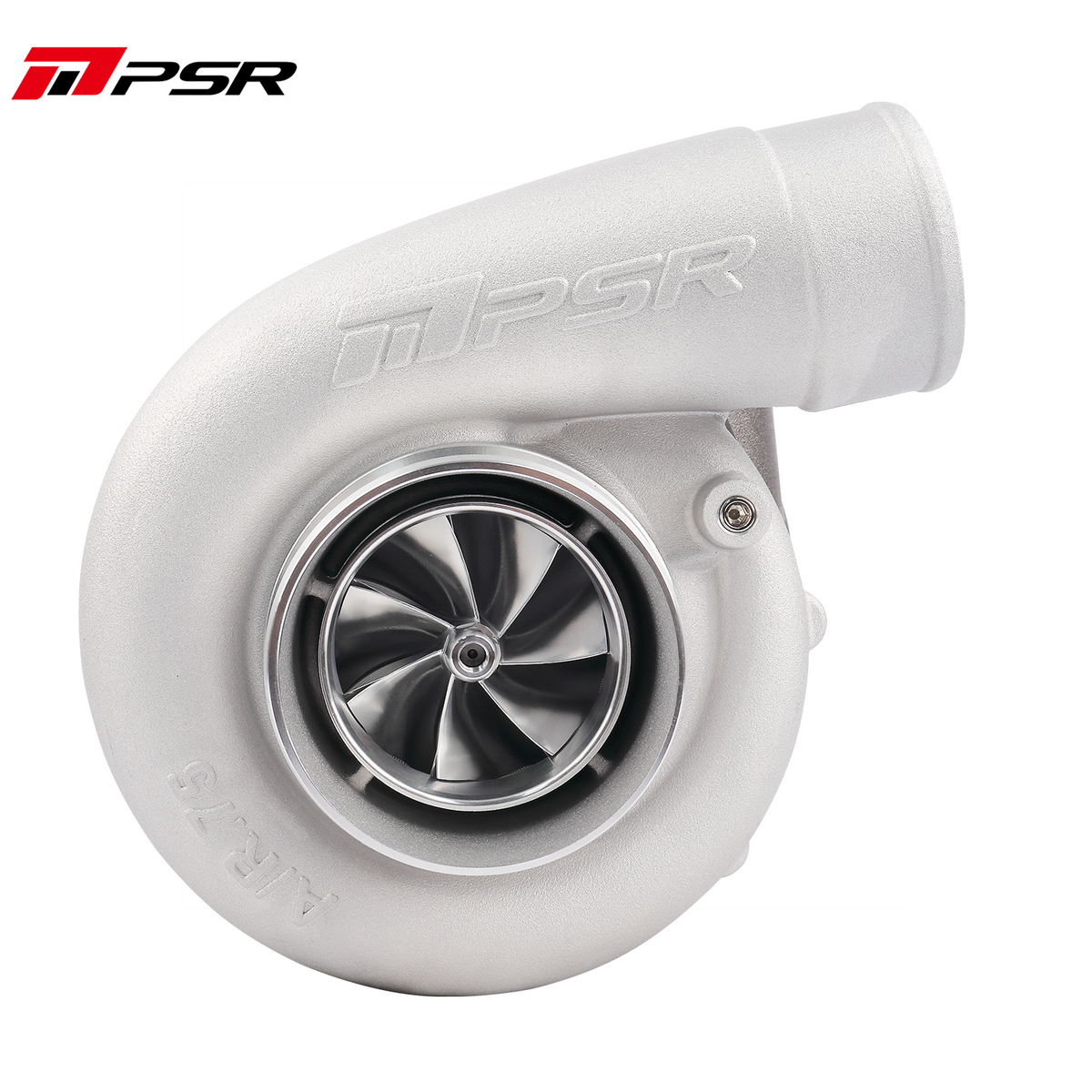

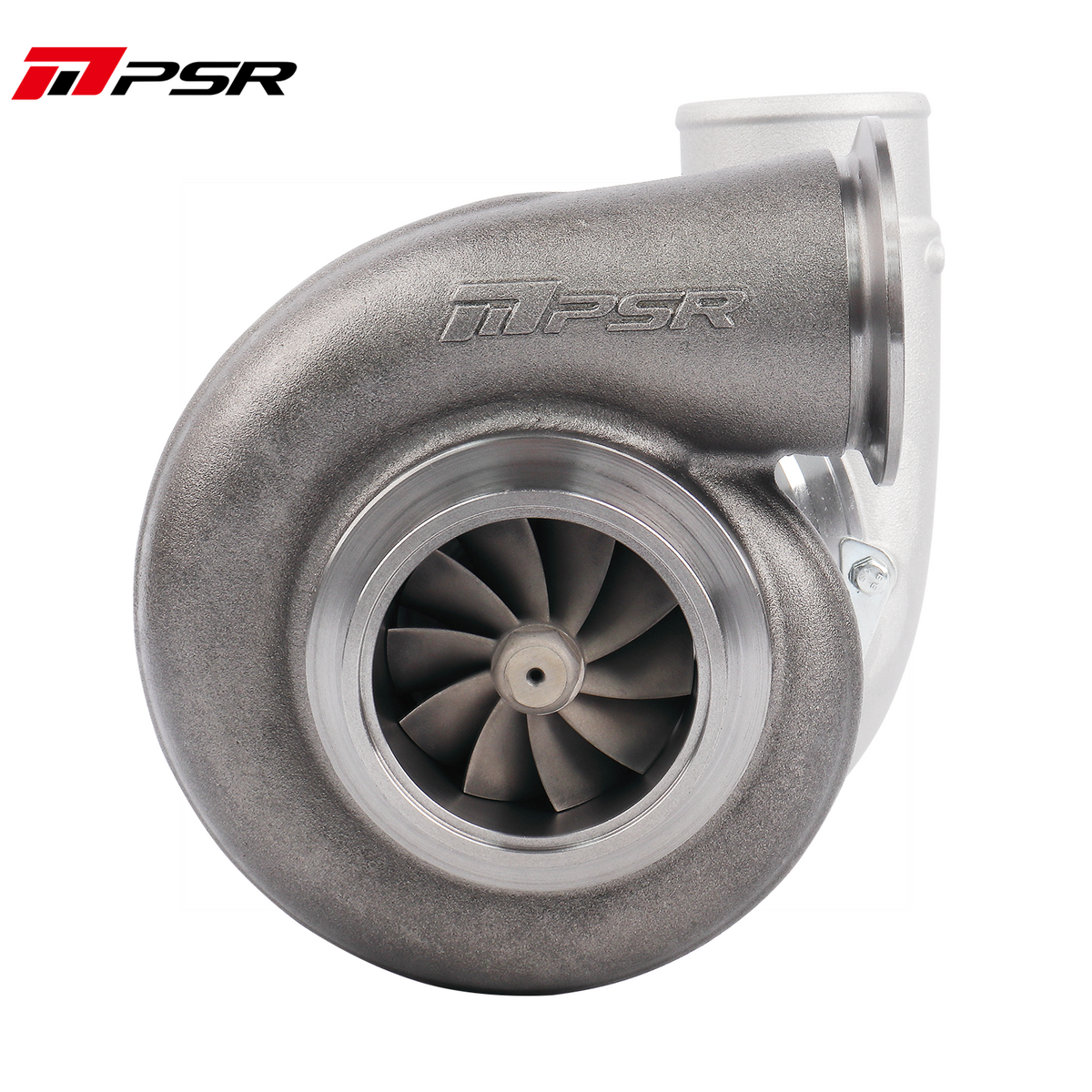

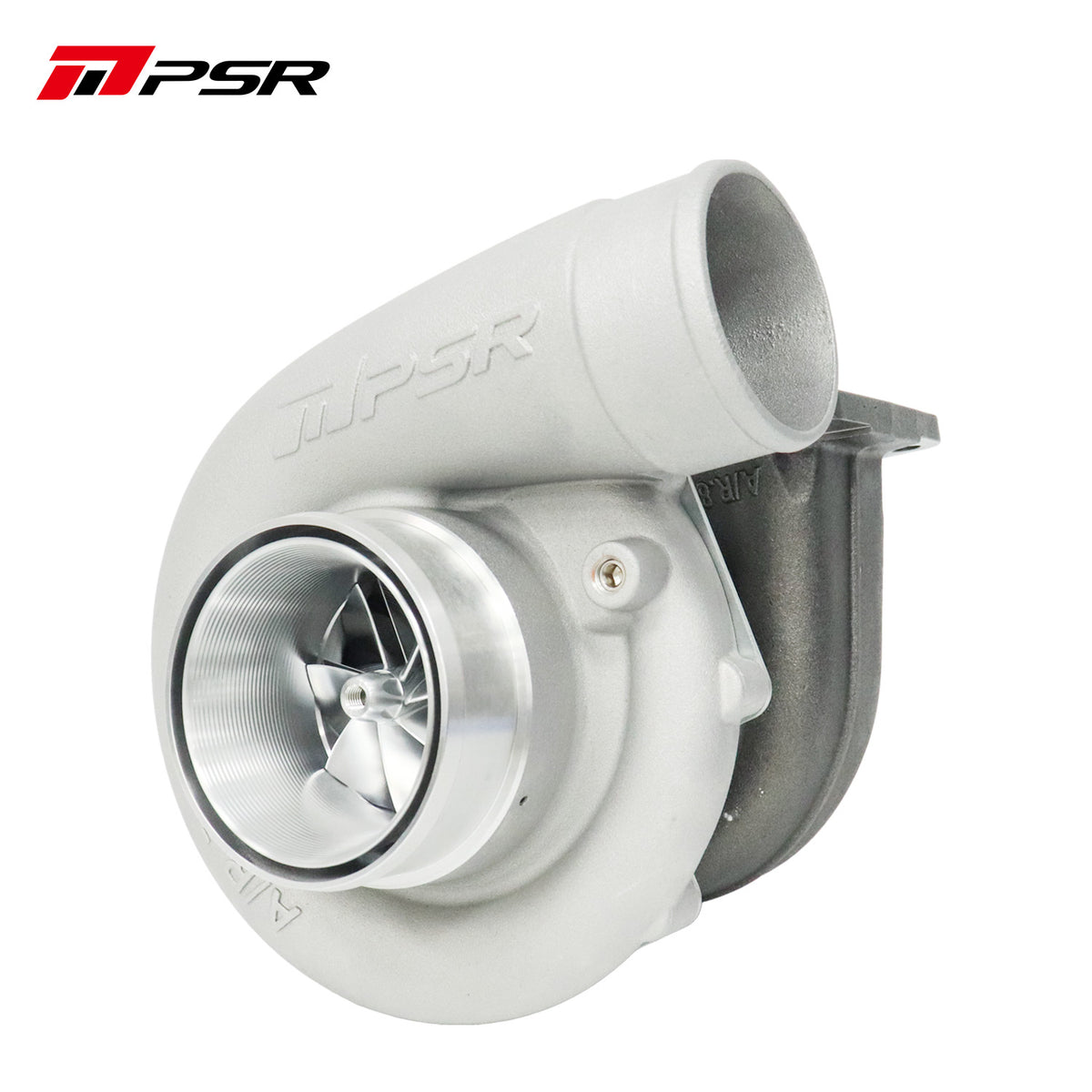

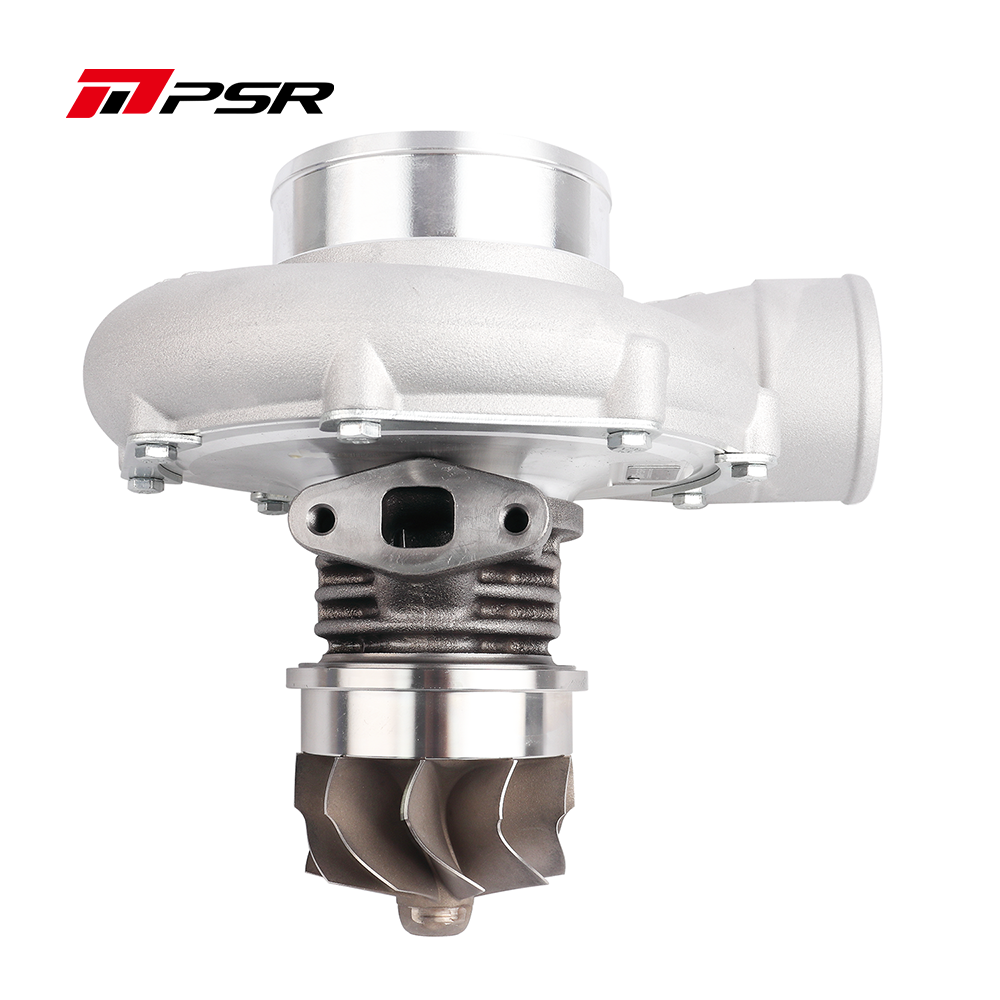

7275E Ball Bearing Turbo UP to 1380HP

From $1,844.00 ~~$0.00~~ /

Select an option to add this to your cart

Compressor Cover Option : T51R MOD : Without compressor housing : Standard

Turbine Housing Option : Without turbine housing : Dual V-Band 0.96A/R : T4 Open 0.81A/R

Quantity

Most orders ship in 1–3 days. Hand-made parts can take 1–4 weeks. In a hurry? Contact us first.

Description

Ball bearing system provides optimal turbo response & better durability by reducing the shaft motion

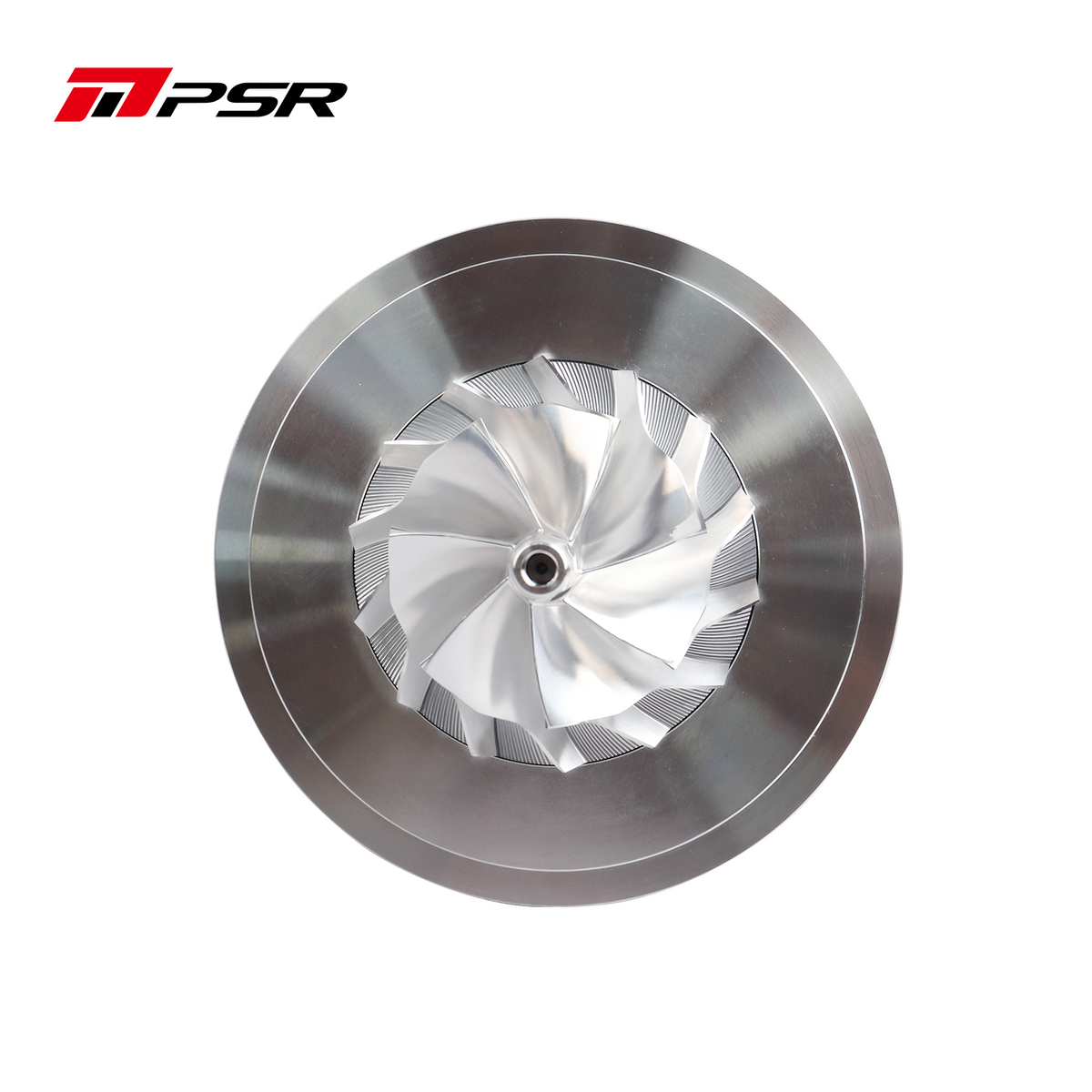

Billet Compressor Wheel with Extended Tapered Tip Technology

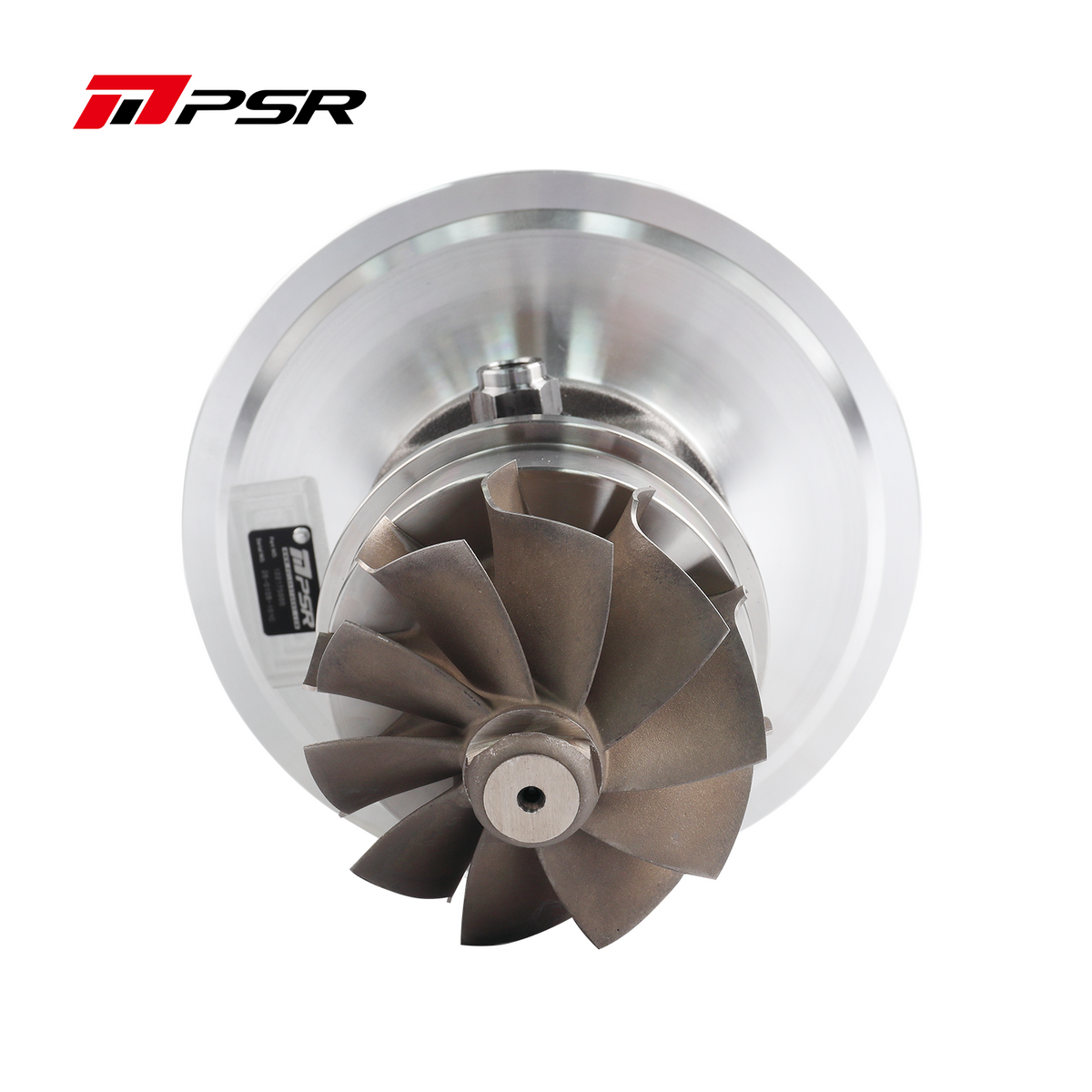

Inconel 713c 10 Blade Turbine Wheel

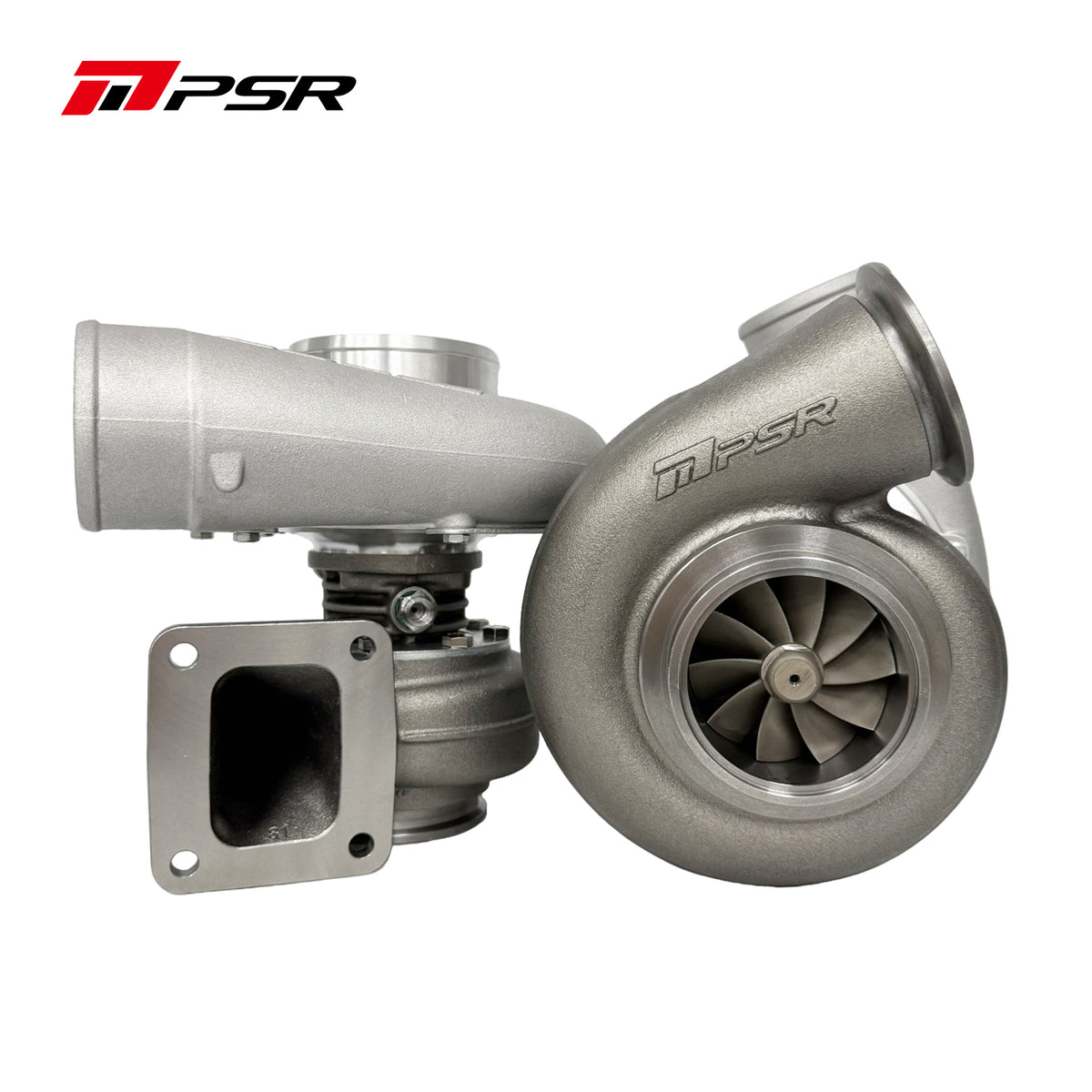

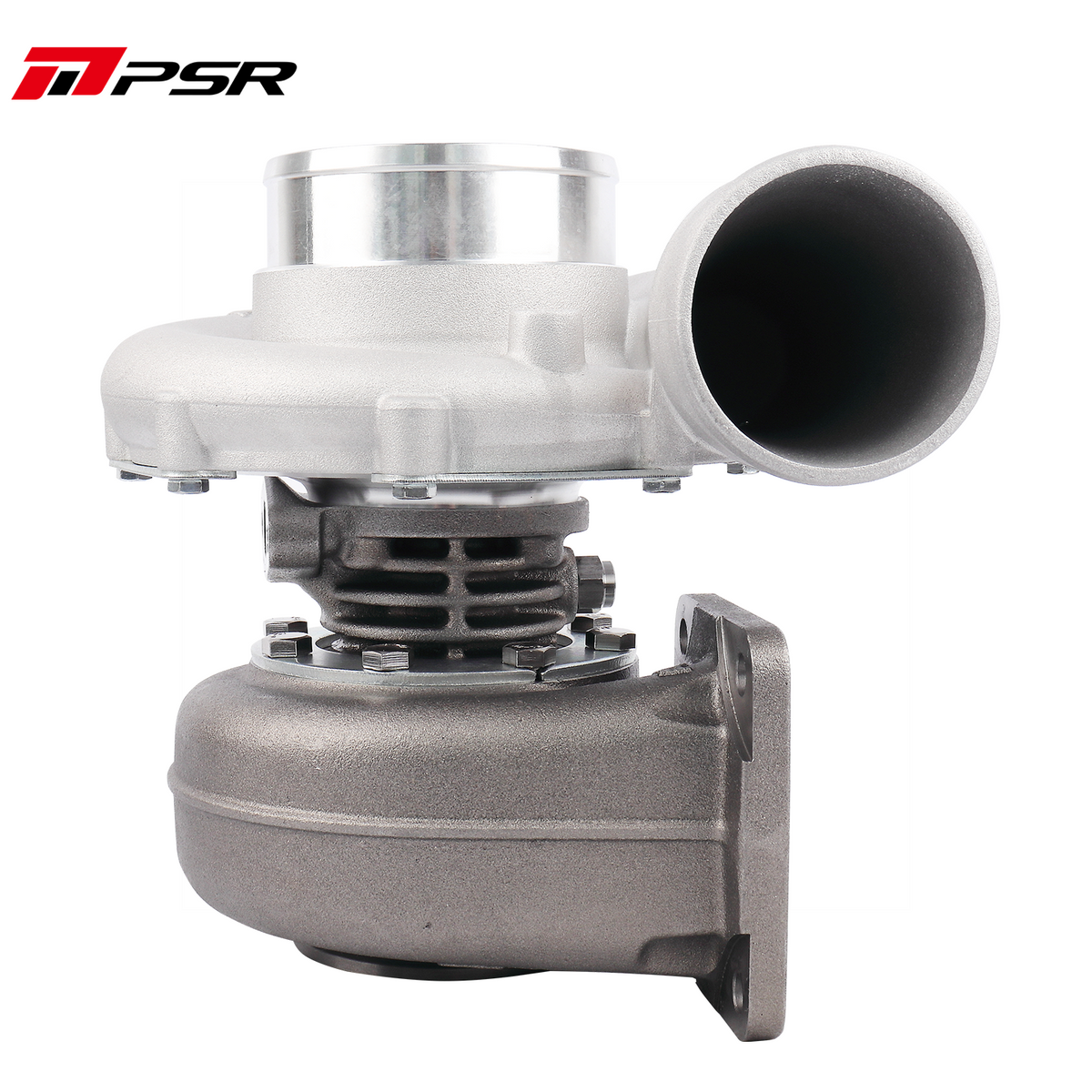

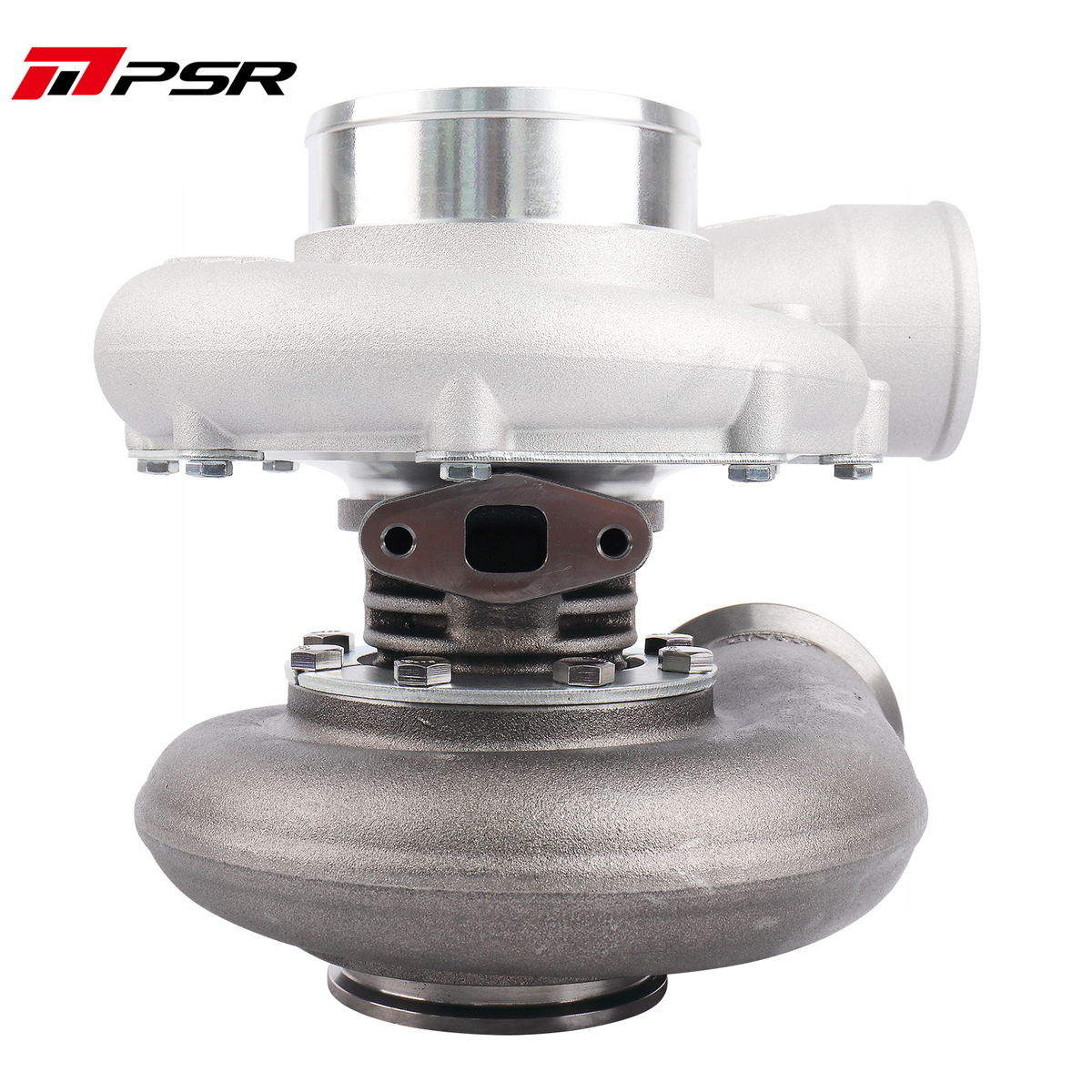

T4 Open and V-Band In/out are available in the turbine housing option

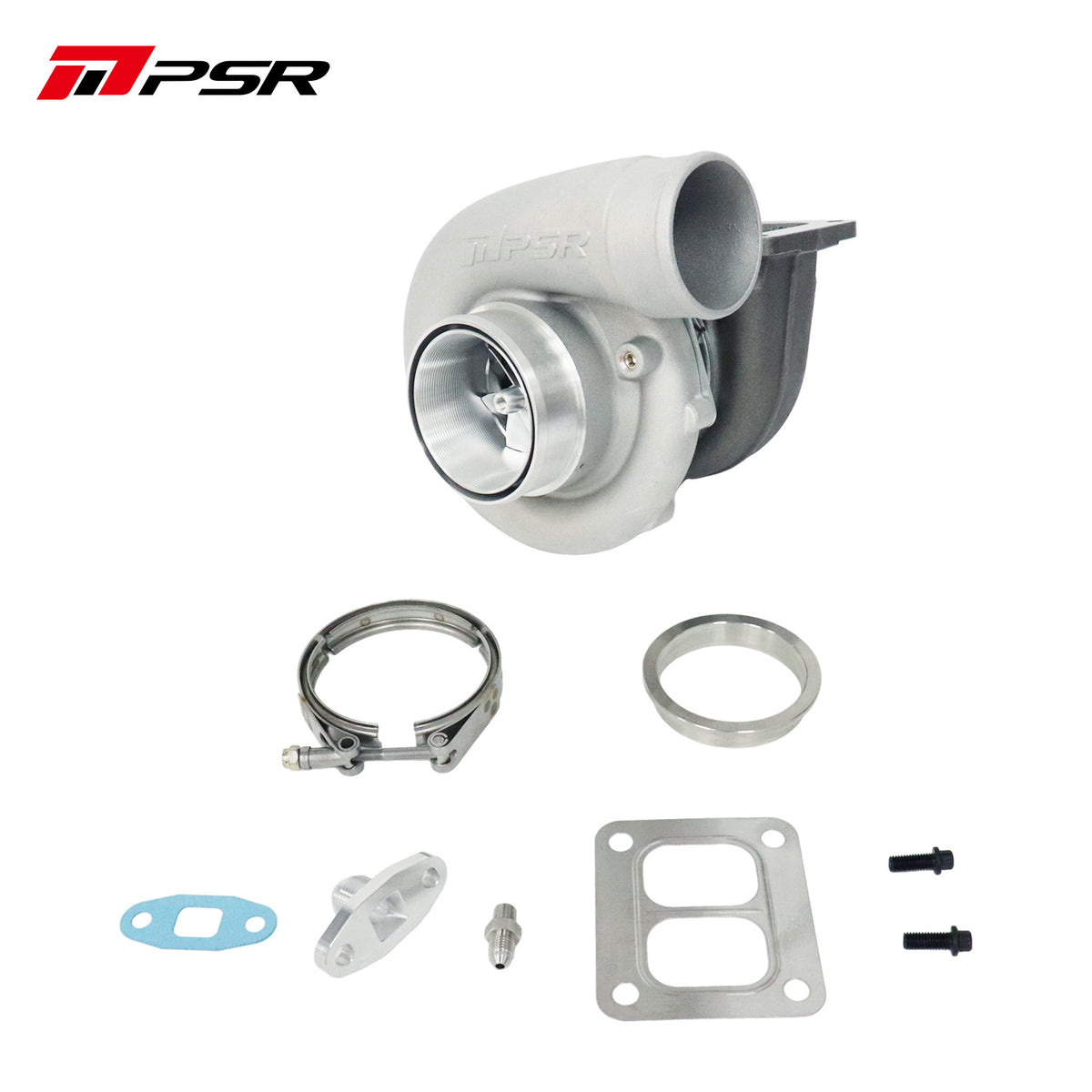

Vband Flange kit for the exhaust housing included
Max Engine Horsepower: 1380

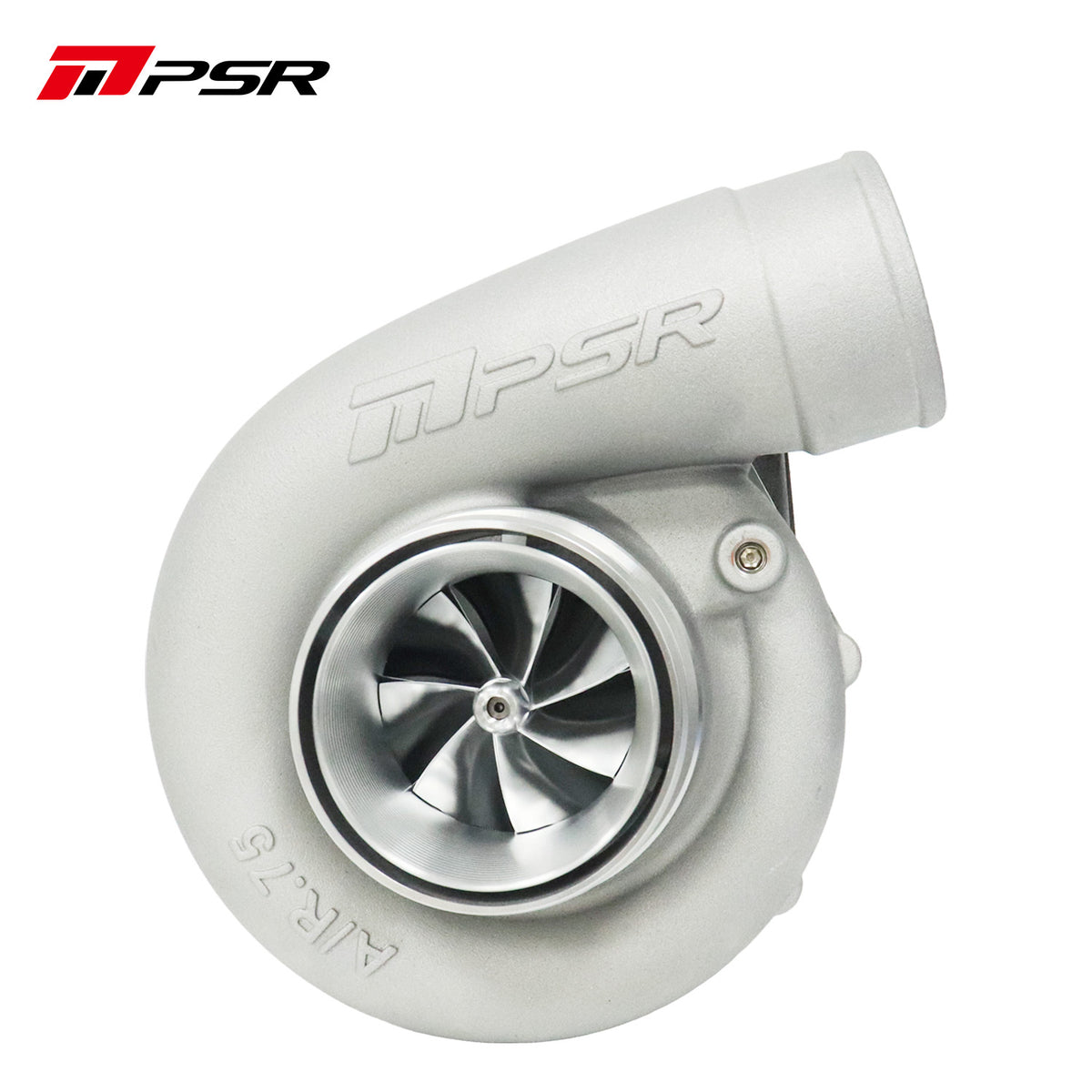

Billet Compressor Wheel: 72x 98.9mm, 7+7 Blade

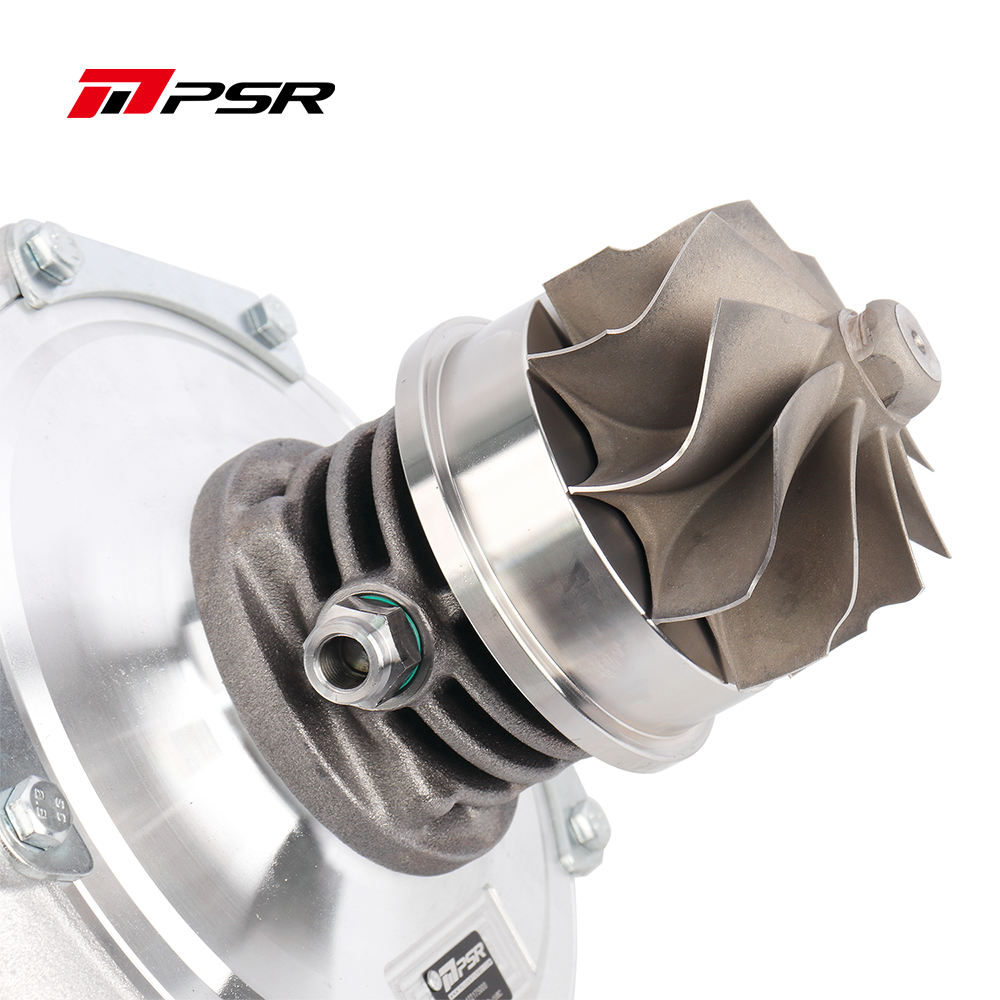

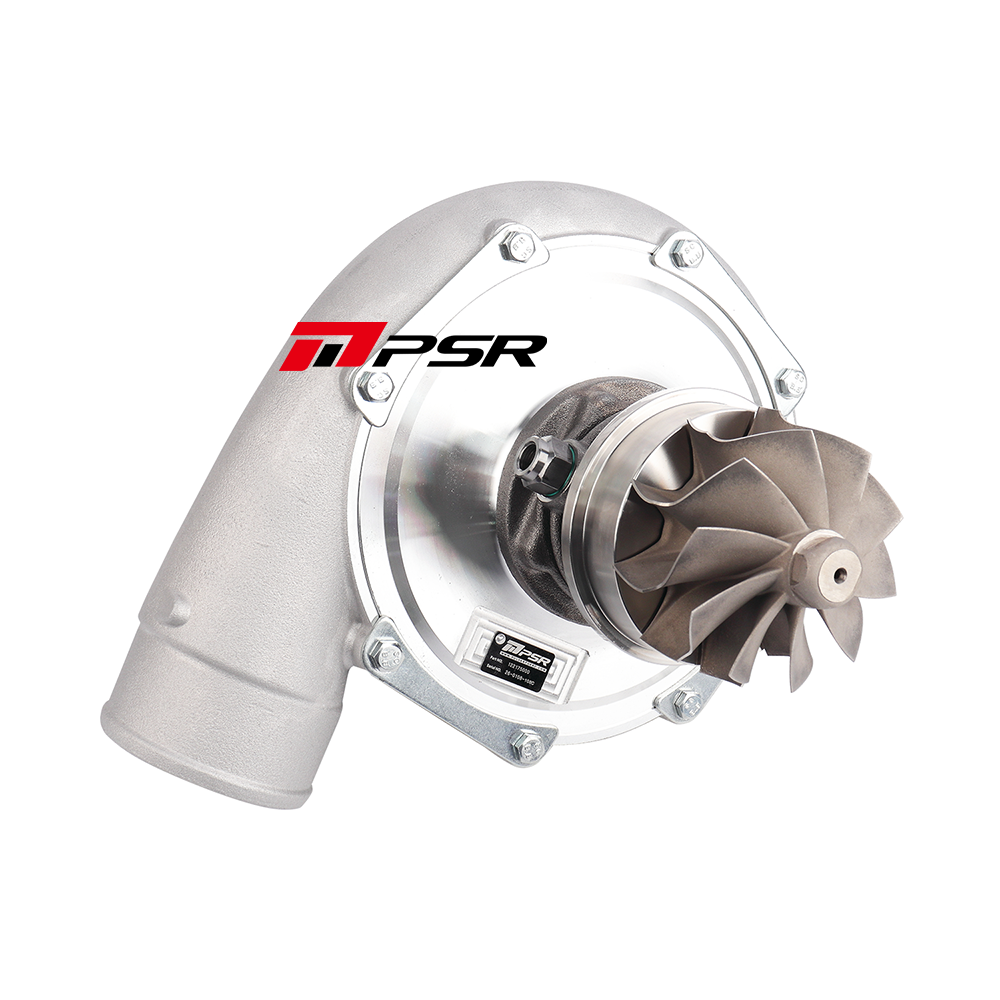

Turbine Wheel: 82×75.13mm, 10 Blade
Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
Compressor Cover: 4.0” Hose Inlet/3″ Hose Outlet

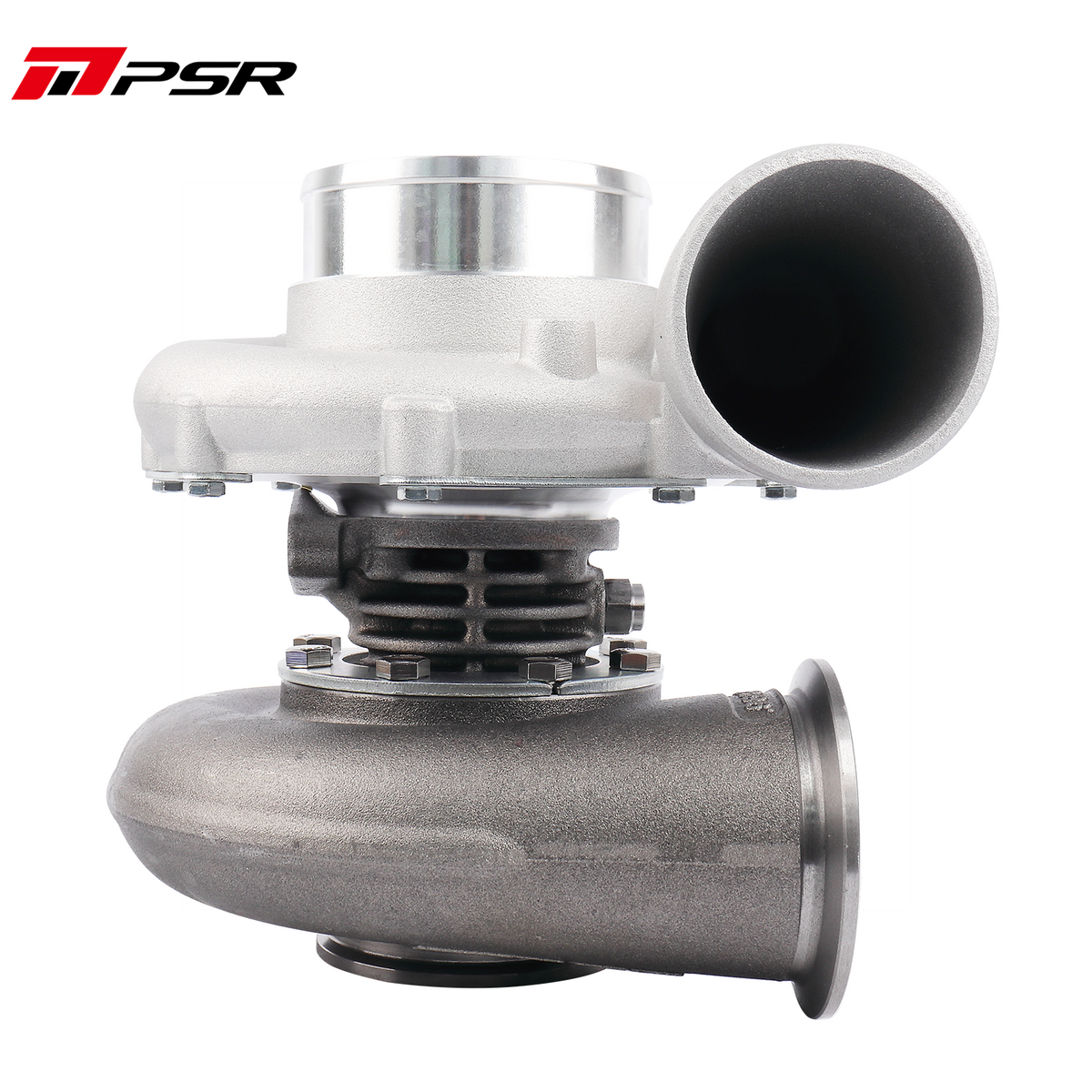

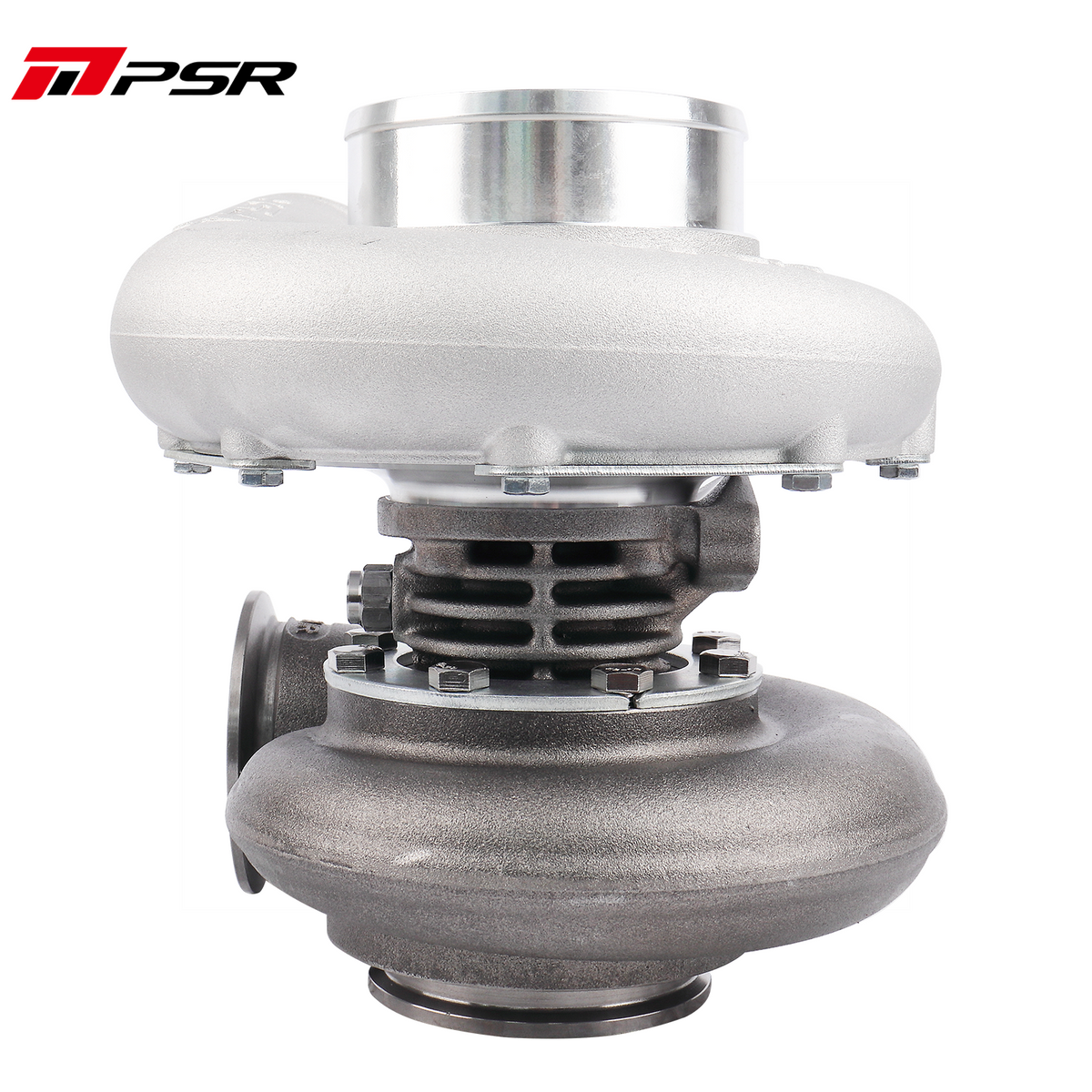

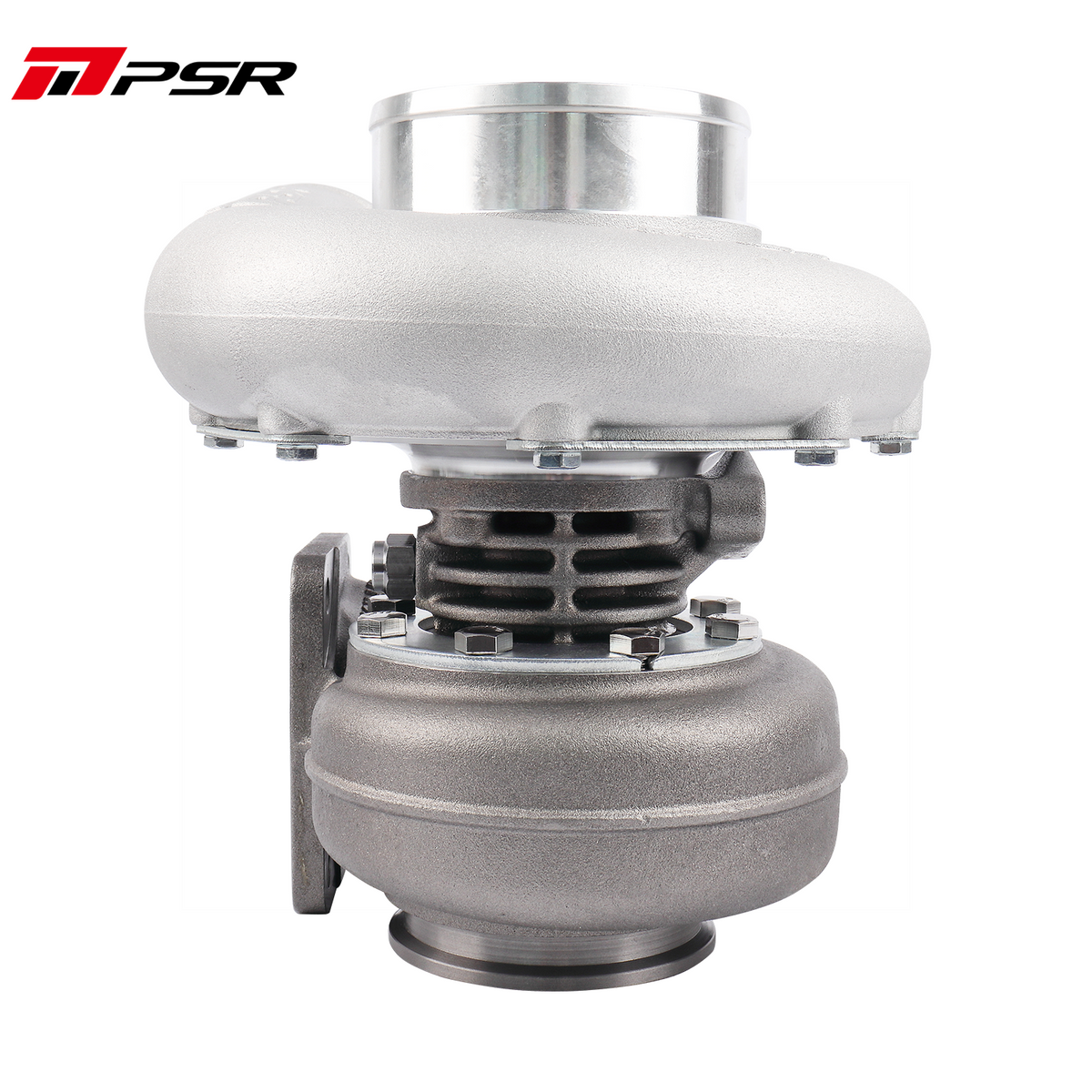

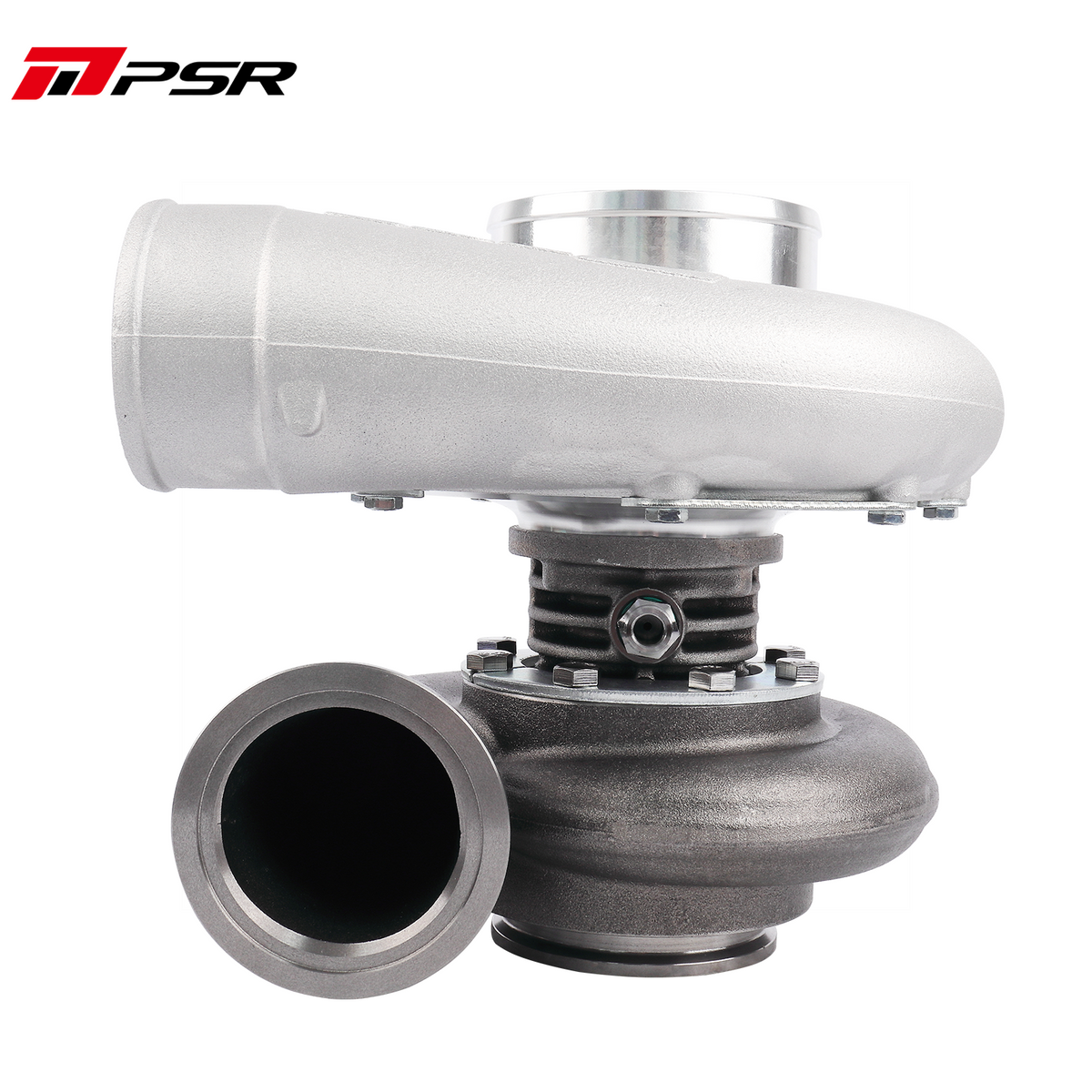

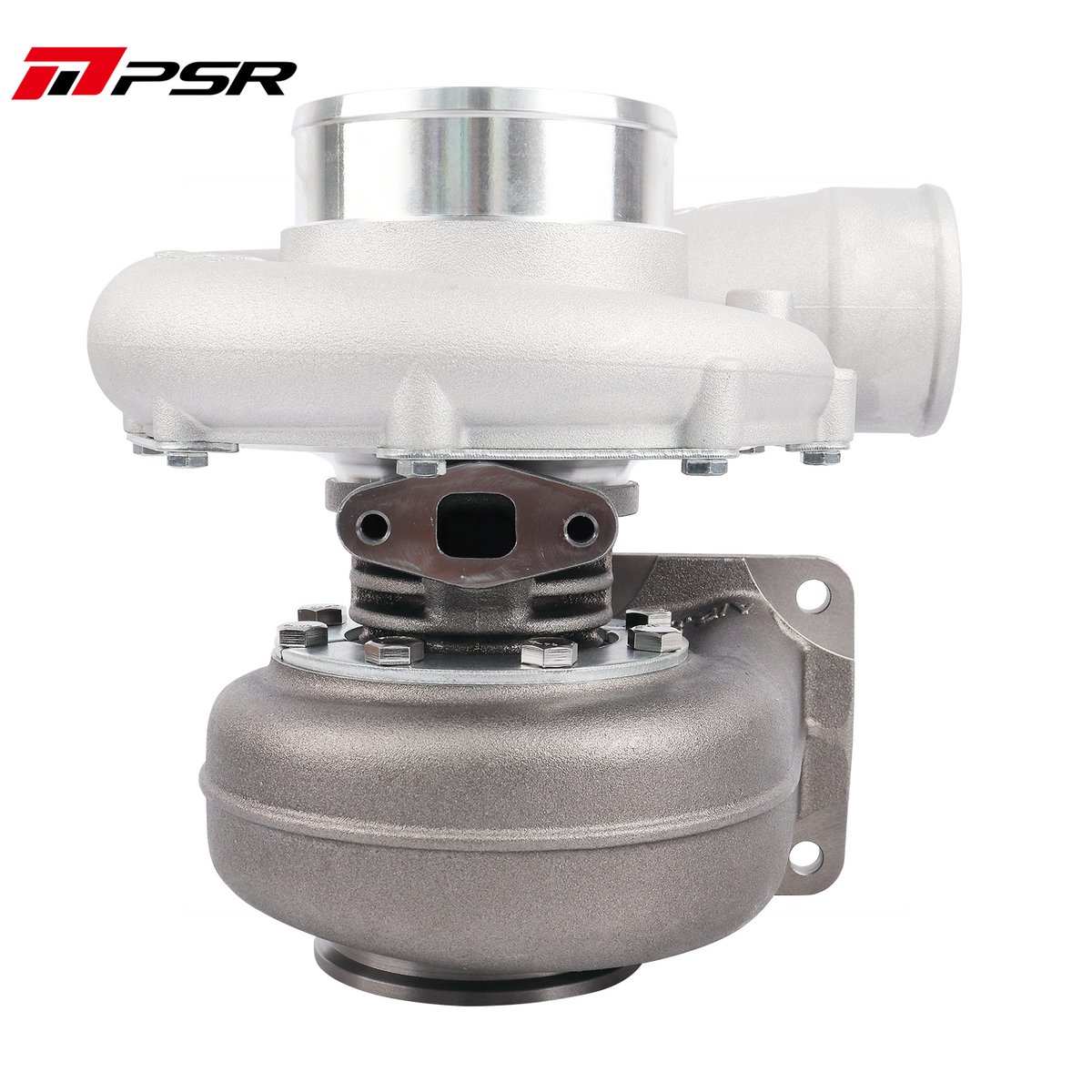

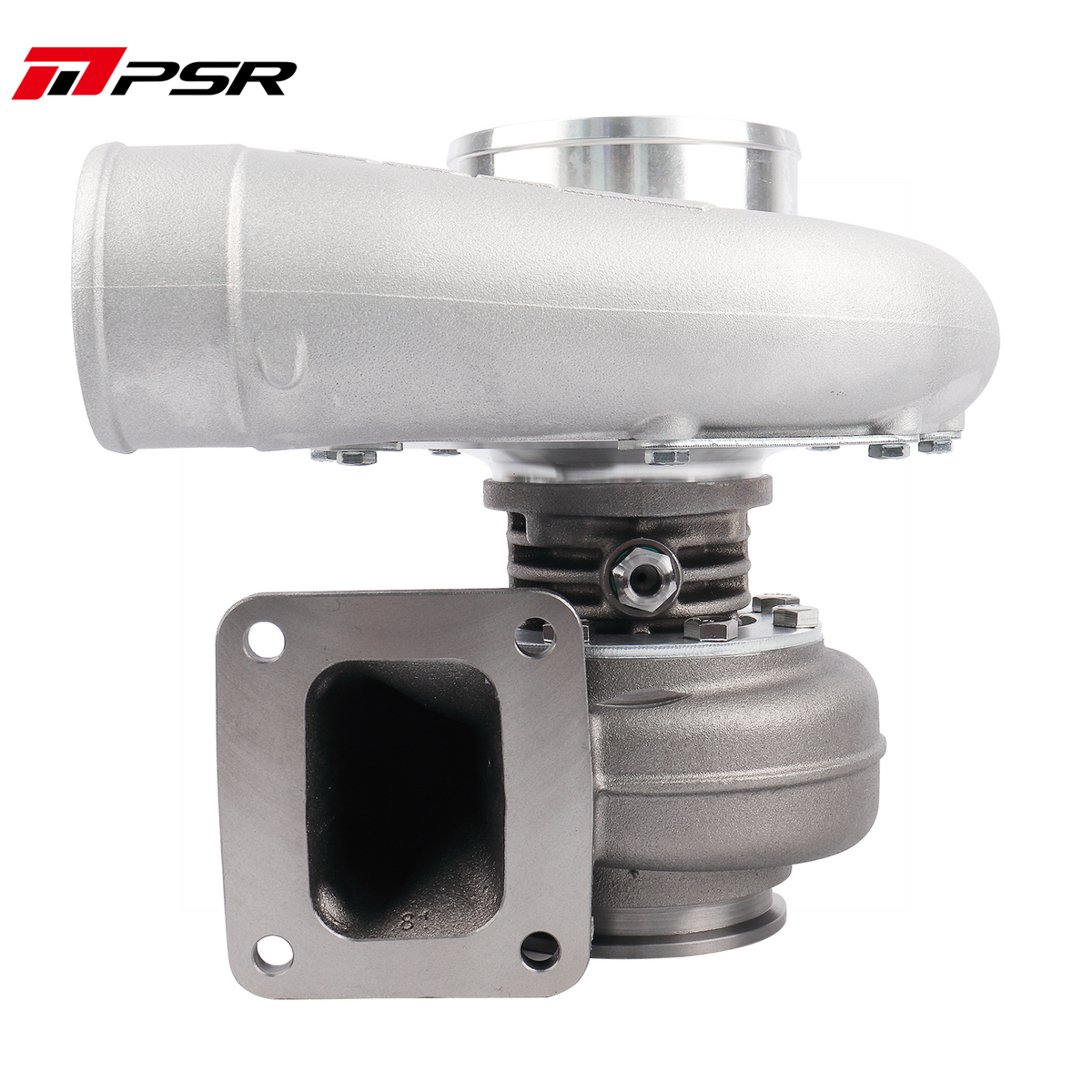

Turbine Housing: T4 Open 0.81A/R(3″ V-band Outlet); Dual V-Band 0.96A/R(3″ V-band Inlet, 3″ V-band Outlet)
The internal oil feed port is 0.9mm(An oil restrictor is not needed)
Oil feed fitting: 1/8-27 NPSF(Drawing)
Oil drain: T4 flange(Drawing)
Oil Drain Fitting:

10AN_STD

10AN_EXTENDED
