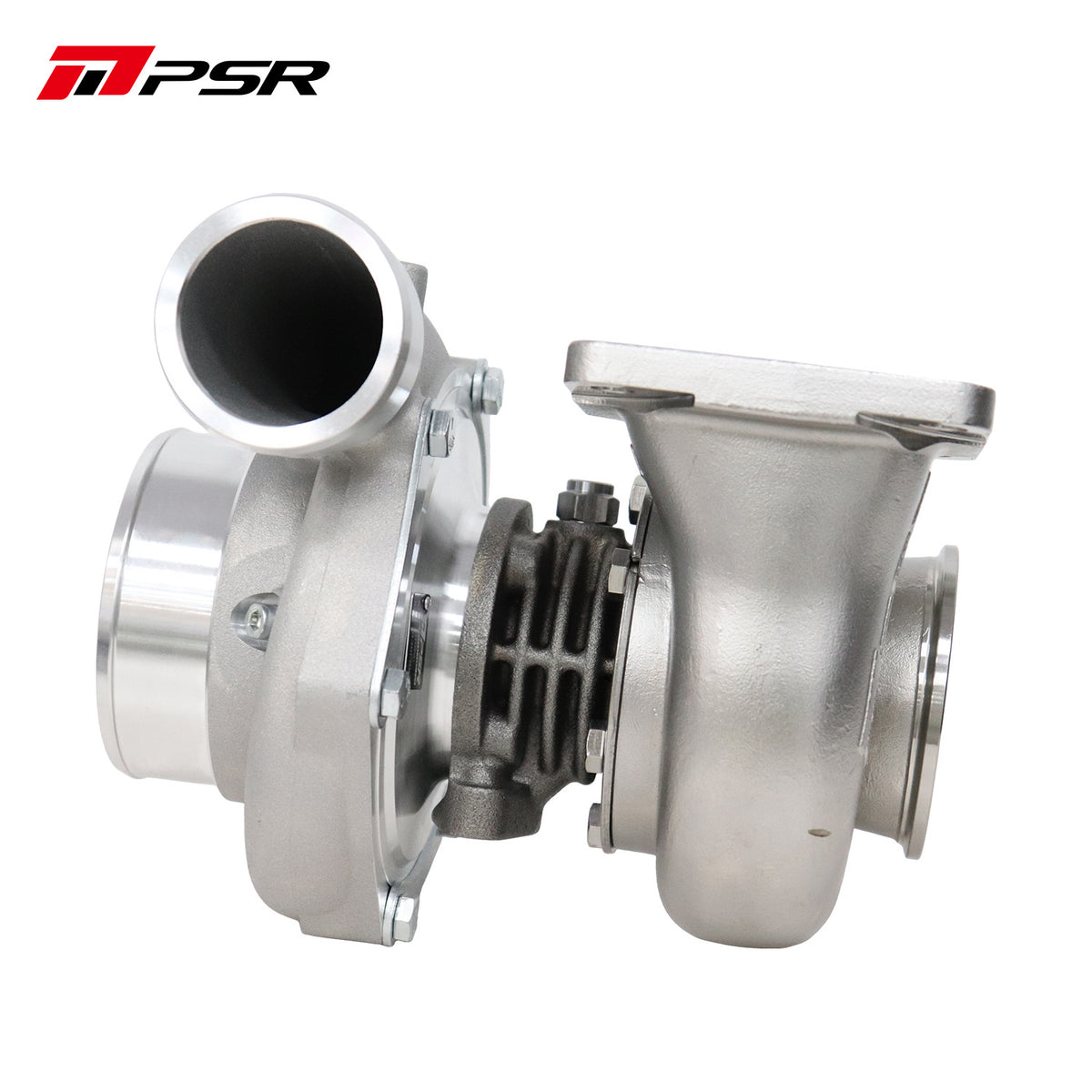

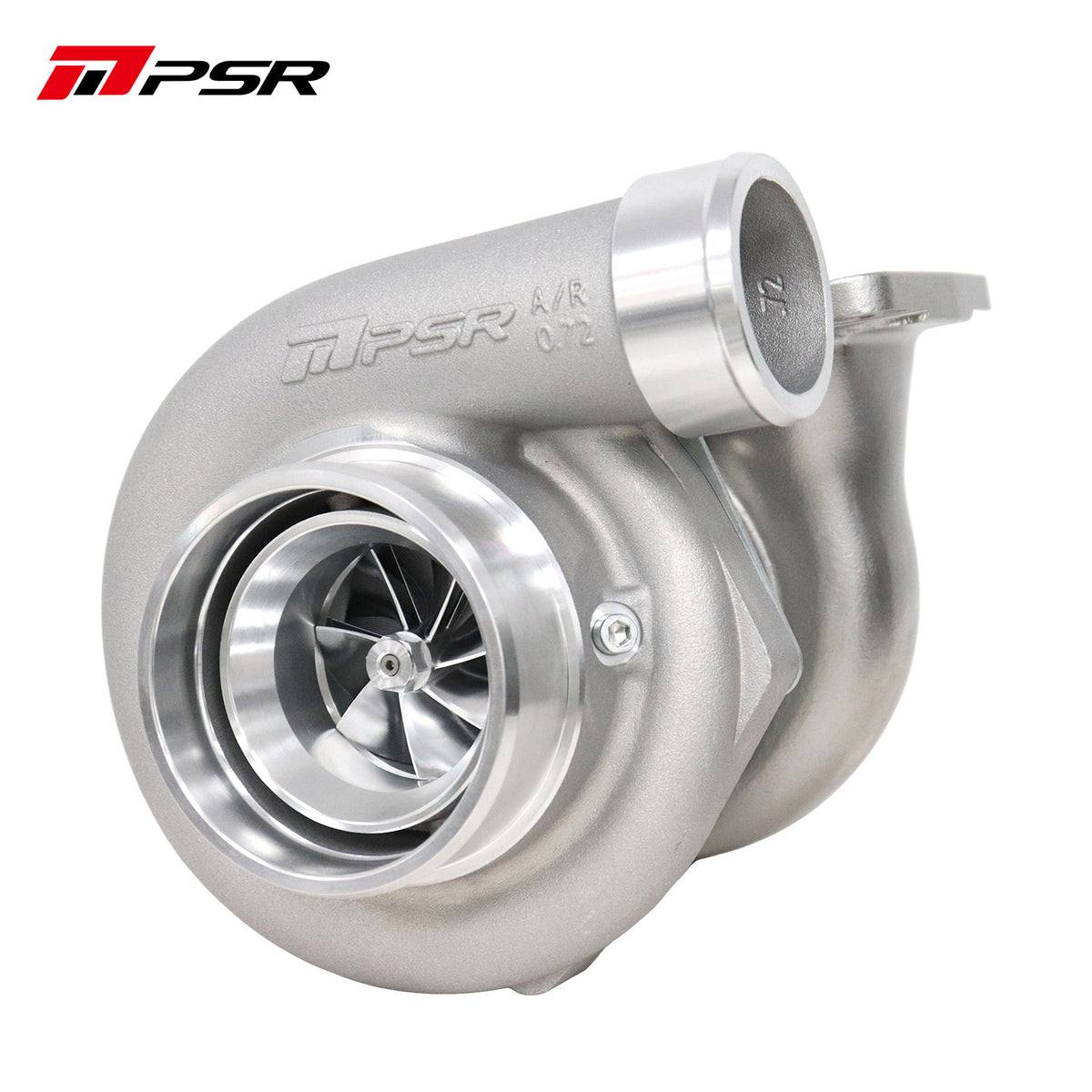

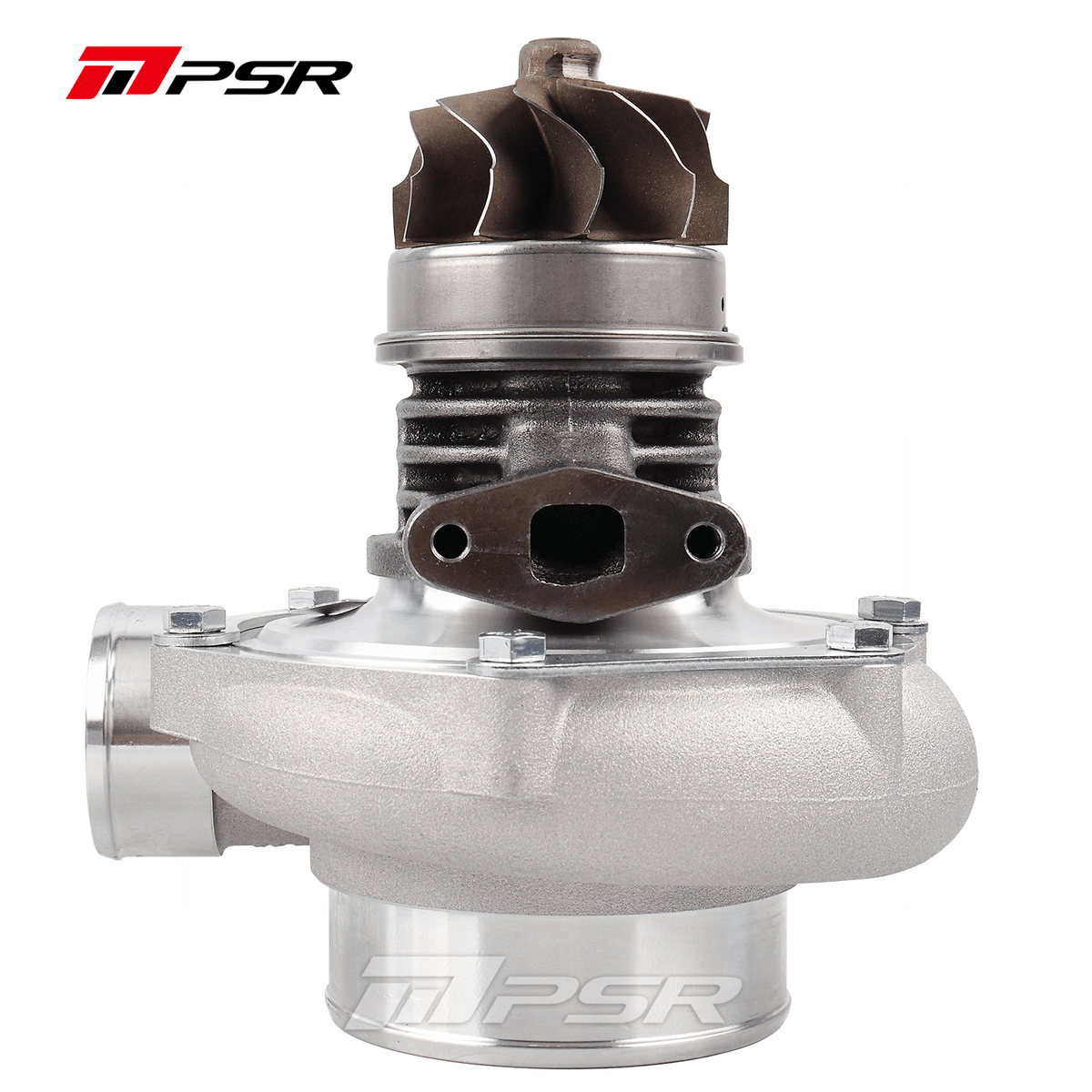

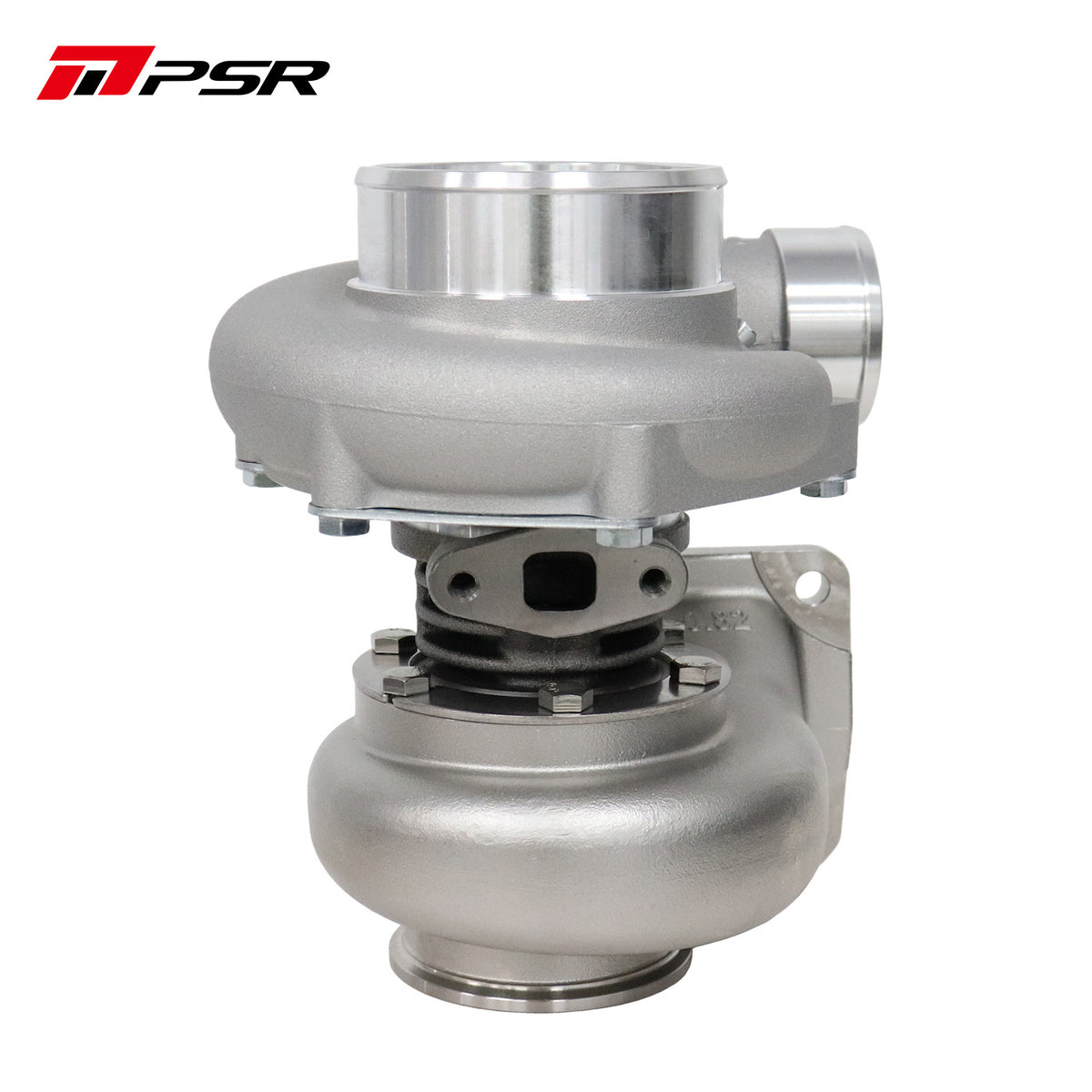

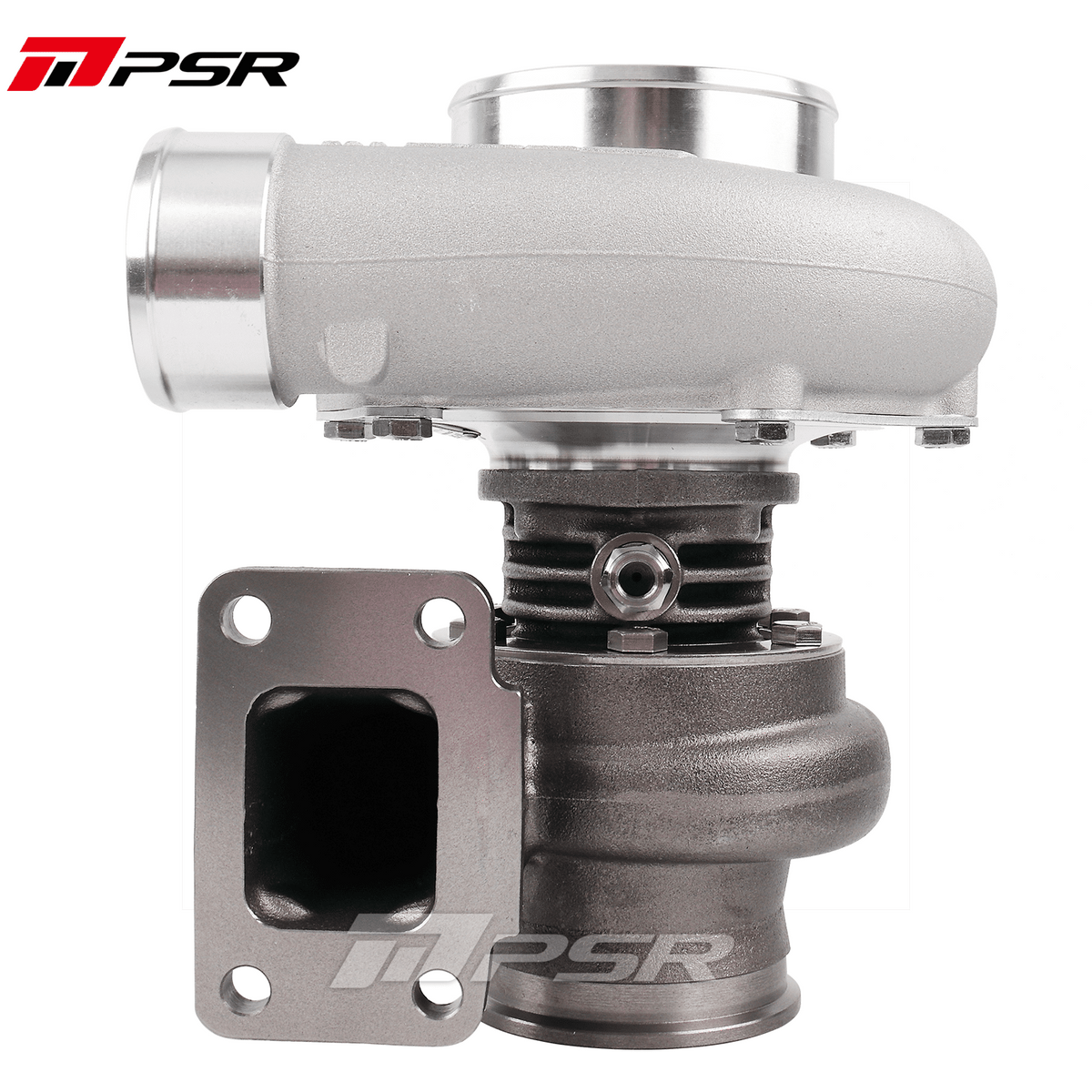

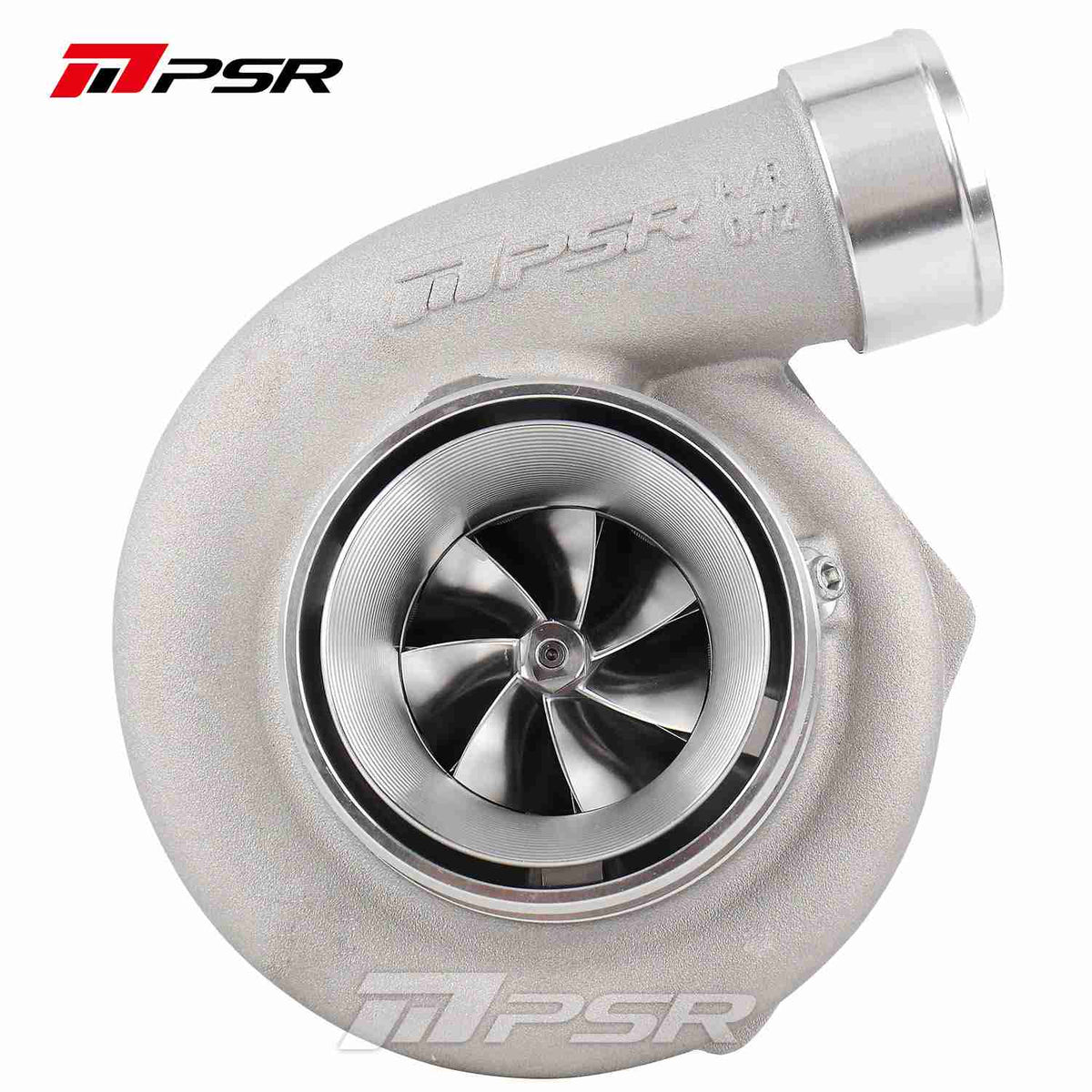

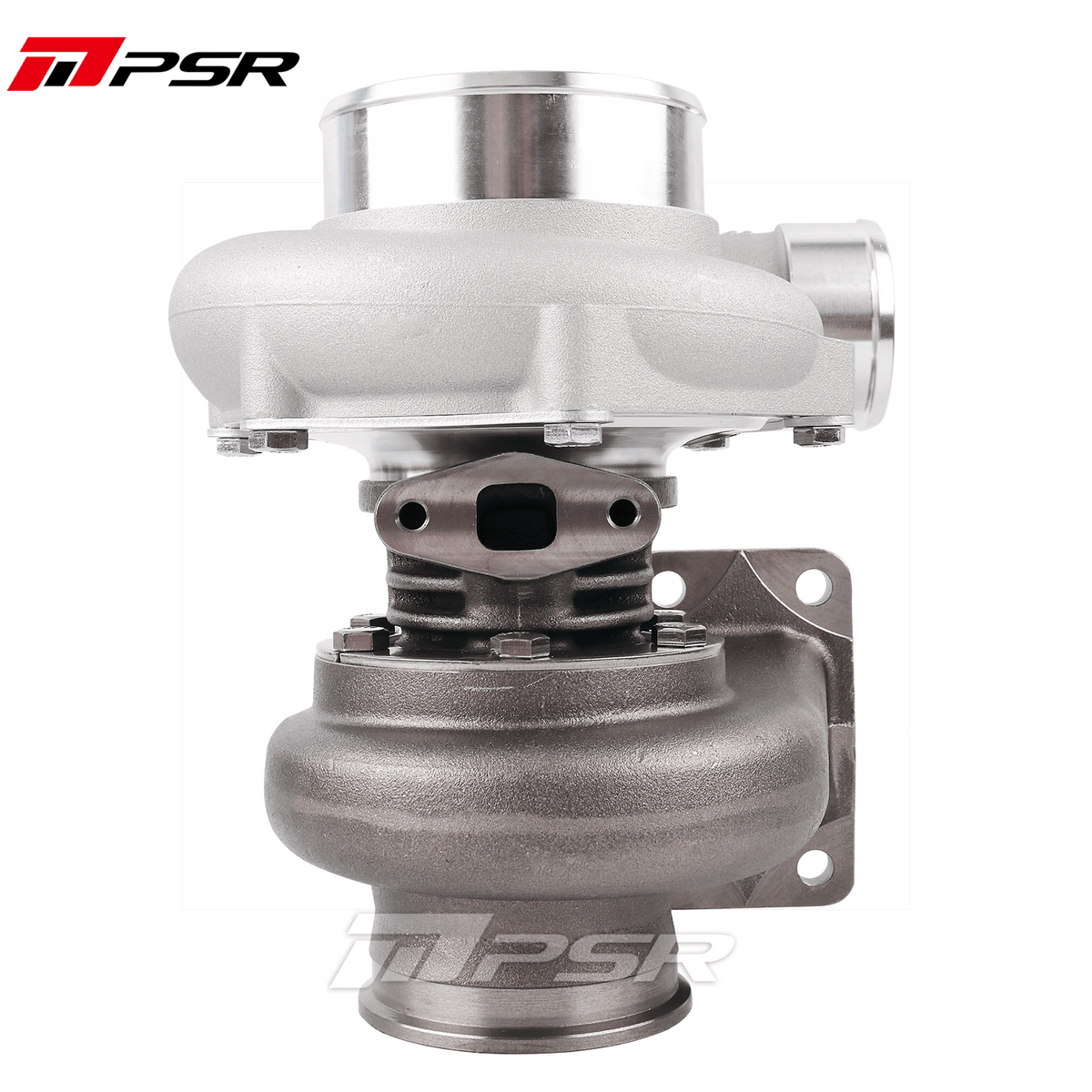

Description
- Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

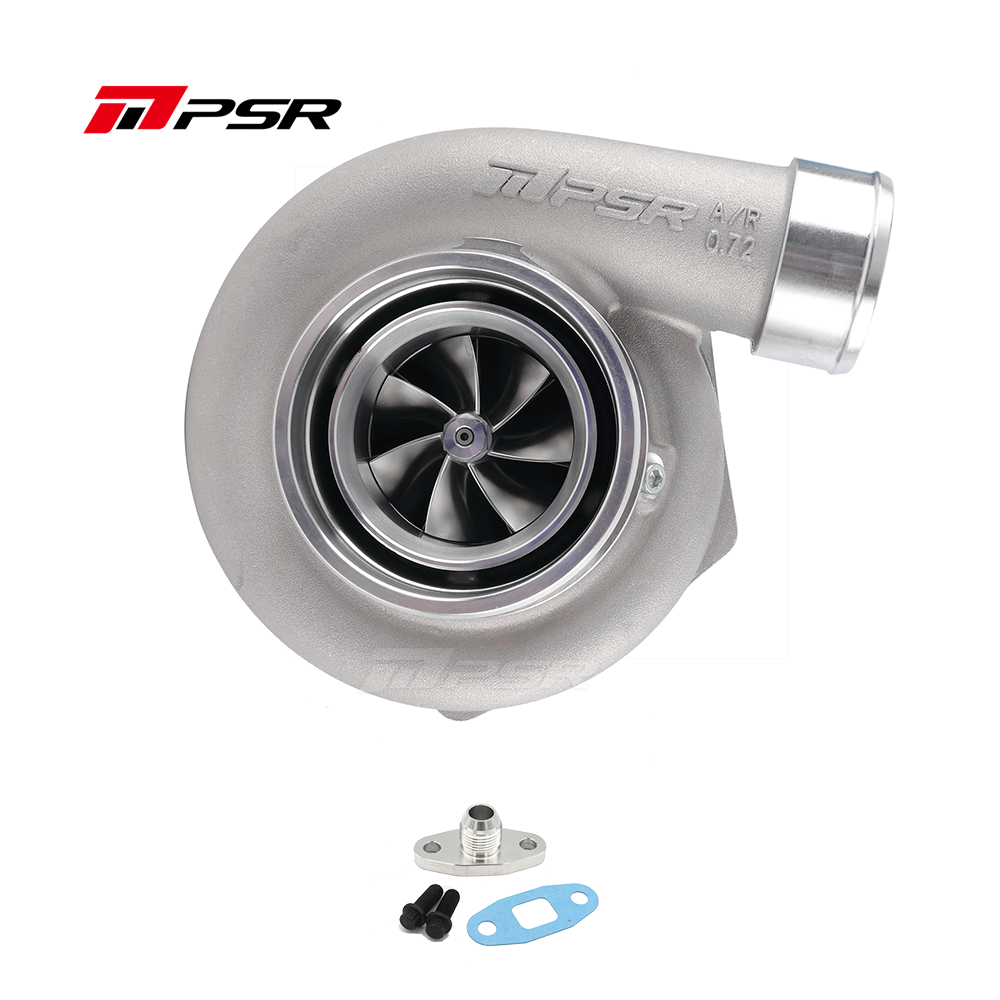

- Billet Compressor Wheel with Slim Nose and Hub for Reduced Weight and Faster Spool-up and Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- Max Engine Horsepower: 705

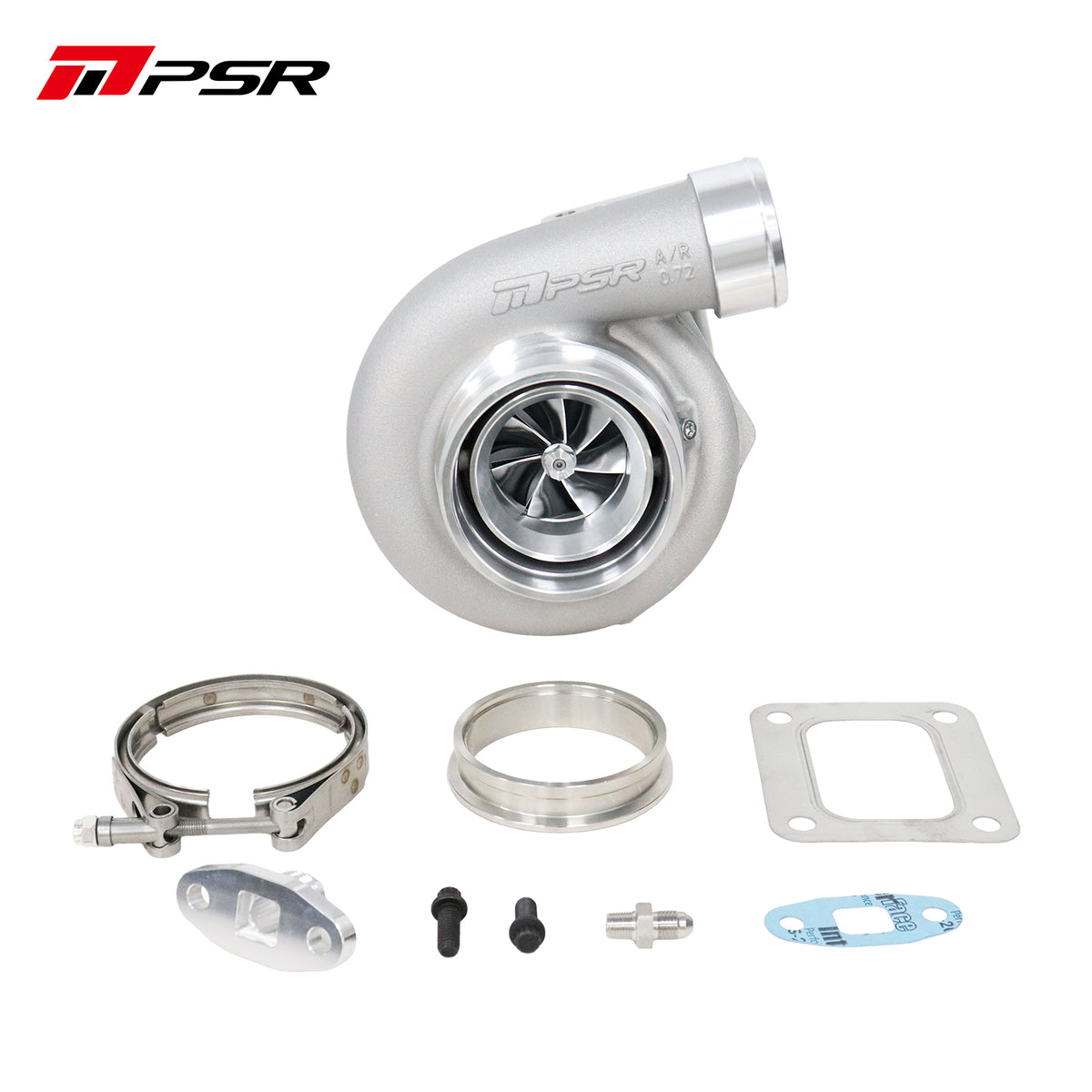

- The 6262E complete turbos with T4 open 0.82A/R stainless steel turbine housing are on backorder until Nov. 15, 2026.
- Billet Compressor Wheel: 62mm / 82.2mm,? 7+7 Blade

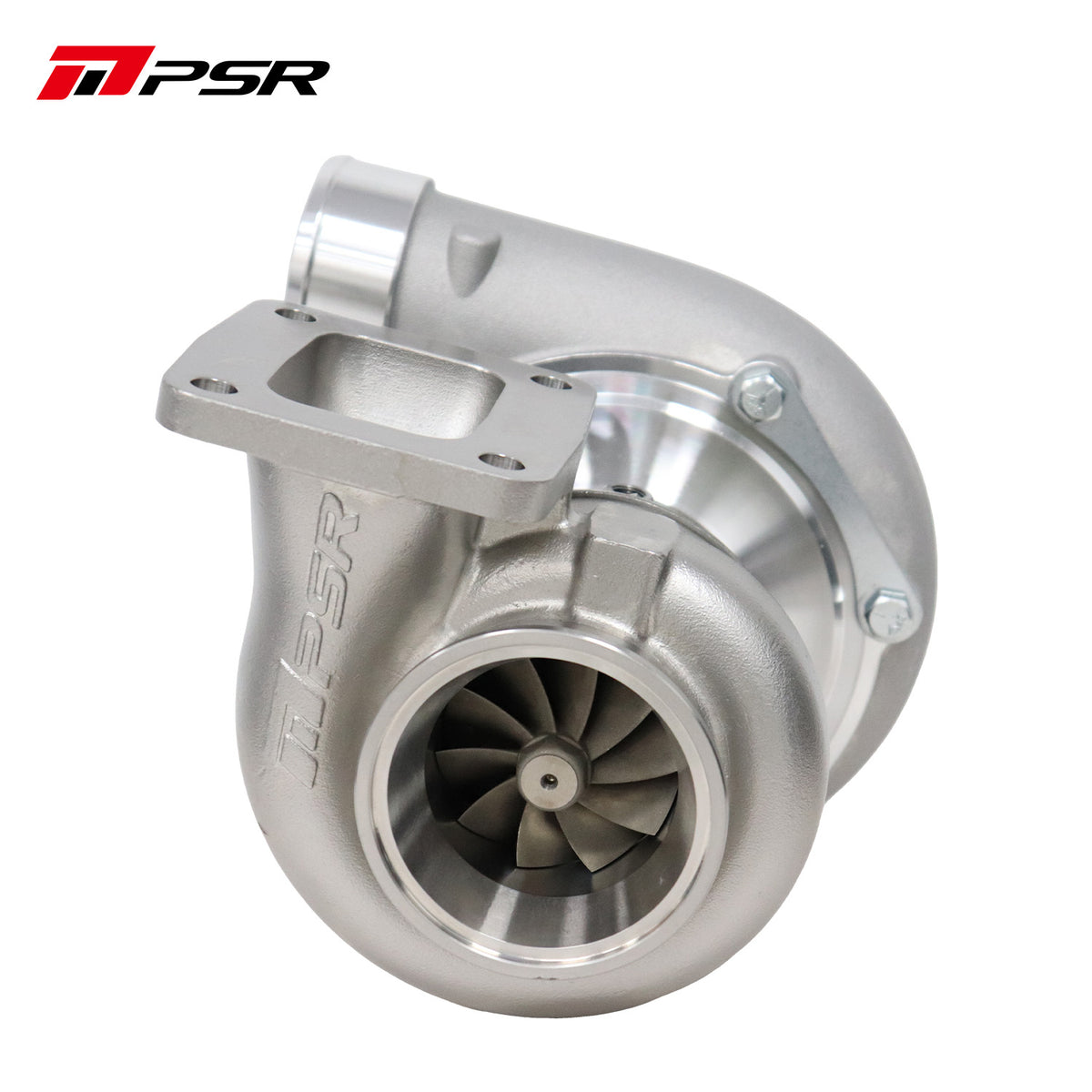

- Turbine Wheel: 71 / 62mm, 10 Blade
- Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft motion)
- Compressor Cover Inlet/Outlet: 4.0” / 2.5” Hose

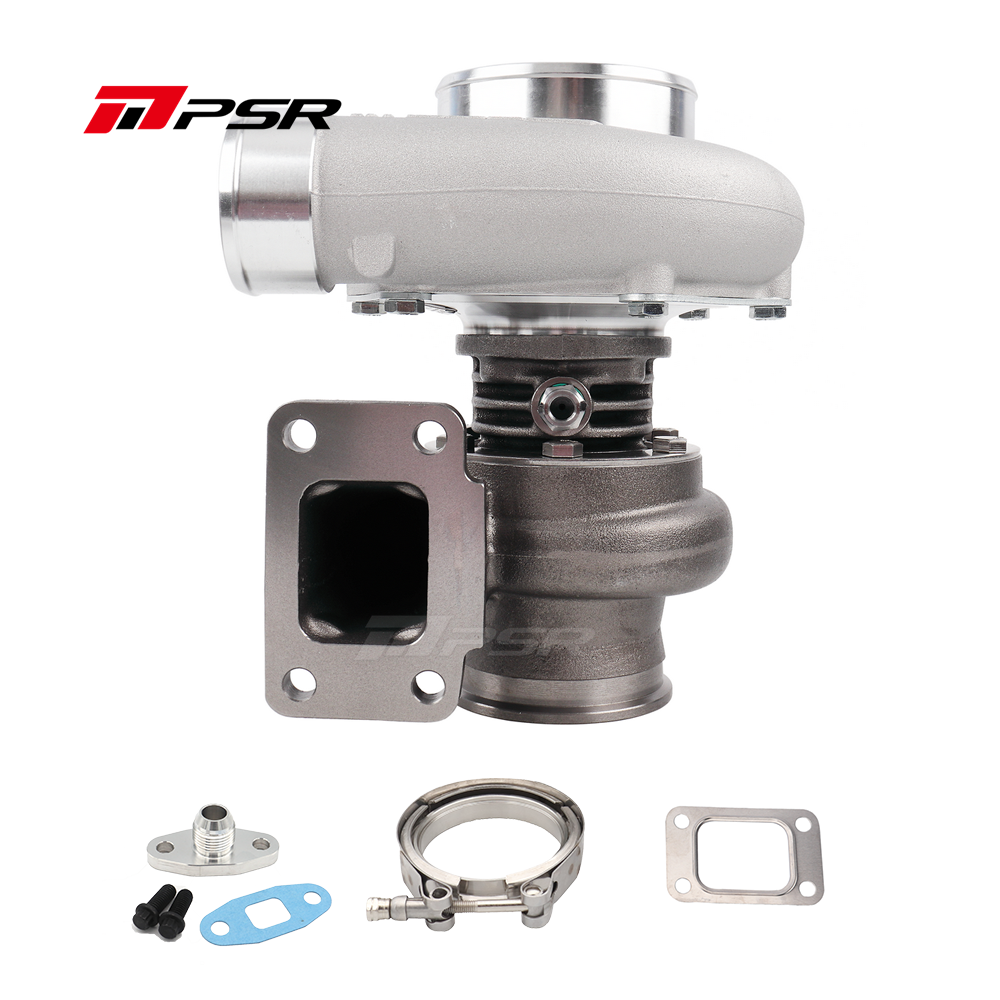

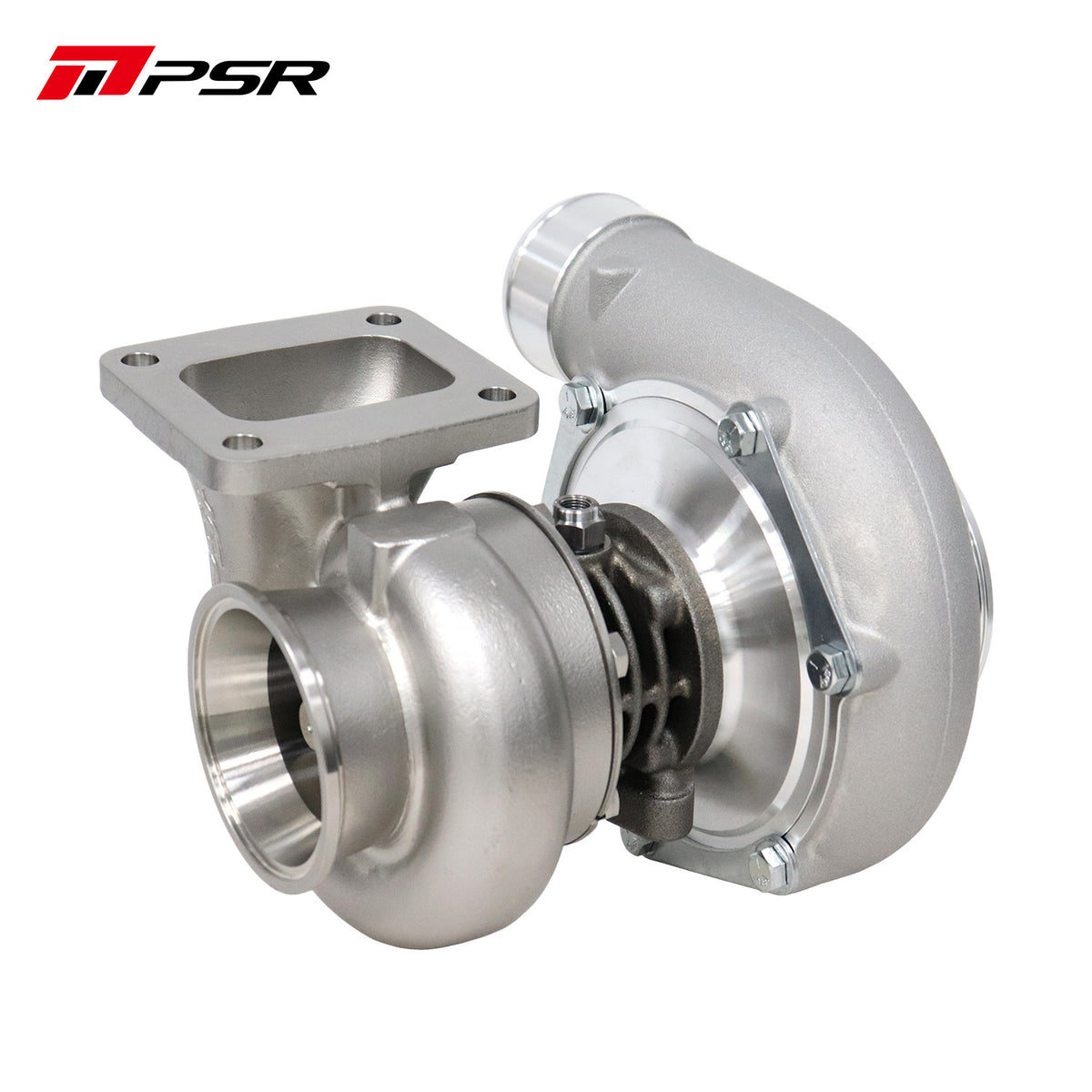

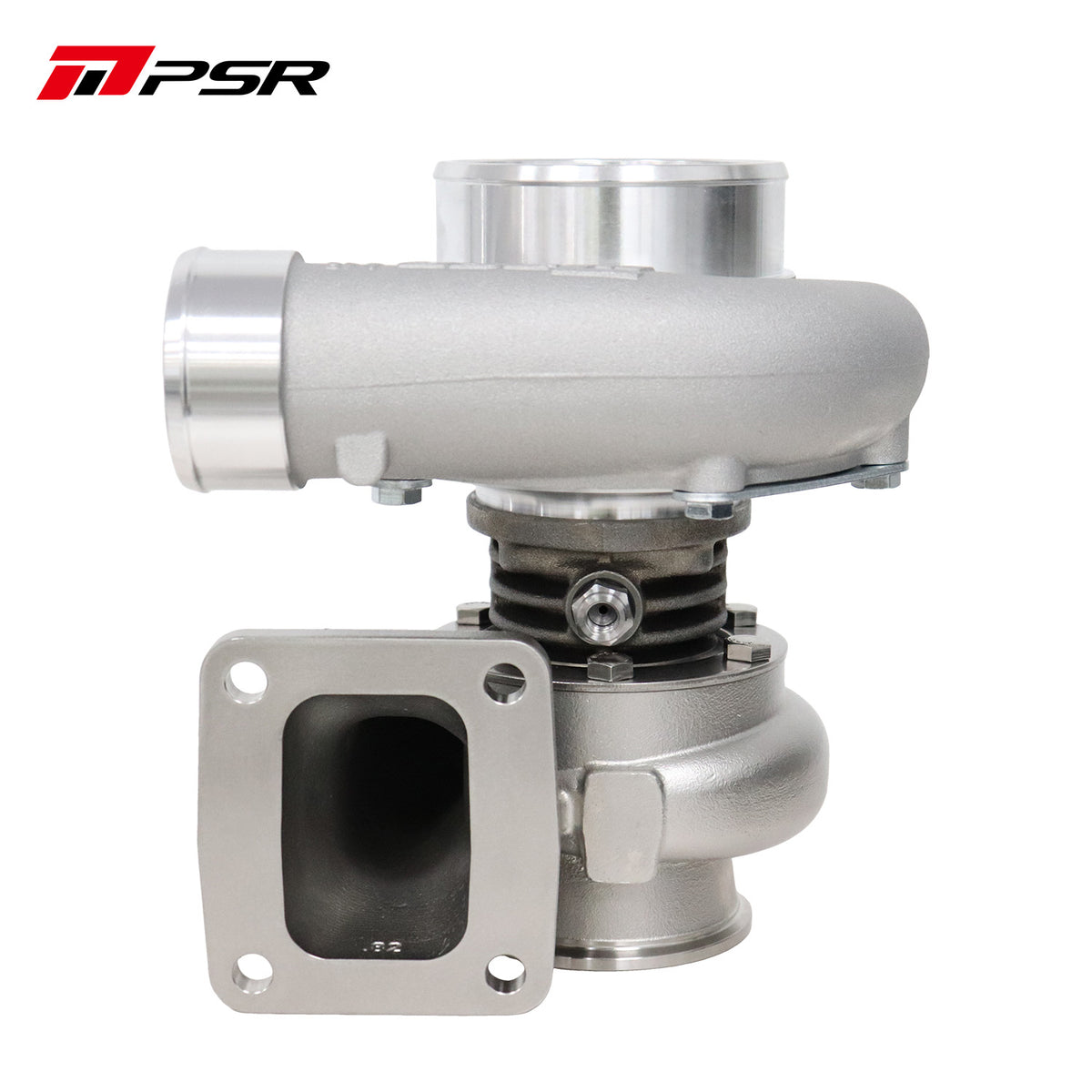

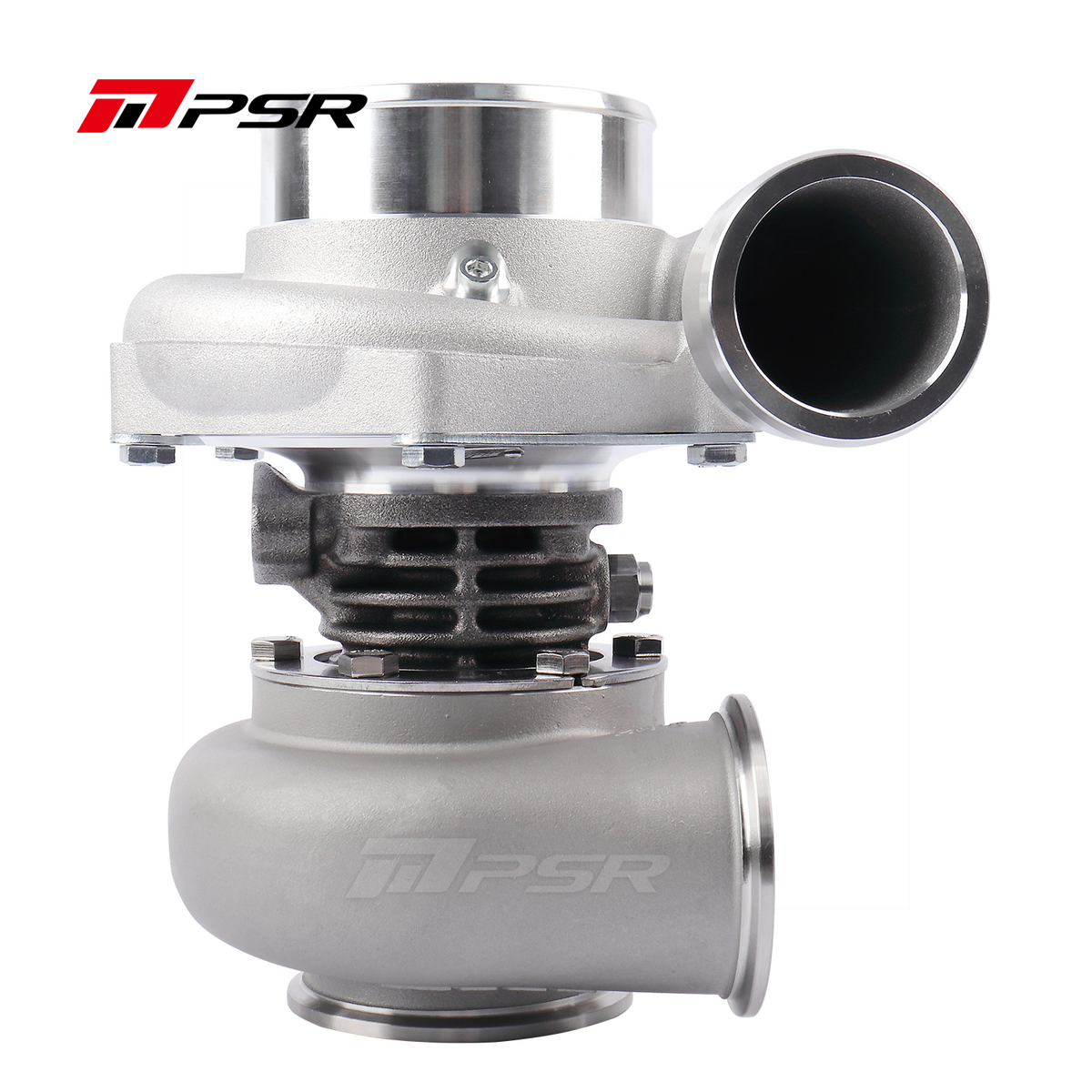

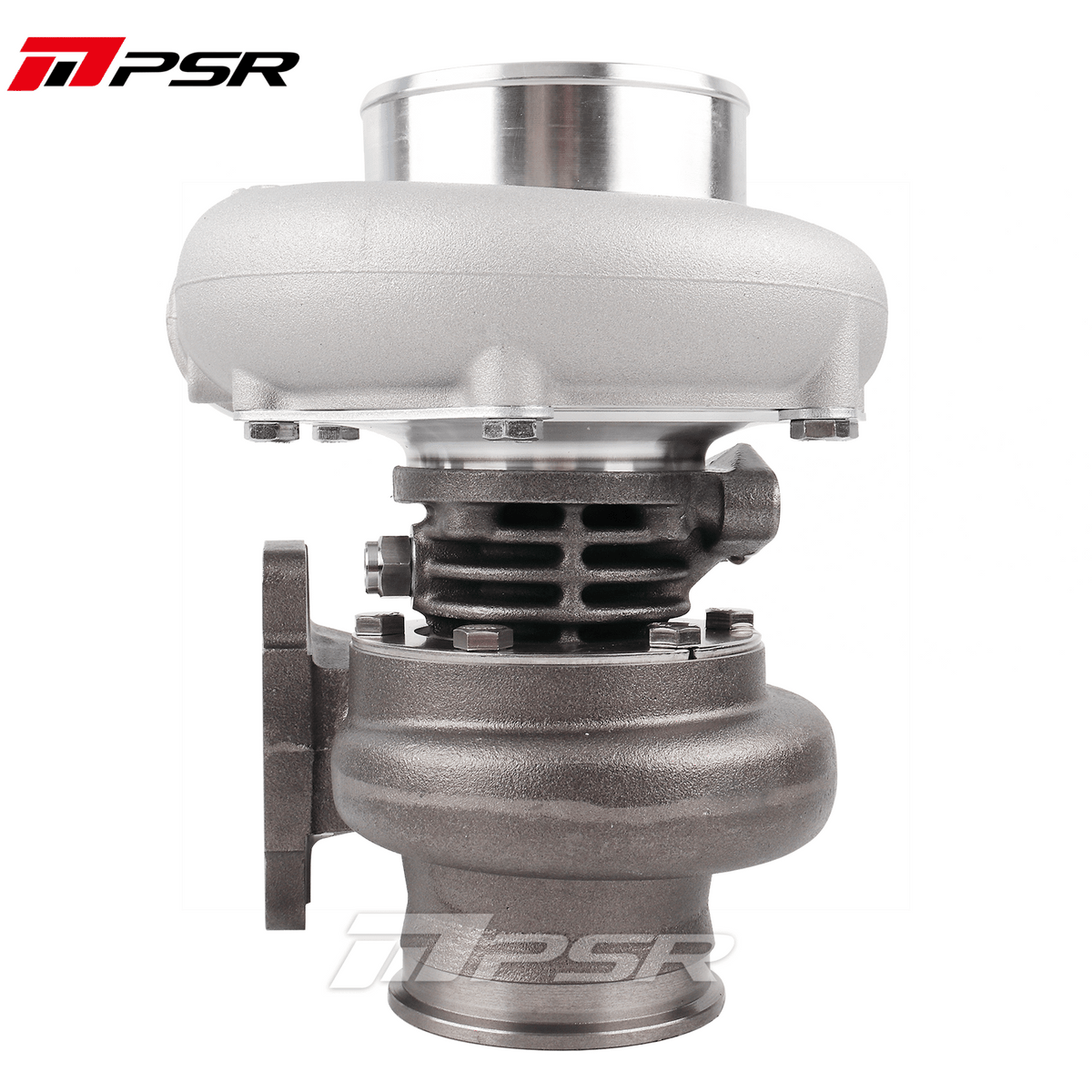

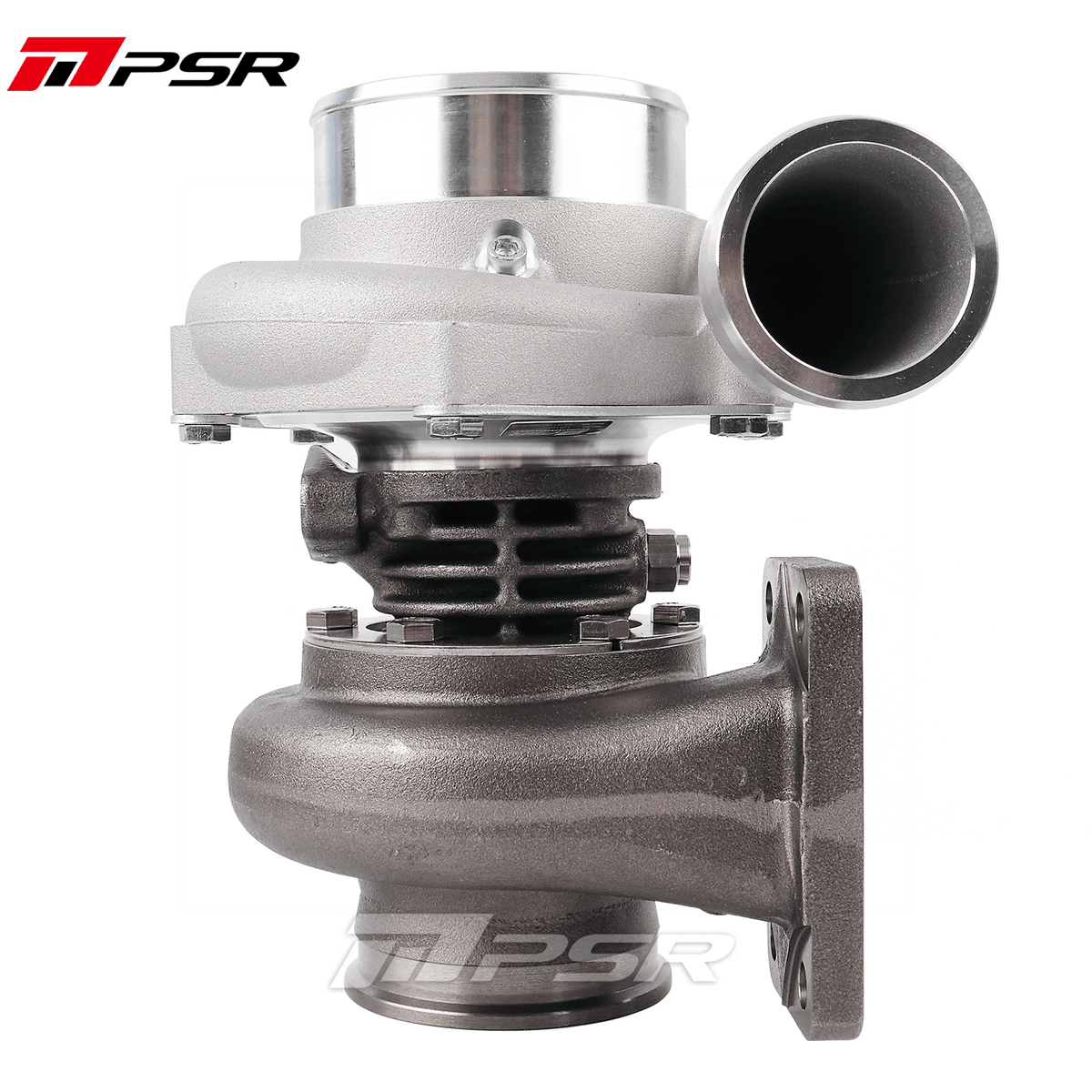

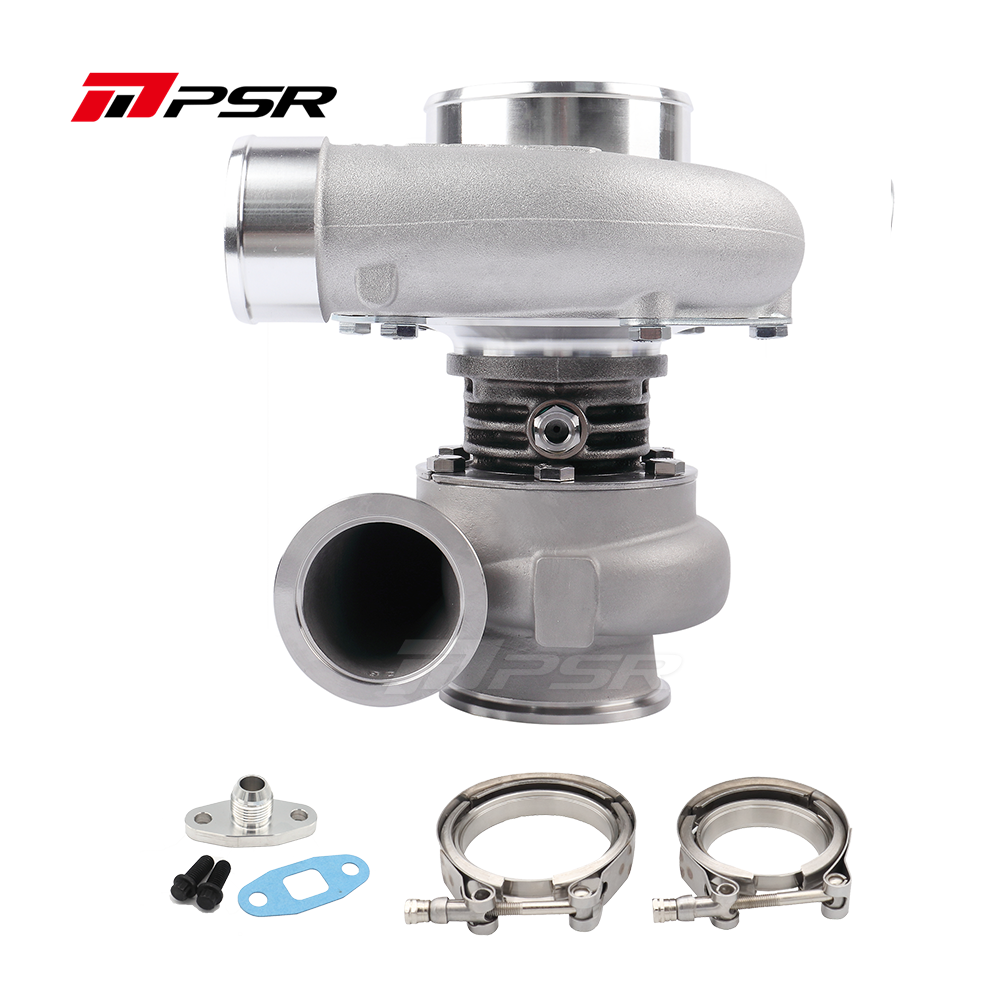

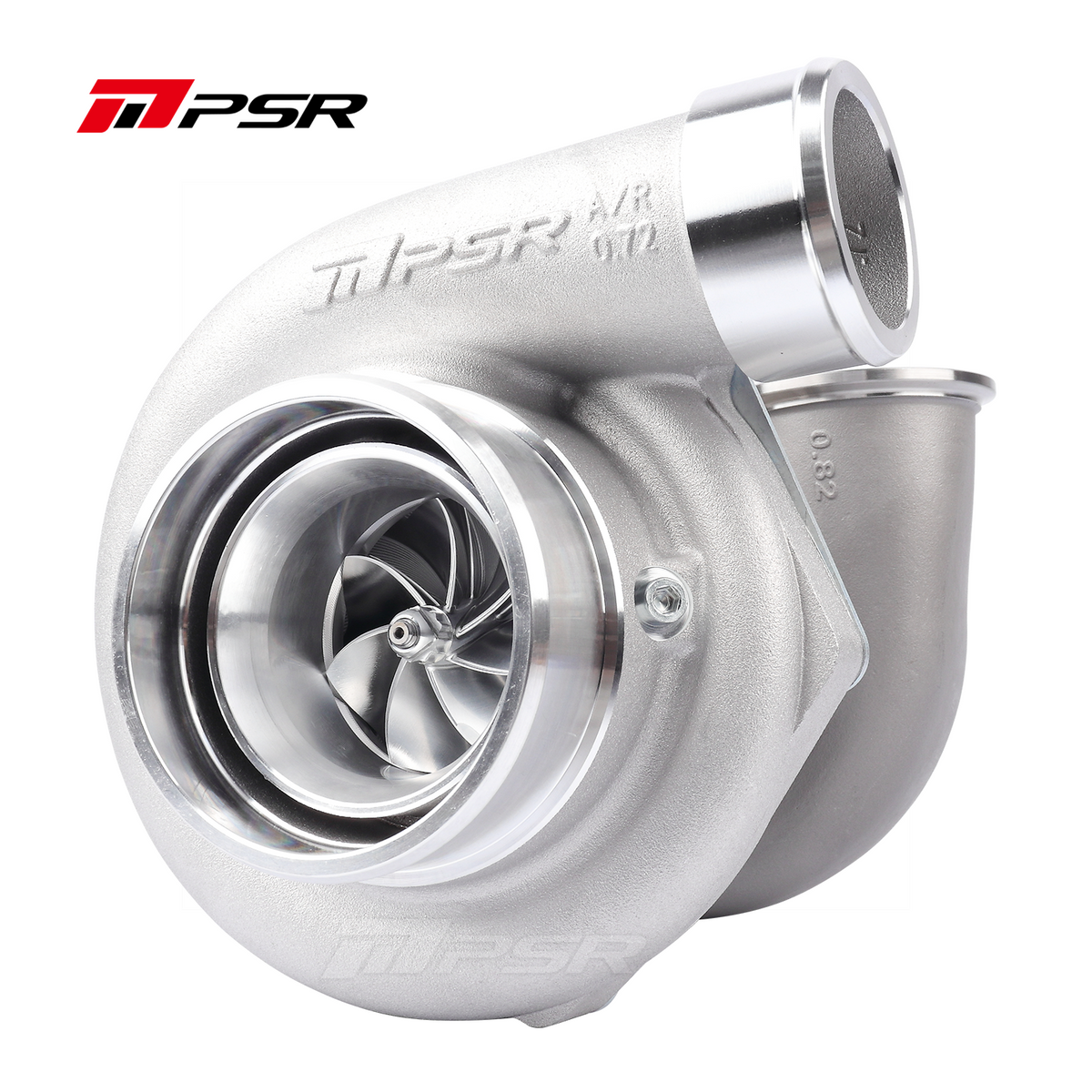

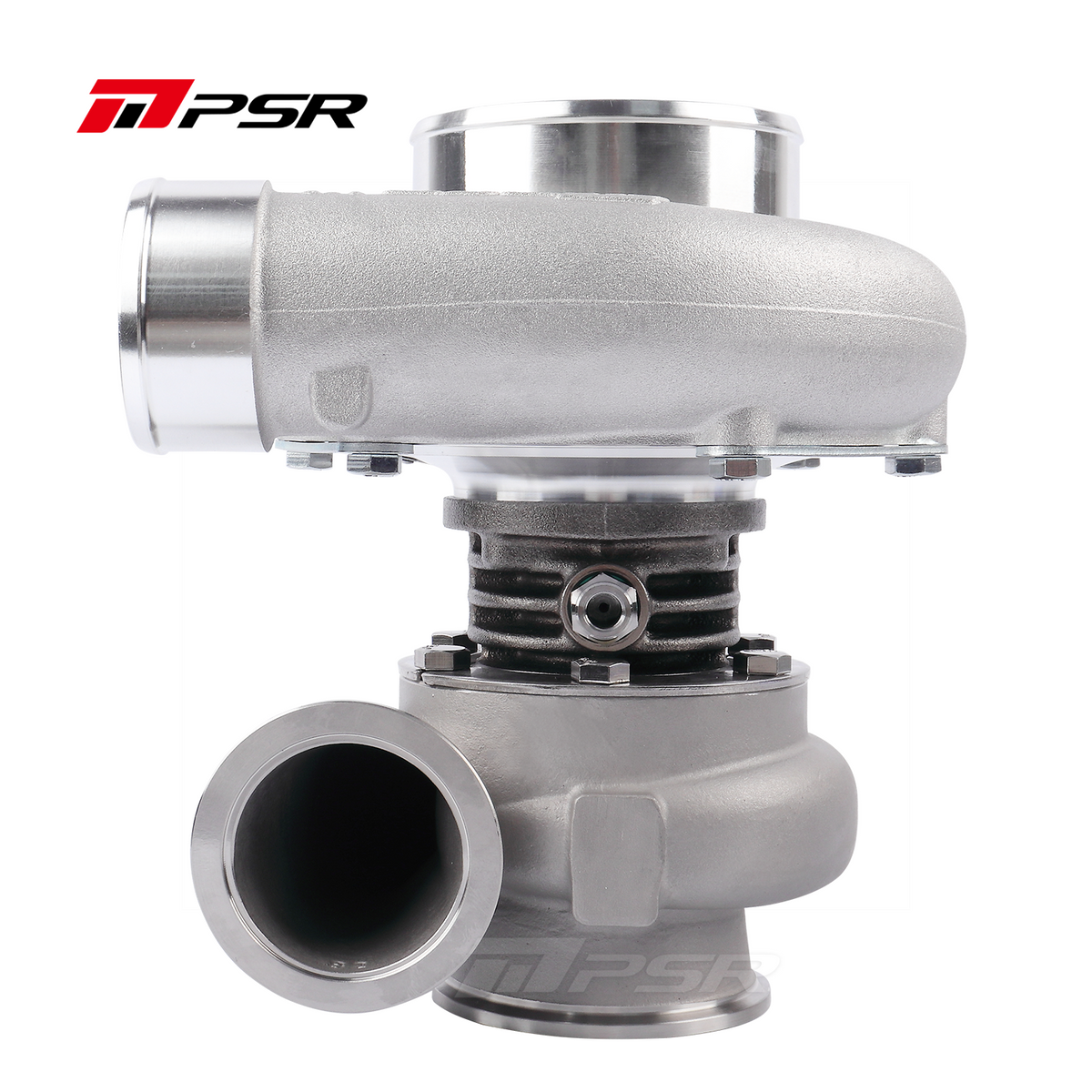

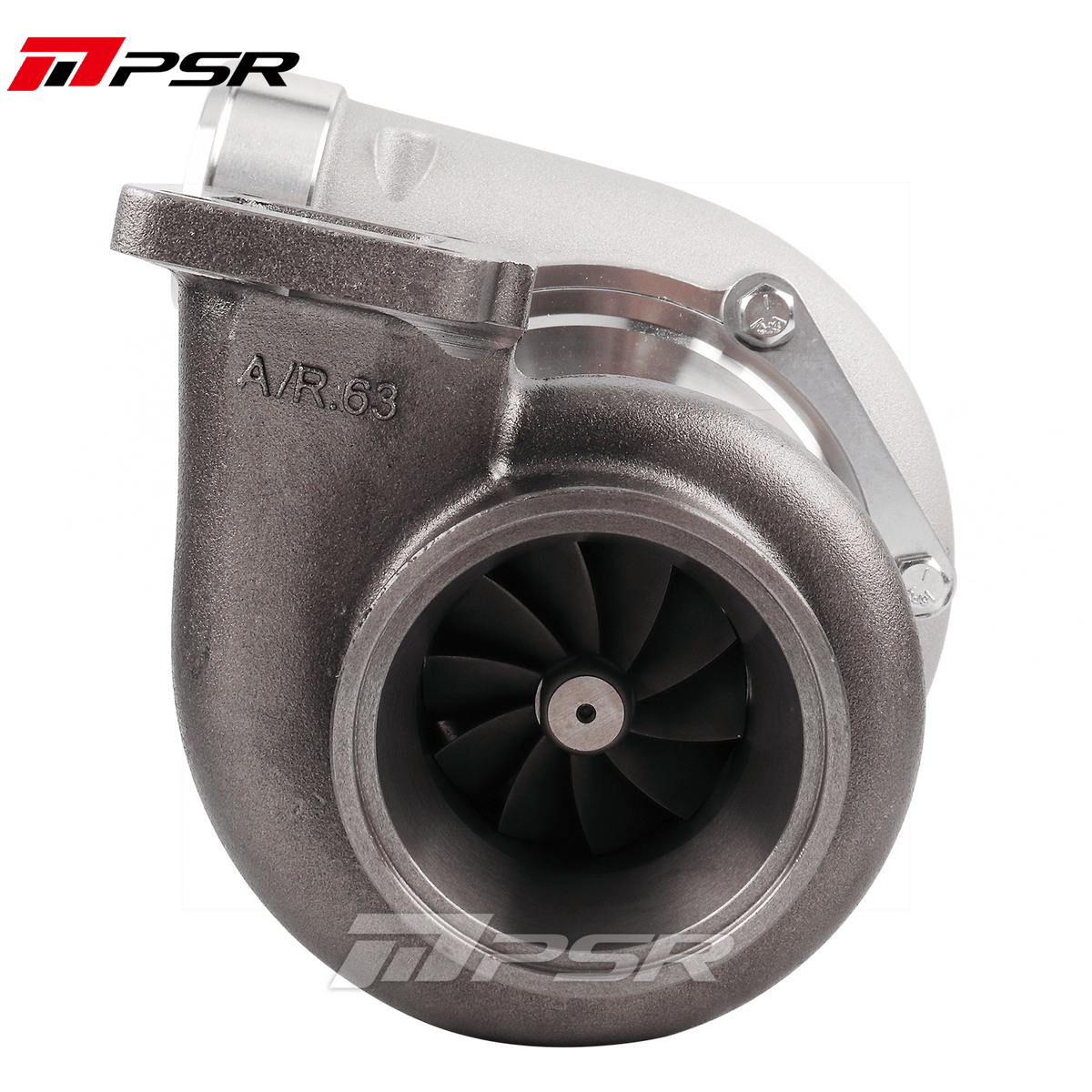

- Turbine Housing Option: T3 0.63A/R (3″ V-band Outlet); Stainless Steel Dual V-band 0.82A/R (2.5″ V-band Inlet, 3″ V-band Outlet)
- Internal oil feed port is 0.9mm
- Oil feed fitting: 1/8-27 NPSF(Drawing)
- Oil drain: T4 flange(Drawing)
Oil Drain Fitting:
10AN_STD
10AN_EXTENDED
