Weld-On Filler Neck & Cap

Regular price
$50.00 NZD
Sale price
$50.00 NZD
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

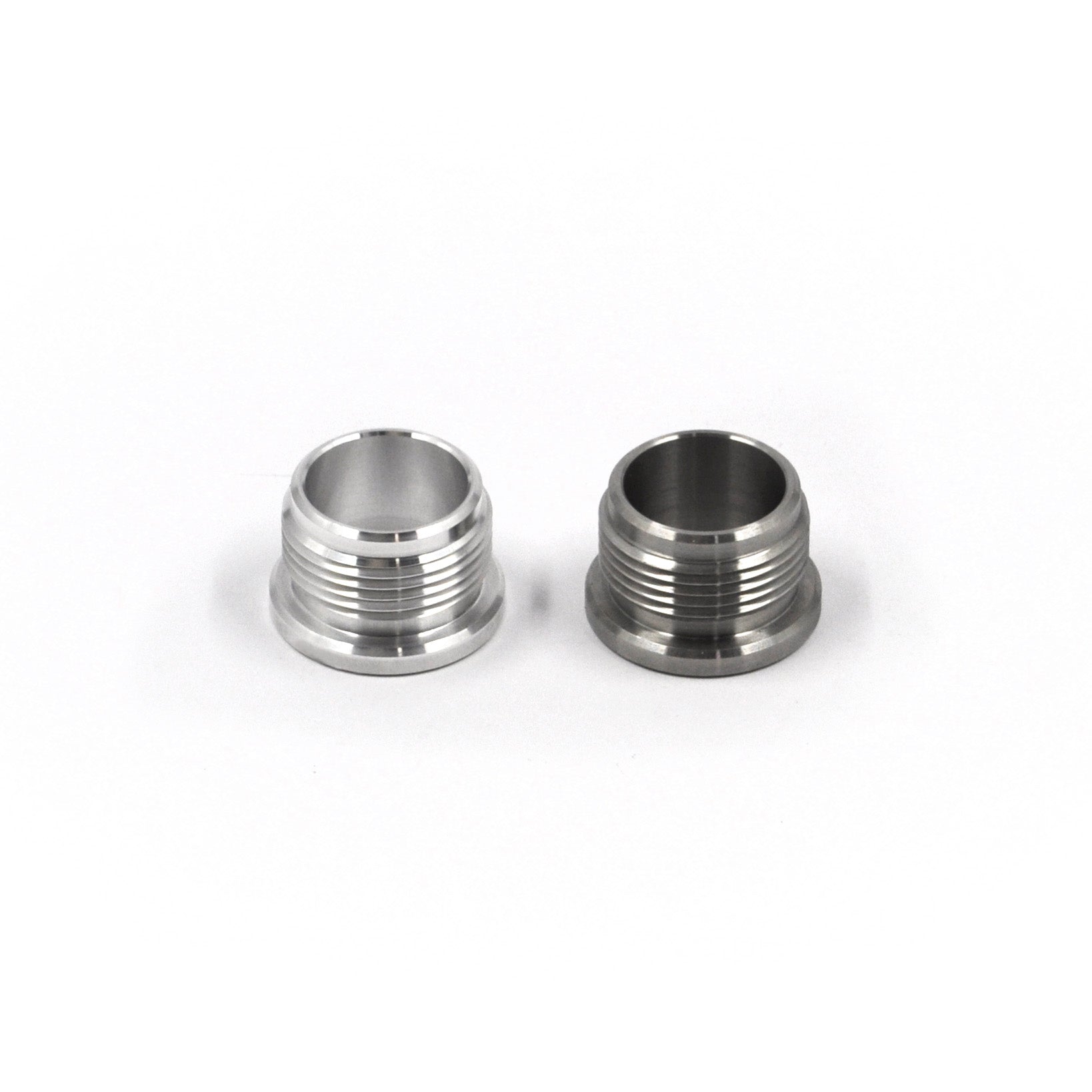

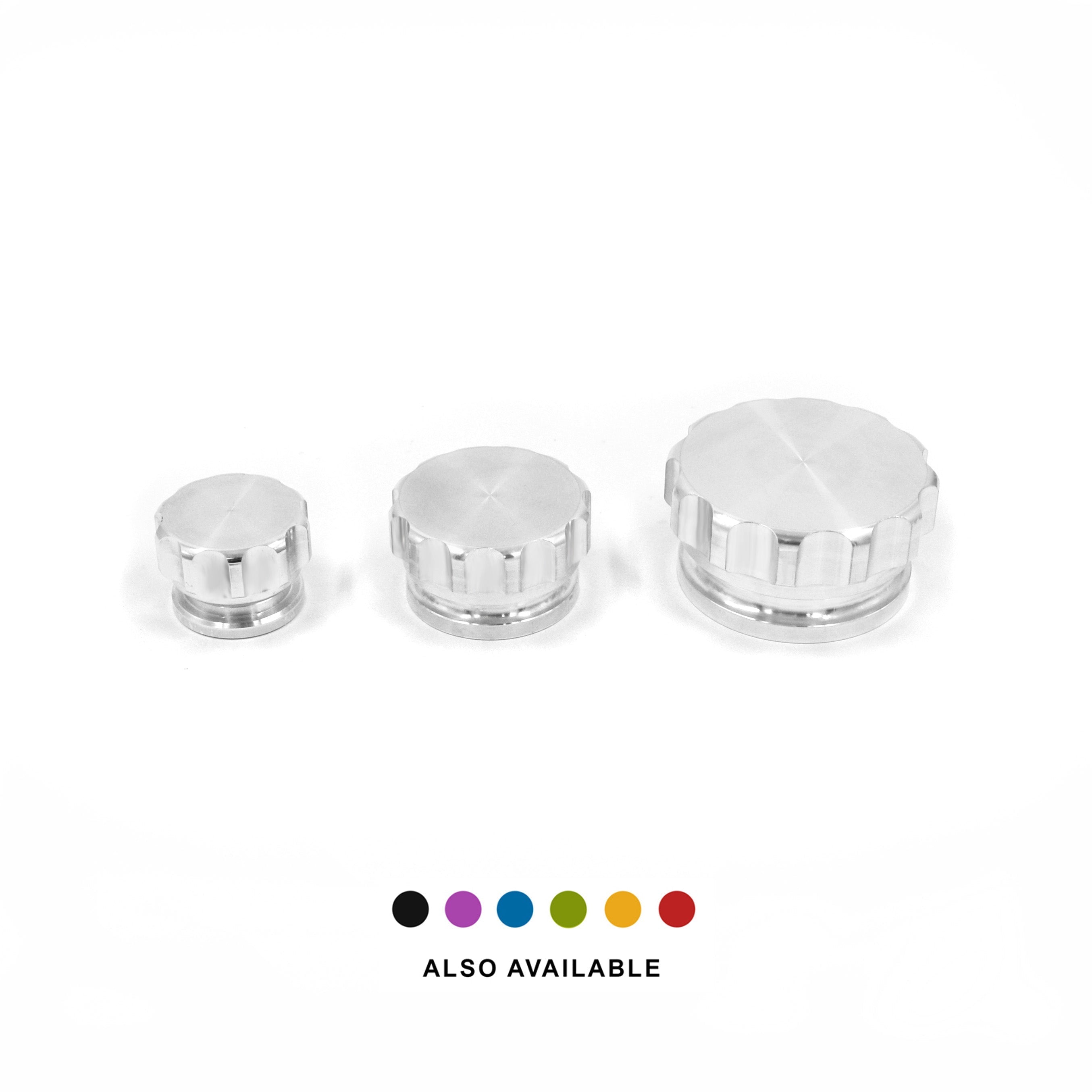

The Weld-On Filler Neck & Cap is available in 3 different sizes and with the option of a stainless steel or aluminium neck.

1" Size

  • Through hole size: 1" (25.4mm)
  • Cap diameter: 44mm
  • Overall height: 29mm
  • Neck weld-on diameter: 34.5mm
  • Captive o-ring in cap.

1.5" Size

  • Through hole size: 1.5" (38.1mm)
  • Cap diameter: 57mm
  • Overall height: 31mm
  • Neck weld-on diameter: 49.5mm
  • Captive sealing o-ring in cap.

2" Size

  • Through hole size: 2" (50.8mm)
  • Cap diameter: 76mm
  • Overall height: 38mm
  • Neck weld-on diameter: 66.5mm
  • Captive sealing o-ring in cap.

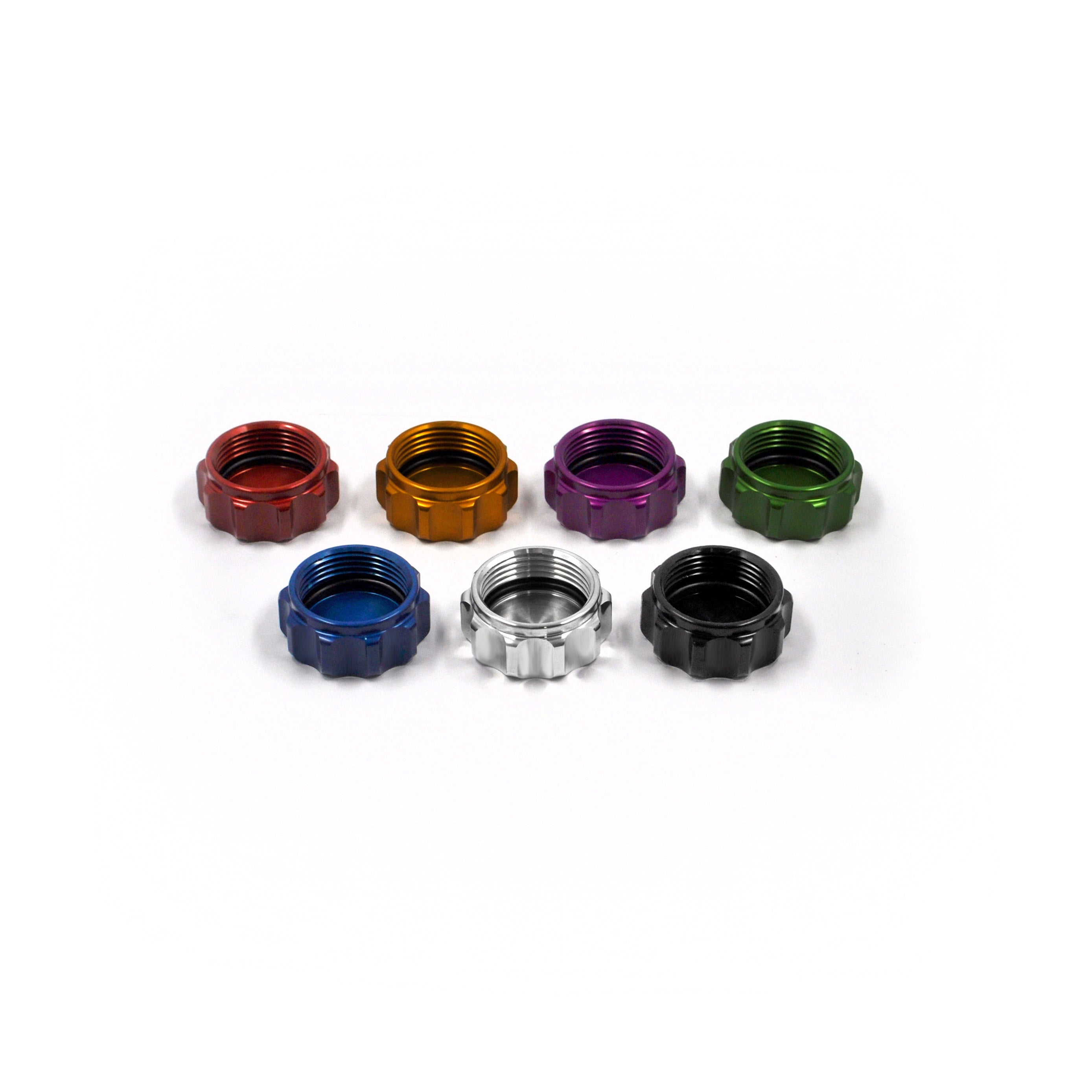

The cap is available in natural aluminium or 6 anodised colours.
