Low Profile Oil Filter Relocation Kit

Regular price
$657.00 NZD
Sale price
$657.00 NZD
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

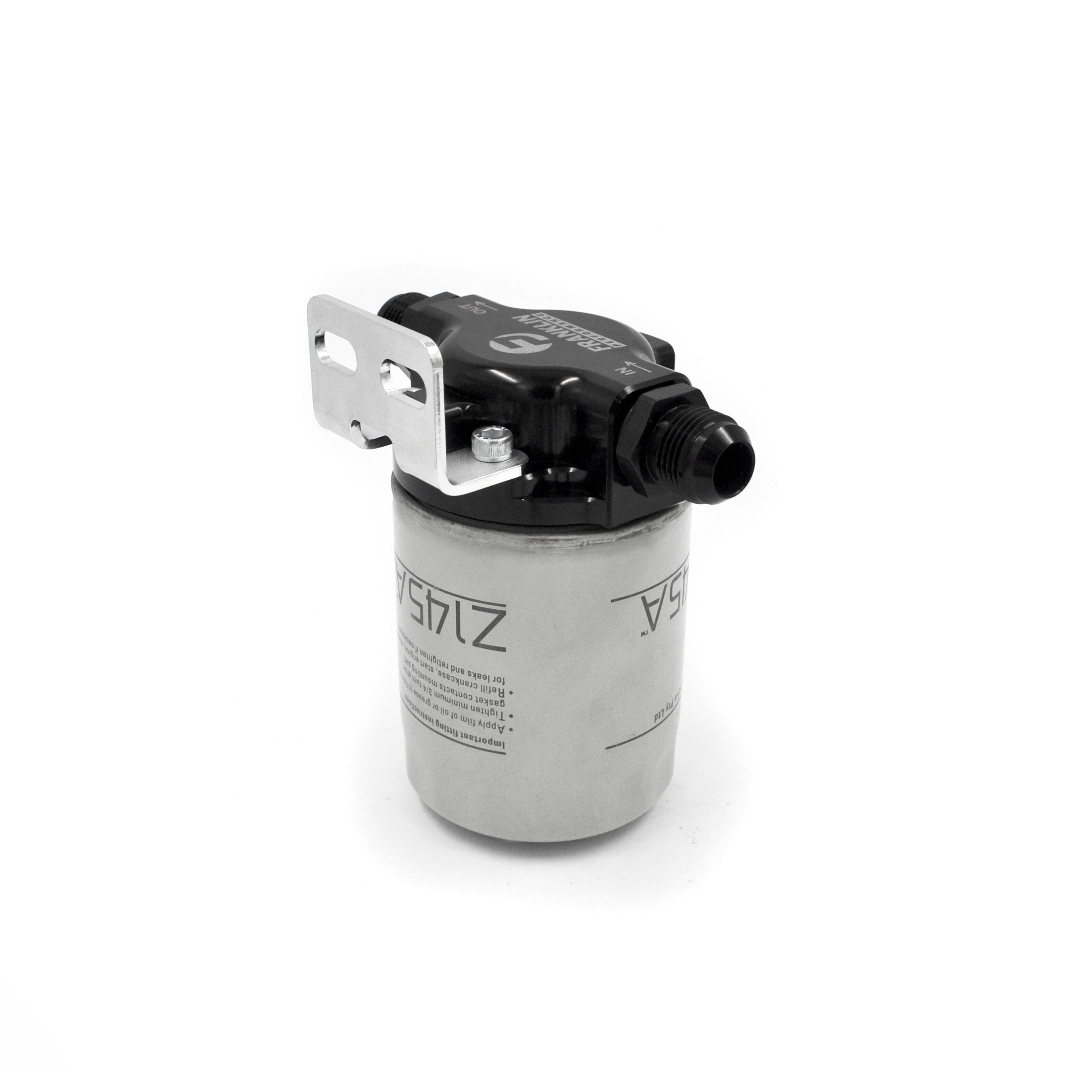

Low profile remote oil filter kit manufactured by Franklin Performance for mounting an oil filter away from your engine, to make filter changes easier or where space is limited in the engine bay.

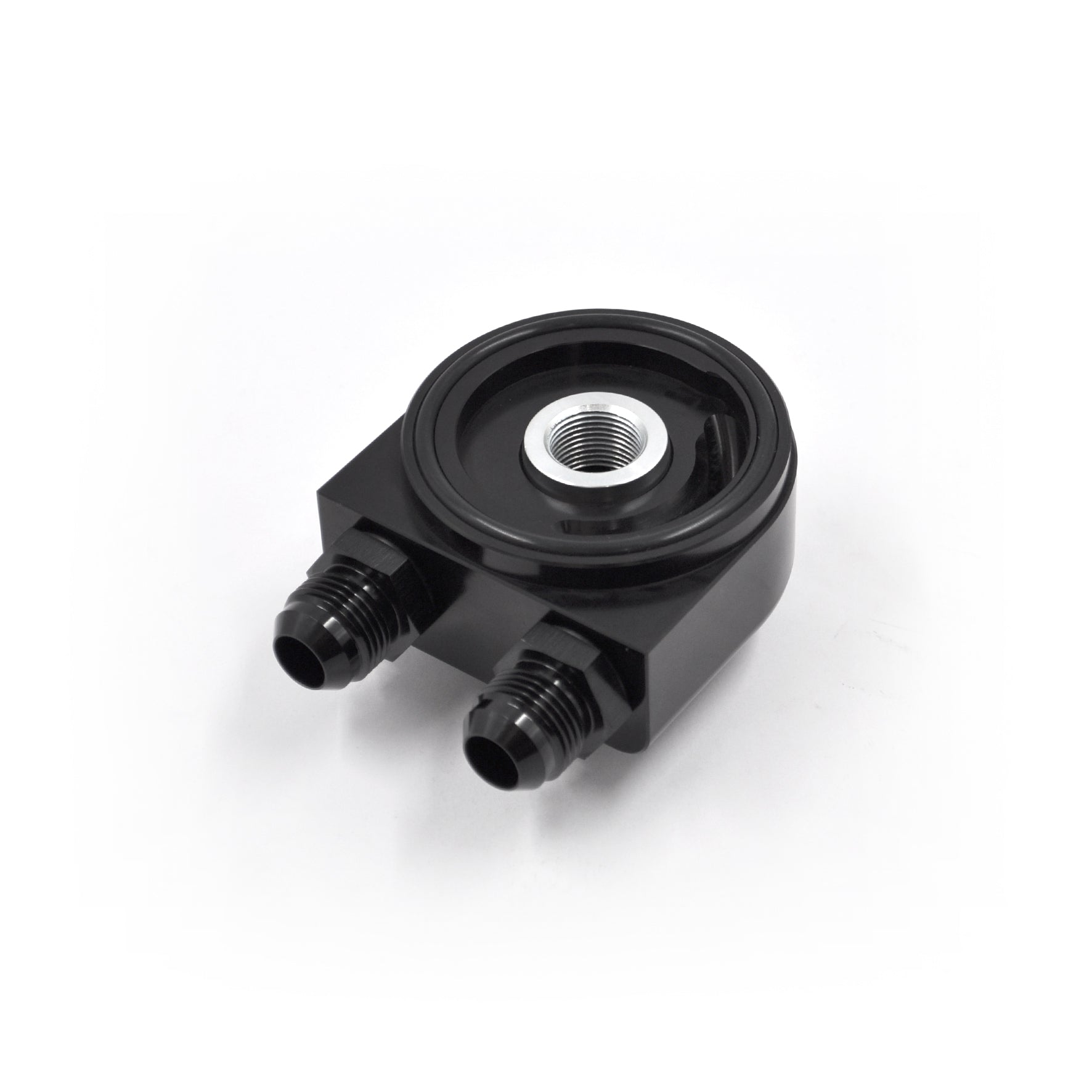

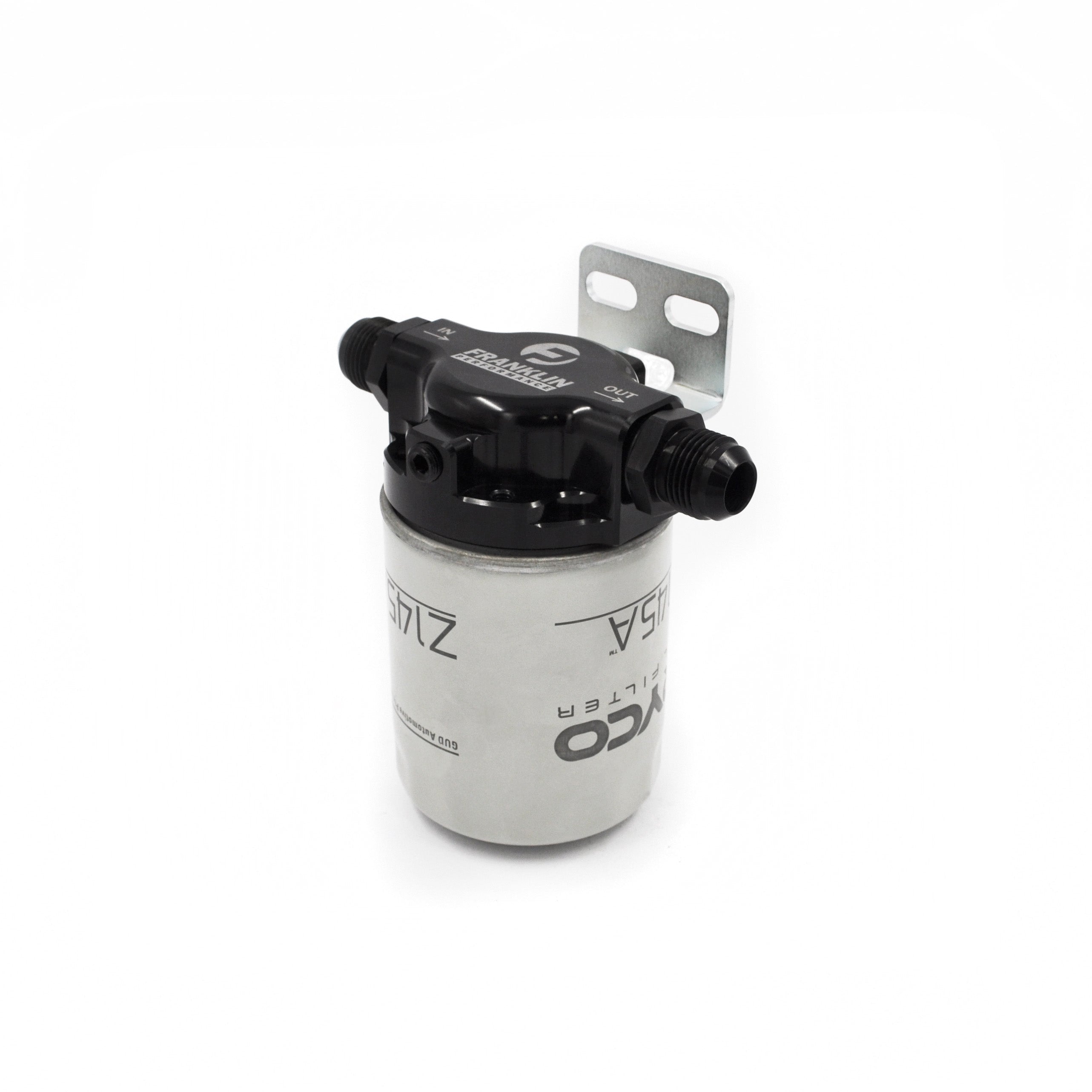

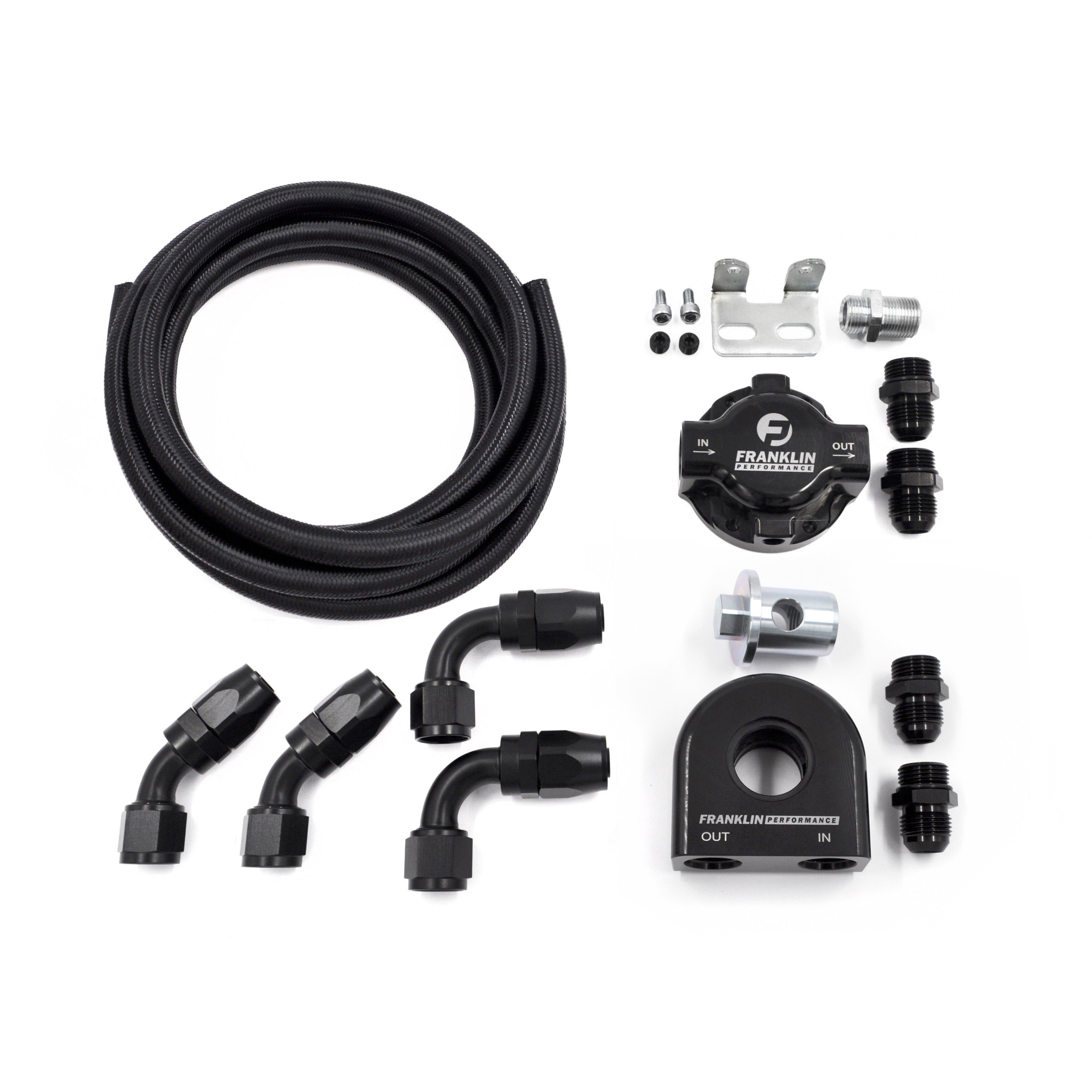

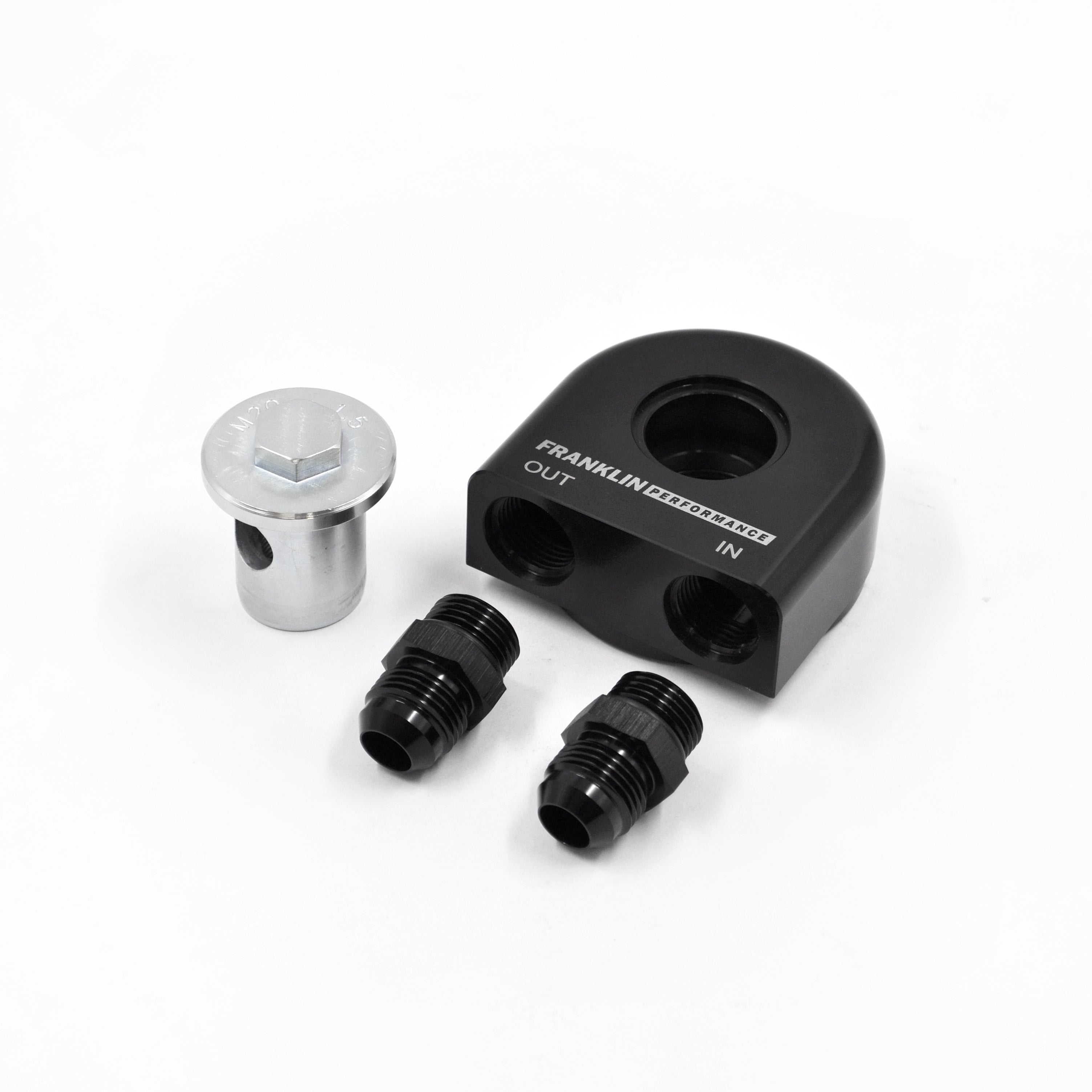

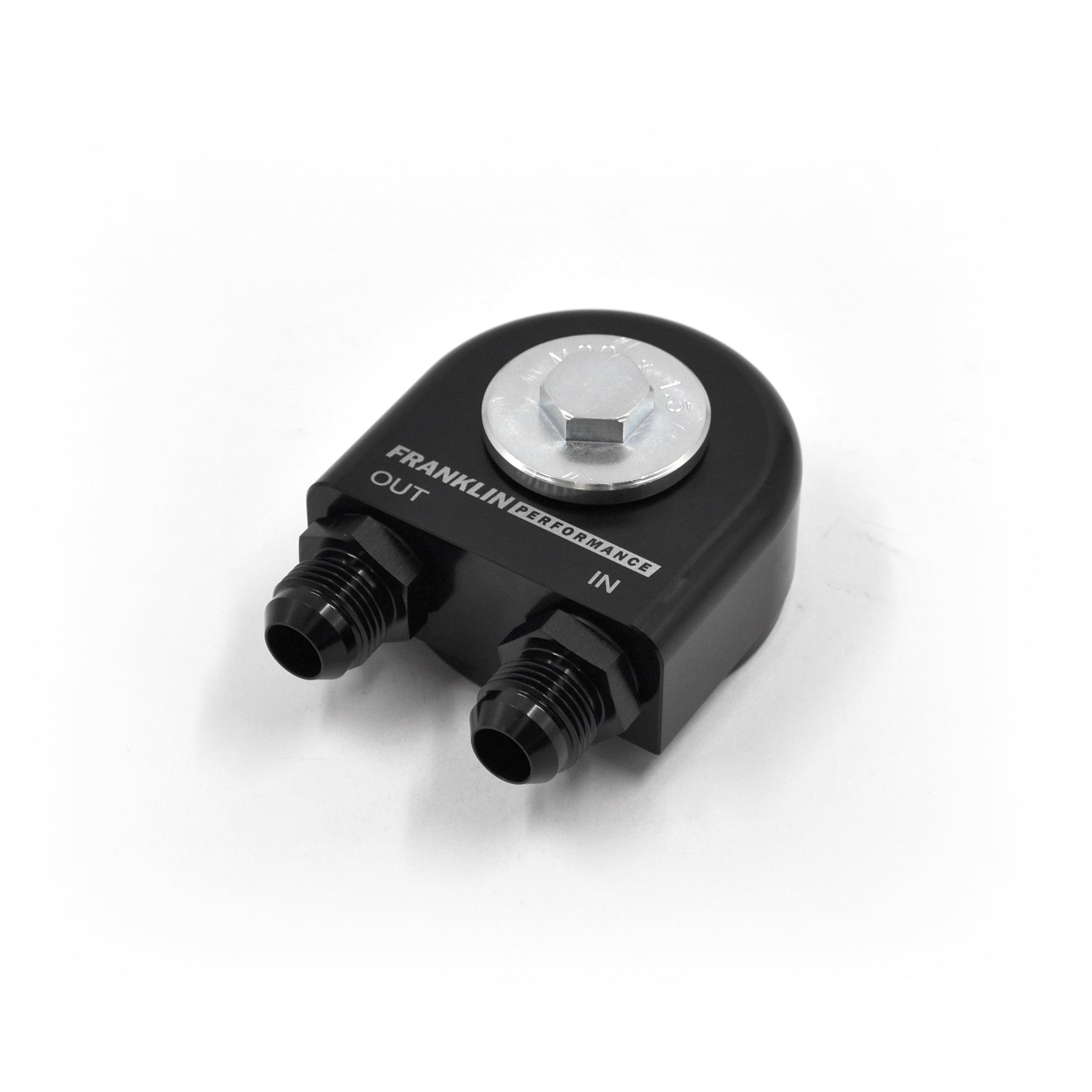

This high quality kit consists of our own remote oil filter mount and low profile oil filter take-off block which is screwed onto your engine, along with the required fittings and hose. The product has many features to improve oil flow that you won't find on other remote filter kits.

Both the remote oil filter mount & oil filter take off block are made from billet high-grade 6061 aluminium, then anodised black for great looks and corrosion resistance. The threaded adaptor for the remote filter mount is made from 316 stainless steel.

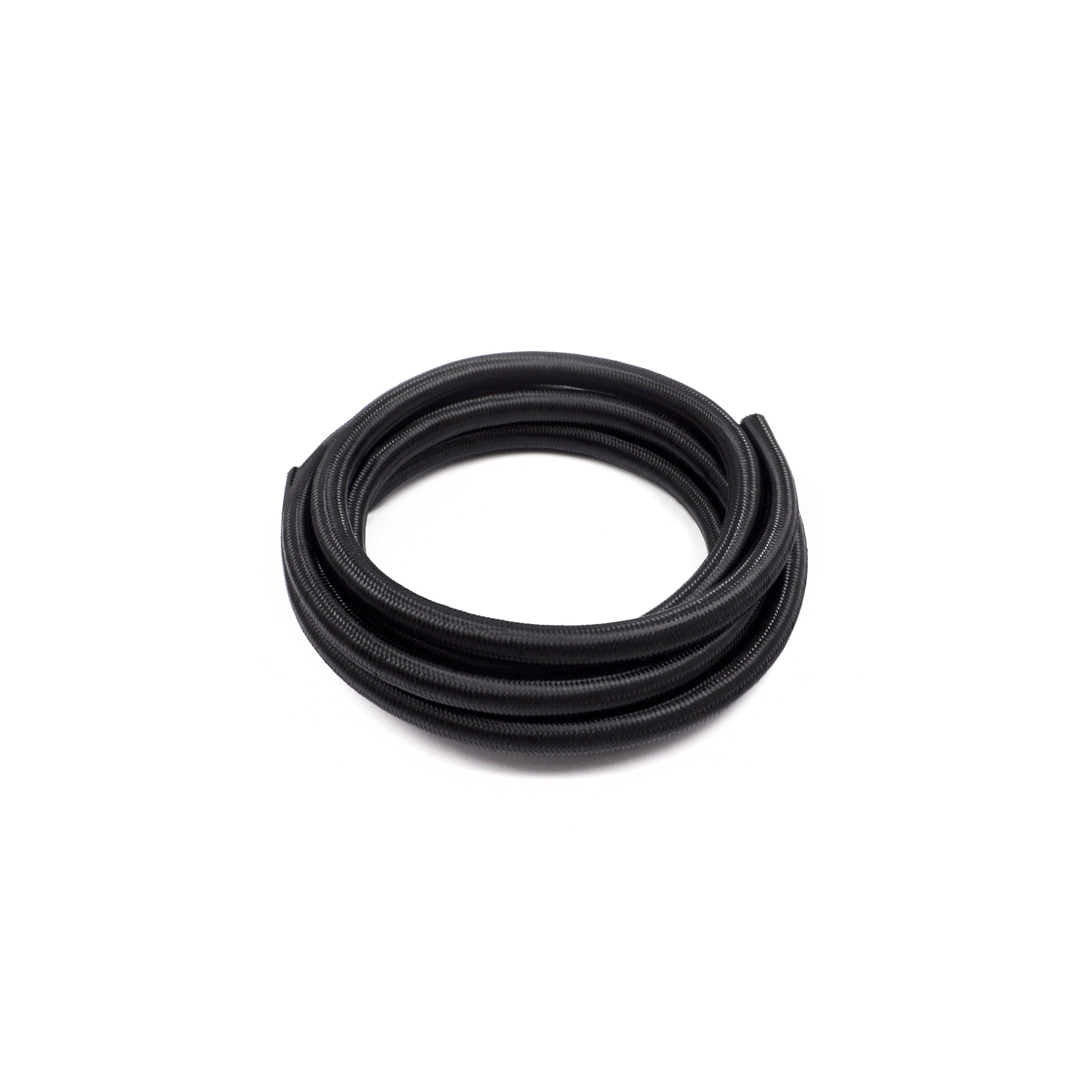

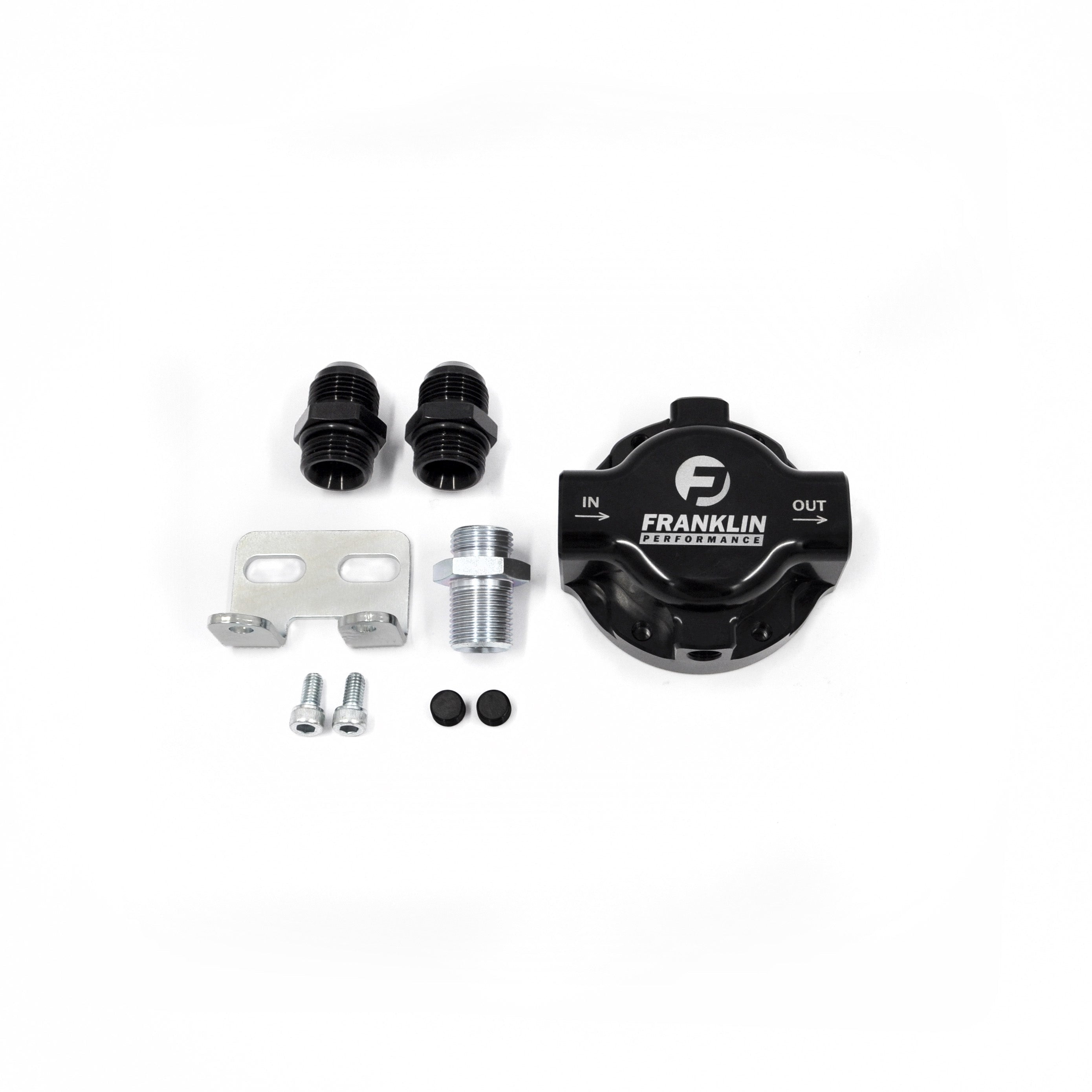

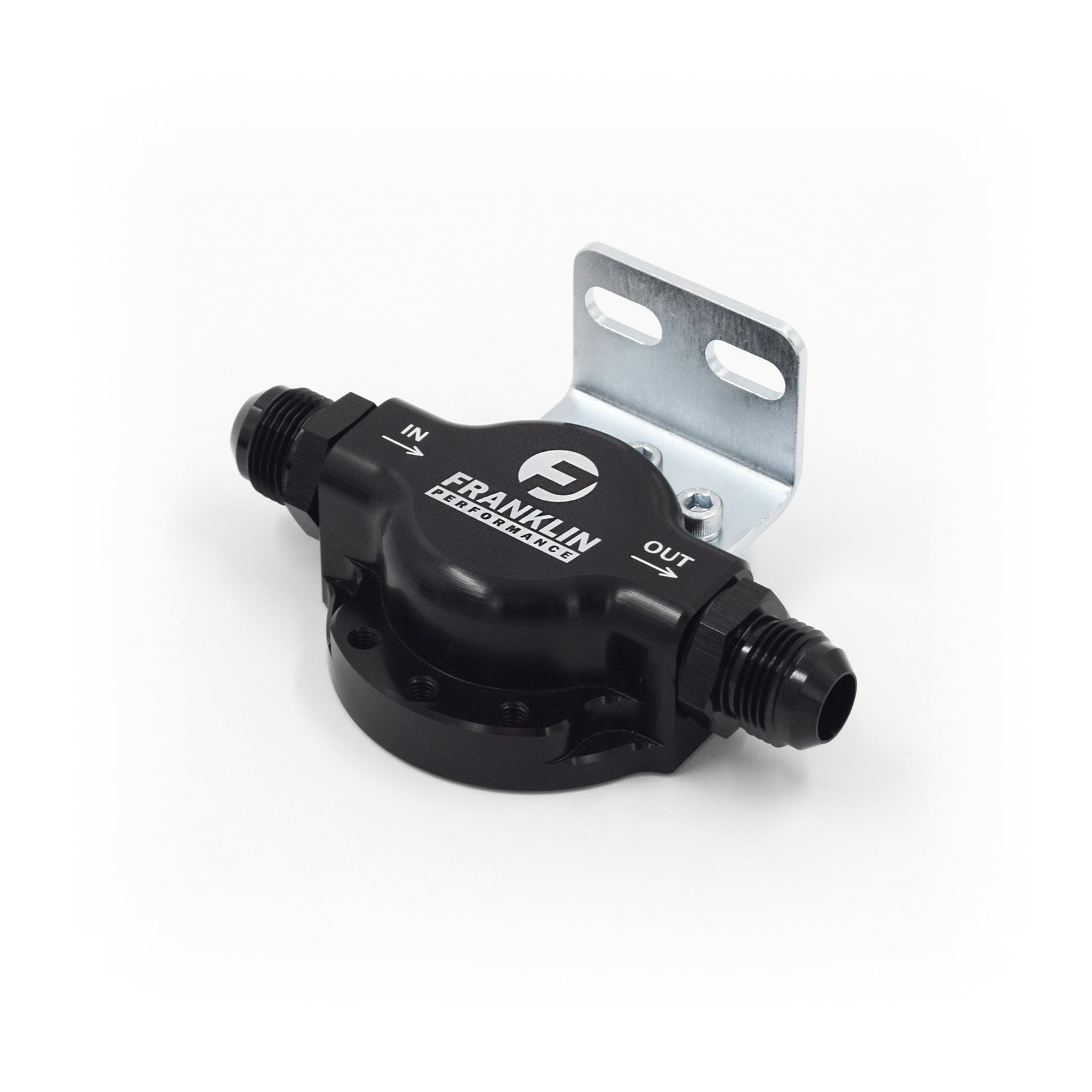

10AN sized ORB ports are provided on both parts for plumbing the engine oil to and from the filter mount. It has a bracket which can be mounted two different ways to make installation easier. The kit is supplied with 2.5m of 10AN hose.

For the engine-side, the low profile remote filter adaptor has the options of the following threads to suit the engine:

  • M18x1.5
  • M20x1.5
  • M22x1.5
  • M24x1.5
  • 3/4" UNF
  • 13/16"-16 UNF
  • 7/8" UNF
  • 1"-12 UNF
  • 1"-14 UN
  • 1"-16 UN

The remote oil filter mount has the options of the following threads to suit common oil filter sizes:

  • M20x1.5
  • 3/4" UNF
